BM10B(0.6)-34DP-0.4V(51) datasheet, PDF

BM10B(0.6)-34DP-0.4V(51): DescriptionCard Edge Connector, 34 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size186KB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

BM10B(0.6)-34DP-0.4V(51) Overview

Card Edge Connector, 34 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	34

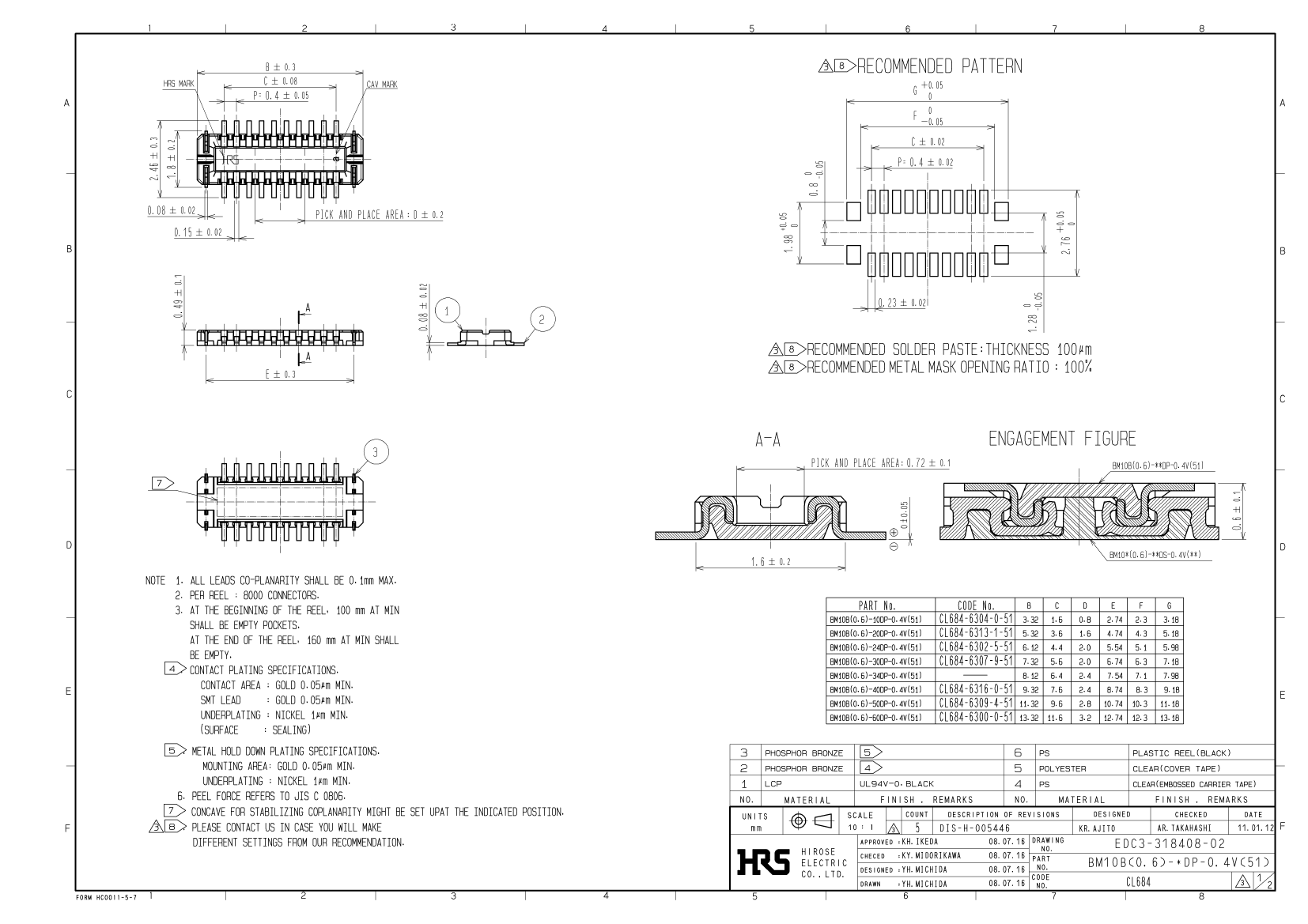

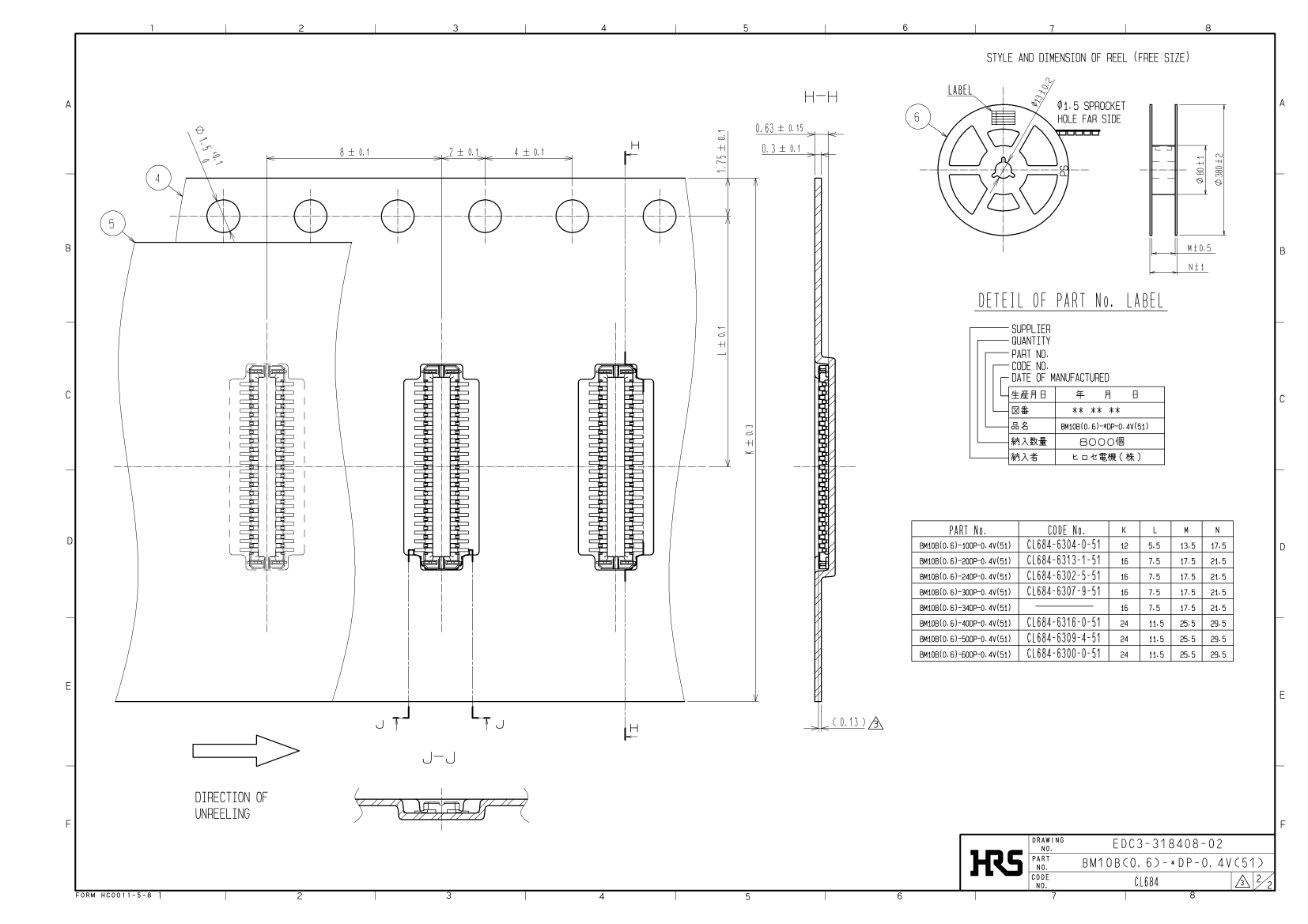

DRAWING FOR REFERENCE: This is subject to change without notice

08/11/2012

HR

S

DR

AW

IN

G

FO

R

RE

FE

RE

NC

E

	BM10B(0.6)-34DP-0.4V(51)	CL684-6300-0-51	CL684-6316-0-51	CL684-6304-0-51
Description	Card Edge Connector, 34 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal	Card Edge Connector	Card Edge Connector	Card Edge Connector
Maker	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-
