BHR-12/830-D12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BHR-12/830-D12

Preview

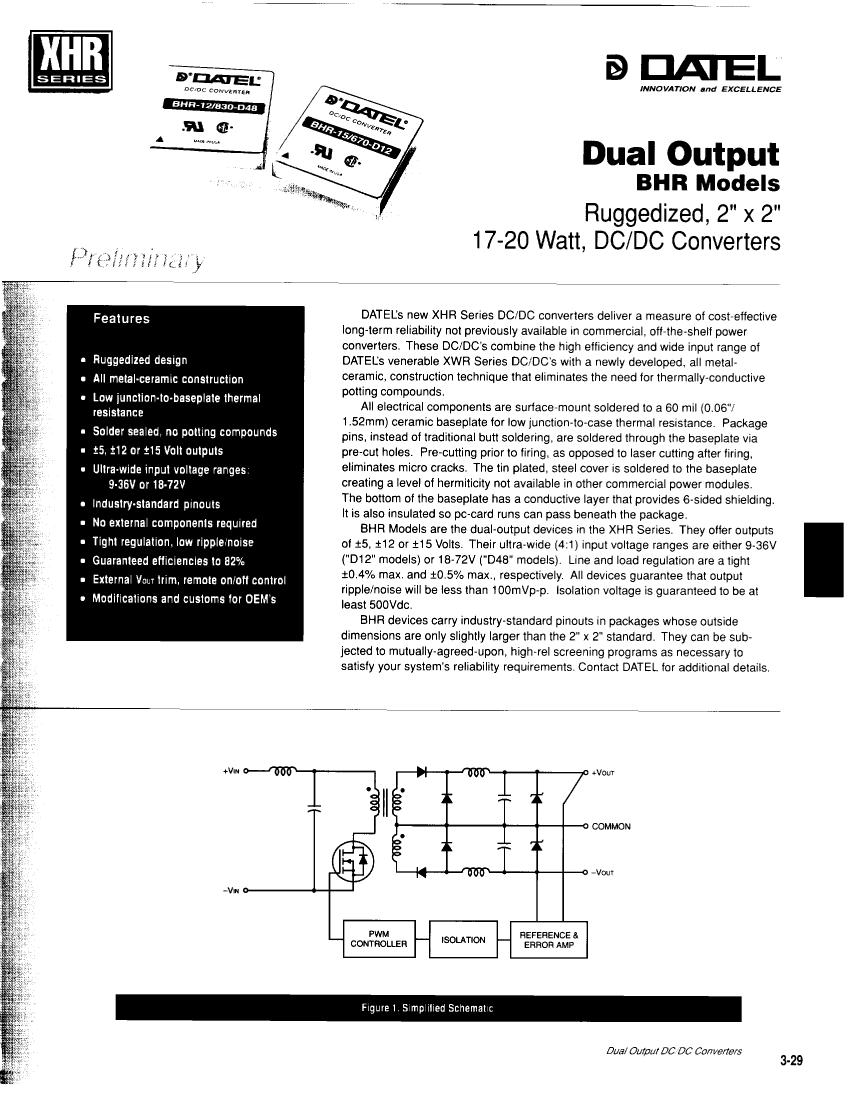

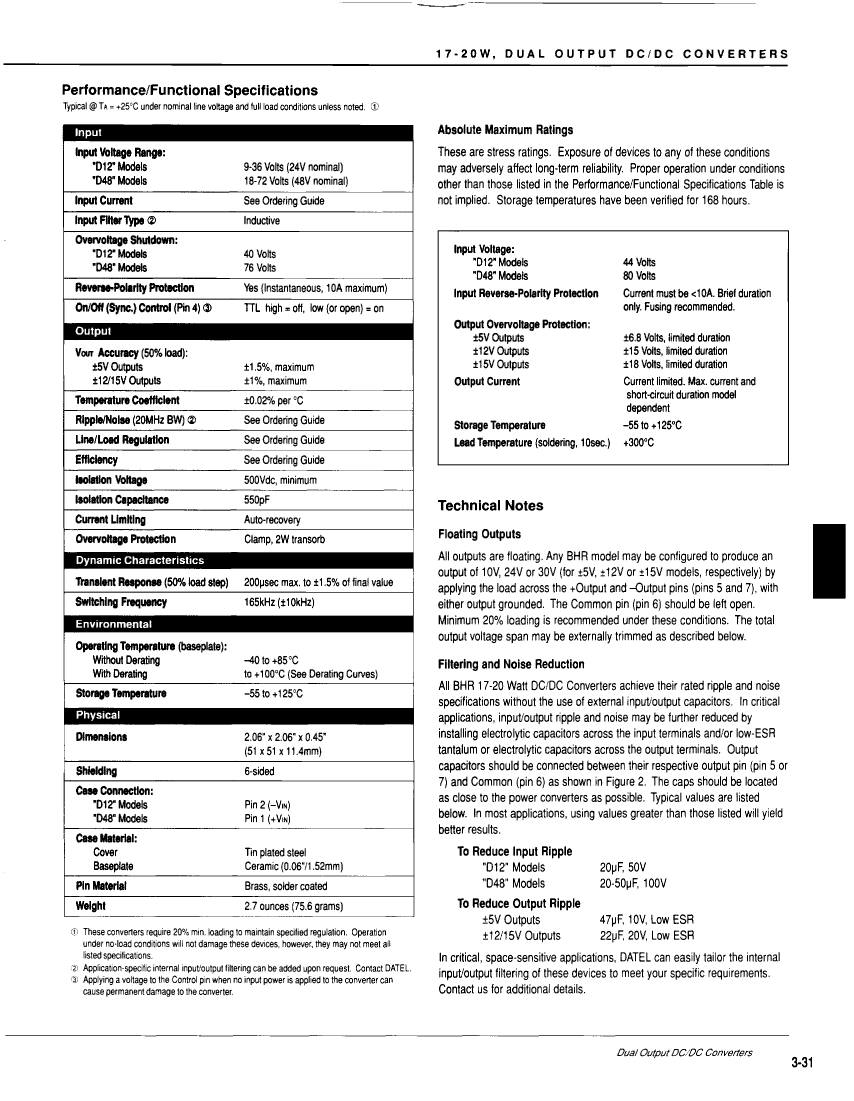

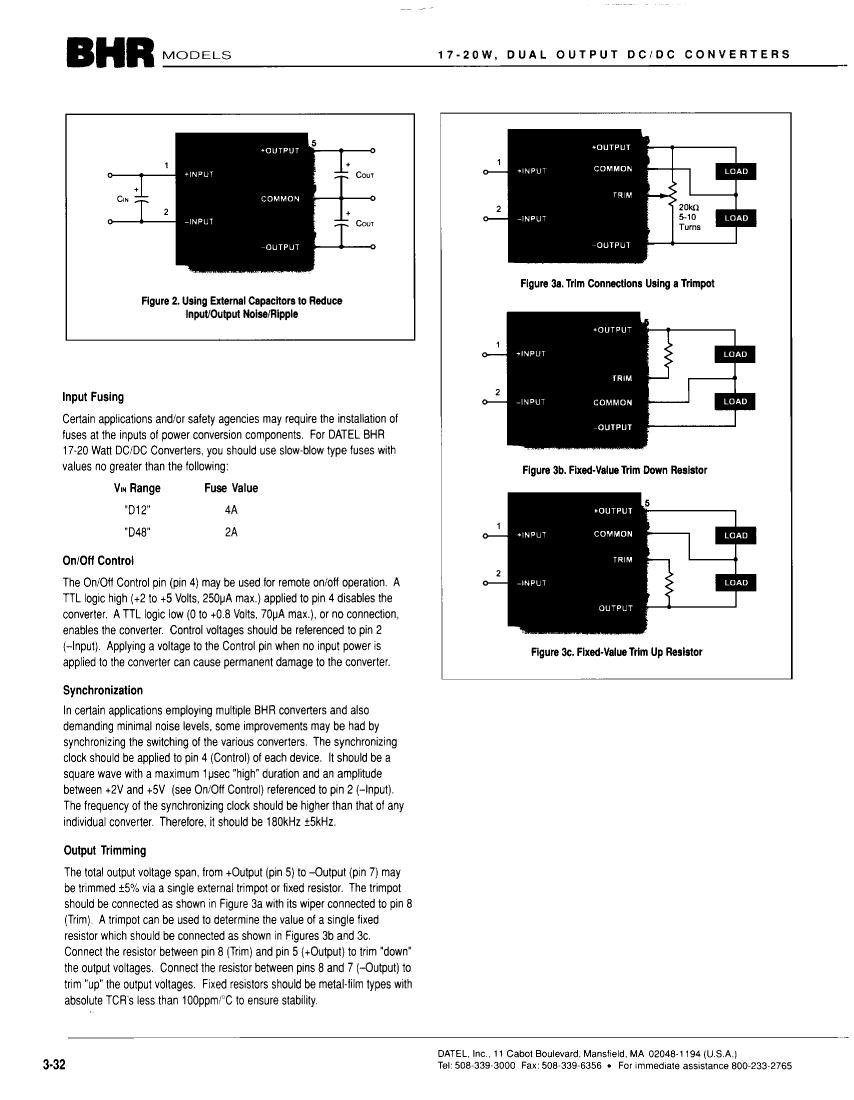

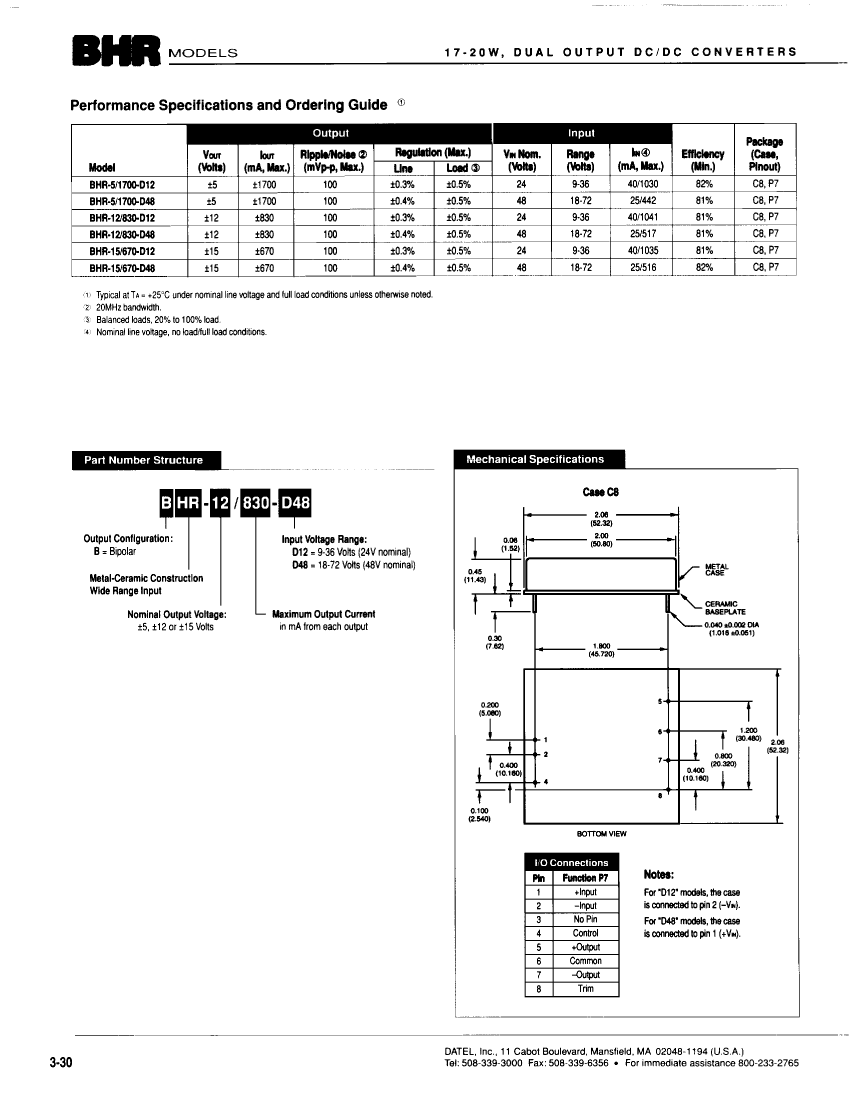

BHR-12/830-D12: DescriptionDC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7; CategoryPower/power management The power supply circuit; File Size221KB，4 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

BHR-12/830-D12 Overview

DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7

BHR-12/830-D12 Parametric

Parameter Name	Attribute value
Maker	DATEL Inc.
Parts packaging code	MODULE
package instruction	, MODULE,7LEAD,1.8
Contacts	7
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA
Efficiency (main output)	81%
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	S-MDMA-P7
Maximum grid adjustment rate	0.3%
Maximum load regulation	0.5%
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.83 A
Maximum output voltage	12.6 V
Minimum output voltage	11.4 V
Nominal output voltage	12 V
Package body material	METAL
Encapsulate equivalent code	MODULE,7LEAD,1.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

BHR-12/830-D12 Related Products

	BHR-12/830-D12	AK09970	BHR-5/1700-D48	BHR-12/830-D48	BHR-15/670-D12	BHR-15/670-D48
Description	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7	3-axis Magnetic Sensor with Programmable Switch	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7	DC-DC Regulated Power Supply Module, 2 Output, Hybrid, 2 X 2 INCH, METAL, PACKAGE-7
Maker	DATEL Inc.	-	-	DATEL Inc.	DATEL Inc.	DATEL Inc.
Parts packaging code	MODULE	-	MODULE	MODULE	MODULE	MODULE
package instruction	, MODULE,7LEAD,1.8	-	, MODULE,7LEAD,1.8	, MODULE,7LEAD,1.8	, MODULE,7LEAD,1.8	, MODULE,7LEAD,1.8
Contacts	7	-	7	7	7	7
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	-	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Certification	UL; CSA	-	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Efficiency (main output)	81%	-	81%	81%	81%	82%
Maximum input voltage	36 V	-	72 V	72 V	36 V	72 V
Minimum input voltage	9 V	-	18 V	18 V	9 V	18 V
Nominal input voltage	24 V	-	48 V	48 V	24 V	48 V
JESD-30 code	S-MDMA-P7	-	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7
Maximum grid adjustment rate	0.3%	-	0.4%	0.4%	0.3%	0.4%
Maximum load regulation	0.5%	-	0.5%	0.5%	0.5%	0.5%
Number of functions	1	-	1	1	1	1
Output times	2	-	2	2	2	2
Number of terminals	7	-	7	7	7	7
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.83 A	-	1.7 A	0.83 A	0.67 A	0.67 A
Maximum output voltage	12.6 V	-	5.25 V	12.6 V	15.75 V	15.75 V
Minimum output voltage	11.4 V	-	4.75 V	11.4 V	14.25 V	14.25 V
Nominal output voltage	12 V	-	5 V	12 V	15 V	15 V
Package body material	METAL	-	METAL	METAL	METAL	METAL
Encapsulate equivalent code	MODULE,7LEAD,1.8	-	MODULE,7LEAD,1.8	MODULE,7LEAD,1.8	MODULE,7LEAD,1.8	MODULE,7LEAD,1.8
Package shape	SQUARE	-	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Protect	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE	-	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE	CURRENT; POLARITY; OUTPUT OVER VOLTAGE; INPUT OVER VOLTAGE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	-	NO	NO	NO	NO
technology	HYBRID	-	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	PIN/PEG	-	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	-	DUAL	DUAL	DUAL	DUAL
Fine-tuning/adjustable output	YES	-	YES	YES	YES	YES
