MT28F016S5SG-9 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MT28F016S5SG-9

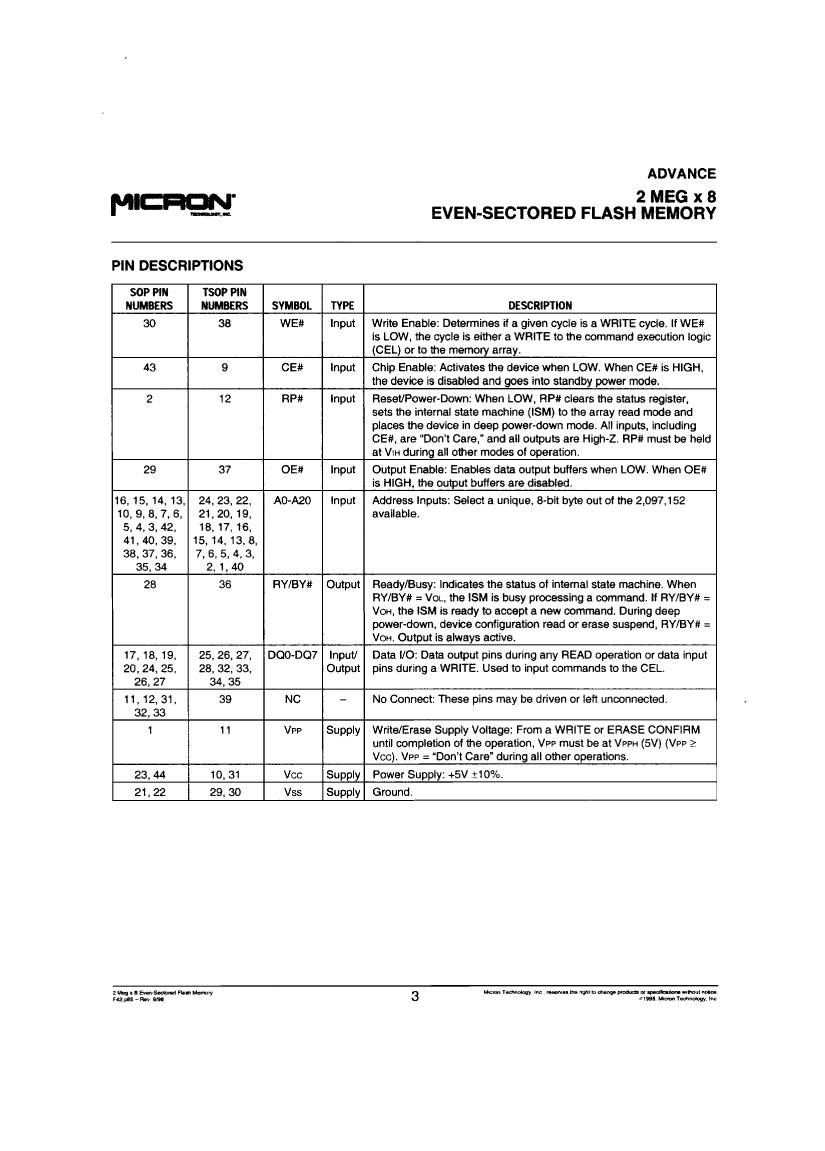

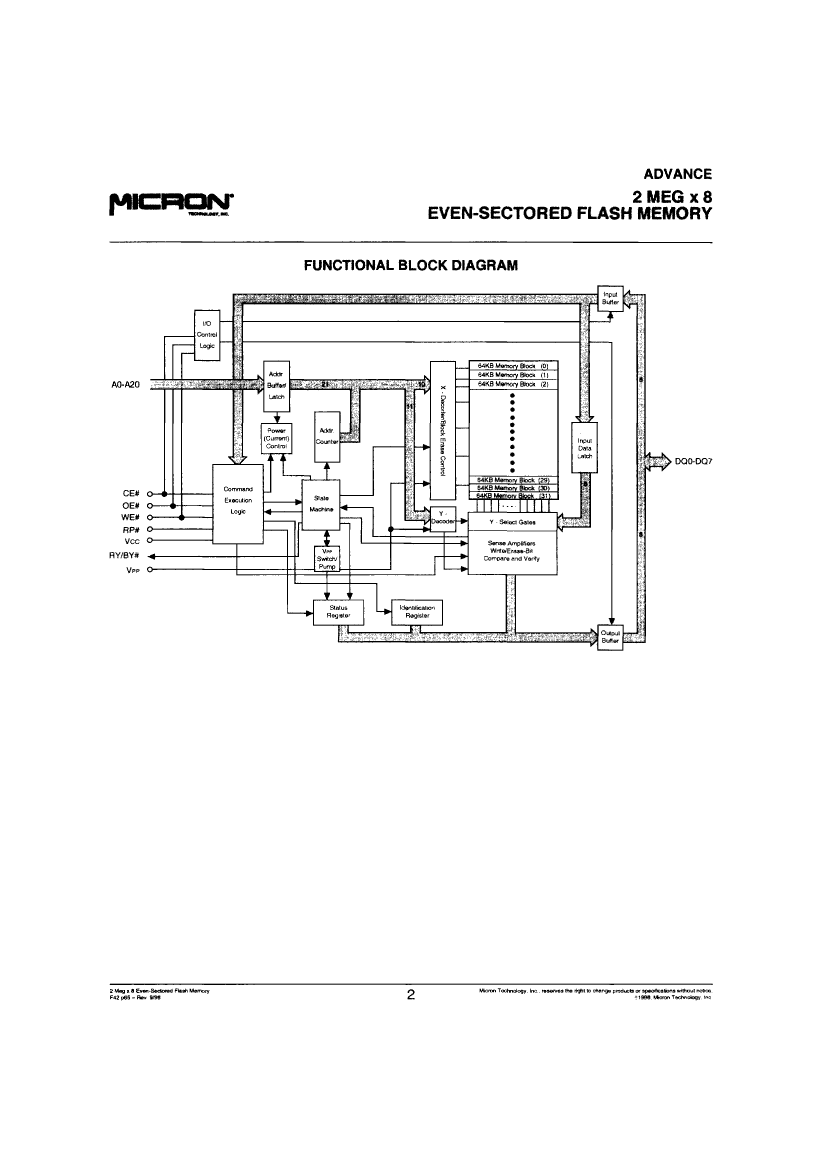

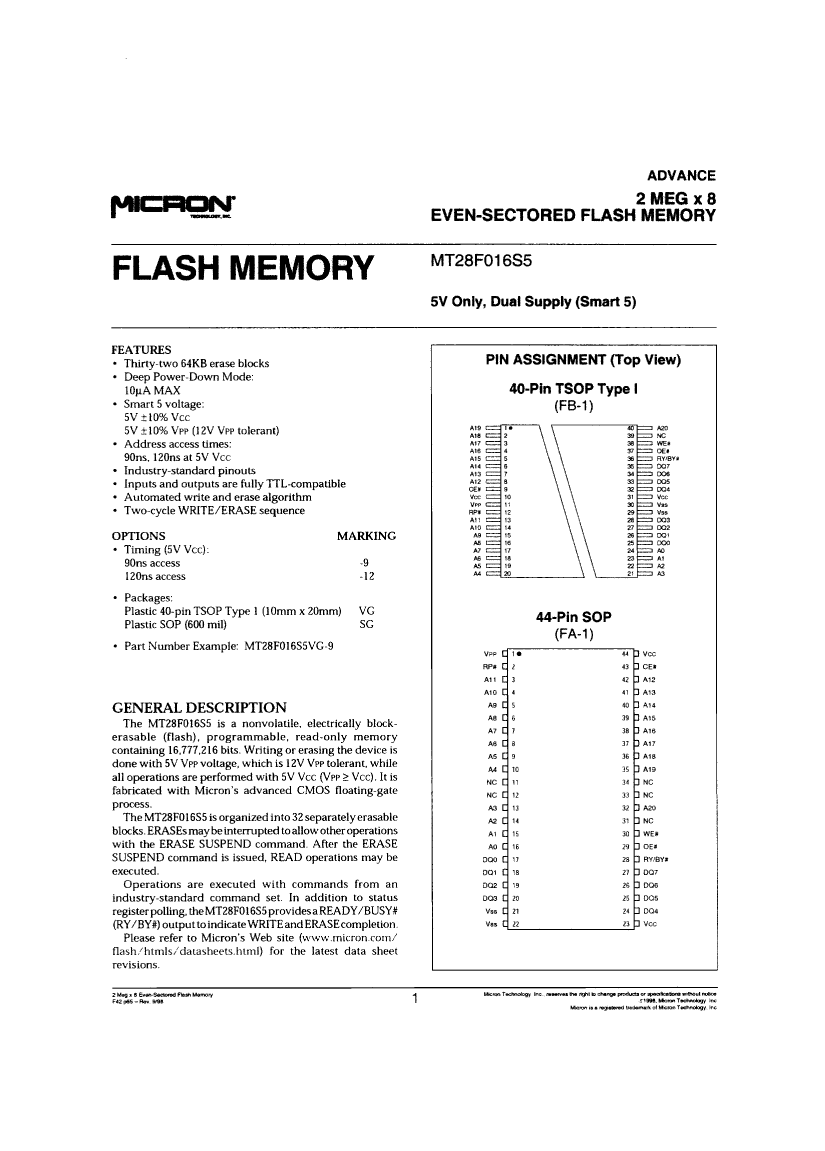

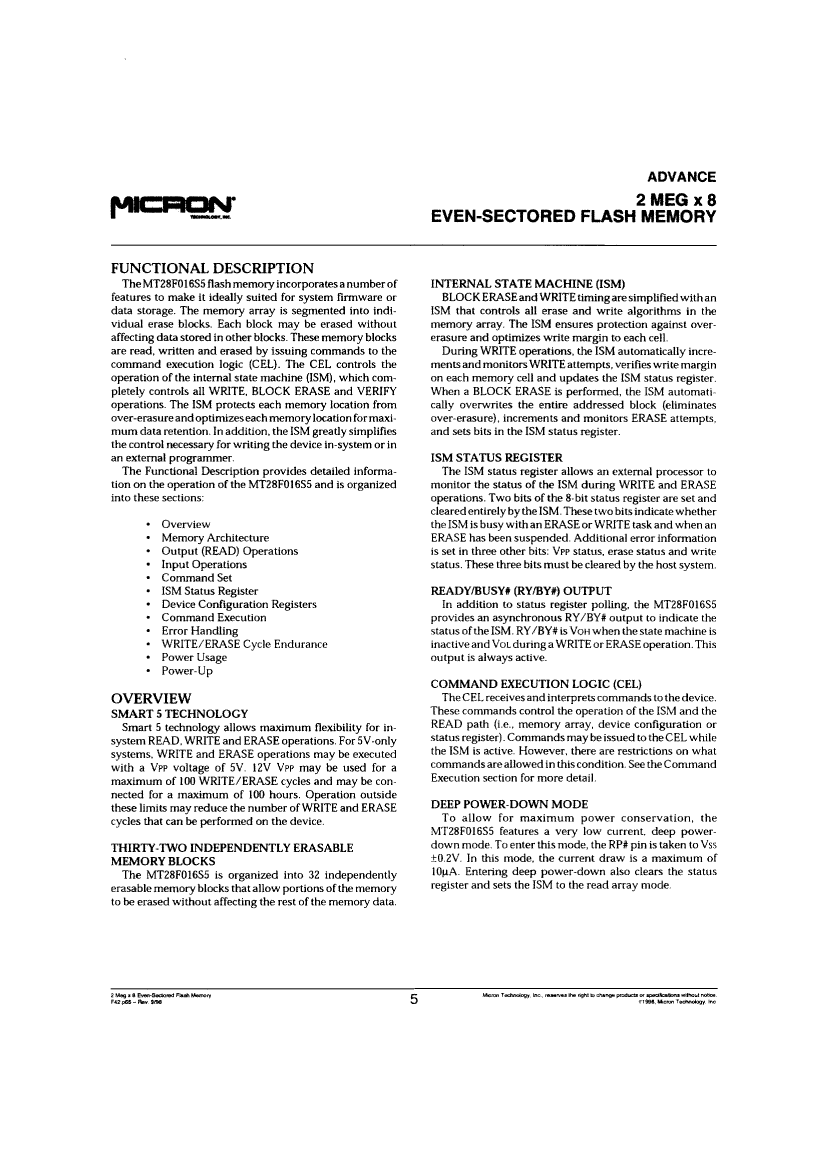

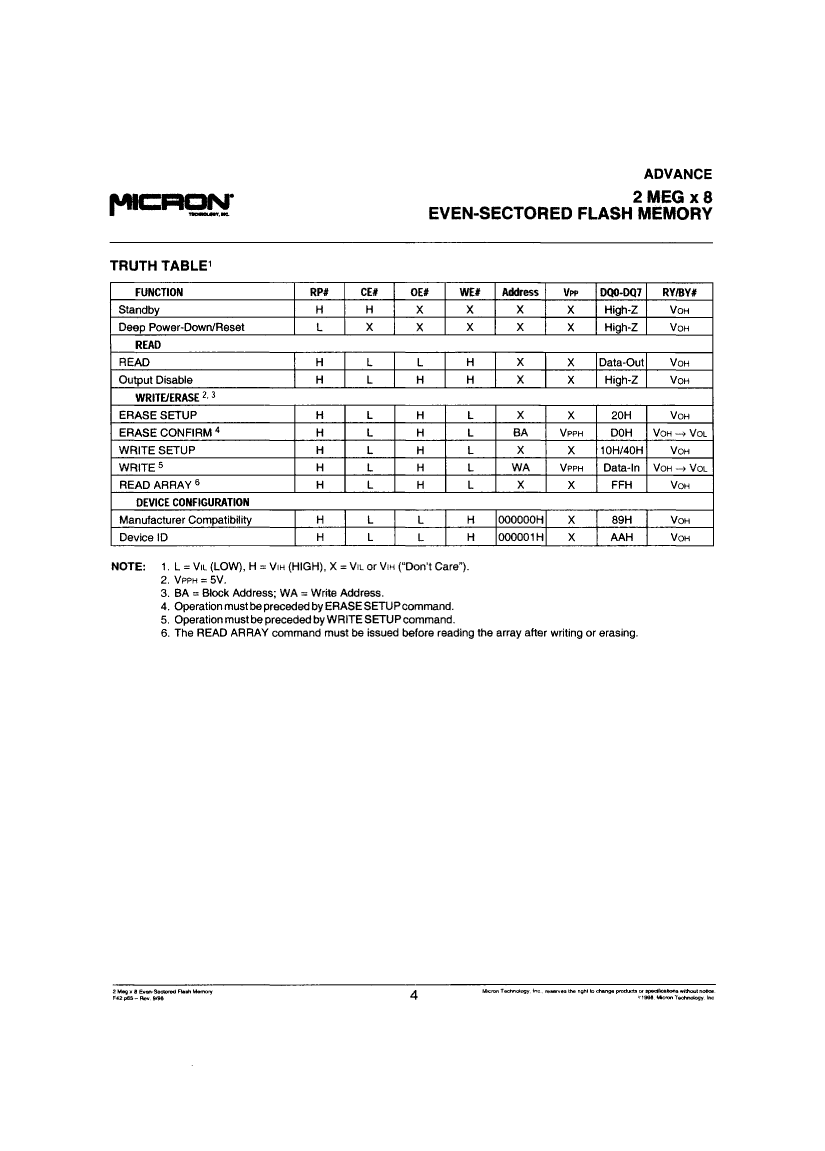

Preview

MT28F016S5SG-9: DescriptionFlash, 2MX8, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size902KB，25 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F016S5SG-9 Overview

Flash, 2MX8, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

MT28F016S5SG-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	SOP,
Contacts	44
Reach Compliance Code	compli
ECCN code	EAR99
Maximum access time	90 ns
Other features	DEEP POWER DOWN; USER CONFIGURABLE 12V VPP
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
length	28.195 mm
memory density	16777216 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	235
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
type	NOR TYPE
width	12.6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

MT28F016S5SG-9 Related Products

	MT28F016S5SG-9	MT28F016S5SG-12
Description	Flash, 2MX8, 90ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 2MX8, 120ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	44	44
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Maximum access time	90 ns	120 ns
Other features	DEEP POWER DOWN; USER CONFIGURABLE 12V VPP	DEEP POWER DOWN; USER CONFIGURABLE 12V VPP
JESD-30 code	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0
length	28.195 mm	28.195 mm
memory density	16777216 bi	16777216 bi
Memory IC Type	FLASH	FLASH
memory width	8	8
Number of functions	1	1
Number of terminals	44	44
word count	2097152 words	2097152 words
character code	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	235	235
Programming voltage	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	2.7 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
type	NOR TYPE	NOR TYPE
width	12.6 mm	12.6 mm
Base Number Matches	1	1
