2-1625984-8

Description
RESISTOR, WIRE WOUND
CategoryPassive components    The resistor
File Size146KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

2-1625984-8 Online Shopping

Suppliers Part Number Price MOQ In stock
2-1625984-8 - - View Buy Now

2-1625984-8 Overview

RESISTOR, WIRE WOUND

2-1625984-8 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid8000725650
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionHSA50 200R 5%
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-06 12:14:54
YTEOL6.25
Installation featuresCHASSIS MOUNT
Number of terminals2
Package shapeRECTANGULAR PACKAGE
method of packingBULK, TRAY
physical size72.5mm x 30mm x 17mm
Rated power dissipation(P)50 W
resistance200 Ω
Resistor typeFIXED RESISTOR
surface mountNO
technologyWIRE WOUND
Temperature Coefficient30 ppm/°C
Terminal shapeLUG
Tolerance5%
Operating Voltage1250 V
This browser does not have Java enabled.
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
Have a Question?
Chat with a Product
Information Specialist
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Resistors > Product Feature Selector > Product Details

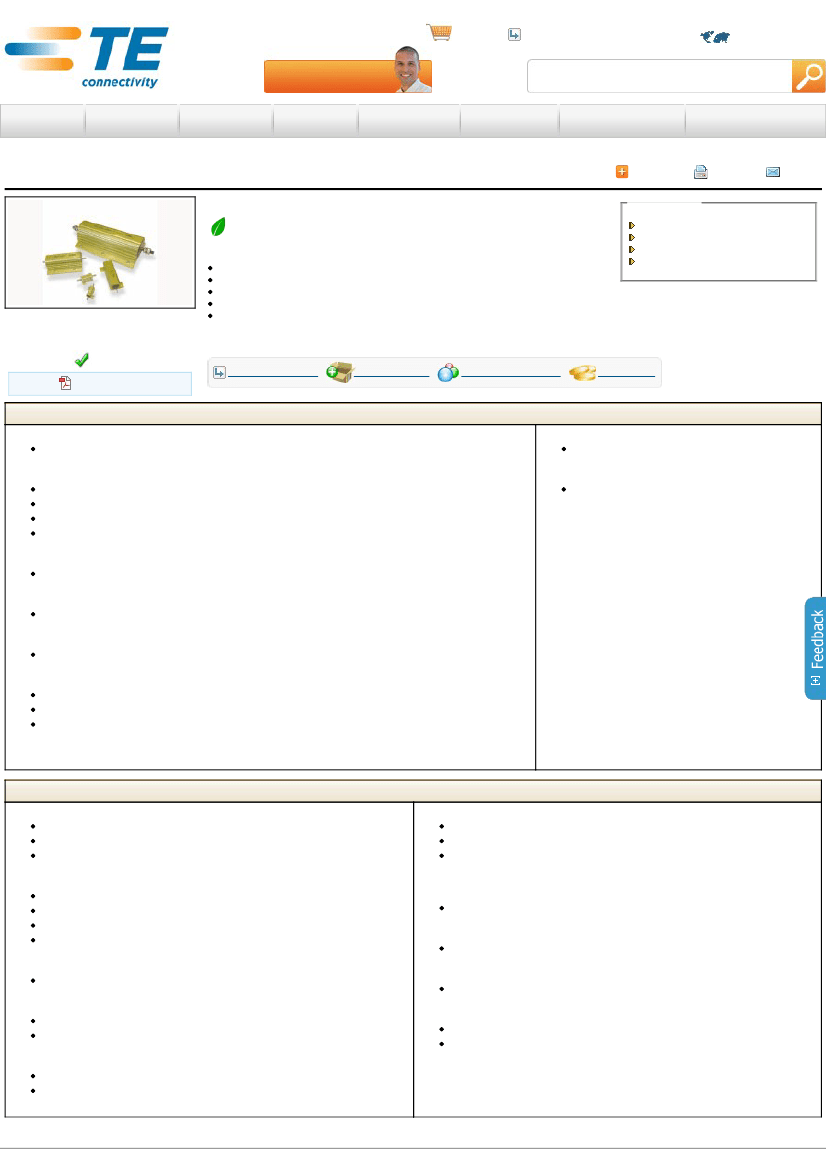

HSA50200RJ Product Details
Fixed Resistors

Converted to EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Fixed Resistor
Resistor Type = Power Resistor
Resistance Selection = <1K Ω
Resistance = 200 Ω
Power Rating = 50.00 W
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
HSA50200RJ
(2­1625984­8)
TE Internal Number: 2­1625984­8
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
View 3D PDF
Documentation & Additional Information
Product Drawings:
HSA50 WIDE BORE (PDF, English)
Catalog Pages/Data Sheets:
1309350_PASSIVE_COMPONENT (PDF, English)
Aluminium Housed Power Resistors ­ Type HS Series (PDF, English)
4­1773460­6_RESISTIVE_SOLUTIONS_RAIL (PDF, English)
8­1773459­4_POWER_FILTERING_AND_RESISTIVE_SOLUTIONS_... (PDF, English)
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files: (CAD Format & Compression Information)
2D Drawing (DXF, Version K)
3D Model (IGES, Version K)
3D Model (STEP, Version K)
Additional Information:
Product Line Information
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Product Type = Fixed Resistor
Resistor Type = Power Resistor
Element = Wirewound
Electrical Characteristics:
Resistance Selection (Ω) = <1K
Resistance (Ω) = 200
Power Rating (W) = 50.00
Tolerance (%) = 5
Termination Features:
Termination Type = Solder Lug
Body Features:
Mount Style = Chassis Mount
Package, Component Size = 72.5 x 30
Configuration Features:
Number of Terminations = 2
Number of Resistors = 1
Industry Standards:
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Hand solderable with lead free solder
RoHS/ELV Compliance History = Converted to comply with RoHS
directive
Conditions for Usage:
Temperature Coefficient (ppm/°C) = ±30
Operation/Application:
Application = High Power
Packaging Features:
Package Type = Loose Piece ­ Tray
Other:
Series = HS
Brand = CGS
