Small Circular Connector
JN1/JN2 Series
[JN1]
[JN2]
[JN1]
October 2009

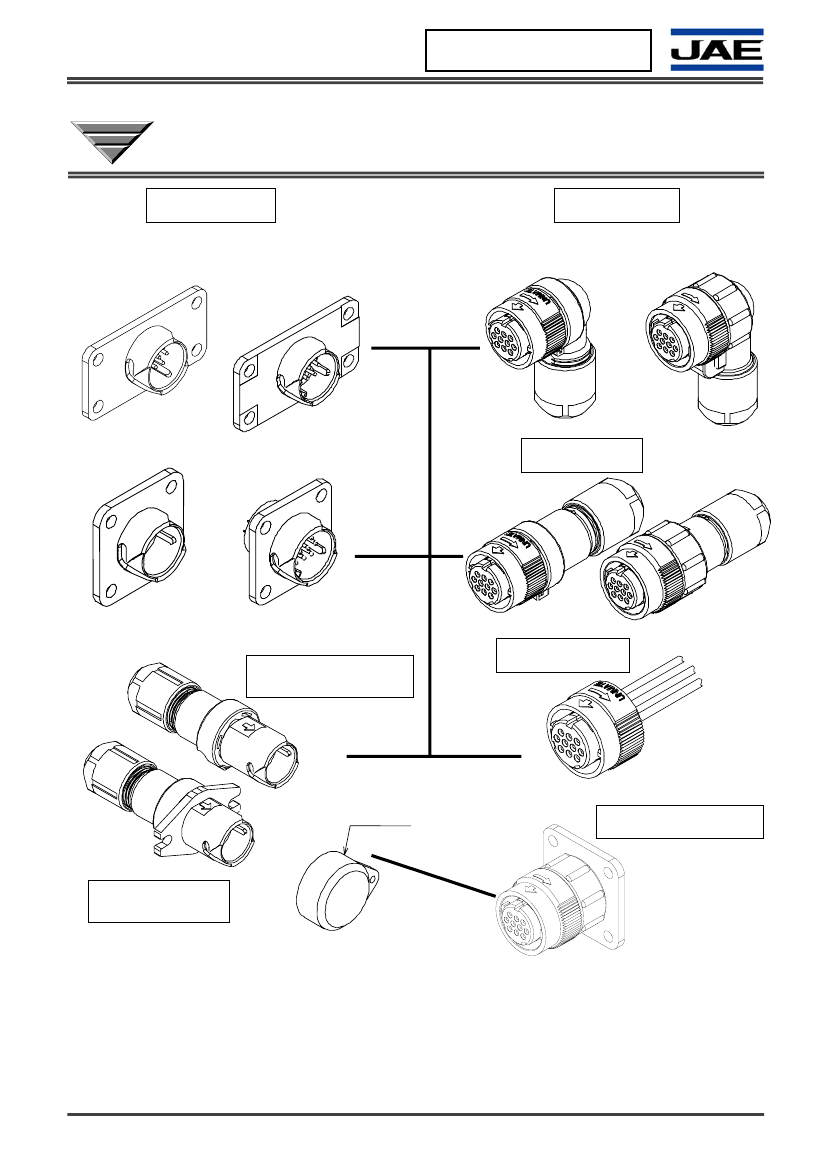

Angle Plug
[JN2]
Straight Plug
Cable Connecting
Receptacle
Individual Plug
Dust Cap
Panel Mount Plug
Wall Mount
Receptacle
This product is a waterproof circular connector with one-touch lock mechanism developed
as an interface for industrial devices. It is available in the all-plastic type JN1, and the
partially metal-reinforced robust type JN2. Both are compact designs and suitable for a
variety of electronic devices. JN1 and JN2 are UL certified. The 4-contact JN2 is TUV
certified. (Patent and design registration applications have been filed.)
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.
1/22
MB-0054-8
Features
[JN1]
•All plastic lightweight connector.
•Easy and sure mating with push-and-twist type one-touch lock mechanism.
•Terminal specification for receptacle and plug differs by series and number of contacts, please
refer to general specification for each product. Socket contact for 10 pos. plug is available in crimp
and solder types.
•The 4-contact receptacle is not body grounded. Connection of ground contact and chassis is
needed for grounding.
•Crimp connection relay receptacle is available in cable-connecting and wall-mounting receptacle
types. (4 pos. and 10 pos.)
•Plug is available in straight, angle and individual types (10 pos. only). The cable direction of the
angle plug can be set in four directions by rotating the plug in 90 degree increments.
•Mating height of angle plug is 30.8mm from panel surface (4 pos. and 10 pos.). Individual plug is
low profile 16.9mm (10 pos.).
•Waterproof and dustproof conforming to IP67.
•Superb environment-proof performance such as vibration and oil resistance.
•Suitable for conduit mounting (cannot be attached to individual plug).
[JN2]
•Compatible with JN1, considerably reinforced with metal material in part of the outer shell (strength
increased three fold over JN1).
•Uses same crimp contact as the JN1.
•Terminal specification for receptacle and plug differs by series and number of contacts, please
refer to general specification for each product. 4-contact receptacle body is grounded.
•4-contact type is TUV qualified.
•Plug is available in straight and angle types. The cable direction of the angle plug can be set in
four directions by rotating the plug in 90 degree increments.
•Contact variations: 4, 10 pos.
•Angle plug mating height is 31.3mm from cabinet surface (4, 10 pos.).
•Waterproof and dustproof conforming to IP67.
•Superb environment-proof performance such as vibration and oil resistance.
•Suitable for conduit mounting.
General Specifications
[JN1]
Item
No. of Contacts
Rated Current
Rated Voltage
Withstanding Voltage
Insulation Resistance
Waterproof
Airtightness
(Individually Waterproofed)
Operating Temperature
10 pins
3A/pin (#22 size contact)
200VAC
900VAC (per minute)
1000M ohm min.(DC500V energized )
IP67
2.9×10
4
PA (per minute)
without leakage
-20 Deg. C to +125 Deg.C
Receptacle: Through-hole, solder
connection 22AWG (0.3mm
2
) max.
Cable connecting receptacle:
Crimp connection 20 to 28AWG
Plug: Crimp connection 20 to 28AWG
Solder connection 20AWG max.
JACS-5111
JAHL-5111
500 mating cycles
Specification and Performance
4 pins
5A/pin (#20 size contact)
200VAC
2000VAC (per minute)
1000M ohm min.(DC500V energized )
IP67
2.9×10
4
PA (per minute )
without leakage
-20 Deg. C to +125 Deg.C
Receptacle: Solder connection
18 AWG (0.75mm
2
) max.
Cable connecting receptacle and plug:
Solder connection
16 AWG (1.25mm
2
) max.
JACS-5111-2
JAHL-5111
500 mating cycles
Specification of Wire
Connection
Product Specification
Instruction Manual
Durability
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.
2/22
MB-0054-8
[JN2]
Item
No. of Contacts
Rated Current
Rated Voltage
Withstanding
Voltage
Insulation
Resistance
Waterproof
Airtightness
(Individually
Waterproofed)
Operating
Temperature
10 pins
3A/pin (#22 size contact)
200VAC
Specification and Performance
4 pins
5A/pin (#20 size contact)
200VAC (degree of pollution 3,
excess voltage category 3)
2000VAC (per minute)
1000M ohm min.
(DC500V energized)
IP67
2.9 X 10
4
PA (per minute)
without leakage
900VAC (per minute)
1000M ohm min.
(DC500V energized)
IP67
2.9 X 10
4
PA (per minute)
without leakage
-20 Deg. C to +100 Deg.C
Receptacle: Through-hole, solder
connection 22 AWG (0.3mm2) max.
Plug: Crimp connection 20 to 28 AWG
Solder connection 20AWG max.
-20 Deg. C to +100 Deg.C
Specification of
Wire Connection
Product
Specification
Instruction
Manual
Durability
Receptacle: Solder connection 18AWG
(Max.0.75mm
2
)
Plug: Solder connection (Max.1.25mm
2
)
JACS-5119-2
JAHL-5119
500 mating cycles
JACS-5119
JAHL-5119
500 mating cycles
Please refer to the drawings for each product for further information.
JAE PMK Div. Proprietary. Copyright © 2009, Japan Aviation Electronics Industry, Ltd.
3/22
MB-0054-8
[JN2]
Component
Receptacle Pin insulator
Shell
Pin contact
Plug
Front insulator
Rear insulator
Coupling nut
Assembly nut
Angle endbell
Straight endbell
O Ring
Bushing*
Grand nut
Spring
Spring pin
Socket contact
Material / Finish
Synthetic resin
Zinc die-cast / Zinc plating
Copper alloy / Au plating (10 pin),
Silver plating (4 pin.)
Synthetic resin
Synthetic resin
Zinc die-cast / Zinc plating (Black)
Zinc die-cast / Zinc plating (Black)
Synthetic resin
Synthetic resin
Synthetic rubber
Synthetic rubber
(Color: black/gray/brick red/dark green)
Synthetic resin
Stainless steel
Stainless steel
Copper alloy / Au plating (10 pin),
Silver plating (4 pin)
