EC3645ETTTS-66.666MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 66.666MHz, LVCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EC3645ETTTS-66.666MTR Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerECLIPTEK
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time4 ns
Frequency Adjustment - MechanicalNO
frequency stability50%
JESD-609 codee4
Manufacturer's serial numberEC36
Installation featuresSURFACE MOUNT
Nominal operating frequency66.666 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeLVCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.3mm
longest rise time4 ns
Maximum supply voltage3.63 V
Minimum supply voltage2.97 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceNickel/Gold (Ni/Au)
EC3645ETTTS-66.666M TR
EC36 45 ET T TS -66.666M TR
Series
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS
(CMOS) 3.3Vdc 4 Pad 3.2mm x 5.0mm Ceramic
Surface Mount (SMD)
Frequency Tolerance/Stability
±50ppm Maximum
Operating Temperature Range
-40°C to +85°C

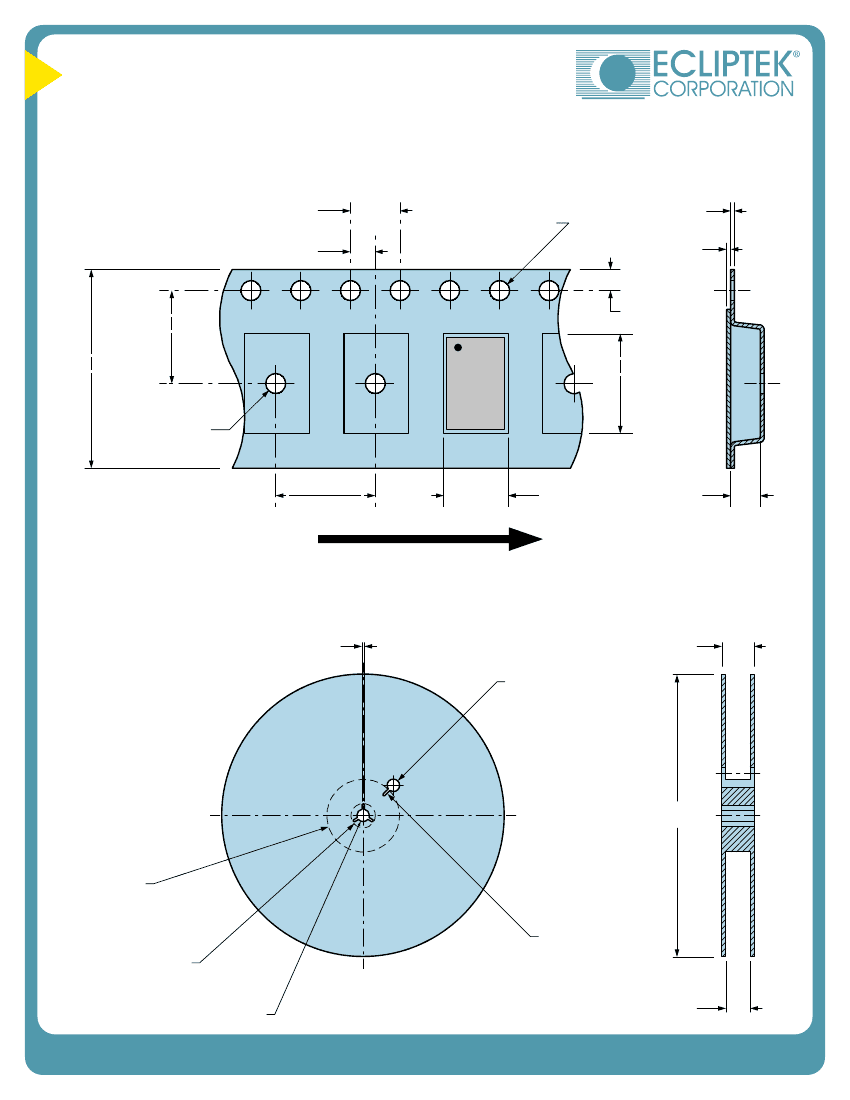

Packaging Options
Tape & Reel
Nominal Frequency
66.666MHz
Pin 1 Connection
Tri-State (High Impedance)
Duty Cycle
50 ±5(%)
ELECTRICAL SPECIFICATIONS
Nominal Frequency
Frequency Tolerance/Stability
66.666MHz
±50ppm Maximum (Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the
Operating Temperature Range, Supply Voltage Change, Ouput Load Change, First Year Aging at 25°C,
Shock, and Vibration)
-40°C to +85°C
3.3Vdc ±10%
35mA Maximum
90% of Vdd Minimum ((IOH = -4mA))
10% of Vdd Maximum ((IOL = +4mA))
4nSec Maximum (Measured at 20% to 80% of waveform)
50 ±5(%) (Measured at 50% of waveform)
15pF Maximum
CMOS
Tri-State (High Impedance)
90% of Vdd Minimum or No Connect to Enable Output, 10% of Vdd Maximum to Disable Output (High
Impedance)
10µA Maximum (Disabled Output: High Impedance)
1pSec Maximum (12kHz to 20MHz offset frequency)
10mSec Maximum
-55°C to +125°C
Operating Temperature Range
Supply Voltage
Input Current
Output Voltage Logic High (Voh)
Output Voltage Logic Low (Vol)
Rise/Fall Time
Duty Cycle
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Standby Current
RMS Phase Jitter
Start Up Time
Storage Temperature Range
ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
ESD Susceptibility
Fine Leak Test
Flammability
Gross Leak Test
Mechanical Shock
Moisture Resistance
Moisture Sensitivity
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
MIL-STD-883, Method 3015, Class 1, HBM: 1500V
MIL-STD-883, Method 1014, Condition A
UL94-V0
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 1004
J-STD-020, MSL 1
MIL-STD-202, Method 210, Condition K
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010, Condition B
MIL-STD-883, Method 2007, Condition A
www.ecliptek.com | Specification Subject to Change Without Notice | Revision L 06/13/2012 | Page 1 of 7
