GD74LS09 datasheet, PDF - EEWORLD Datasheet

GD74LS09: DescriptionAND Gate, TTL, PDIP14,; Categorylogic logic; File Size104KB，2 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

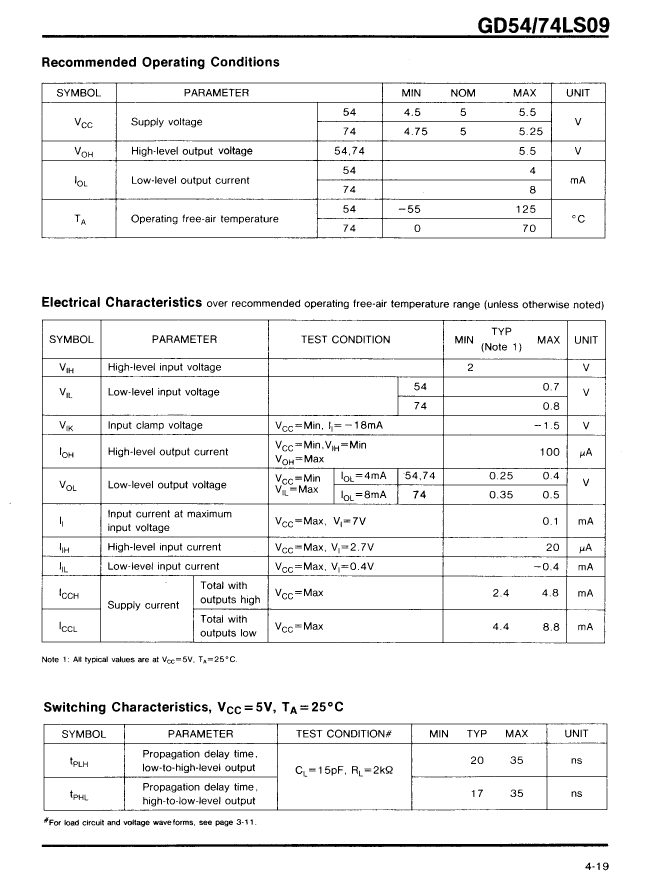

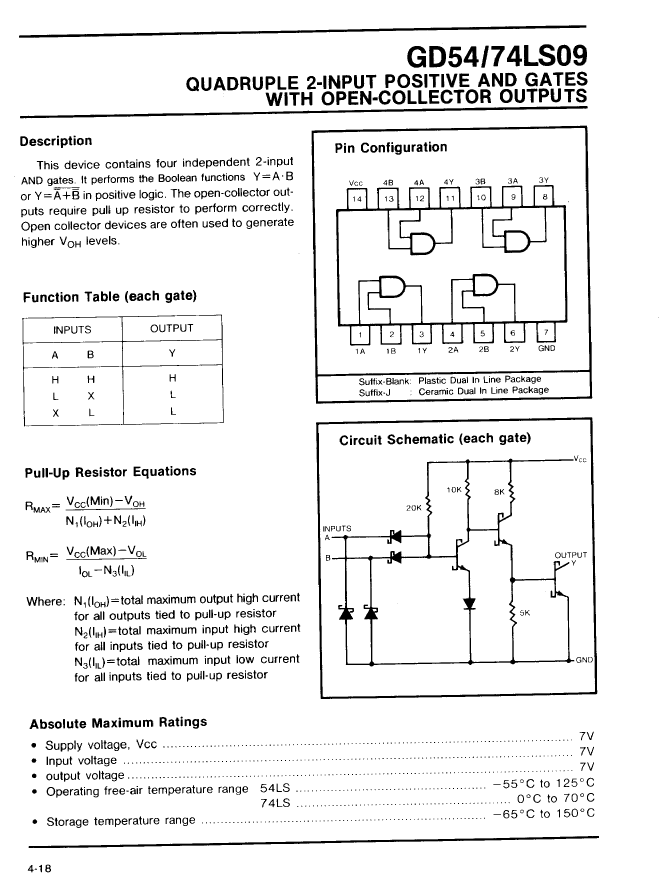

GD74LS09 Overview

AND Gate, TTL, PDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.008 A
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	8.8 mA
Prop。Delay @ Nom-Sup	35 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	GD74LS09	GD74LS09J	GD54LS09J
Description	AND Gate, TTL, PDIP14,	AND Gate, TTL, CDIP14,	AND Gate, TTL, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknow
JESD-30 code	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.008 A	0.008 A	0.004 A
Number of terminals	14	14	14
Maximum operating temperature	70 °C	70 °C	125 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	8.8 mA	8.8 mA	8.8 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Prop。Delay @ Nom-Sup	35 ns	35 ns	-
