GD54HCT366D datasheet, PDF - EEWORLD Datasheet

GD54HCT366D: DescriptionBus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16,; Categorylogic logic; File Size105KB，4 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

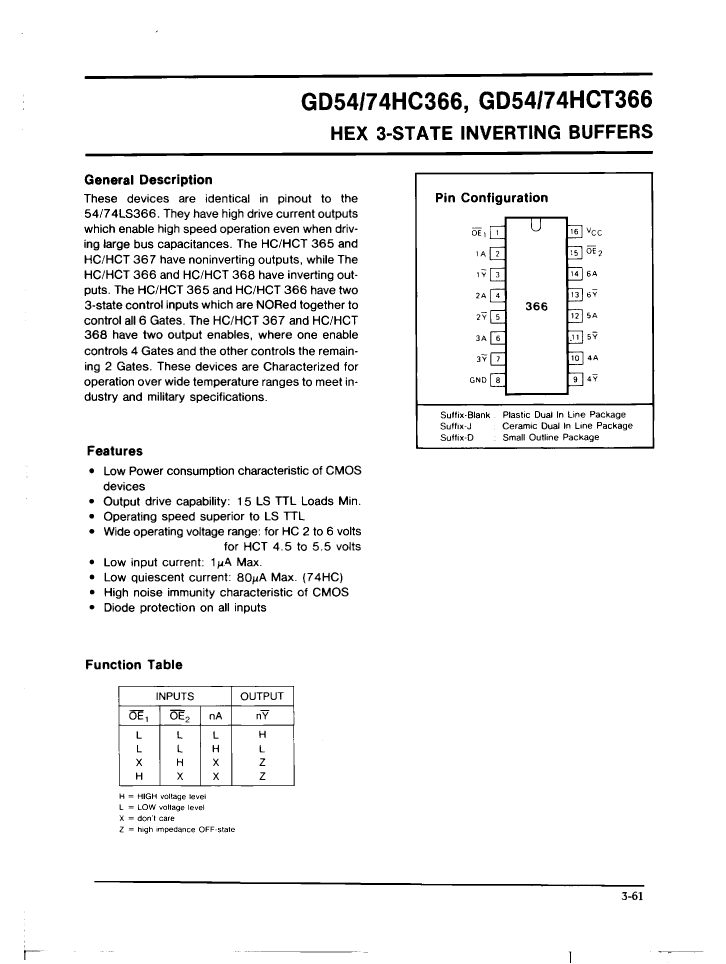

GD54HCT366D Overview

Bus Driver, HCT Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
series	HCT
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16

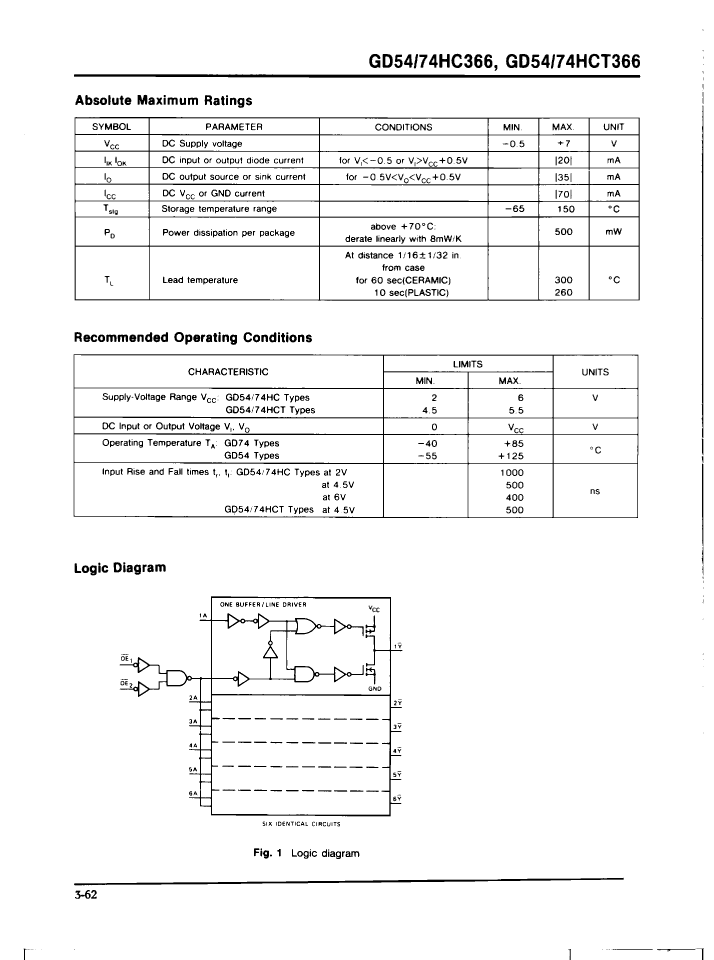

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE

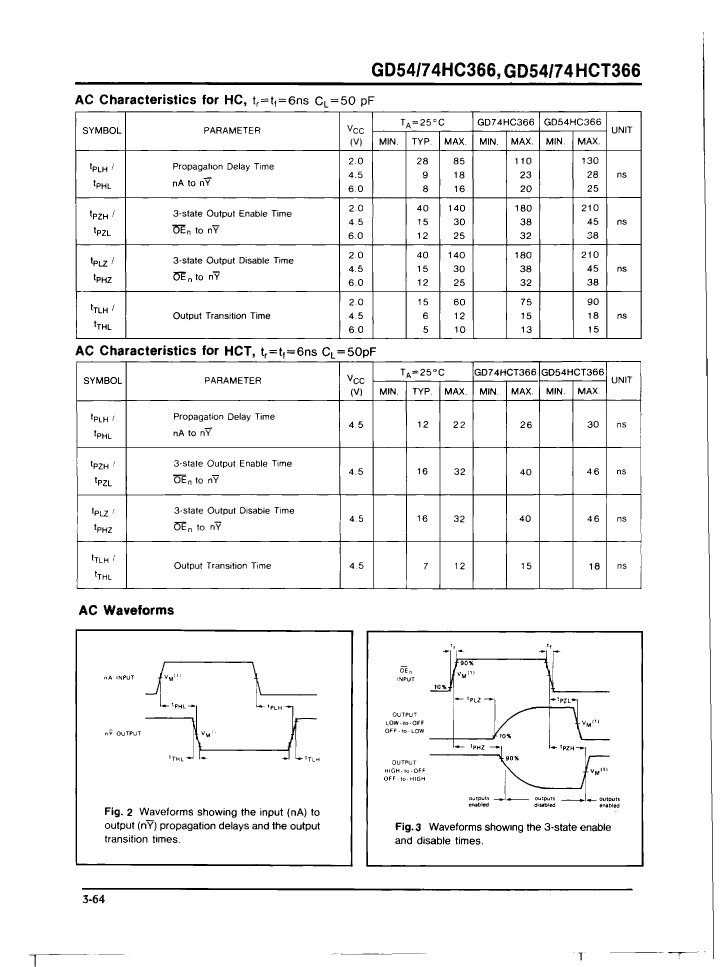

propagation delay (tpd)	30 ns
Certification status	Not Qualified

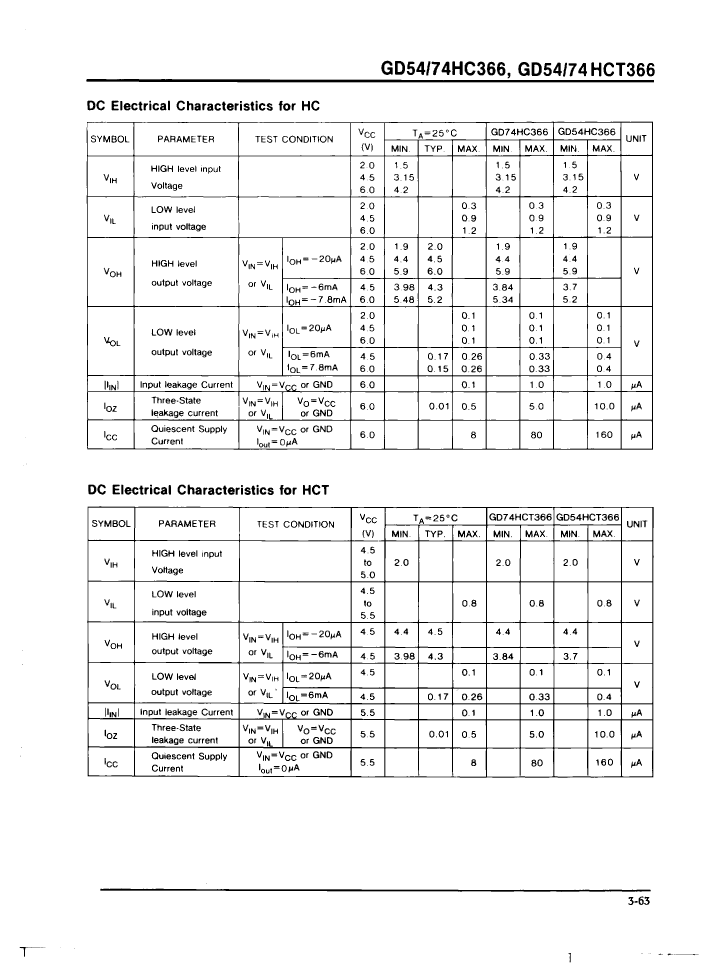

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal location	DUAL
