LH1503AB/AAC/AACTR
2 Form A
Solid State Relay
FEATURES
• Current Limit Protection
• l/O Isolation, 5300 V
RMS
• Typical
R
ON
20
Ω
• Load Voltage 350 V
• Load Current 110 mA
• High Surge Capability
• Linear, AC/DC Operation
• Clean Bounce Free Switching
• Low Power Consumption
• High Reliability Monolithic Receptor
• SMD Lead Available on Tape and Reel
AGENCY APPROVALS
• UL – File No. E52744
• CSA – Certification 093751
• VDE 0884 Approval
APPLICATIONS
• General Telecom Switching
– On/off Hook Control
– Ring Delay
– Dial Pulse
– Ground Start
– Ground Fault Protection
• Instrumentation
• Industrial Controls
DESCRIPTION
The LH1503 relays are DPST normally open switches
(2 Form A) that can replace electromechanical relays in
many applications. The relays are constructed using a
GaAlAs LED for actuation control and an integrated
monolithic die for the switch output. The die, fabricated
in a high-voltage dielectrically isolated technology, is
comprised of a photodiode array, switch control circuity,
and DMOS switches. In addition, these relays employ
current-limiting circuity, enabling them to pass FCC
68.302 and other regulatory voltage surge requirements
when overvoltage protection is provided.
4°
typ.
.050
(1.27)
typ.
Package Dimensions in Inches (mm)
DIP
pin one ID
4
.268 (6.81)
.255 (6.48)
5
6
7
8
1
2
3
4
3
2
1
S1
8
S1'
7
S2
6
S2'
5
S1
S2
S1'
S2'
.390 (9.91)
.379 (9.63)
.045 (1.14)
.030 (0.76)
4° typ.
.031 (0.79)
.300 (7.62)
typ.
.150 (3.81)
.130 (3.30)
.050 (1.27)
.022 (.56)
.018 (.46)
.035 (.89)
.020 (.51)
.100 (2.54) typ.
10°
3°–9°
.012 (.30)
.008 (.20)
.130 (3.30)
.110 (2.79)
.250 (6.35)
.230 (5.84)
SMD
Pin one I.D.
.268 (6.81)
.255 (6.48)
.390 (9.91)
.379 (9.63)
.031 (.79)
typ.
.150 (3.81)
.130 (3.30)
.395 (10.03)
.375 (9.52)
.312 (7.80)
.298 (7.52)
.045 (1.14)
.030 (0.78)
Radius
3
°
to 7
°
.008 (.25)
.004 (.10) .040 (1.02)
.020 (.51)
.100 (2.54)
typ.
10°
.315
(8.00)
typ.
.010
(2.54)
typ.
Part Identification
Part Number
LH1503AB
LH1503AAC
LH1503AACTR
Description
8-pin DIP, Tubes
8-pin SMD, Gullwing, Tubes
8-pin SMD, Gullwing, Tape and Reel
©
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
1
April 21, 2000-18
Recommended Operating Conditions
110
100
Load Current (mA)
80
60
Absolute Maximum Ratings,
T
A
=25
°
C
Stresses in excess of the Absolute Maximum Ratings can cause permanent
damage to the device. These are absolute stress ratings only. Functional opera-
tion of the device is not implied at these or any other conditions in excess of
those given in the operational sections of the data sheet. Exposure to maximum
rating conditions for extended periods can adversely affect device reliability.
I
Fon
=3.0 mA
I
Fon
=5.0 mA
40
I
Fon
=7.0 mA
20
I
Fon
=8.0 to 20 mA
0
–40
–20
0
20
40
60
Ambient Temperature (°C)
80
Ambient Temperature Range (
T
A
) .................................... –40 to +85
°
C
Storage Temperature Range (
T
stg
) ................................. –40 to +150
°
C
Pin Soldering Temperature (t=10 s max) (
T
S
) ............................. 260
°
C
Input/Output Isolation Voltage (
V
ISO
) .................................. 5300 V
RMS
Pole-to-Pole Isolation Voltage (S1 to S2)...................................... 500 V
LED Continuous Forward Current (
I
F
) .........................................50 mA
LED Reverse Voltage (
I
R
≤
10
µ
A) (
V
R
)........................................... 8.0 V
DC or Peak AC Load Voltage (
I
L
≤
50
µ
A) (
V
L
) .............................. 200 V
Continuous DC Load Current (
I
L
)
One Pole Operating.................................................................150 mA
Two Poles Operating ...............................................................110 mA
Peak Load Current (t=100 ms) (single shot) (
I
P
) ................................ †
Output Power Dissipation (continuous) (
P
DISS
)........................ 600 mW
† Refer to Current Limit Performance Application Note for a discussion on
relay operation during transient currents.
Electrical Characteristics,
T
A
=25
°
C
Minimum and maximum values are testing requirements. Typical values are characteristics of the device and are the result of
engineering evaluations. Typical values are for information only and are not part of the testing requirements.
Parameter
Input
LED Forward Current, Switch Turn-on
LED Forward Current, Switch Turn-off
LED Forward Voltage
Output
ON-resistance
Pole-to-Pole ON-resistance Matching (S1 to S2)
OFF-resistance
Current Limit
Off-state Leakage Current
I
Fon
I
Foff
V
F
—
0.2
1.15
2.0
0.8
1.26
3.0
—
1.45
mA
mA
V
Ω
∆Ω
G
Ω
mA
nA
µ
A
pF
I
L
=100 mA, t=10 ms
V
L
±300 V
I
F
=10 mA
I
F
=5.0 mA,
I
L
=50 mA
I
F
=5.0 mA,
I
L
=50 mA
I
F
=0 mA,
V
L
=±100 V
I
F
=5.0 mA, t=5.0 ms
V
L
±6.0 V
I
F
=0 mA,
V
L
=±100 V
I
F
=0 mA,
V
L
=±350 V
I
F
=0 mA,
V
L
=1.0 V
I
F
=0 mA,
V
L
=50 V
pF
I
F
=0 mA
I
F
=5.0 mA
V
I
F
=5.0 mA
V
ISO
=1.0 V
I
F
=10.0 mA,
I
L
=50 mA
I
F
=10.0 mA,
I
L
=50 mA
Sym.
Min.
Typ.
Max.
Units
Test Conditions
R
ON
—
R
OFF
I
LMT
12
—
0.5
230
—
—
20
0.2
5000
270
0.02
—
55
10
3.0
4.0
0.15
25
2.0
—
370
200
1.0
—
—
—
—
—
—
Output Capacitance
—
—
—
Pole-to-Pole Capacitance (S1 to S2)
—
—
—
Switch Offset
Transfer
Input/Output Capacitance
Turn-on Time
Turn-off Time
—
—
C
ISO
t
on
t
off
—
—
—
1.1
1.6
0.65
—
2.5
2.5
pF
ms
ms
©
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1503AB/AAC/AACTR
2
April 21, 2000-18
Typical Performance Characteristics

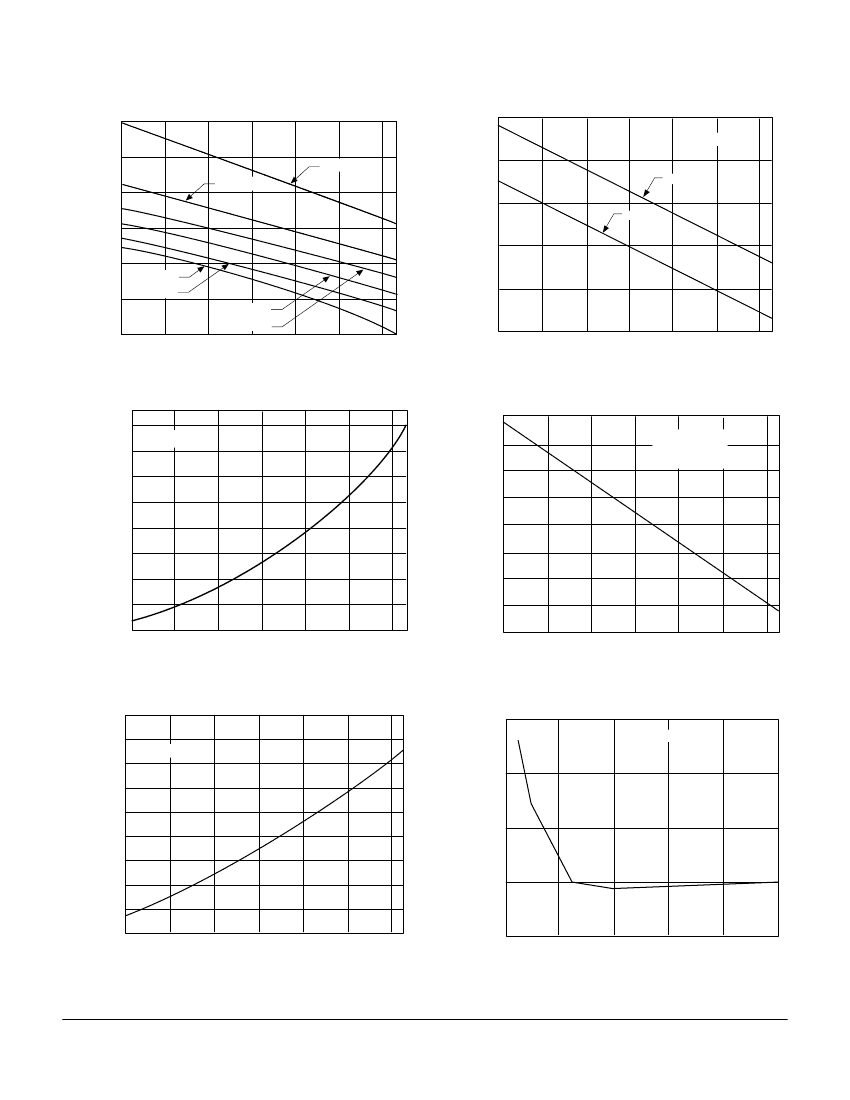

Figure 1. LED Voltage vs. Temperature
1.6
1.5
LED Forward Voltage (V)
1.4
1.3
1.2
1.1
I
F
=1.0 mA
I
F
=2.0 mA
I
F
=5.0 mA
I
F
=10 mA
–20
0
20
40
60
Ambient Temperature (°C)
80
I
F
=20 mA
Figure 4. LED Dropout Voltage vs. Temperature
1.20
I
L
= 100 mA
I
F
=50 mA
LED Forward Voltage (V)
1.15
TYP.
1.10
MIN.
1.05
1.00
1.0
–40
0.95
–40
–20
0
20
40
60
80
Ambient Temperature (°C)
Figure 2. LED Current for Switch Turn-on vs. Temperature
100
LED Forward Current for Switch
Turn-on (%), Normalized to 25°C
I
L
= 100 mA
Figure 5. Current Limit vs. Temperature
40
Change in Current Limit (%)
Normalized to 25°C
30
20
10
0
–10
–20
–30
I
F
= 5.0 mA
t = 5.0 ms
V
L
=
SEE ELEC. CHAR
.
80
60
40
20
0
–20
–40
–60
–40
–20
0
20
40
60
80
–40
–40
–20
0
20
40
60
80
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 3. On-resistance vs. Temperature
50
I
L
= 50 mA
40
Change in ON-resistance (%)
Normalized to 25°C
30
20
10
0
–10
–20
–30
–40
–40
–20
0
20
40
60
80
Figure 6. Variation in On-resistance vs. LED Current
1.5
ac/dc On-resistance Variation (%)
Normalized to Data Sheet
R
ON
Specification at I
F
=5.0 mA
I
L
= 50 mA
1.0
0.5
0
–0.5
0
4
8
12
16
20
LED Forward Current (mA)
Ambient Temperature (°C)
©
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1503AB/AAC/AACTR
3
April 21, 2000-18
Figure 7. Switch Capacitance vs. Applied Voltage
80
70
60
Capacitance (pF)
50
40
30
20
10
0
0
20
40
60
80
100
I
F
=0 mA
T
A
=25°C
f=1.0 MHz
Figure 10. Insertion Loss vs. Frequency
0.30
0.25
Insertion Loss (dB)
0.20
0.15
0.10
0.05
0
R
L
= 600
Ω
10
2
10
3
Frequency (Hz)
10
4
10
5
Applied Voltage (V)
Figure 8. Output Isolation
100
80
Figure 11. Leakage Current vs. Applied Voltage
100
Off-state Leakage Current (pA)
90
80
70
60
50
40
30
20
10
I
F
= 0 mA
T
A
= 25
°C
Isolation (dB)
60
V
P
=10 V
R
L
=50
Ω
40
20
0
10
2
10
3
10
4
10
5
10
6
10
7
0
0
50
100
150
200
250
300
350 400
Frequency (Hz)
Load Voltage (V)
Figure 9. Leakage Current vs. Applied Voltage at Elevated
Temperatures
3.0
Figure 12. Switch Breakdown Voltage vs. Temperature
8
Change in Breakdown Voltage (%)
Normalized to 25°C
6
4
2
0
–2
–4
–6
–8
–40
–20
0
20
40
60
80
Off-state Leakage Current (nA)
2.5
85°C
2.0
1.5
1.0
0.5
50°C
0
0
50
100
150
200
250
300
350
400
70°C
Load Voltage (V)
Ambient Temperature (°C)
©
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1503AB/AAC/AACTR
4
April 21, 2000-18
Figure 13. Switch Offset Voltage vs. Temperature
3.5
I
F
= 5.0 mA
3.0
Switch Offset Voltage (µV)
2.5
2.0
1.5
1.0
0.5
0
Figure 16. Switch Offset Voltage vs. LED Current
0.6
0.5
0.4
0.3
0.2
0.1
0
0
5
10
15
20
25
LED Forward Current (mA)
20
30
40
50
60
70
80
90
Ambient Temperature (°C)
Figure 14. Turn-on Time vs. Temperature
60
50
40
30
20
10
0
–10
–20
–30
–40
–40
–20
0
20
40
60
80
I
F
=5.0 mA
I
L
=50 mA
Figure 17. Turn-off Time vs. Temperature
160
140
Change in Turn-off Time (%)
Normalized to 25°C
120
100
80
60
40
20
0
–20
–40
–60
–80
–40
I
F
=5.0 mA
I
L
=50 mA
Change in Turn-on Time (%)
Normalized to 25°C
Switch Offset Voltage (µV)
–20
0
20
40
60
80
Ambient Temperature (°C)
Ambient Temperature (°C)
Figure 15. Turn-on Time vs. LED Current
10
I
L
=50 mA
Figure 18. Turn-off Time vs. LED Current
0.9
–40°C
0.8
Turn-off Time (ms)
0.7
25°C
0.6
0.5
85°C
I
L
=50 mA
8
Turn-on Time (ms)
6
–40°C
25°C
4
85°C
2
0.4
0.3
0
10
20
30
40
50
0
10
20
30
40
0
50
LED Forward Current (mA)
LED Forward Current (mA)
©
2000 Infineon Technologies Corp. • Optoelectronics Division • San Jose, CA
www.infineon.com/opto • 1-888-Infineon (1-888-463-4636)
OSRAM Opto Semiconductors GmbH & Co. OHG • Regensburg, Germany
www.osram-os.com • +49-941-202-7178
LH1503AB/AAC/AACTR
5
April 21, 2000-18
Embedded System
京公网安备 11010802033920号
EEWORLD
