5962R9563101TEC Overview

QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962R9563101TEC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output low current	0.006 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum receive delay	40 ns
Number of receiver bits	4
Filter level	MIL-PRF-38535
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm

Preview

Download Datasheet

View All

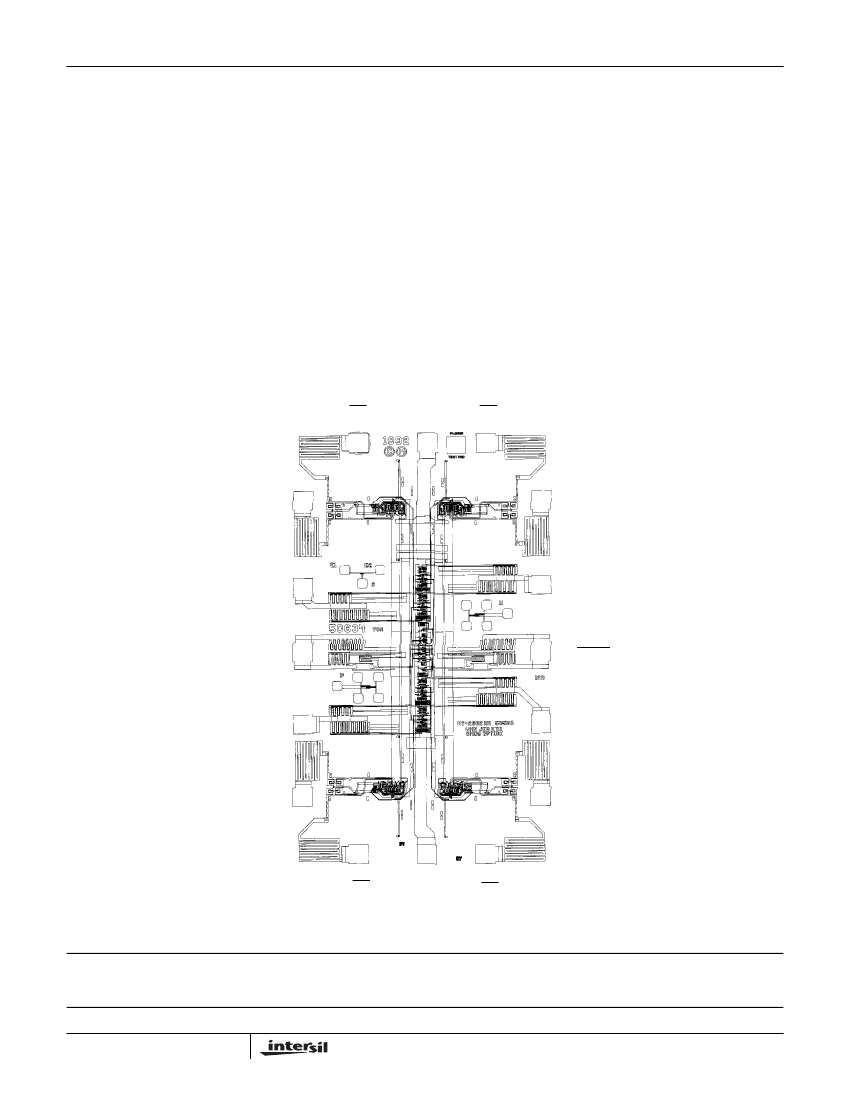

HS-26CT32RH-T

Data Sheet

July 1999

File Number

4593.1

Radiation Hardened

Quad Differential Line Receiver

Intersil’s Satellite Applications

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The Intersil HS-26CT32RH-T is a Quad Differential Line

Receiver designed for digital data transmission over

balanced lines and meets the requirements of EIA Standard

RS-422. Radiation Hardened CMOS processing assures low

power consumption, high speed, and reliable operation in

the most severe radiation environments.

The HS-26CT32RH-T has an input sensitivity of 200mV (typ.)

over the common mode input voltage range of

±7V.

The

receivers are also equipped with input fail safe circuitry, which

causes the outputs to go to a logic “1” when the inputs are

open. TTL compatible Enable and Disable functions are

common to all four receivers.

Flow

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose . . . . . . . . . . . . . . . . . . . . 1 x 10

RAD(Si)

- SEU and SEL . . . . . . . . . . Immune to 100MeV/mg/cm

• EIA RS-422 Compatible Inputs

• TTL Compatible Enable Inputs

• Input Fail Safe Circuitry

• High Impedance Inputs when Disabled or Powered Down

• Low Power Dissipation 138mW Standby (Max)

• Single 5V Supply

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26CT32RH-T (SBDIP) CDIP2-T16

TOP VIEW

AIN 1

16 V

15 BIN

14 BIN

13 BOUT

12 ENABLE

11 DOUT

10 DIN

9 DIN

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Specifications for the HS-26CT32RH-T

are contained in SMD 5962-95631.

A “hot-link” is provided

from our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our

website.

www.intersil.com/quality/manuals.asp

AIN 2

AOUT 3

ENABLE 4

COUT 5

CIN 6

CIN 7

GND 8

HS9-26CT32RH-T (FLATPACK), CDFP4-F16

TOP VIEW

Ordering Information

ORDERING

NUMBER

5962R9563101TEC

HS1-26CT32RH/Proto

5962R9563101TXC

HS9-26CT32RH/Proto

PART

NUMBER

HS1-26CT32RH-T

HS1-26CT32RH/Proto

HS9-26CT32RH-T

HS9-26CT32RH/Proto

TEMP.

RANGE (

-55 to 125

AIN

AOUT

ENABLE

COUT

CIN

GND

BIN

BOUT

ENABLE

DOUT

DIN

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.
