BFG33TRL13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BFG33TRL13

BFG33TRL13: DescriptionTRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size54KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BFG33TRL13 Overview

TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal

BFG33TRL13 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.02 A
Collector-emitter maximum voltage	7 V
Configuration	SINGLE
highest frequency band	L BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Minimum power gain (Gp)	12 dB
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	12000 MHz

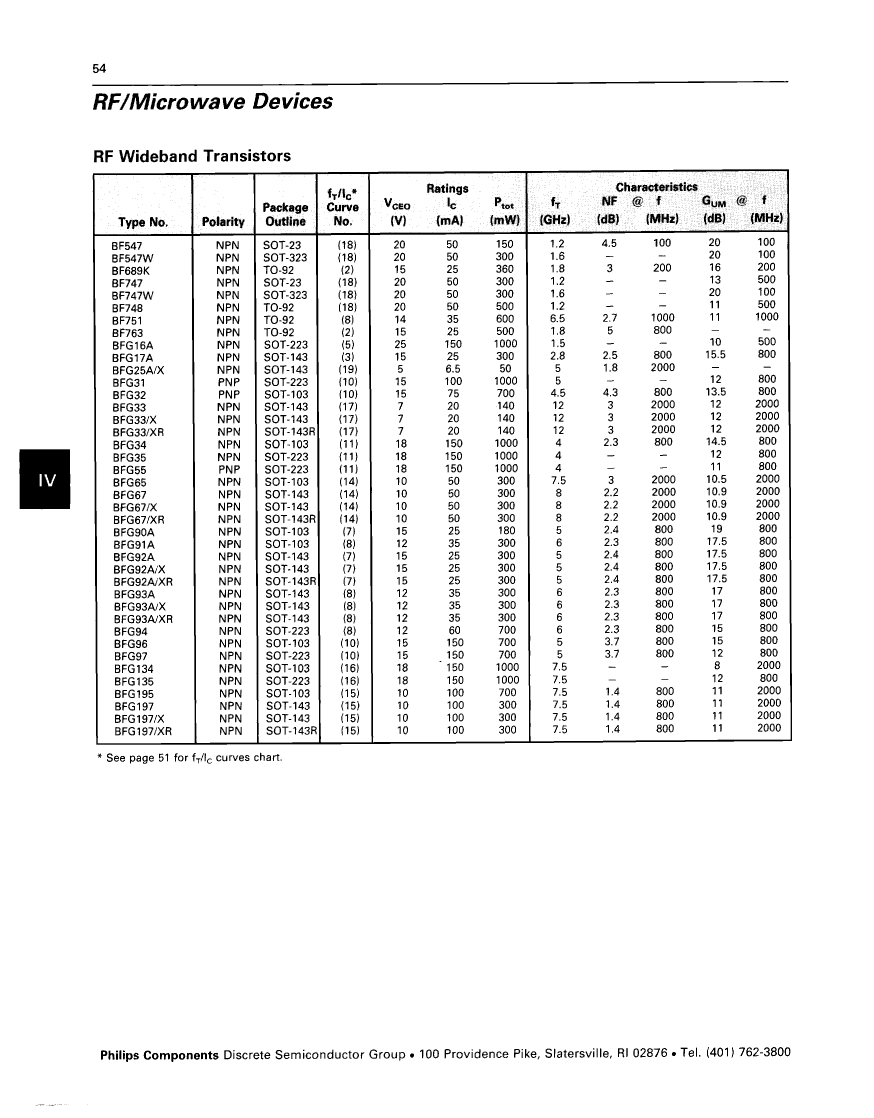

Preview

Download Datasheet

View All

BFG33TRL13 Related Products

	BFG33TRL13	BFG92ATRL	BFG92ATRL13	BFG93ATRL13	RLR07C2104FMB1423	BFG197TRL13	BFG197TRL	BFG33TRL
Description	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR	Fixed Resistor, Metal Film, 0.25W, 2100000ohm, 250V, 1% +/-Tol, 100ppm/Cel, Through Hole Mount, AXIAL LEADED	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	AXIAL LEADED	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown	not_compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	4	4	4	4	2	4	4	4
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	Axial	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
surface mount	YES	YES	YES	YES	NO	YES	YES	YES
Maker	NXP	NXP	NXP	NXP	-	NXP	NXP	NXP
Maximum collector current (IC)	0.02 A	0.025 A	0.025 A	0.035 A	-	0.1 A	0.1 A	0.02 A
Collector-emitter maximum voltage	7 V	15 V	15 V	12 V	-	10 V	10 V	7 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
highest frequency band	L BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	-	L BAND	L BAND	L BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	-	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	-	1	1	1
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Polarity/channel type	NPN	NPN	NPN	NPN	-	NPN	NPN	NPN
Minimum power gain (Gp)	12 dB	17.5 dB	17.5 dB	17 dB	-	11 dB	11 dB	12 dB
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	-	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	12000 MHz	5000 MHz	5000 MHz	6000 MHz	-	7500 MHz	7500 MHz	12000 MHz
