DM7830J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> DM7830J

DM7830J: DescriptionLine Driver, 2 Func, 1 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size116KB，4 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

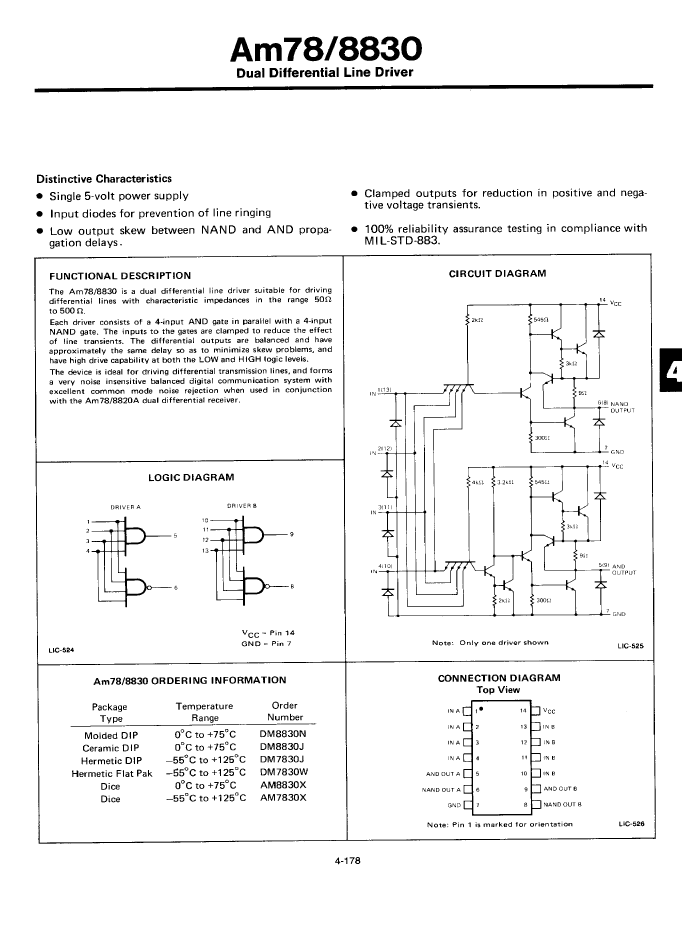

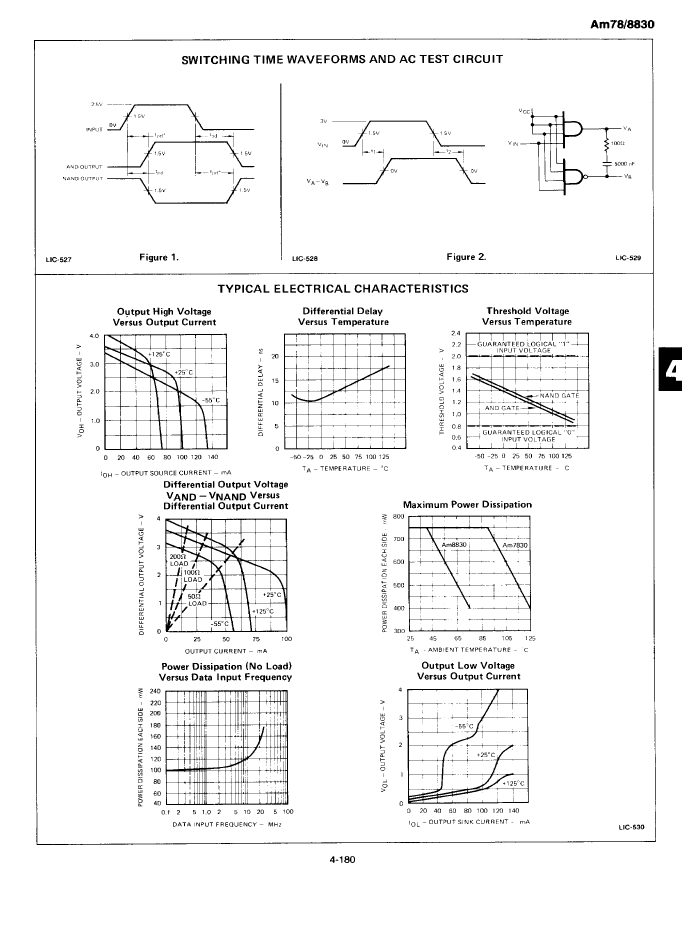

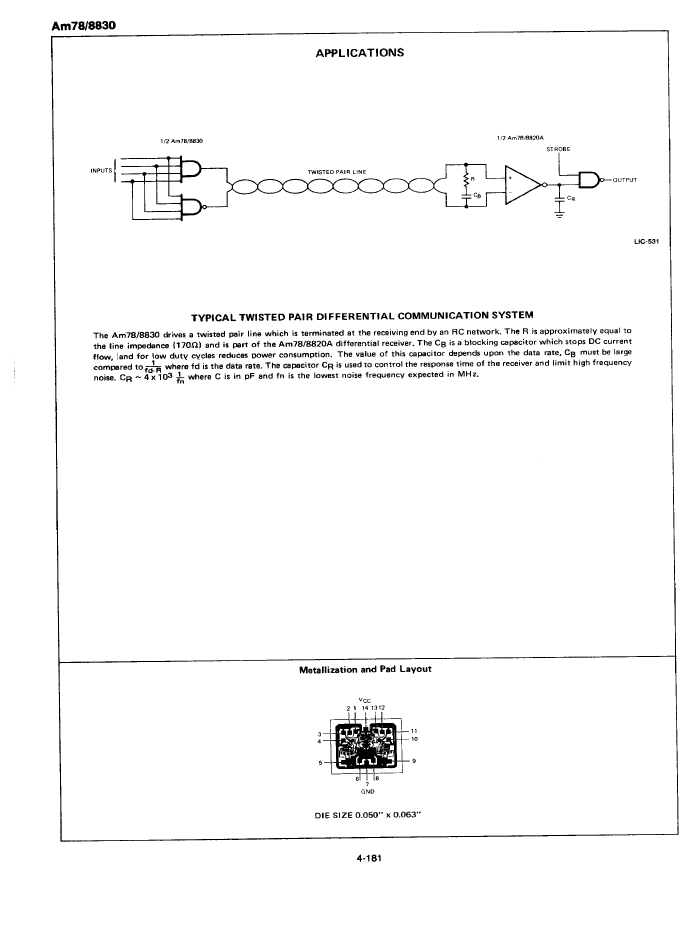

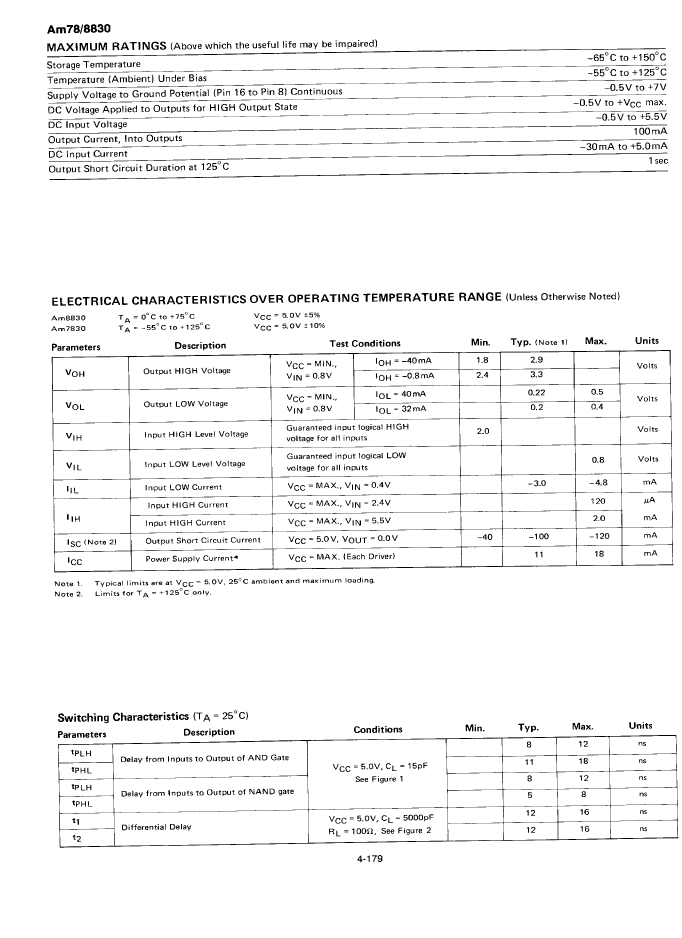

DM7830J Overview

Line Driver, 2 Func, 1 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

DM7830J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	YES
Number of drives	1
High level input current maximum value	0.00012 A
Input properties	STANDARD
Interface integrated circuit type	LINE DRIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
length	19.431 mm
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum output swing	1.3 V
Output characteristics	TOTEM-POLE
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Filter level	MIL-STD-883 Class C
Maximum seat height	5.08 mm
Maximum slew rate	18 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
maximum transmission delay	18 ns
width	7.62 mm

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM7830J Related Products

	DM7830J	DM8830J	DM8830N	AM7830X	AM8830X	DM7830W
Description	Line Driver, 2 Func, 1 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14	Line Driver, 2 Func, 1 Driver, BIPolar, CDIP14, HERMETIC SEALED, CERAMIC, DIP-14	Line Driver, 2 Func, 1 Driver, BIPolar, PDIP14, PLASTIC, DIP-14	Line Driver, 2 Func, 1 Driver, BIPolar, 0.050 X 0.063 INCH, DIE-14	Line Driver, 2 Func, 1 Driver, BIPolar, 0.050 X 0.063 INCH, DIE-14	Line Driver, 2 Func, 1 Driver, BIPolar, CDFP14, HERMETIC SEALED, CERPACK-14
Parts packaging code	DIP	DIP	DIP	DIE	DIE	DFP
package instruction	DIP, DIP14,.3	HERMETIC SEALED, CERAMIC, DIP-14	PLASTIC, DIP-14	DIE,	DIE,	DFP, FL14,.3
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Differential output	YES	YES	YES	YES	YES	YES
Number of drives	1	1	1	1	1	1
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER	LINE DRIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	R-XUUC-N14	R-XUUC-N14	R-CDFP-F14
Number of functions	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	75 °C	75 °C	125 °C	75 °C	125 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIE	DIE	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	UNCASED CHIP	UNCASED CHIP	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	18 mA	18 mA	18 mA	18 mA	18 mA	18 mA
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY	COMMERCIAL EXTENDED	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	FLAT
Terminal location	DUAL	DUAL	DUAL	UPPER	UPPER	DUAL
maximum transmission delay	18 ns	18 ns	18 ns	18 ns	18 ns	18 ns
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	incompatible
Maker	AMD	AMD	AMD	-	-	AMD
High level input current maximum value	0.00012 A	0.00012 A	0.00012 A	-	-	0.00012 A
JESD-609 code	e0	e0	e0	-	-	e0
length	19.431 mm	19.431 mm	19.304 mm	-	-	6.35 mm
Minimum output swing	1.3 V	1.3 V	1.3 V	-	-	1.3 V
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	-	-	FL14,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
power supply	5 V	5 V	5 V	-	-	5 V
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	-	-	2.032 mm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	-	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	-	-	6.16 mm
Base Number Matches	-	1	1	1	1	-
