DD-03182PP-22 datasheet, PDF - EEWORLD Datasheet

DD-03182PP-22: DescriptionLine Driver, 1 Func, 2 Driver, PQCC28, PLASTIC, LCC-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size209KB，7 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

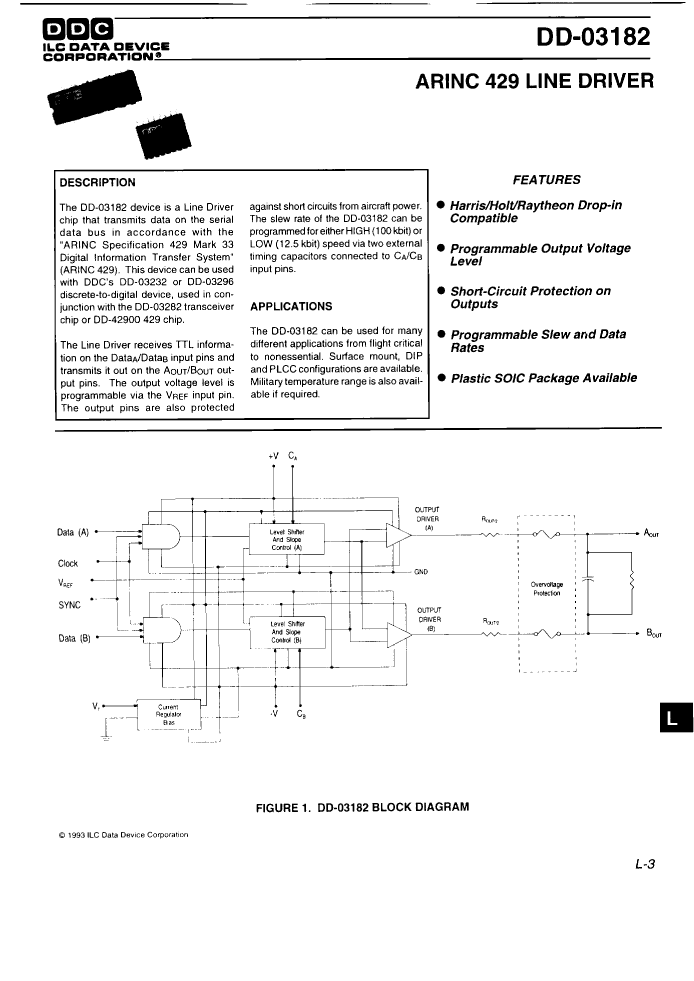

DD-03182PP-22 Overview

Line Driver, 1 Func, 2 Driver, PQCC28, PLASTIC, LCC-28

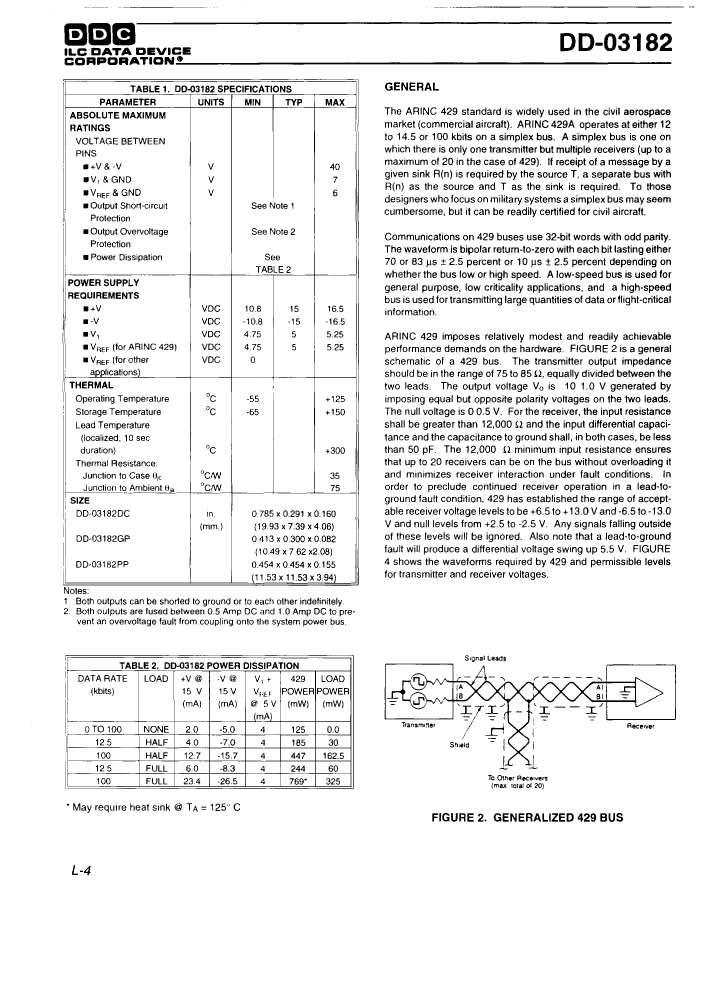

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	QLCC
package instruction	PLASTIC, LCC-28
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Differential output	NO
Number of drives	2

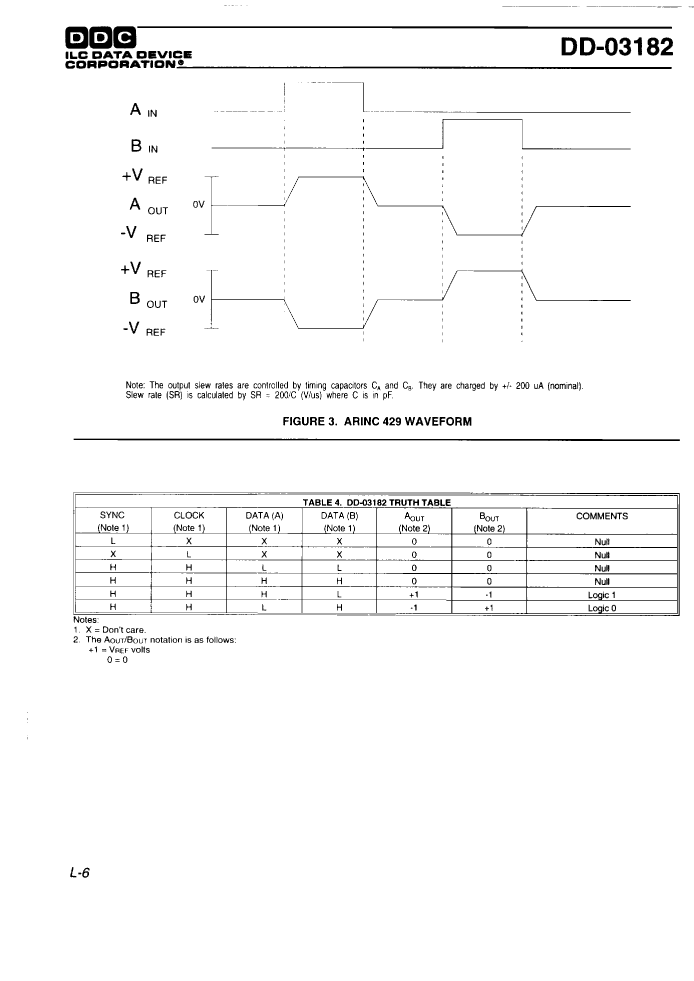

Input properties	GATED
Interface integrated circuit type	LINE DRIVER
Interface standards	ARINC 429
JESD-30 code	S-PQCC-J28
length	11.53 mm
Nominal negative supply voltage	-15 V
Number of functions	1

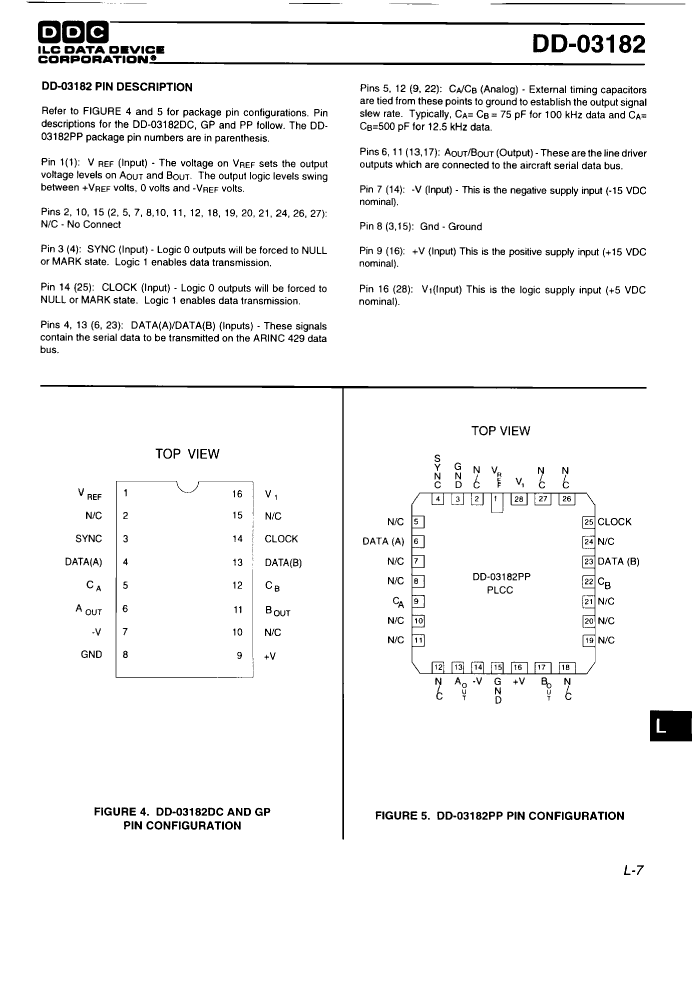

Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum seat height	4.45 mm

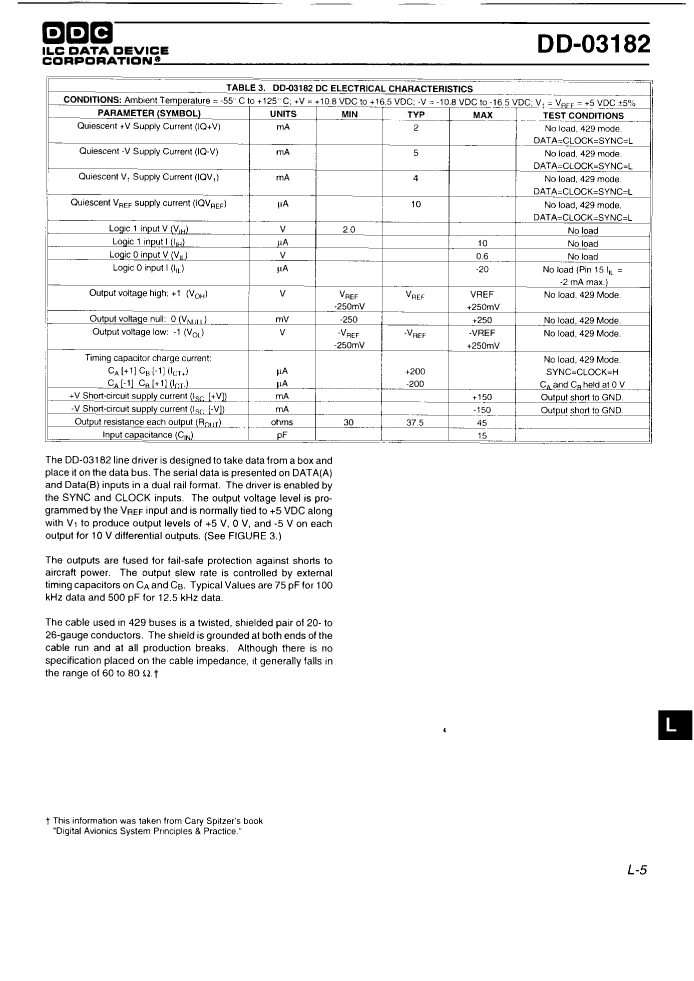

Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
Supply voltage 1-max	16.5 V
Mains voltage 1-minute	10.8 V
Supply voltage1-Nom	15 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.53 mm
