2683-1003-00: Description6000MHz - 18000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 2.9dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size72KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2683-1003-00 Overview

6000MHz - 18000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 2.9dB INSERTION LOSS

2683-1003-00 Parametric

Parameter Name	Attribute value
Objectid	1439763476
Reach Compliance Code	unknown
Other features	SMA
structure	COAXIAL
Maximum insertion loss	2.9 dB
Maximum operating frequency	18000 MHz
Minimum operating frequency	6000 MHz
Maximum operating temperature	95 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SP4T
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

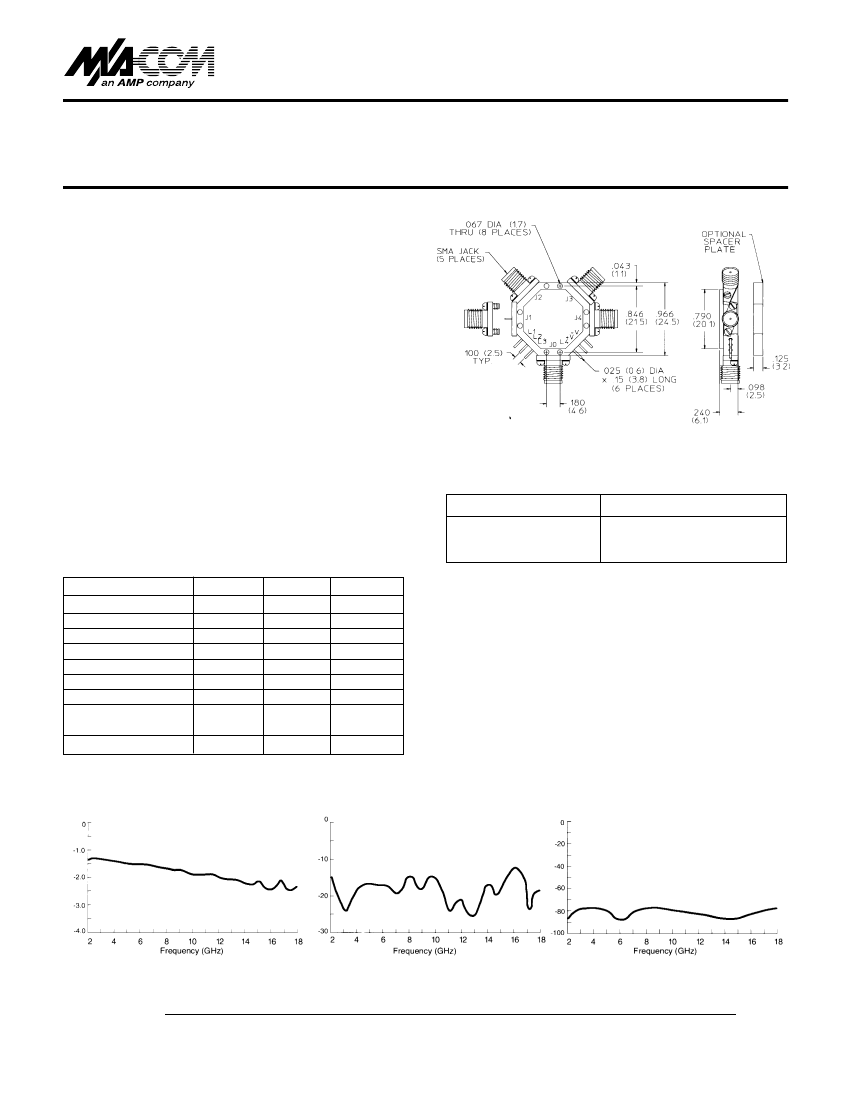

SP4T Reﬂective Switches With Drivers

and Removable Connectors

2683 Series

V2.00

Features

q

Broadband Frequency Ranges

Hermetically Sealed

TTL Compatible

Removable SMA Connectors

Description

M/A-COM's diode switches cover multi-octave band-

widths from UHF to Ku-band. M/A-COM's capability in

both semiconductor and digital circuit technology allows

considerable ﬂexibility in the tradeoffs of power, speed,

RF parameters and drivers. These switches may be used

as drop-ins in stripline assemblies simply by removing

the SMA connectors. In addition, the ﬁeld replaceable

connectors allow replacement of a damaged connector

without violating the hermetic seal. Typical insertion

loss, return loss, and isolation curves are shown below.

± .001

RF Connector (5 Places): .015 Dia. ± (0.4),.100 Long (2.5)

Maximum Ratings

Parameter

Absolute Maximum

-65°C to +125°C

-55°C to +95°C

Storage Temperature

Operating Temperature

Environmental

These devices are designed to meet the following

screening conditions:

Test

Non-Destructive

Bond Pull

Internal Visual

Stabilization Bake

Thermal Cycle

Constant Acceleration

Burn-in

Seal Fine

Gross

External Visual

MIL-STD

883

Method

2023

2017

1008

1010

2001

1015

1014

2009

Cond

B

A (YI Axis)

125°C

AI

Cl

Typical Performance Data 2683-1004-XY

Insertion Loss (dB)

Return Loss (dB)

Isolation (dB)

Manufactured in USA. European manufactured version also available. Contact your local M/A-COM Sales Representative.

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

s

1

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

s

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020

2683-1003-00 Related Products

	2683-1003-00	2683-1004-00	2683-1002-00	2683-1001-00
Description	6000MHz - 18000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 2.9dB INSERTION LOSS	2000MHz - 18000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 3.2dB INSERTION LOSS	2000MHz - 8000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 2dB INSERTION LOSS	500MHz - 2000MHz RF/MICROWAVE SGL POLE FOUR THROW SWITCH, 1.4dB INSERTION LOSS
Objectid	1439763476	1439763480	1439763471	1439763467
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	SMA	SMA	SMA	SMA
structure	COAXIAL	COAXIAL	COAXIAL	COAXIAL
Maximum insertion loss	2.9 dB	3.2 dB	2 dB	1.4 dB
Maximum operating frequency	18000 MHz	18000 MHz	8000 MHz	2000 MHz
Minimum operating frequency	6000 MHz	2000 MHz	2000 MHz	500 MHz
Maximum operating temperature	95 °C	95 °C	95 °C	95 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	SP4T	SP4T	SP4T	SP4T
Maximum voltage standing wave ratio	2	2	1.8	1.5
