REVISION R
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
PETC-XX-XX-XX-01-X-RA-XX-X
*
2.35 .093
REF
POWER POSITIONS (PER END)
-01, -02, -04
OPTION
-L: LATCH EARS
(SEE FIG 5, SHT 3)
*
SIGNAL POSITIONS
-12
-40
POSITIONS
*
POWER-01, -02, -04 (PER END)
LEAD STYLE
-01
OPTION
-SD: SCREW DOWN
(SEE FIG 1, SHT 1)
-LC: LOCKING CLIP
(USE LC-11-TM)
(SEE FIG 2, SHT 2)
RIGHT ANGLE
PLATING SPECIFICATION
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-T: MATTE TIN CONTACT AND TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
**
"A" REF (SEE TABLE 2)
"C" (SEE TABLE 2)
"F"
3.81 .150
(TYP) REF
COMBINATIONS
*
-- SEE TABLE 1 FOR AVAILABLECUSTOMERS
BLANK ONLY FOR EXISTING
**
23.50 .925
REF
17.98 .708
REF
MAX
04 (SIGNAL)
C
"F"
"B" (SEE TABLE 2)
5.72 .225 (TYP)
"A"
02 (POWER)
11.43 .450
(TYP)
1.17 .046
REF
01 (POWER)
14.50 .571
REF
6.60 .260
REF
0.50 .020
REF (TYP)
"B"
"B"
01 (SIGNAL)
PET-02-RA-NL-SD-40
"A"
C
SUB-T-1M34-01-XX
"D" (SEE TABLE 2)
C
0.64 .025 (TYP) REF
2.51 .099 (TYP)
2.54 .100 (TYP)
2.54 .100 (TYP)
5.76±0.20 .227±.008
NOTES:
("E" SPACES @ 2.54 [.100])
C
3 MAX SWAY (TYP)
(EITHER DIRECTION)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM BURR ALLOWANCE: 0.13[.005]
FIG 1
3. MINIMUM PUSHOUT FORCE: 2.22N [.5 LB].
PETC-01-40-01-X-RA-SD SHOWN
4. PARTS TO BE PACKAGED IN TRAYS.
5. PARTS PLACED IN TRAY WITH PIN #1 FACING THE RIGHT SIDE,
DUE TO PIN NUMBERING ORDER.
6. IF EMPTY SPACE EXISTS IN THE TRAY POCKETS, INSERT A PLUG TP-07
PLACED IN THE POCKET SO THAT THE FLAT EDGE LAYS FLAT IN THE
BOTTOM OF THE POCKET AND THE PLUG IS AGAINST THE CONNECTOR.
7. RECOMMENDED TORQUE ON HOLD DOWN SCREWS TO BE 20 IN-OZ.
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
INSULATOR: LCP, COLOR: BLACK
TERMINAL: COPPER ALLOY
DO NOT SCALE DRAWING
SHEET SCALE: 1:0.666667
RIGHT ANGLE POWER TERMINAL
1/12/2006
SHEET
1
OF
3
PETC-XX-XX-XX-01-X-RA-XX-X
F:\DWG\MISC\MKTG\PETC-XX-XX-XX-01-X-RA-XX-X-MKT.SLDDRW
BY:
CLAY W
REVISION R
PET-02-RA-NL-LC-40
C
3.60 .142
0.64 .025 (TYP) REF
"C" (SEE TABLE 2)
(MEASURE AT TIP OF PIN)
3 MAX SWAY (TYP)
(EITHER DIRECTION)
LC-11-TM
2.75 .108
3 MAX SWAY (TYP)
(EITHER DIRECTION)
8.23 .324
REF
PETC-01-40-01-01-X-RA-LC SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 2
"A" REF (SEE TABLE 2)
"B" (SEE TABLE 2)
6.35 .250 (TYP)

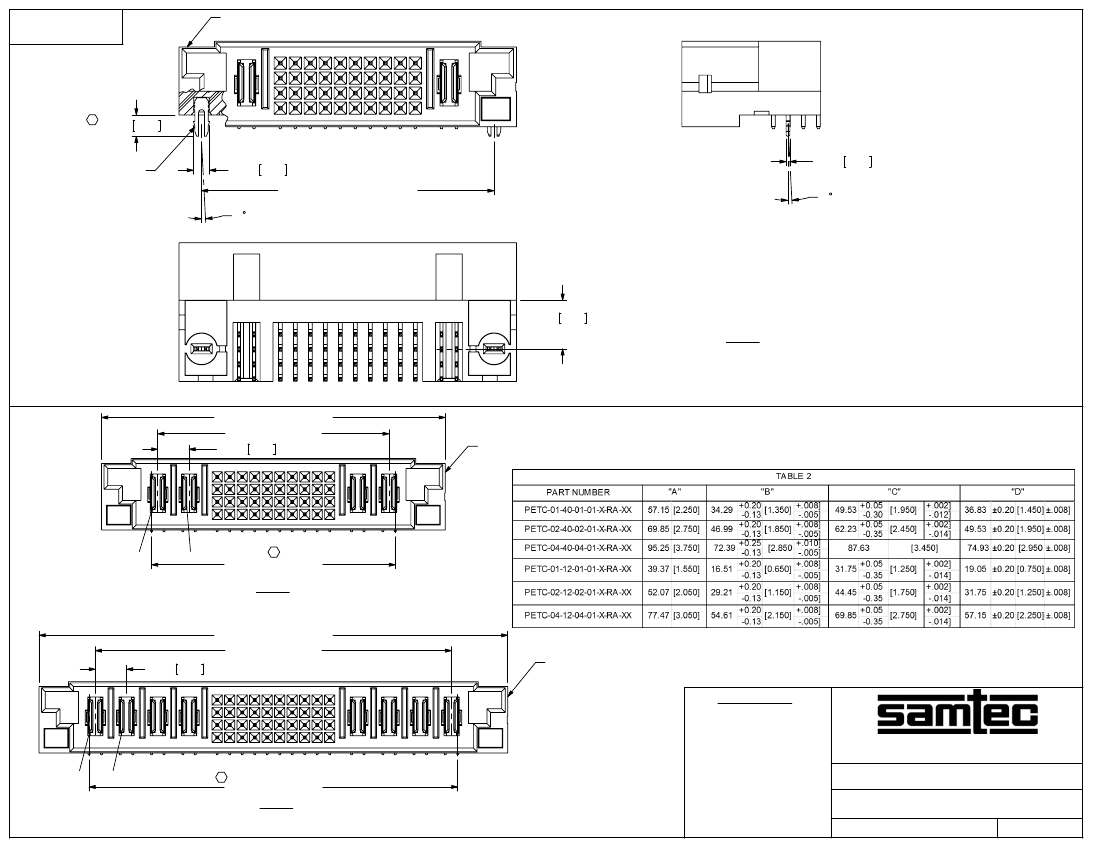

PET-04-RA-NL-SD-40
01 (POWER)
C
02 (POWER)
"D" (SEE TABLE 2)
PETC-02-40-02-01-X-RA-SD SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
"A" REF (SEE TABLE 2)
"B" (SEE TABLE 2)
6.35 .250 (TYP)
FIG 3
PET-08-RA-NL-SD-40
F:\DWG\MISC\MKTG\PETC-XX-XX-XX-01-X-RA-XX-X-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
01 (POWER)
02 (POWER)
C
"D" (SEE TABLE 2)
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
PETC-04-40-04-01-X-RA-SD SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 4
PETC-XX-XX-XX-01-X-RA-XX-X
1/12/2006
SHEET
2
OF
3
BY:
CLAY W
REVISION R
0.64 .025 SQ REF
C
2.54 .100 (TYP)
C
C
T-1S64-14-X
T-1S64-13-X
T-1S64-12-X
T-1S64-11-X
C
6.60 .260 (TYP)
2.70 .106
(TYP)
7.62±0.25 .300±.010
5.08±0.18 .200±.007
C
PET-04-RA
2.54 .100
C
C
SECTION "B"-"B"
5.76±0.20 .227±.008
PETC-04-XX-X-RA-L SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
FIG 5
SECTION "F"-"F"
'C'
TP-07
DETAIL 'C'
SCALE 1 : 1
F:\DWG\MISC\MKTG\PETC-XX-XX-XX-01-X-RA-XX-X-MKT.SLDDRW
PROPRIETARY NOTE
TRAY VIEW
(SEE NOTE 6)
FIG 6
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
RIGHT ANGLE POWER TERMINAL
PETC-XX-XX-XX-01-X-RA-XX-X
1/12/2006
SHEET
3
OF
3
BY:
CLAY W
