NTB5411N

Description
80 A, 60 V, 0.01 ohm, N-CHANNEL, Si, POWER, MOSFET
Categorysemiconductor    Discrete semiconductor
File Size136KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric View All

NTB5411N Overview

80 A, 60 V, 0.01 ohm, N-CHANNEL, Si, POWER, MOSFET

NTB5411N Parametric

Parameter NameAttribute value
Number of terminals2
Minimum breakdown voltage60 V
Processing package descriptionLead FREE, CASE 418B-04, D2PAK-3
Lead-freeYes
EU RoHS regulationsYes
stateDISCONTINUED
packaging shapeRectangle
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE Tin
Terminal locationsingle
Packaging MaterialsPlastic/Epoxy
structureSingle WITH BUILT-IN diode
Shell connectionDRAIN
Number of components1
transistor applicationsswitch
Transistor component materialssilicon
Channel typeN channel
field effect transistor technologyMetal-OXIDE SEMICONDUCTOR
operating modeENHANCEMENT
Transistor typeuniversal power supply
Maximum leakage current80 A
Rated avalanche energy280 mJ
Maximum drain on-resistance0.0100 ohm
Maximum leakage current pulse185 A

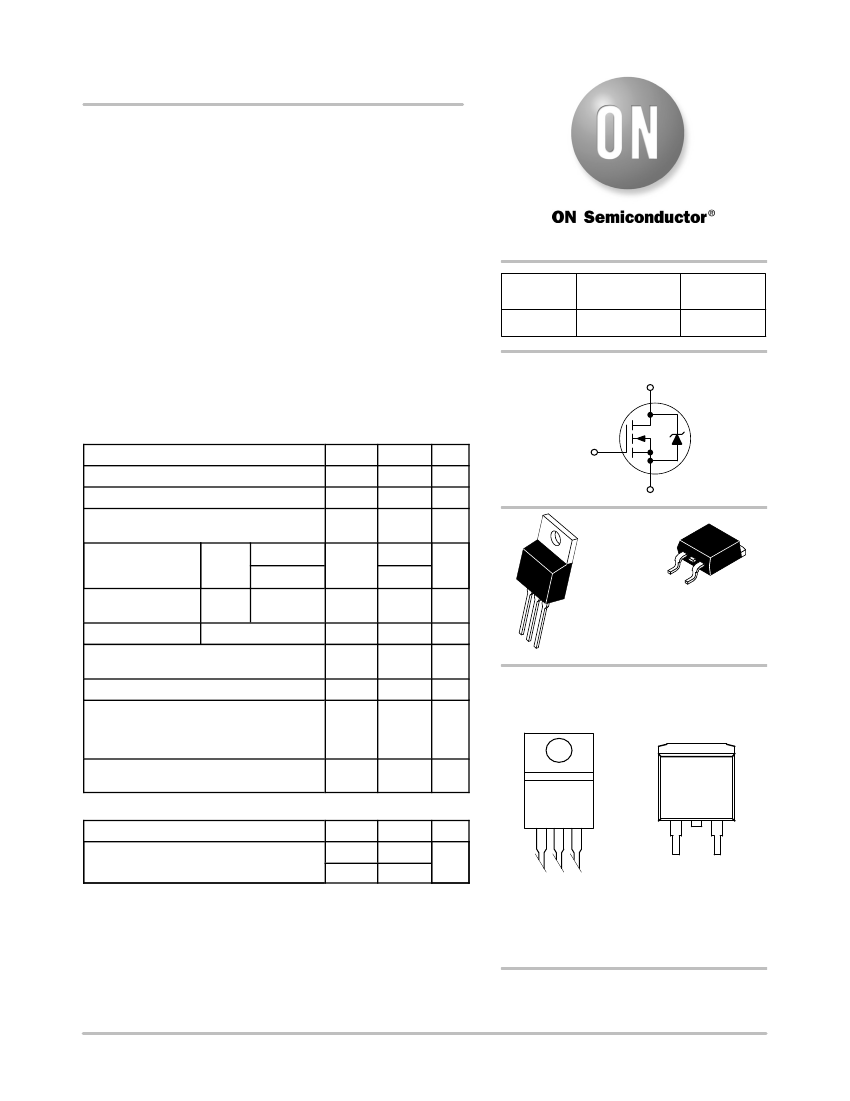

NTB5411N, NTP5411N
Power MOSFET
80 Amps, 60 Volts
N-Channel D
2
PAK, TO-220
Features
Low R
DS(on)
High Current Capability
Avalanche Energy Specified
These are Pb−Free Devices
LED Lighting and LED Backlight Drivers
DC−DC Converters
DC Motor Drivers
Power Supplies Secondary Side Synchronous Rectification
Parameter
Symbol
V
DSS
V
GS
V
GS
I
D
Value
60
$20
$30
80
61
P
D
I
DM
T
J
, T
stg
I
S
E
AS
166
185
−55
to
175
75
280
W
A
°C
A
mJ
Unit
V
V
V
A
http://onsemi.com
I
D
MAX
(Note 1)
80 A
V
(BR)DSS
60 V
R
DS(ON)
MAX
10 mW @ 10 V
Applications
N−Channel
D
MAXIMUM RATINGS
(T
J
= 25°C Unless otherwise specified)
G
S
4
4
1
2
3
TO−220AB
CASE 221A
STYLE 5
3
D
2
PAK
CASE 418B
STYLE 2
Drain−to−Source Voltage
Gate−to−Source Voltage
Continuous
Gate−to−Source Voltage
Nonrepetitive
(T
P
< 10
ms)
Continuous Drain
Current R
qJC
(Note 1)
Power Dissipation
R
qJC
(Note 1)
Pulsed Drain Current
Steady
State
Steady
State
T
C
= 25°C
T
C
= 100°C
T
C
= 25°C
t
p
= 10
ms
1
Operating and Storage Temperature Range
Source Current (Body Diode)
Single Pulse Drain−to−Source Avalanche
Energy
Starting T
J
= 25°C
(V
DD
= 50 V
dc
, V
GS
= 10 V
dc
, I
L(pk)
= 75 A,
L = 0.1 mH, R
G
= 25
W)
Lead Temperature for Soldering
Purposes, 1/8″ from Case for 10 Seconds
2
MARKING DIAGRAM
& PIN ASSIGNMENT
4
Drain
4
Drain
T
L
260
°C
NTP
5411NG
AYWW
1
Gate
2
Drain
3
Source
1
Gate
THERMAL RESISTANCE RATINGS
Parameter
Junction−to−Case (Drain) Steady State
(Note 1)
Symbol
R
qJC
R
qJA
Max
0.9
43
Unit
°C/W
NTB
5411NG
AYWW
2
Drain
3
Source
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Surface mounted on FR4 board using 1 sq in pad size,
(Cu Area 1.127 sq in [1 oz] including traces).
G
A
Y
WW
= Pb−Free Device
= Assembly Location
= Year
= Work Week
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 5 of this data sheet.
©
Semiconductor Components Industries, LLC, 2009
October, 2009
Rev. 2
1
Publication Order Number:
NTB5411N/D
