UNISONIC TECHNOLOGIES CO., LTD
BAS70x
SCHOTTKY BARRIER
DIODES

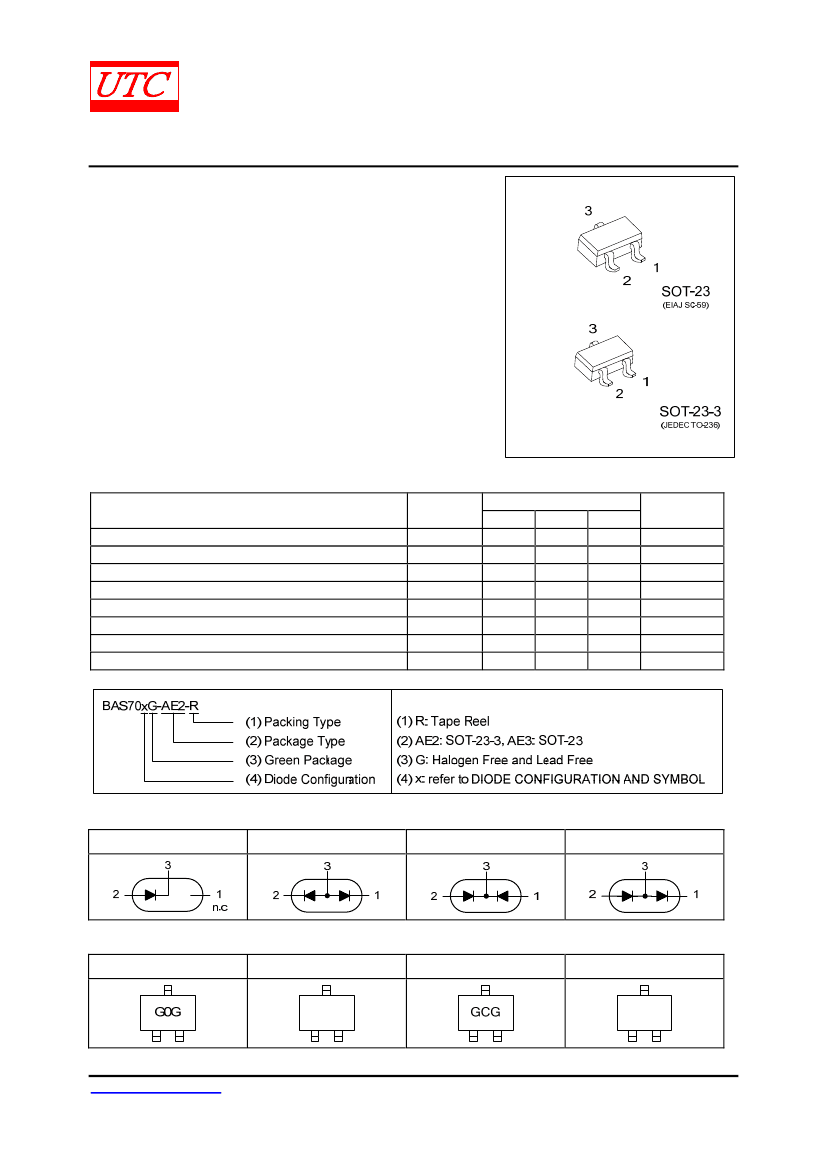

DESCRIPTION
DIODE
Planar Schottky barrier diodes encapsulated in the
SOT-23 small plastic SMD package. Single diodes and dual
diodes with different pin configuration are available.
FEATURES
* Low Turn-on voltage
* Fast switching
* Ultra-small surface mount package
* Also available in lead free version
ORDERING INFORMATION
Ordering Number
BAS70G-AE2-R
BAS70AG-AE2-R
BAS70CG-AE2-R
BAS70SG-AE2-R
BAS70G-AE3-R
BAS70AG-AE3-R
BAS70CG-AE3-R
BAS70SG-AE3-R
Package
SOT-23-3
SOT-23-3
SOT-23-3
SOT-23-3
SOT-23
SOT-23
SOT-23
SOT-23
Pin Assignment
1
2
3
x
A
K
K1
K2
A2A1
A1
A2
K2K1
K1
A2
K2A1
x
A
K
K1
K2
A2A1
A1
A2
K2K1
K1
A2
K2A1
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Note: Pin Assignment: A: Anode K: Cathode x:NC
DIODE CONFIGURATION AND SYMBOL
BAS70
BAS70A
BAS70C
BAS70S
MARKING
BAS70
BAS70A
GAG
BAS70C
BAS70S
GSG
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 3
QW-R601-017.E
BAS70x
ABSOLUATE MAXIMUM RATINGS
(T
A
=25°C, unless otherwise specified)
PARAMETER
DIODE
SYMBOL
RATINGS
UNITS
DC Voltage
V
R
70
V
Forward Continuous Current
I
F
70
mA
Power Dissipation
P
D
200
mW
-55
~ +150
Junction Temperature
T
J
°C
Storage Temperature
T
STG
-55 ~ +150
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
A
=25°C, unless otherwise specified)
SYMBOL
TEST CONDITIONS
BV
R
I
R
= 10μA
I
R
V
R
=50V
I
F
=1mA
V
F
I
F
=15mA
C
D
V
R
=0V, f=1MHz
I
F
=I
R
=10mA, I
RR
=0.1xI
R
,
t
RR
R
L
=100Ω
MIN
70
TYP
MAX
100
410
1000
2
5
UNIT
V
nA
mV
mV
pF
nS
PARAMETER
Reverse Breakdown Voltage
Reverse Voltage Leakage Current
Forward Voltage
Diode Capacitance
Reveres Recovery Time
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R601-017.E
BAS70x

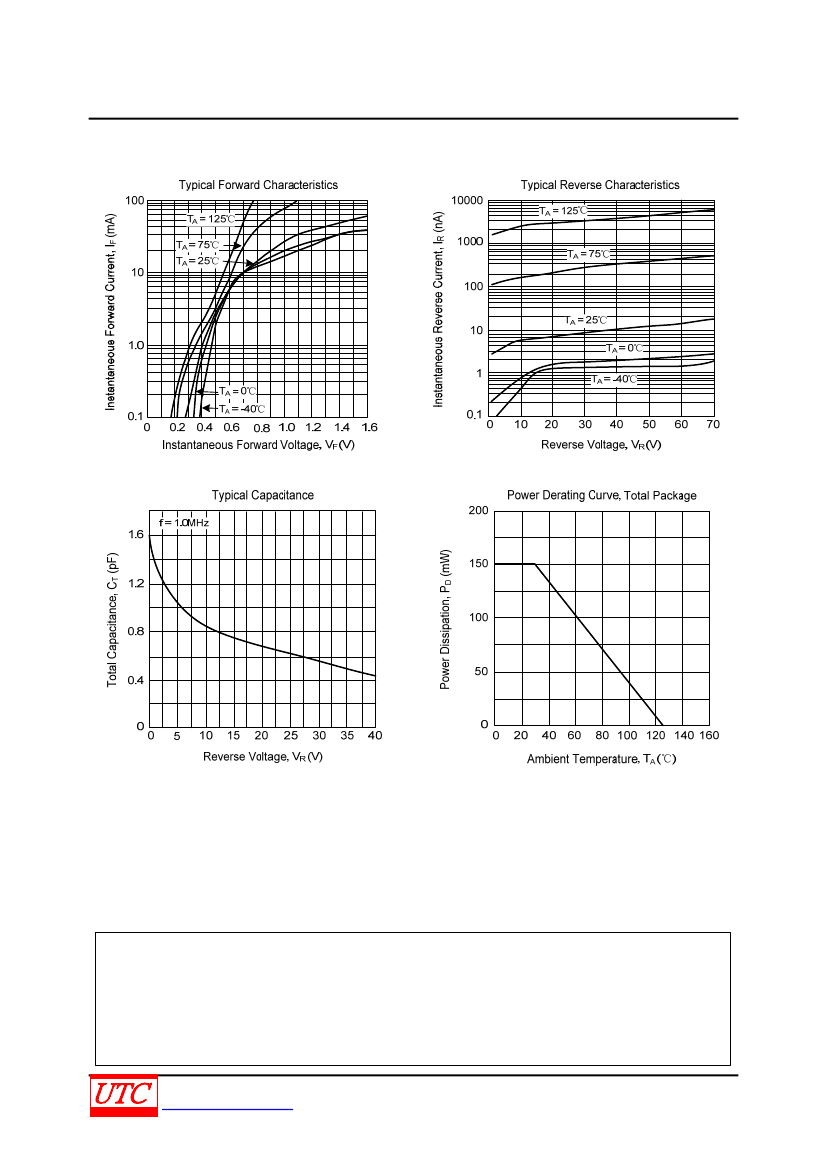

TYPICAL CHARACTERISTICS
