0.5mm Pitch Connectors with Ground Plate for Board-to-Board Connections
FX10 Series

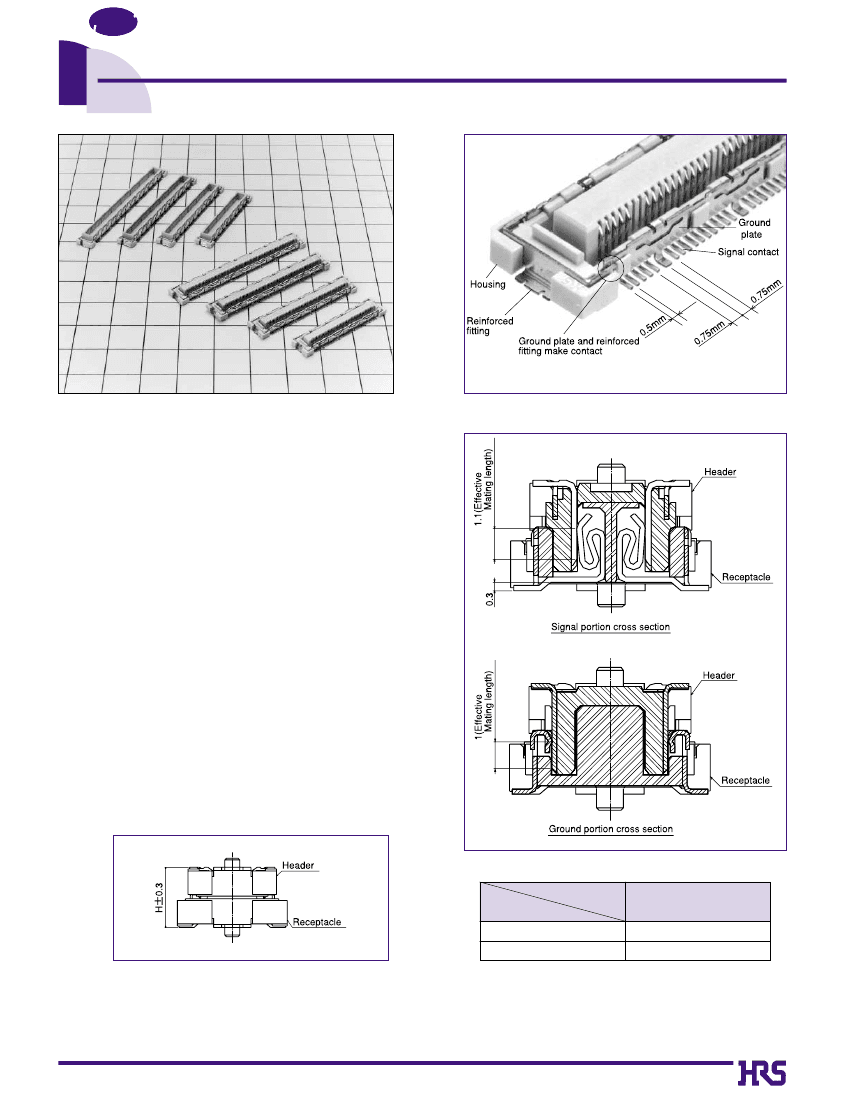

sFeatures
1. Improved Transmission Efficiency Between
Boards
Transmission characteristics have been improved through
a design that fixes ground plates to both sides of the
header and receptacle.
Cross-Section of Mating
2. 10 Signal:1 Ground Arrangement
Signal and ground are arranged in a ratio of 10:1 with the
ground plate SMT connected to the board. The ground
stability achieved serves to reduce noise.
3. Reinforced Fittings for Added Solder Weld
Strength
Reinforced fittings provide greater adhesion to the board,
protecting against peeling. The unique connector design
provides a connection between the fitting and the ground
plate for a stronger ground.
4. Suited to High-Density Applications
The signal contact pitch of 0.5 mm produces a smaller
connector utilizing less board area for mounting.
5. Board-To-Board Dimensions of 4mm and 5
mm Are Available
Stack Height
Receptacles
Headers
FX10#–½P/½–SV1
FX10#–½P/½–SV1
Note: The thickness of the solder paste is not included in the stack height (dimension H).
FX10# –½S/½–SV
Dimension H
4mm
5mm
sApplications
Notebook computers, PDA, and other miniature electronic equipment.
2003.7
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sProduct
Specifications
Operating temperature range -55 to 85ç
Storage temperature range -10 to +60ç (Note 2)
Rated current 0.3 A (Note 1) Operating humidity range
Rating
Relative humidity 95% or less
Storage humidity range
Rated voltage 50 V AC
-40
to 70% (Note 2)
(No condensation)
Item
1. Insulation resistance
2. Voltage proof
3. Contact resistance
4. Vibration
5. Shock
6. Damp heat
(Steady state)
7. Rapid change of
temperature
8. Insertion/Withdrawal life
9. Resistance to
100 M
ø
or greater
No flashover or breakdown
60 m
ø
or less
No electrical discontinuity for 1µs or greater
No damage, cracks, or parts looseness
No electrical discontinuity for 1µs or longer
No damage, cracks, or parts looseness
Contact resistance of 70 m
ø
or less, insulation resistance of
100 M
ø
or greater, no damage, cracks, or parts looseness
100 M
ø
or greater, no damage, cracks, or parts looseness
Contact resistance of 70 m
ø
or less
No damage, cracks, or parts looseness
No melting of resin portion which affects performance
Requirements
Measured at 100 V DC
150 V AC applied for one minute
Measured at 100 mA
Frequency: 10 to 55 Hz, amplitude of 0.75 mm in 3 directions, 10
cycles each
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave
waveform, for 3 cycles in the both directions of each of the 3 axes
Temperature of 40ç, humidity of 90 to 95%, duration 96 h
Conditions
Contact resistance of 70 m
ø
or less, insulation resistance of Temperature: -55ç
¡
15 to 35ç
¡
85ç
¡
15 to 35ç
Time: 30 min.
¡
2 to 3 min.
¡
30 min.
¡
2 to 3 min. for 5 cycles
50 times
Reflow: At the recommended temperature profile
Soldering iron temperature: 300ç·for 3 seconds
soldering heat
Note 1: Please contact us when connector application exceeds 0.3 A rated current.
Note 2: The term storage refers to an unused products prior to board mounting (including packing materials) that is being kept for a long period.
The operating temperature and humidity range are suited to the non-conducting condition following board assembly.
Note 3: The aforementioned specifications are representative of this series. For information on specific parts, confirm with Sales Office.
sMaterials
Part
Insulator
Material
LCP resin
Header
Contacts
Phosphor bronze
Receptacle
Ground plate
Reinforced fitting
Phosphor bronze
Phosphor bronze
Process
Beige
Engagement Area: Gold plating of 0.1µm
Tenmination Area: Solder plating
Engagement Area: Gold plating of 0.1m
Termination Area: Flash plating
Solder plating
Tin plating
-
-
-
Notes
UL94V-0
Note : The black dots on the insulater will not affect performance.
sProduct
Number Configuration
Please use this information to discern the product specifications from the product number codes.
To order, please select from the product number codes listed in tables on pages 3 to 5 of this catalog.
FX 10 # -
½
P /
½
- SV 1 (½
½)
1
2
3
5
4
1
Series name: FX
2
Series No.: 10
3
Form Symbol
A: With guide post
B: Without guide post
4
Number of contacts
Signal/Ground: 80/8, 100/10, 120/12,
140/14
5
Connector type
P: Header
S: Receptacle
6
Contact form
SV: Straight SMT
7
Product height
Blank: Standard
1 : Standard + 1mm
8
Packaging classification
Blank: Tray packaging
(21) : Embossed tape packaging
6
7
8
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

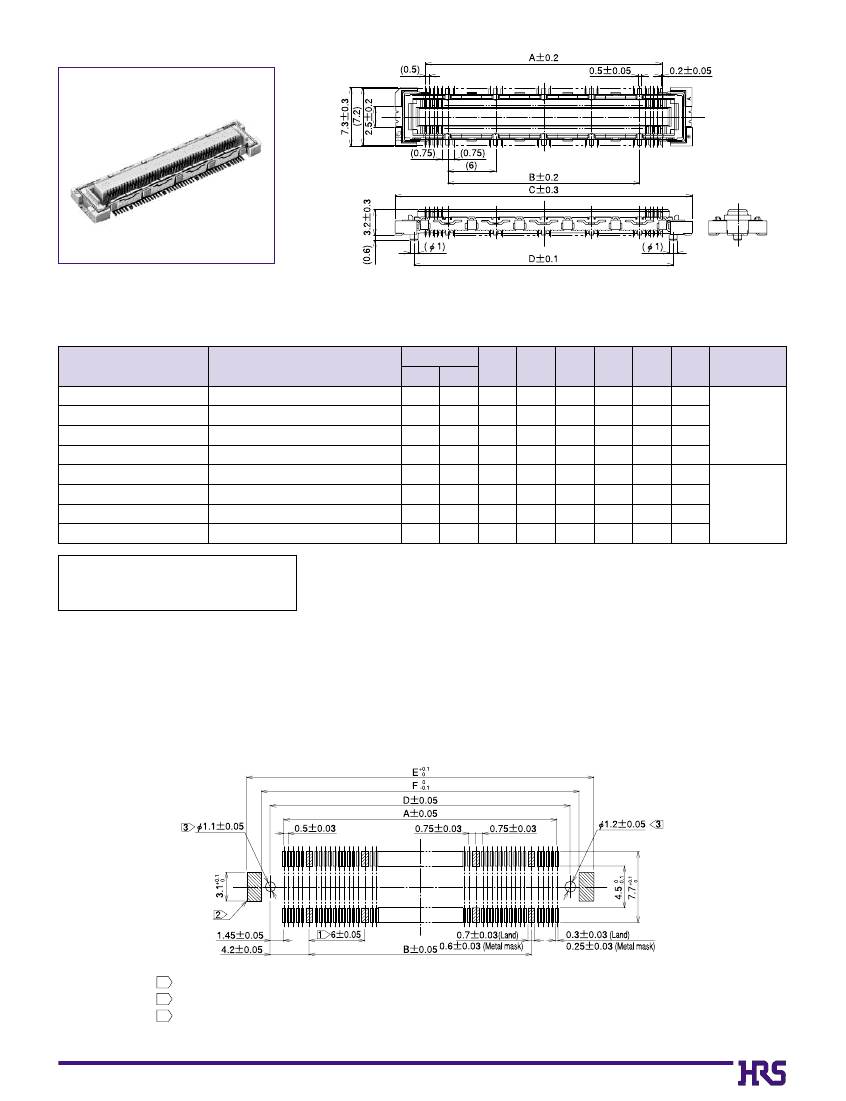

sReceptacles
Unit: mm
HRS No.
CL570-0201-4-½
½
CL570-0202-7-½
½
CL570-0203-0-½
½
CL570-0204-2-½
½
CL570-0221-1-½
½
CL570-0222-4-½
½
CL570-0223-7-½
½
CL570-0224-0-½
½
Product No.
FX10A-080S/08-SV(½
½)
FX10A-100S/10-SV(½
½)
FX10A-120S/12-SV(½
½)
FX10A-140S/14-SV(½
½)
FX10B-080S/08-SV(½
½)
FX10B-100S/10-SV(½
½)
FX10B-120S/12-SV(½
½)
FX10B-140S/14-SV(½
½)
Number of Contacts
Signal Ground
080
100
120
140
080
100
120
140
08
10
12
14
08
10
12
14
A
23.5
29.5
35.5
41.5
23.5
29.5
35.5
41.5
B
18
24
30
36
18
24
30
36
C
31.1
37.1
43.1
49.1
31.1
37.1
43.1
49.1
D
26.4
32.4
38.4
44.4
–
–
–
–
E
31.5
37.5
43.5
49.5
31.5
37.5
43.5
49.5
F
28.3
34.3
40.3
46.3
28.3
34.3
40.3
46.3
Without guideposts
With guideposts
Notes
[Specifications number]-
½ ½,(½ ½)
Blank: Tray packaging
(21) :Embossed tape packaging
Note 1: There is no polarity in terms of board mounting for this product.
Note 2: The coplanarity of this product's SMT leads is 0.1 mm or less.
Note 3: Please order embossed tape packaged items by the reel. (One reel holds 1,000 pieces.)
B
Recommended Land Pattern Dimensions (Metal Mask Dimensions)
Recommended metal mask thickness: 0.15 mm
Note 1 Cross-hatched portions, totaling n places, indicate the ground circuits.
2 Cross-hatched portions, 2 places on both sides, indicate the reinforced fittings.
3 Not required in products without guideposts.
3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
sHeaders

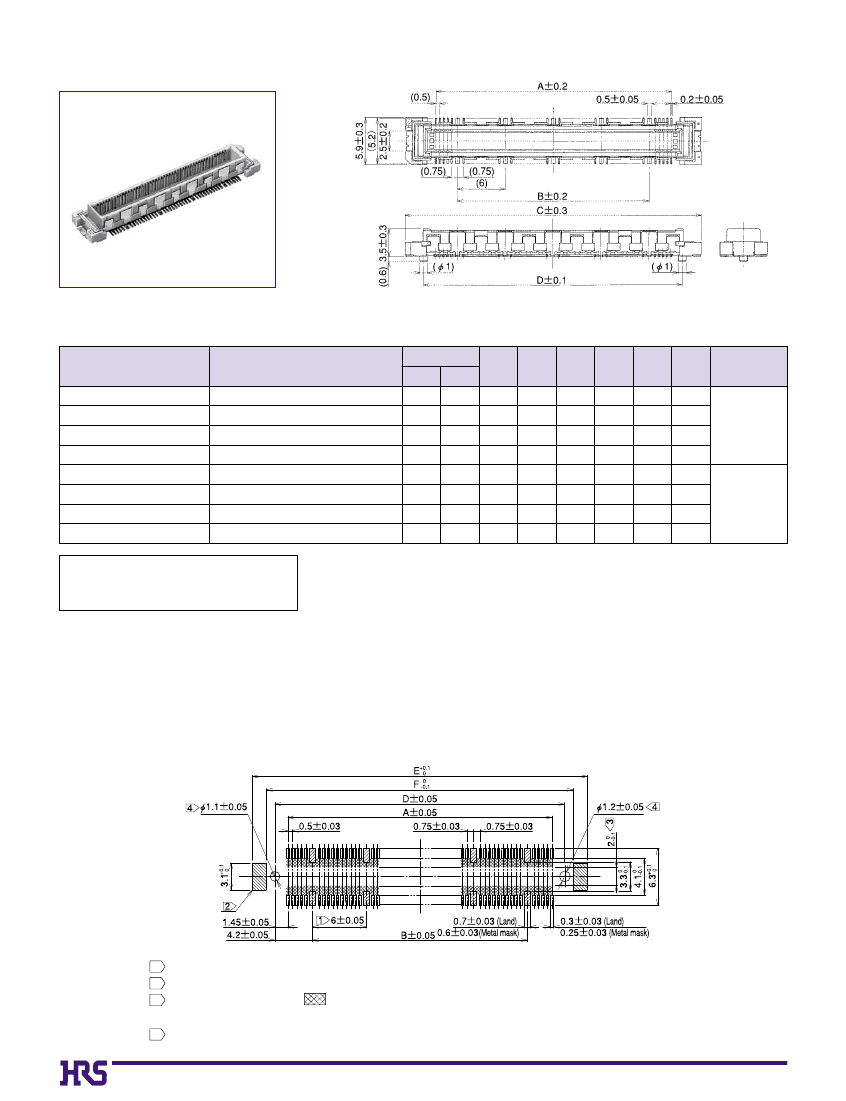

q4mm
Mounting Height
Unit: mm
HRS No.
CL570-0001-5-
½ ½
CL570-0002-8-
½ ½
CL570-0003-0-
½ ½
CL570-0004-3-
½ ½
CL570-0021-2-
½ ½
CL570-0022-5-
½ ½
CL570-0023-8-
½ ½
CL570-0024-0-
½ ½
Product No.
FX10A-080P/08-SV(
½ ½
)
FX10A-100P/10-SV(
½ ½
)
FX10A-120P/12-SV(
½ ½
)
FX10A-140P/14-SV(
½ ½
)
FX10B-080P/08-SV(
½ ½
)
FX10B-100P/10-SV(
½ ½
)
FX10B-120P/12-SV(
½ ½
)
FX10B-140P/14-SV(
½ ½
)
Number of Contacts
Signal Ground
080
100
120
140
080
100
120
140
08
10
12
14
08
10
12
14
A
23.5
29.5
35.5
41.5
23.5
29.5
35.5
41.5
B
18
24
30
36
18
24
30
36
C
31.1
37.1
43.1
49.1
31.1
37.1
43.1
49.1
D
26.4
32.4
38.4
44.4
-
-
-
-
E
31.5
37.5
43.5
49.5
31.5
37.5
43.5
49.5
F
28.3
34.3
40.3
46.3
28.3
34.3
40.3
46.3
Without guideposts
With guideposts
Notes
[Specifications number]
-½
½,
(½
½)
Blank: Tray packaging
(21) : Embossed tape packaging
Note 1: There is no polarity in terms of board mounting for this product.
Note 2: The coplanarity of this product's SMT leads is 0.1mm or less.
Note 3: Please order embossed tape packaged items by the reel. (One reel holds 1,000 pieces.)
B
Recommended Land Pattern Dimensions (Metal Mask Dimensions)
Recommended metal mask thickness: 0.15 mm
Note 1 Cross-hatched portions, totaling n places, indicate the ground circuits.
2 Cross-hatched portions, 2 places on both sides, indicate the reinforced fittings.
3 The cross-hatched area
inside the SMT land may come into contact with the connector contacts
and thus care should be taken that the pattern does not extend beyond the SMT land width.
4 Not required in products without guideposts.
4
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

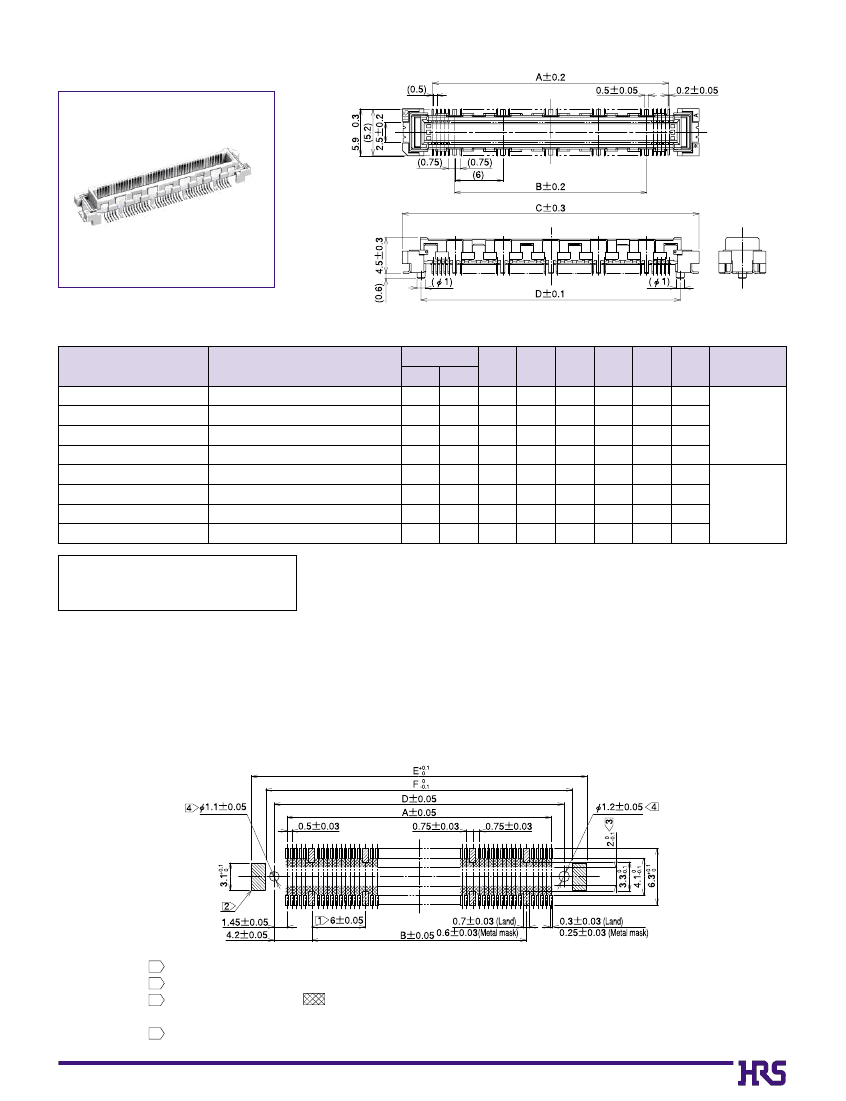

sHeaders
q5mm
Mounting Height
Unit: mm
HRS No.
CL570-0101-0-
½ ½
CL570-0102-2-
½ ½
CL570-0103-5-
½ ½
CL570-0104-8-
½ ½
CL570-0121-7-
½ ½
CL570-0122-0-
½ ½
CL570-0123-2-
½ ½
CL570-0124-5-
½ ½
Product No.
FX10A-080P/08-SV1(
½ ½
)
FX10A-100P/10-SV1(
½ ½
)
FX10A-120P/12-SV1(
½ ½
)
FX10A-140P/14-SV1(
½ ½
)
FX10B-080P/08-SV1(
½ ½
)
FX10B-100P/10-SV1(
½ ½
)
FX10B-120P/12-SV1(
½ ½
)
FX10B-140P/14-SV1(
½ ½
)
Number of Contacts
Signal Ground
080
100
120
140
080
100
120
140
08
10
12
14
08
10
12
14
A
23.5
29.5
35.5
41.5
23.5
29.5
35.5
41.5
B
18
24
30
36
18
24
30
36
C
31.1
37.1
43.1
49.1
31.1
37.1
43.1
49.1
D
26.4
32.4
38.4
44.4
-
-
-
-
E
31.5
37.5
43.5
49.5
31.5
37.5
43.5
49.5
F
28.3
34.3
40.3
46.3
28.3
34.3
40.3
46.3
Without guideposts
With guideposts
Notes
[Specifications number]
-½
½,(½ ½)
Blank: Tray packaging
(21) : Embossed tape packaging
Note 1: There is no polarity in terms of board mounting for this product.
Note 2: The coplanarity of this product's SMT leads is 0.1 mm or less.
Note 3: Please order embossed tape packaged items by the reel. (One reel holds 1,000 pieces.)
B
Recommended Land Pattern Dimensions (Metal Mask Dimensions)
Recommended metal mask thickness: 0.15 mm
Note 1 Cross-hatched portions, totaling n places, indicate the ground circuits.
2 Cross-hatched portions, 2 places on both sides, indicate the reinforced fittings.
3 The cross-hatched area
inside the SMT land may come into contact with the connector contacts
and thus care should be taken that the pattern does not extend beyond the SMT land width.
I am making a mouse, but I don't know what type of scroll wheel chip is in the middle. I don't have any information and I don't know where to start. If anyone knows, please give me some advice....
[i=s]This post was last edited by lkl0305 on 2016-6-10 23:00[/i] I have been learning Micropython since I got it. I have never learned Python before, so I took this opportunity to learn some of it spo...
I would like to ask, how long does it take to calculate 128 points of data using FFT? I use 2407, why does it take about 8MS for 128 points? Is it too slow? FFT is written in assembly language, and it...
I want to thank the first leader I met when I first entered the workplace. I was able to go from internship to retention in a large company, and this work experience became a plus point on my resume, ...
Traditional broadcasting systems generally need to be operated manually at a fixed time, and can only realize one-way broadcasting with few functions. Traditional bell ringing equipment has a singl...[Details]
Assume that data is read from 8-bit AD (if it is a higher-bit AD, the data type can be defined as int), the subroutine is get_ad();
1. Limited secondary filtering
/* A value can be adjust...[Details]
1. Circuit composition
The whole circuit consists of two parts:
1. Power saving control circuit
As shown in the figure below. Including delay circuit and drive circuit.
(1) Delay ci...[Details]
1. Introduction
With the growth of parking demand, the scale of parking lots is becoming larger and larger. A lot of research has been done on intelligent parking lots in China, but most of th...[Details]
Floating-point digital signal processing has become a constant requirement for precision technology, often in applications requiring high accuracy in areas such as aviation, industrial machinery, a...[Details]
Converged processors meet scalability requirements
In current embedded system design, solutions based on MCU, DSP, FPGA and ASIC account for more than 90% of the market share. These solutions ...[Details]
1 Introduction
With the acceleration of the pace of urban modernization, society has higher requirements for urban road lighting and urban lighting projects. The state has clearly required tha...[Details]
1 Introduction
Solar street lights are mainly composed of four parts: solar photovoltaic cell components, batteries, charge and discharge controllers, and lighting fixtures. The bo...[Details]
1 Introduction
As an emerging microfabrication technology, micro-electromechanical system (MEMS) technology has begun to be applied in various fields. It can integrate functions such as inform...[Details]
Editor's note: In order to help technicians or engineers who have knowledge of PIC microcontroller assembly language quickly master the method of using C language to program PIC microcontrollers, t...[Details]
This week, Microsoft held its 2012 Microsoft Worldwide Partner Conference (WPC) in Toronto, Canada. At the conference, Microsoft showed its new products and services to partners around the world. A...[Details]
Flooded Batteries
This battery developed in Germany can be used to power flashlights, strobe lights and toys as long as it is filled with water. This battery can be stored for 50 years and can...[Details]
Overview
In spectral measurement, photomultiplier tubes (PMT) and charge-coupled devices (CCD) are often used as photoelectric converters. PMT is used in slow-changing, high-precision spectral...[Details]
Introduction
Liquid crystal, as a display device, is widely used in low-power products such as instruments, meters, and electronic equipment with its unique advantages. In the past, the displ...[Details]
0 Introduction
High-precision current source can provide high-precision current supply for precision instruments, and is suitable for automatic measurement tasks of various resistors in semico...[Details]
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD
