NJM78LR05CM-(T2) datasheet, PDF

NJM78LR05CM-(T2): DescriptionFixed Positive Standard Regulator, 5VBIPolar, PDSO8, DMP-8; CategoryPower/power management The power supply circuit; File Size271KB，9 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric View All

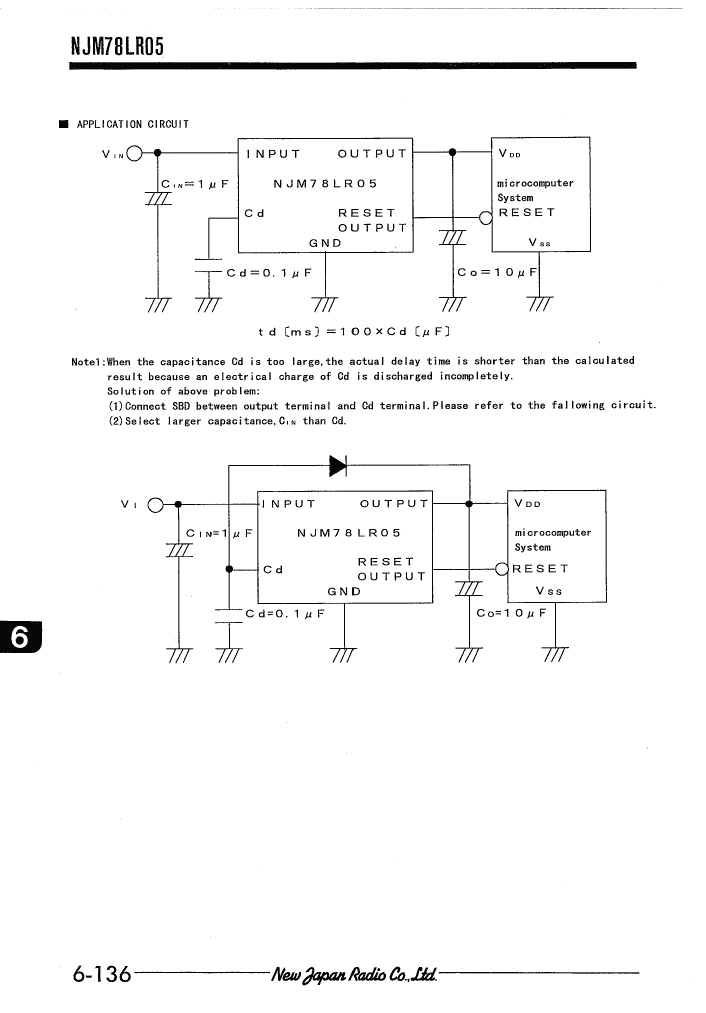

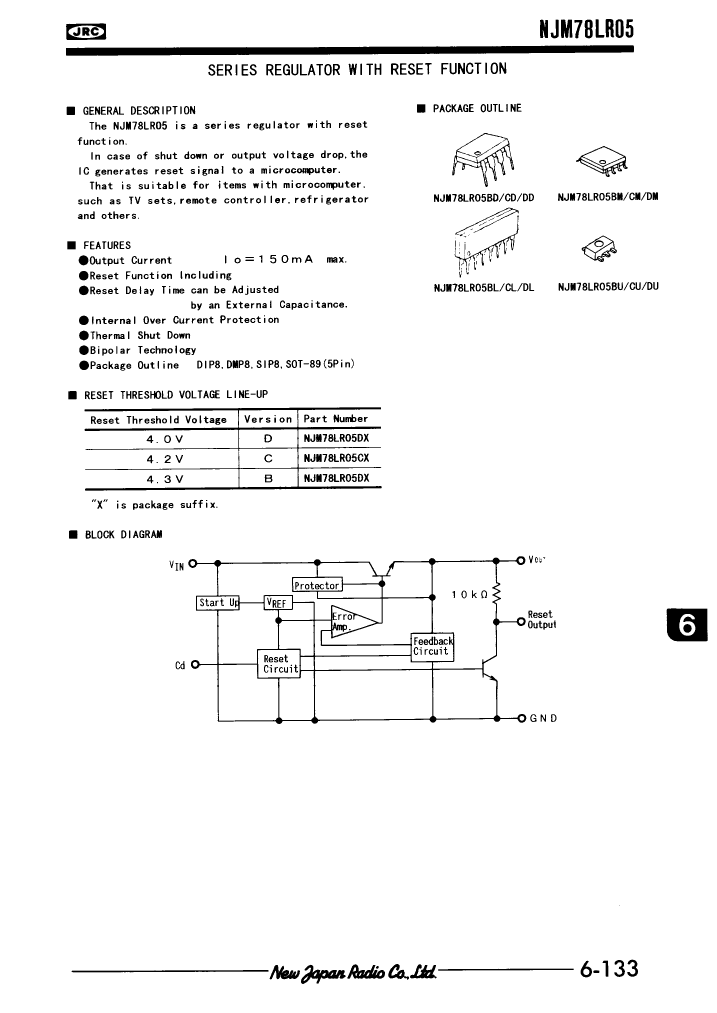

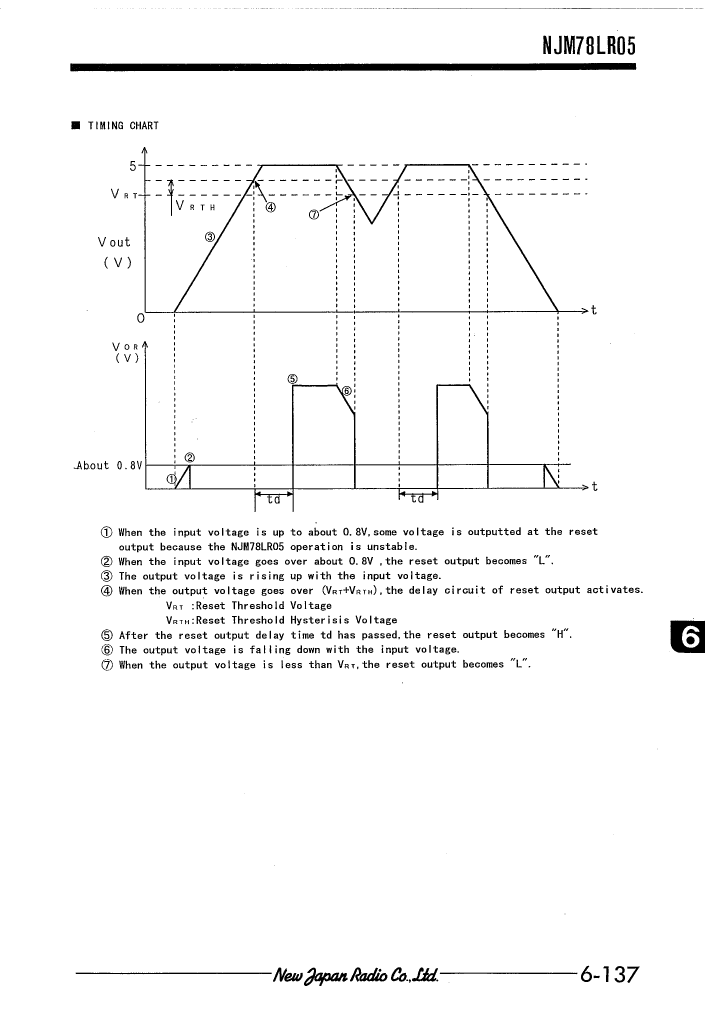

NJM78LR05CM-(T2) Overview

Fixed Positive Standard Regulator, 5VBIPolar, PDSO8, DMP-8

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..

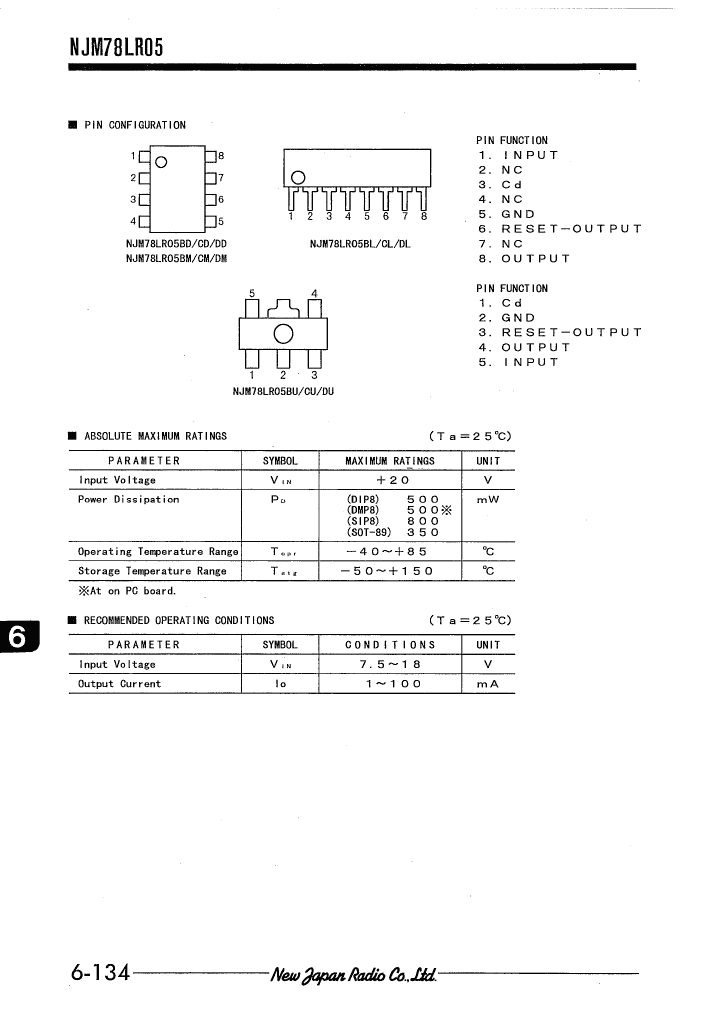

Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	18 V
Minimum input voltage	7.5 V
JESD-30 code	S-PDSO-G8
JESD-609 code	e6
length	5 mm
Number of functions	1
Number of terminals	8

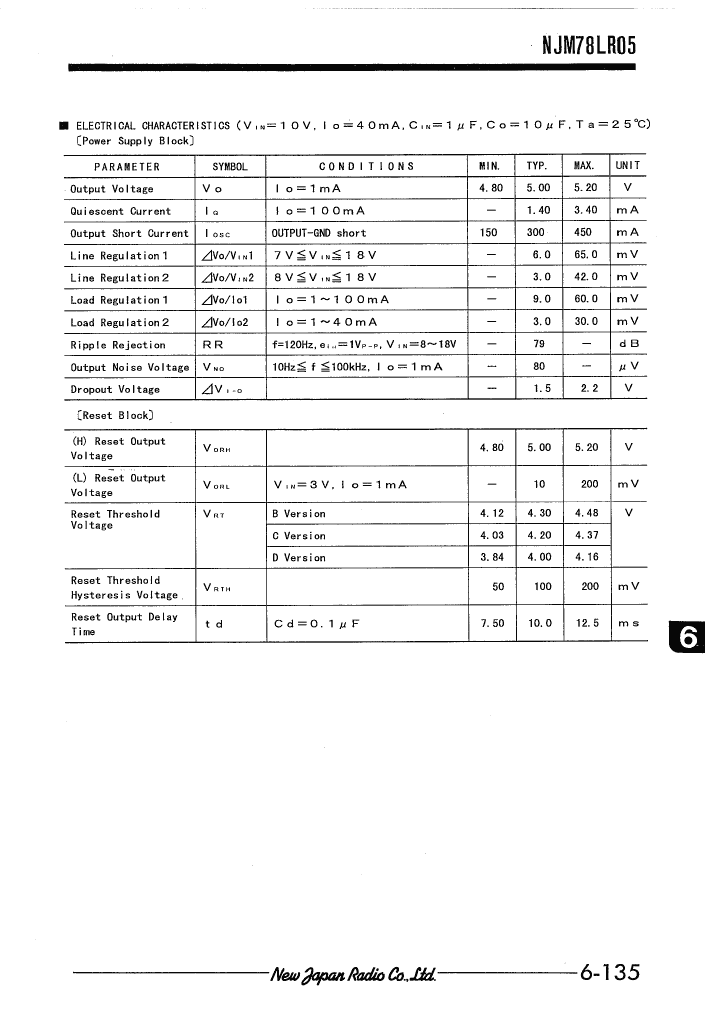

Maximum output current 1	0.1 A
Maximum output voltage 1	5.2 V
Minimum output voltage 1	4.8 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	SQUARE
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	2 mm
surface mount	YES
technology	BIPOLAR
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5 mm
