ST
®
Compatible, SC, FC
Epoxy and Polish Connectors
An Evolant™ Solutions Product
Description
Corning Cable Systems’ epoxy and polish product line
includes a full line of single-mode and multimode epoxy and
polish connectors for factory installation. We offer a wide
range of connector styles, hardware and boot options.
Preradiused and angled ferrules are also available.
Corning Cable Systems’ new composite multimode ferrule offers
excellent performance at a very low price. The redesigned
ferrule allows easier fiber entry. It has the lowest material cost
available. The standard multimode zirconia ceramic ferrule
has a radiused end-face to allow physical contact (PC) polishing.
The hardware on the ST
®
compatible connector is available in
either composite thermoplastic or metal. Both feature a closed
keyway design allowing the connector to far exceed performance
specifications for tensile strength. The SC connector features a
shroud that is duplexable with a simple clip. The FC and SC
connectors have non-optical disconnect features. All connectors
are pre-assembled for easy installation.
For Super or Ultra PC, the single-mode zirconia ceramic
ferrule has a radiused end-face to allow physical contact (PC)
polishing. A consumables kit and procedure are available for
hand-polishing to a Super PC finish, yielding a reflectance of
-40 dB average. Ultra PC (-55 dB) may be achieved by using
our automatic polisher, the SP500. For angled PC, the FC and
SC are available. The ferrule is pre-angled and must be polished
with Corning Cable Systems’ SP500 automatic polisher. A typical
reflectance of -65 dB is achievable with this process.
Corning
Cable Systems
Epoxy and Polish Connectors

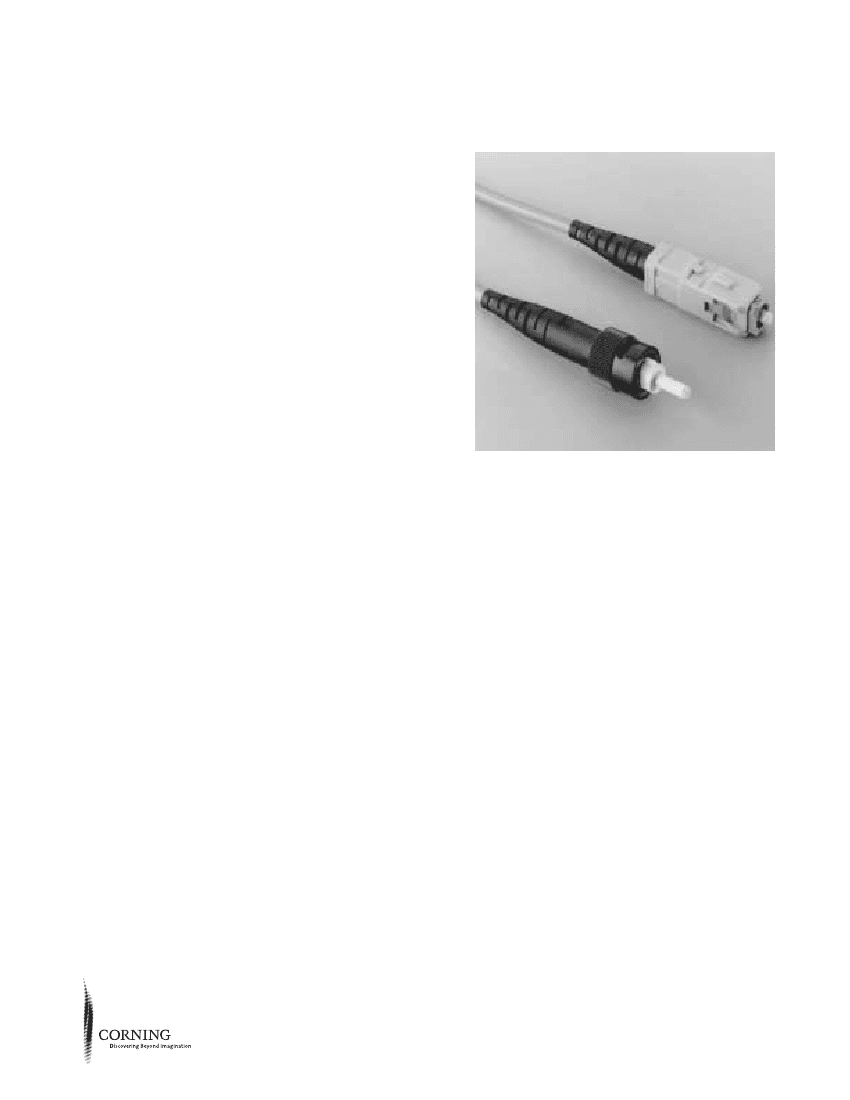

| Photo
CN01
Features / Benefits
• Bulk packaging for quicker assembly
• Angled PC available in FC and SC
• Preradiused zirconia ceramic ferrule with
Super PC polishing available; Ultra PC
available with automatic polisher
• Industry-leading multimode composite
ferrule provides low cost with performance
equal to ceramic
• Metallic and composite ST compatible connector
hardware features robust closed keyway design
• Connectors are pre-assembled for reduced
installation time
• New one-step crimp ring with jacket retention
• Boot size and color options
• Automatic polisher available
• SC, ST compatible and FC meet
TIA/EIA-568-B.3 standard; SC is duplexable
• FC meets JIS specification and has non-optical
disconnect feature
Product Specifications
ST
®
Compatible, SC, FC
Epoxy and Polish Connectors
An Evolant™ Solutions Product
Specifications
Parameter
Interconnection
Compatibility
Insertion Loss
(average)
Reflectance
Single-mode
Compliant with TIA/EIA 604-2 (ST
®
Compatible),
604-3 (SC), 604-4 (FC), and 604-10 (LC)
0.2 dB
< -30 dB for PC
< -40 dB for Super PC
< -55 dB for Ultra PC
< -65 dB for Angled PC
≤
0.2 dB change, 1000 rematings, FOTP -21
≤
0.2 dB change, 20 lb, FOTP -6
-40° to +75°C, 21 cycles, < 0.3 dB change
Ferrule: Composite or preradiused zirconia
Housing: Composite or metal
Multimode
Corning
Cable Systems
Composite ferrule:
0.2 dB
Standard ceramic ferrule: 0.2 dB
N/A
N/A
N/A
N/A
Durability
Tensile Strength
Temperature Cycling
Material
Note: SC connector is not available with metal housing.
Ordering Information
Part Number
Description
ST Compatible 62.5 µm Multimode Connector with composite ferrule and composite hardware;
bulk packaged in quantities of 100
ST Compatible 62.5 µm Multimode Connector with standard zirconia ceramic ferrule and composite
hardware; bulk packaged in quantities of 100
ST Compatible 62.5 µm Multimode Connector with standard zirconia ceramic ferrule and metal
hardware; bulk packaged in quantities of 100
SC 62.5 µm Multimode Connector with composite ferrule and composite hardware;
bulk packaged in quantities of 100; duplexable
SC 62.5 µm Multimode Connector with standard zirconia ceramic ferrule and composite hardware;
bulk packaged in quantities of 100; duplexable
ST Ceramic, Composite Hardware; bulk packaged in quantities of 100
ST Ceramic, Metal Hardware; bulk packaged in quantities of 100
FC Ceramic, Metal Hardware; bulk packaged in quantities of 100
FC APC Single-mode Connector with pre-angled ceramic ferrule and metal hardware;
bulk packaged in quantities of 100; must be polished with SP500 polisher
SC Ceramic, Metal Hardware; bulk packaged in quantities of 100
SC APC Single-mode Connector with pre-angled ceramic ferrule, metal hardware and green shroud;
bulk packaged in quantities of 100; must be polished with SP500 polisher
x = Size
9 = 900 µm boot only
3 = 3 mm boot only
R = Ribbon interconnect
y = Color
B = black
R = red
N = navy blue
W = white
G = green
Y = yellow
Multimode Connectors
95-100-02-BPxy*
95-100-44-BPxy*
95-101-44-BPxy*
95-100-03-BPxy*
95-100-48-BPxy*
Single-mode Connectors
95-250-06-BPxy*
95-251-06-BPxy*
95-250-10-BPxy*
95-211-10-BPxy*
95-250-08-BPxy*
95-211-08-BPxy*
*Boot size and color are offered as options:
ST
®
Compatible, SC, FC
Epoxy and Polish Connectors
An Evolant™ Solutions Product
Accessories
Part Number
TKT-025
Description
Corning
Cable Systems
Termination Kit for Corning Cable Systems multimode and single-mode heat-cured connectors;
includes installation tools for ceramic or composite connectors and consumables for up to 200
ceramic connectors; supplemental consumables must be added for composite termination
(TKT-025-CA)
Supplemental Consumables to terminate all-composite connectors; must be added to TKT-025
for initial installation
Ceramic Consumables Kit for TKT-025; will terminate up to 200 connectors
Composite Consumables Kit for TKT-025; will terminate up to 200 connectors
Super PC Polishing Consumables Kit for single-mode connectors
Jacket Retention Crimp Tool for ST
®
compatible and SC connectors
Automatic Polisher; polishes up to 12 connectors simultaneously
TKT-025-CA
TKT-025-C
TKT-025-C1
TKT-025-SPC
3201014-01
SP500
ST
®
Compatible, SC, FC
Epoxy and Polish Connectors
An Evolant™ Solutions Product
Corning
Cable Systems
Corning Cable Systems LLC • PO Box 489 • Hickory, NC 28603-0489 USA
1-800-743-2675 • FAX: +1-828-901-5973 • International: +1-828-901-5000 • http://www.corning.com/cablesystems
Corning Cable Systems reserves the right to improve, enhance, and modify the features and specifications of Corning Cable Systems’ products
without prior notification. Evolant is a trademark of Corning Cable Systems Brands, Inc. Discovering Beyond Imagination is a trademark of
Corning Incorporated. ST is a registered trademark of Lucent Technologies. All other trademarks are the properties of their respective owners.
Corning Cable Systems is ISO 9001 certified. © 2001, 2002 Corning Cable Systems. All rights reserved. Published in the USA.
EVO-329-EN / November 2002 / 3.5M
