SAW Components
SAW IF filter
WiMAX
Series/type:
Ordering code:
Date:
Version:
B5032
B39461-B5032-H810
Jun 29, 2009
2.3
©
EPCOS AG 2009. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW IF filter
Data Sheet
Application
s
Low-loss IF filter for WiMAX
s
Usable passband 10.4 MHz
s
Balanced or unbalanced operation possible
B5032
456.00 MHz
Features
Package size 7.0 x 5.0 x 1.33 mm
3
Package code QCC12E
RoHS compatible
Approx. weight 0.2 g
Ceramic package for
Surface Mount Technology
(SMT)
s
Ni, gold-plated terminals
s
Electrostatic Sensitive Device
(ESD)
s
Filter surface passivated
s
s
s
s
s
1,27 1,27
1
2
3
4
1,4
12
1,1 2,54
bottom view
11
10
9
8
7
0,8
1,33
side view
7,0
5,0
6
5
top view
Pin configuration
s
s
s
s
s
s
10
12
4
6
2, 3, 8, 9
1, 5, 7, 11
Input
Input ground or balanced input
Output
Output ground or balanced output
To be grounded
Case ground
10
4
12
6
1,5,7,11
Please read
cautions and warnings and
important notes
at the end of this document.
2
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet
Characteristics
B5032
456.00 MHz
Operating temperature range: T =
–40 to 90 ˚C
Terminating source impedance: Z
S
= 50
Ω
single ended or 200
Ω
balanced and matching network
Terminating load impedance:
Z
L
= 50
Ω
single ended or 200
Ω
balanced and matching network
min.
Nominal frequency
Minimum insertion attenuation
(including matching network)
Amplitude ripple
(p-p)
f
N
±
2.9 MHz
f
N
±
5.2 MHz
Group delay ripple
(p-p)
f
N
±
5.2 MHz
Absolute group delay
(at f
N
)
Relative attenuation
(relative to
α
min
)
f
N
±
10.0 ... f
N
±
43.0 MHz
411 - 413 MHz
393 - 411 MHz
343 - 393 MHz
Temperature coefficient of frequency
1)
f
N
α
min
∆α
—
—
typ.
@ 25 ˚C
456.0
8.7
max.
—
11.0
MHz
dB
—
—
∆τ
—
0.4
0.5
1.5
2.0
dB
dB
35
150
ns
τ
α
rel
—
0.7
2.0
µs
37
1)
40
40
42
TC
f
—
43
50
50
50
–18
—
—
—
—
—
dB
dB
dB
dB
ppm/K
for balanced operation mode only a minimum selectivity of 30 dB could be specified
Matching network to 50
Ω
single ended
(element values depend on PCB layout)
L
s1
= 33.0 nH
L
p2
= 15.0 nH
L
p3
= 15.0 nH
L
s4
= 33.0 nH
Please read
cautions and warnings and
important notes
at the end of this document.
3
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet
Matching network to 200
Ω
balanced
(element values depend on PCB layout)
4:1 transformer is only required for measurement in a 50
Ω
environment
B5032
456.00 MHz
C
s1,
C
s2
not used
L
p1
= 15 nH
C
s3,
C
s4
not used
L
p2
= 15 nH
1:4
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
DC voltage
ESD voltage
Input power
1)
4:1
T
T
stg
V
DC
V
DC
V
ESD
P
IN
–40/+90
–40/+90
5
0
200
1)
10
˚C
˚C
V
V
V
dBm
between input, output and ground
between 10,12 and between 4,6
machine model, 1 pulse
acc. to J-STD22A-0115A (machine model, 1 pulse +/-).
Normalized transfer function (pass band)
Please read
cautions and warnings and
important notes
at the end of this document.
4
Jun 29, 2009
SAW Components
SAW IF filter
Data Sheet

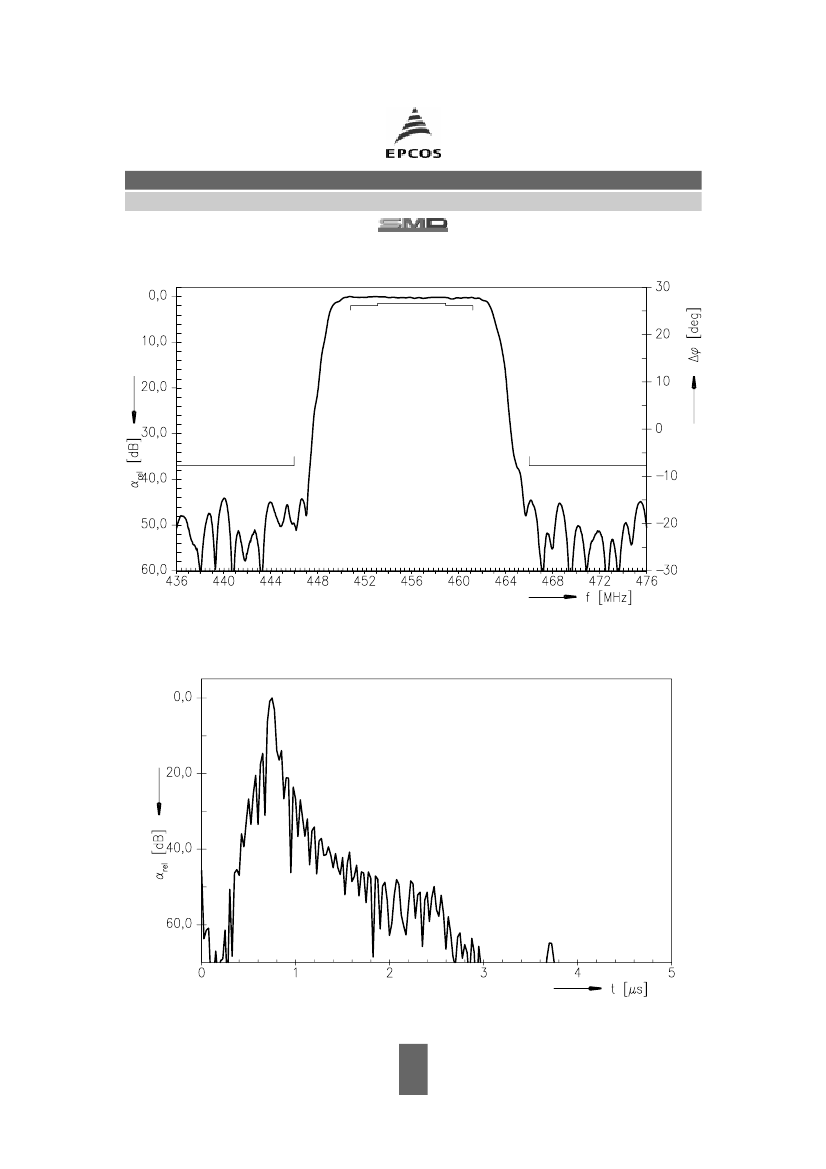

Transfer function
(wide band)
B5032
456.00 MHz
Normalized time response
Please read
cautions and warnings and
important notes
at the end of this document.
5
Jun 29, 2009
