SAW Components
SAW Rx Filter
Business Radio
Series/type:
Ordering code:
Date:
Version:
B5058
B39461B5058Z810
March 22, 2007
2.0
©
EPCOS AG 2007. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.

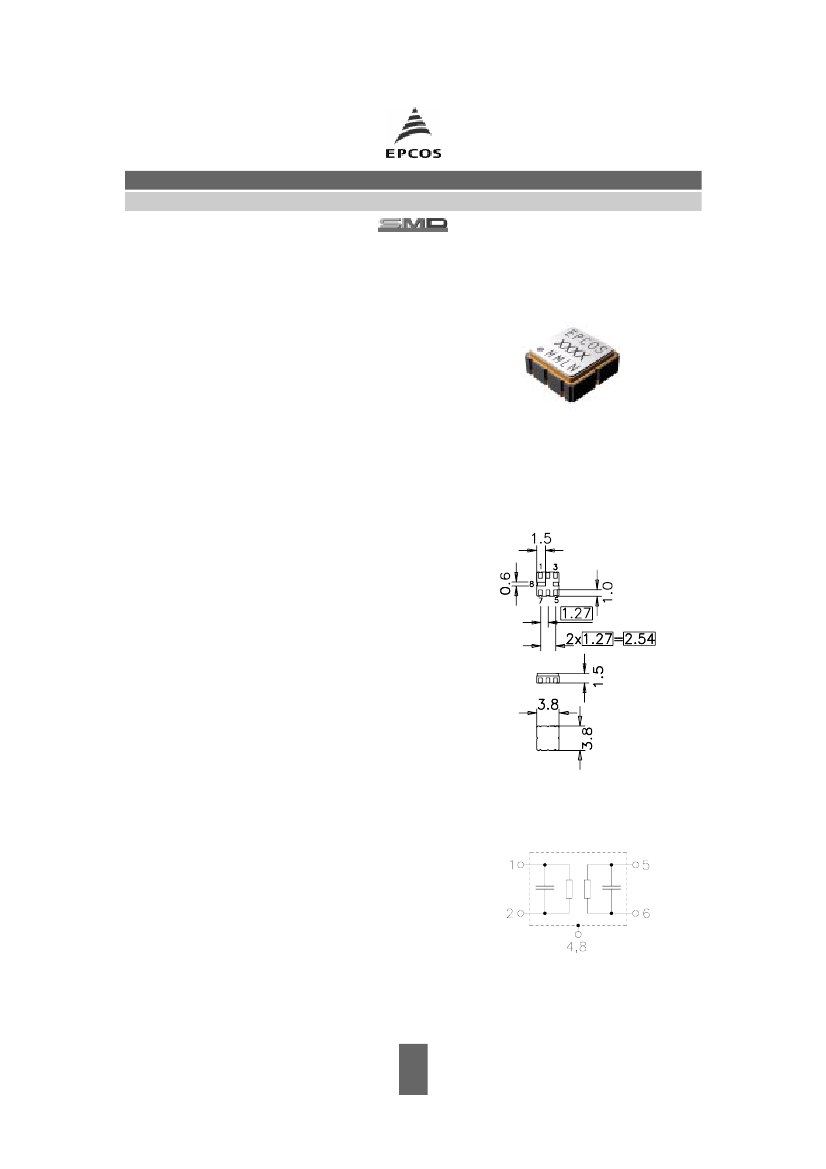

SAW Components
SAW Rx Filter
Data Sheet
Application
s
s
s
s
s
B5058
460.0 MHz
Low-loss filter for Business Radio
Usable passband 20 MHz
Unbalanced to unbalanced operation
No matching required
Filter impedance 50
Ω
Features
Package size 3.8 x 3.8 x 1.5 mm
3
Package code QCC8B
Approx. weight 0.07 g
Ceramic package for
Surface Mount Technology
(SMT)
s
RoHS compliant
s
Ni, gold-plated
s
Electrostatic Sensitive Device
(ESD)
s
s
s
s
Pin configuration
s
s
s
s
2
6
1,3,5,7
4,8
Input
Output
To be grounded
Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
March 22, 2007
SAW Components
SAW Rx Filter
Data Sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = -30 to +60˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
min.
Center frequency
Maximum insertion attenuation
450.0 ... 470.0
Amplitude ripple
(p-p)
450.0 ...
Input return loss
450.0
Output return loss
450.0
Attenuation
0.1 ... 300.0 MHz
300.0 ... 380.0 MHz
380.0 ... 430.0 MHz
504.825... 524.825MHz
559.65 ... 579.65 MHz
669.3 ... 689.3 MHz
689.3 ... 1000.0 MHz
Temperature coefficient of frequency
1)
2)
B5058
460.0 MHz
f
C
α
max
MHz
∆α
470.0
MHz
—
typ.
@ 25 ˚C
460.0
max.
—
MHz
—
2.0
3.2
1)
dB
—
0.7
2.4
2)
dB
...
470.0
MHz
10.0
14.5
—
dB
...
470.0
MHz
α
10.0
17.5
—
dB
30
24
15
12
28
24
26
TC
f
—
42
34
23
32
41
37
34
-70
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
ppm/K
2.2 dB at 25 ˚C.
1.4 dB at 25 ˚C.
Please read
cautions and warnings and
important notes
at the end of this document.
3
March 22, 2007
SAW Components
SAW Rx Filter
Data Sheet
B5058
460.0 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input Power at
450.0 ... 470.0 MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
-40 / +85
-40 / +85
5
100
1)
10
˚C
˚C
V
V
dBm
machine model, 10 pulses
continuous wave
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
4
March 22, 2007
SAW Components
SAW Rx Filter
Data Sheet

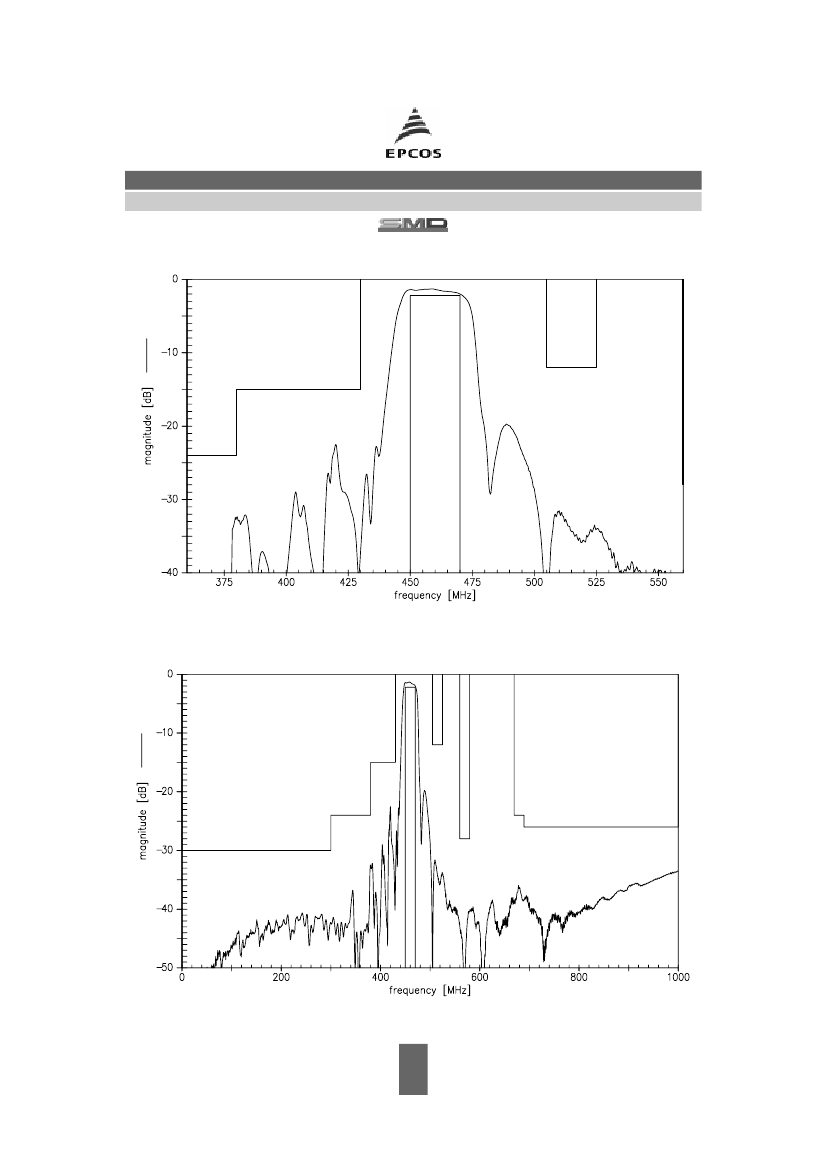

Transfer function
(narrowband)
B5058
460.0 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
March 22, 2007
