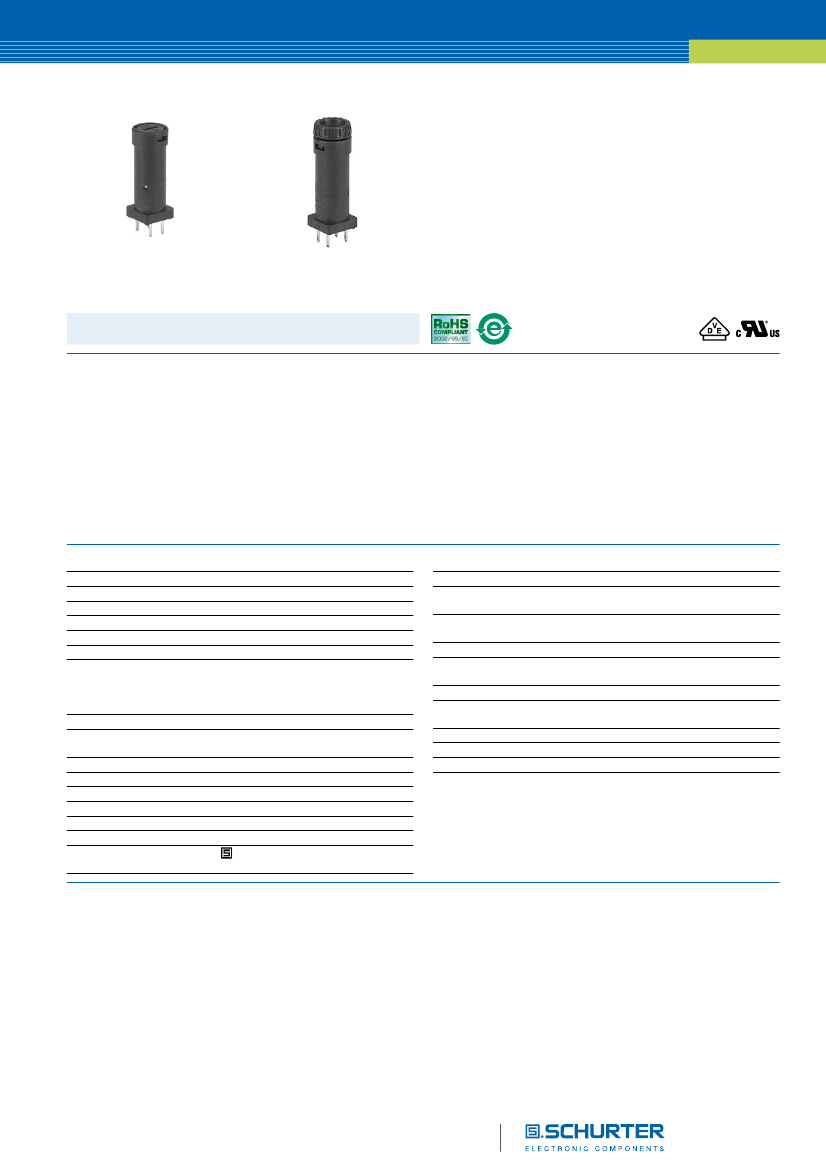

Shock-Safe Fuseholder, 5 x 20 mm, Slot/Fingergrip, vertical, IEC 60335-1
FPG4
Fingergrip
250 VAC · 2.5 W / 10 A (VDE)16 A (UL/CSA)
- Meets the new requirements of IEC 60335-1 Ed. 4.0 for appliances in
unattended use (clause 30.2.3). This includes the enhanced require-
ments of glow wire tests acc. to IEC 60695-2-11 to -13. Order numb-
ers: xxxx.xxxx.15
- Vertical style
Description
Applications
- Industrial electronic
- Household appliances
- Medical equipments
References
Weblinks
Standards
General Product Information
Approvals, RoHS, CHINA-RoHS, e-Store, Distributor-Stock-Check,
Accessories, Product Change Notification (PCN)
- IEC 60127-6
- UL 4248-1 / UL 512
- CSA C22.2 no. 39
Approvals
- VDE License Number: 129098
- UL File Number: E39328
Technical Data
PC2
5 x 20 mm
PCB
Solder THT
250 VAC
10 A (VDE), 16 A (UL/CSA)
2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Degree of Protection
IP 40
Protection Class
Suitable for appliances with protection
class 1 or 2 acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight (Socket/Cap)
4.66 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Voltage, Power Acc./Current
Rating, Approvals
Shocksafe Category
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated Current
Rated Power Acceptance IEC
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Resistance to Vibration
Wave
235 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 1
260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
< 5 mΩ at 20 mV
> 3 kV between L-N
(50 Hz; 1 min)
> 2.5 kV between L-N
> 10 MΩ between L-N
(500 VDC; 1 min)
I - II acc. to IEC 60664-1
1 - 3 acc. to IEC 60664-1
acc. to IEC 60068-2-6, test Fc
Fuses
FPG4
www.schurter.com/pg02
Abmessungen
ø 12.5
Fuseholders
37.8 mm
ø 12.5
5.5
12
5.5
32.6
32.6
12
3.8
0.6
37.8
P
3.8
0.5
1.1
5.08
12.5
P
0.5
0.6
42.8
1.1
5.08
12.5
7.62
12.5
R 1.4
12.5
R 1.4
Variant 3101.0040
Variant Fingergrip 3101.0045
5.08
±0.1
+0.1
1.3
0
7.62
±0.1
P
Drilling diagram
Derating Curves for Fuseholders
Admissible power acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Ambient air temperature Ta °C
Variants
Holder
l
l
l
l
Cap
Slot Knob
Slot Knob
Fingergrip
Fingergrip
Terminal
Straight
Straight
Straight
Straight
Material
Thermoplastic
Spec. Thermoplastic 1
Thermoplastic
Spec. Thermoplastic 1
Remark
-
Approvals pending
-
Approvals pending
Order Number
3101.0040
3101.0040.15
3101.0045
3101.0045.15
Spec. thermoplastic meet the new requirements of IEC 60335-1 Ed. 4.0 for appliances in unattended use (clause
30.2.3). This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 to -13.
White and grey colours available on request
Packaging Unit
Bulk 186 x 91 x 91 mm (100 pcs.)
2
