HD74LVC139RP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> HD74LVC139RP

HD74LVC139RP: DescriptionDecoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, SOP-16; Categorylogic logic; File Size101KB，5 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LVC139RP Overview

Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, SOP-16

HD74LVC139RP Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	2
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

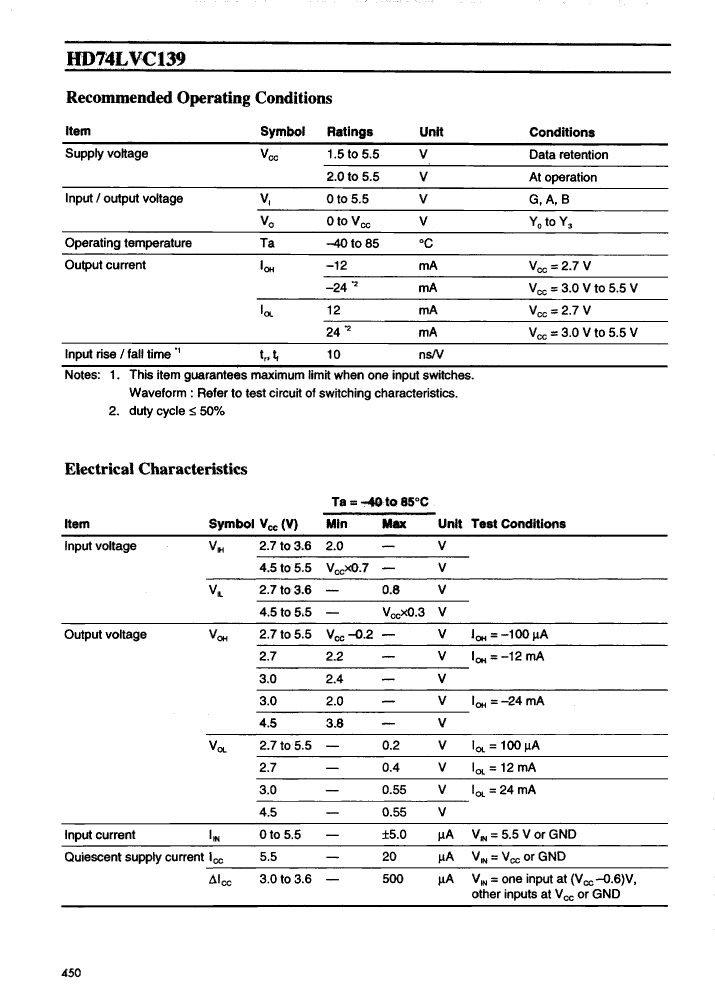

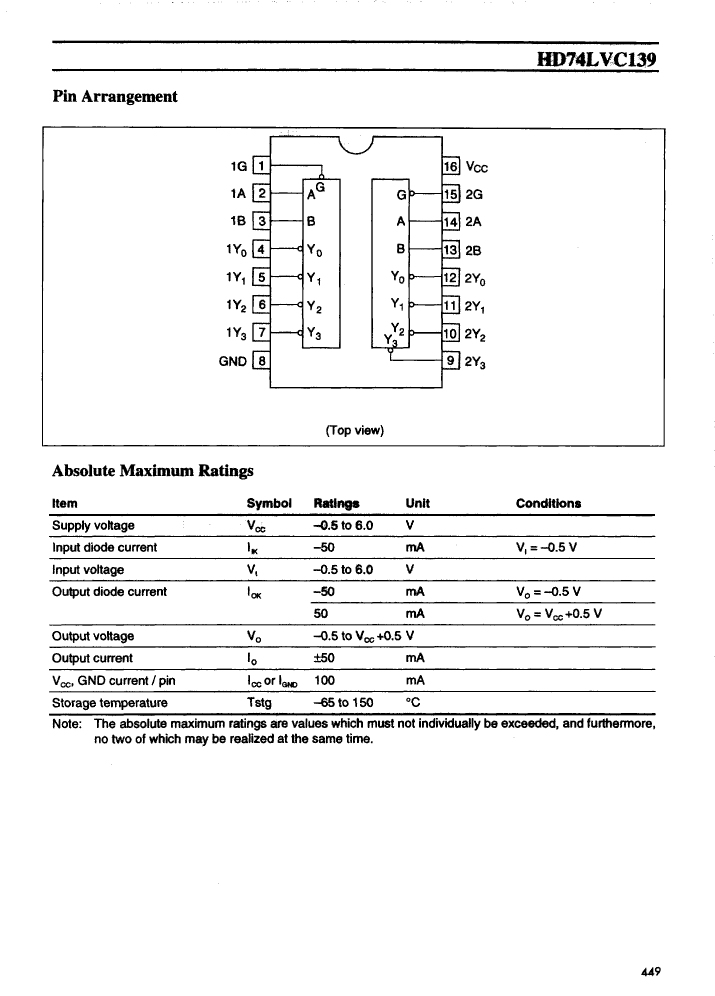

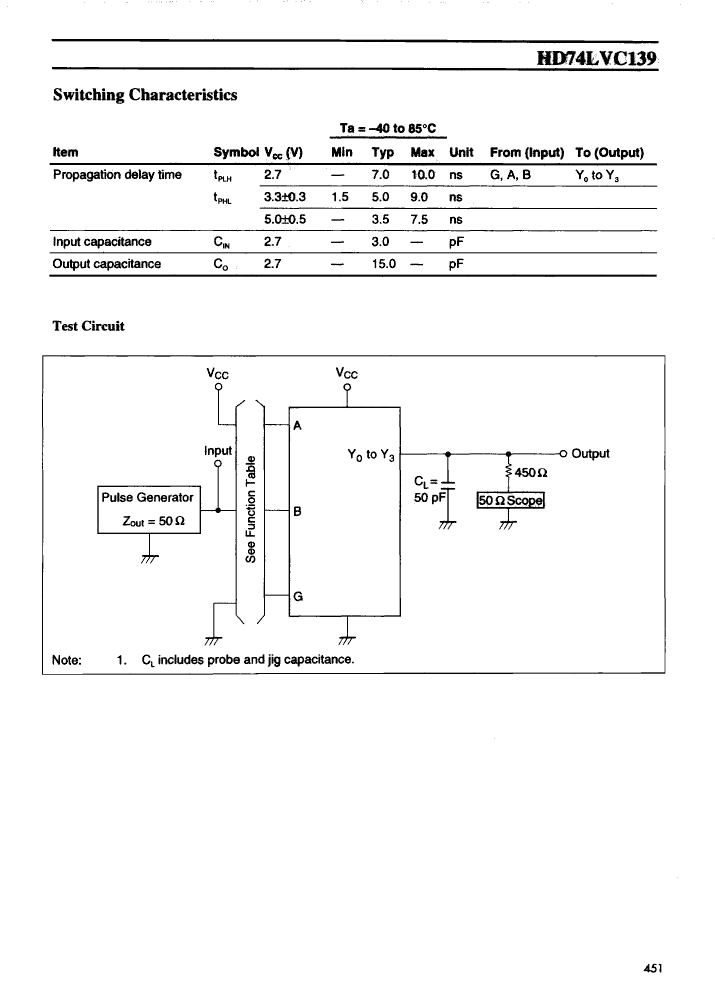

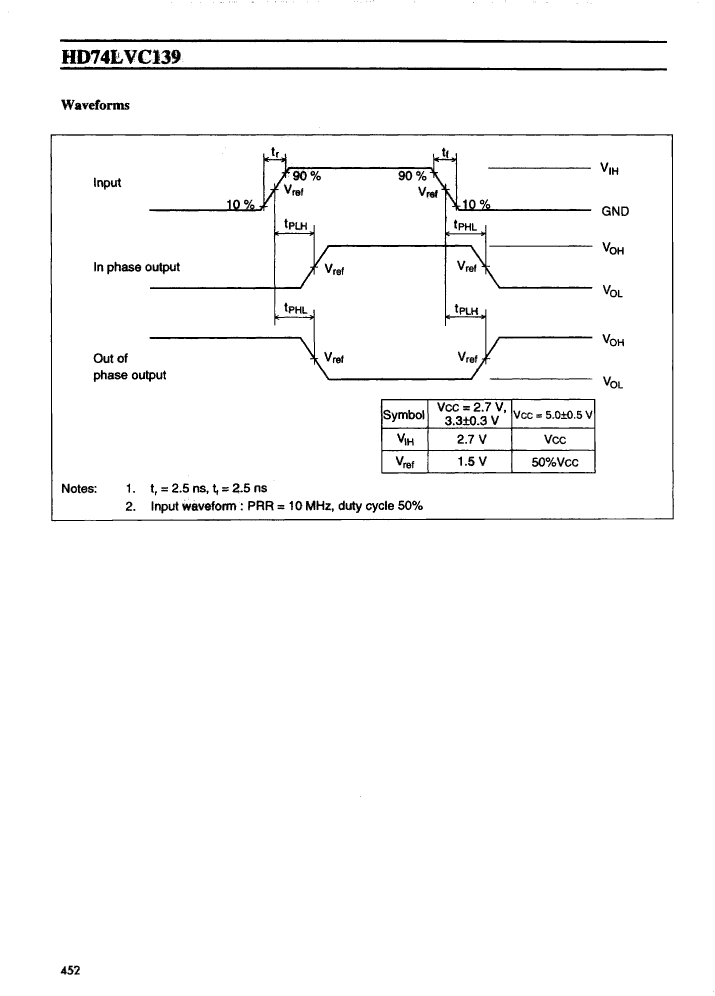

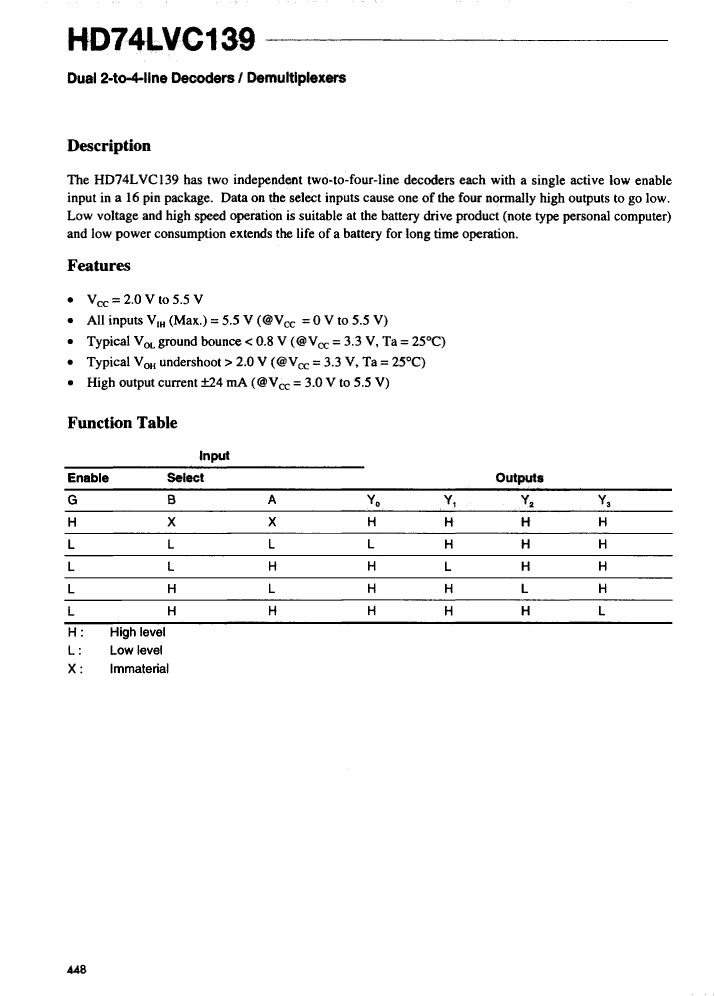

Preview

Download Datasheet

View All

HD74LVC139RP Related Products

	HD74LVC139RP	HD74LVC139FP	HD74LVC139T
Description	Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, SOP-16	Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, EIAJ, SOP-16	Decoder/Driver, LVC/LCX/Z Series, Inverted Output, CMOS, PDSO16, TSSOP-16
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	SOIC	TSSOP
package instruction	SOP,	SOP, SOP16,.25	TSSOP, TSSOP16,.25
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	2	2	2
Number of terminals	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output polarity	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	10 ns	10 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2.2 mm	1.1 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	5.5 mm	4.4 mm
Input adjustment	-	STANDARD	STANDARD
length	-	10.06 mm	5 mm
MaximumI(ol)	-	0.024 A	0.024 A
Encapsulate equivalent code	-	SOP16,.25	TSSOP16,.25
power supply	-	3.3 V	3.3 V
Maximum supply current (ICC)	-	0.5 mA	0.5 mA
Prop。Delay @ Nom-Sup	-	9 ns	9 ns
Nominal supply voltage (Vsup)	-	2.7 V	2.7 V
