R573732415 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> R573732415

R573732415: DescriptionRF Coaxial Relay, SP4T, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 26500MHz, 15W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size306KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R573732415 Overview

RF Coaxial Relay, SP4T, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 26500MHz, 15W (RF Input), DC Input, Panel Mount, ROHS COMPLIANT

R573732415 Parametric

Parameter Name	Attribute value
Maker	Radiall
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH INDICATOR AND POSITIVE COMMON
body height	61.5 mm
Body length or diameter	57.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.32 A
Coil power	3840 mW
Coil resistance	37.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Electrical life	2000000 Cycle(s)
Maximum input power	15 W
Maximum insertion loss	0.7 dB
Maximum isolation	55 dB
Manufacturer's serial number	R573732415
Installation features	PANEL MOUNT
Maximum operating frequency	26500 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	LATCHED
Relay function	SP4T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

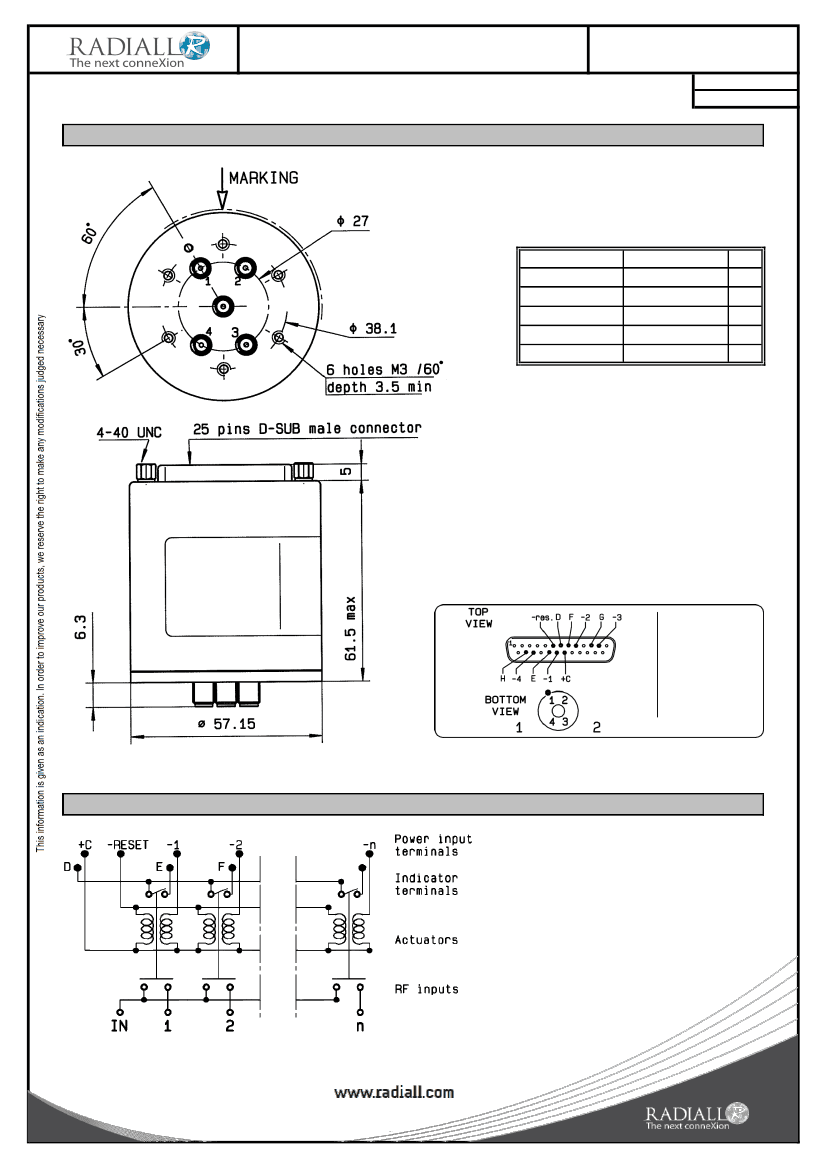

TECHNICAL DATA SHEET

Description :

Options :

SP4T 26.5GHz SMA 2.9 LATCHING 12V D-SUB SWITCH

INDICATOR / POSITIVE COMMON

R573732415

Issue 08.06.12

Page 1/2

RF CHARACTERISTICS

Number of ways

Frequency range

Impedance

Frequency (GHz)

VSWR max

Insertion loss max

Isolation min

Average power (*)

0-6

1.30

0.20 dB

70 dB

40 W

6 - 12.4

1.40

0.40 dB

60 dB

30 W

: 0 - 26.5 GHz

: 50 Ohms

12.4 - 18

1.50

0.50 dB

60 dB

25 W

18 - 26.5

1.70

0.70 dB

55 dB

15 W

ELECTRICAL CHARACTERISTICS

Actuator

Nominal current **

Actuator voltage (Vcc)

Terminals

Indicator rating

LATCHING

320 mA / RESET : 1280 mA ****

12V (10.2 to 13V) / POSITIVE COMMON

25 pins D-SUB male connector

1 W / 30 V / 100 mA

MECHANICAL CHARACTERISTICS

Connectors

Life

Switching Time***

Construction

Weight

SMA 2.9 female per MIL-C 39012

2.000.000 cycles per position

< 15 ms

Splashproof

< 220 g

ENVIRONMENTAL CHARACTERISTICS

Operating temperature range

Storage temperature range

: -40°C to +85°C

: -55°C to +85°C

(**

(***

(****

Average power at 25°C per RF Path)

At 25° C ±10%)

Nominal voltage ; 25° C)

Reset : supply voltage time 1sec. max. / duty cycle 10%)
