SAW Components
SAW filter
GPS
Series/type:
Ordering code:
Date:
Version:
B9416
B39162B9416K610
March 05, 2007
2.2
©
EPCOS AG 2007. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW filter
Data sheet
Application
s
Low-loss RF filter for mobile telephone
s
s
s
s
s
B9416
1575.42 MHz
GPS systems
Filter impedance 50
Ω
Unbalanced to unbalanced operation
Very low insertion attenuation
Low amplitude ripple
Usable passband 2.0 MHz
Features
s
s
s
s
s
s
s
0,4
Package size 1.4 x1.1 x 0.4 mm
3
Package code QCS5F
RoHS compatible
Approximate weight 0.003 g
Package for
Surface Mount Technology
(SMT)
Ni, gold-plated terminals
Electrostatic Sensitive Device
(ESD)
0,325
2
3
0,575
0,25
bottom view
1
5
0,5 0,5
4
side view
1,4
1,1
top view
Pin configuration
s
4
s
1
s
2,3,5
Input unbalanced
Output unbalanced
To be grounded
Please read
cautions and warnings and
important notes
at the end of this document.
2
March 05, 2007
SAW Components
SAW filter
Data sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = –30 ˚C to +85 ˚C
Z
S
=
50
Ω
Z
L
=
50
Ω
min.
Center frequency
f
C
—
typ.
@ 25 ˚C
1575.42
max.
—
MHz
B9416
1575.42 MHz
Maximum insertion attenuation
α
max
1574.42 ... 1576.42 MHz
Amplitude ripple
(p-p)
∆α
1574.42 ... 1576.42 MHz
Input VSWR
1574.42 ... 1576.42 MHz
Output VSWR
1574.42 ... 1576.42 MHz
Attenuation
0.1
960.0
1460.0
1648.0
1710.0
1990.0
2300.0
4000.0
...
...
...
...
...
...
...
...
960.0
1460.0
1513.0
1710.0
1990.0
2300.0
4000.0
6000.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
α
—
0.9
1.2
dB
dB
dB
—
0.05
0.3
—
1.1
1.8
—
1.1
1.8
38
35
22
22
25
25
30
20
40
39
28
26
33
30
38
35
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
Please read
cautions and warnings and
important notes
at the end of this document.
3
March 05, 2007
SAW Components
SAW filter
Data sheet
B9416
1575.42 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input power at
1574.42 ... 1576.42 MHz
50...1460, 1710...4000 MHz
824...849, 1710...2170 MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
P
IN
P
IN
–40/+85
–40/+85
3
50
1)
3
15
25
˚C
˚C
V
V
dBm
dBm
dBm
machine model, 10 pulses
source/load impedance 50Ω/50Ω
cw
cw
cw
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
4
March 05, 2007
SAW Components
SAW filter
Data sheet

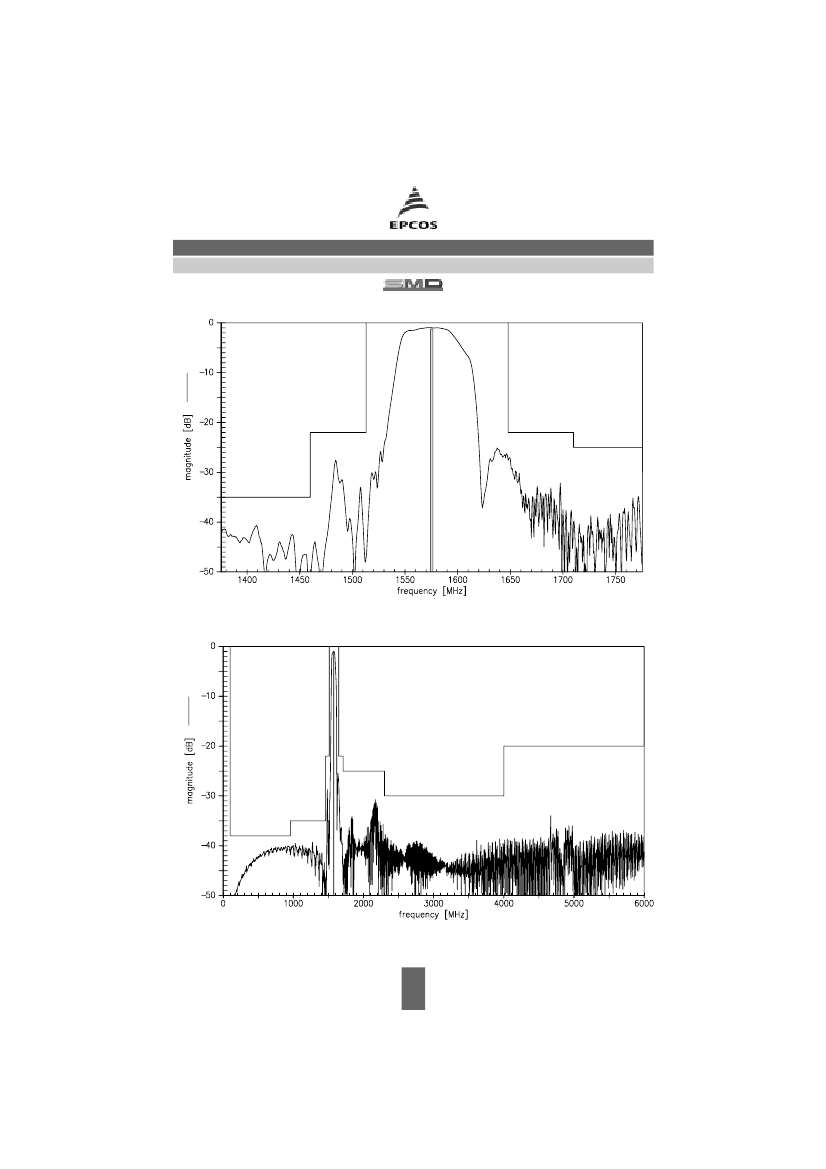

Transfer function
