7222-6540-40 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 7222-6540-40

Preview

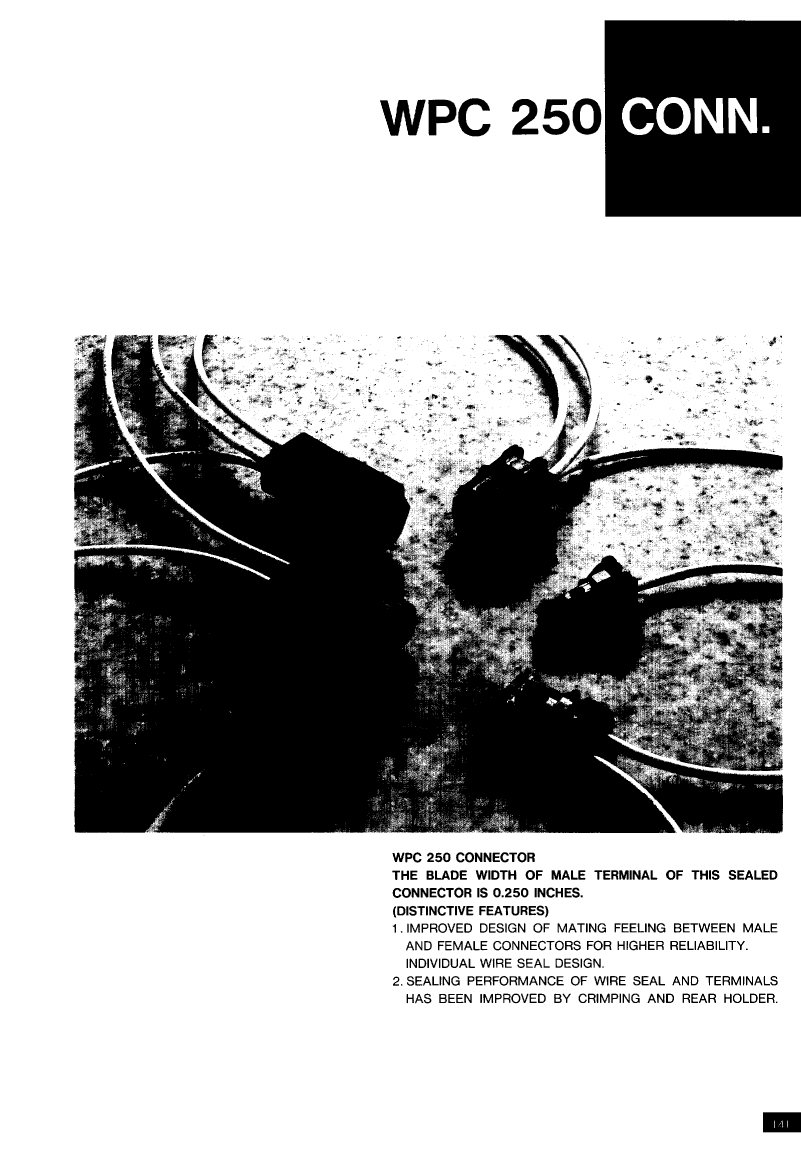

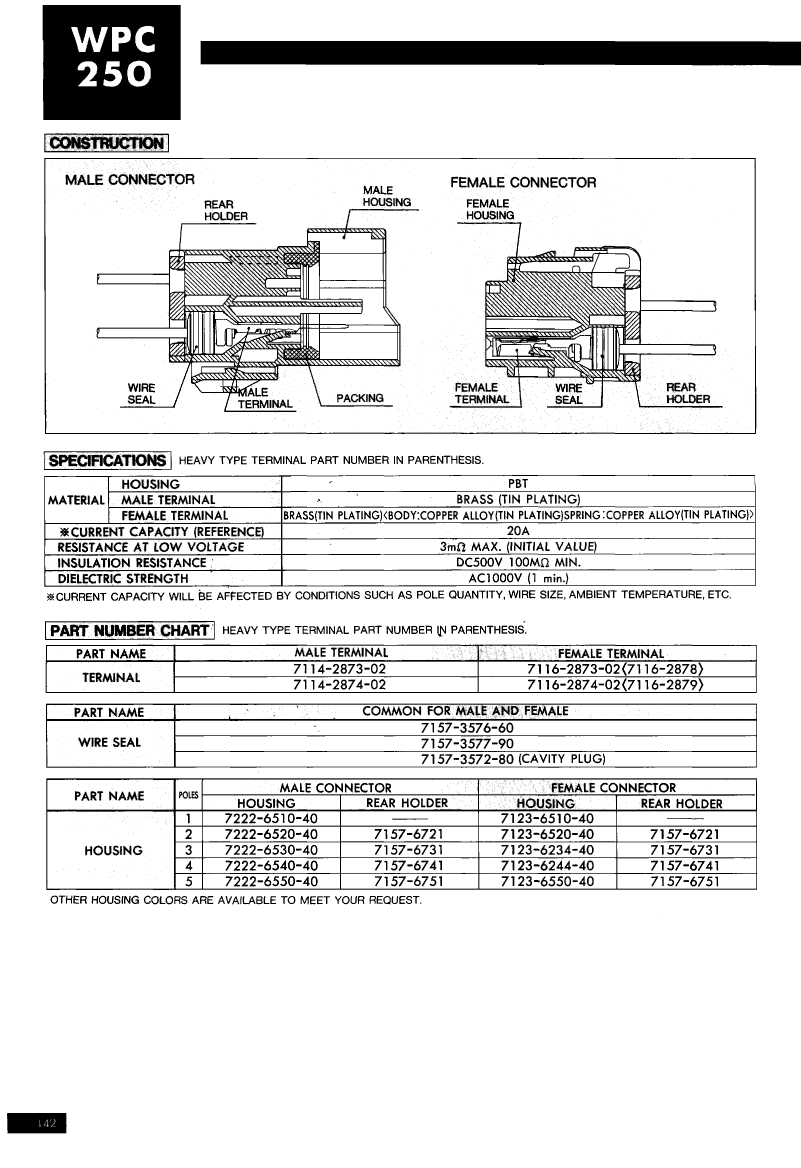

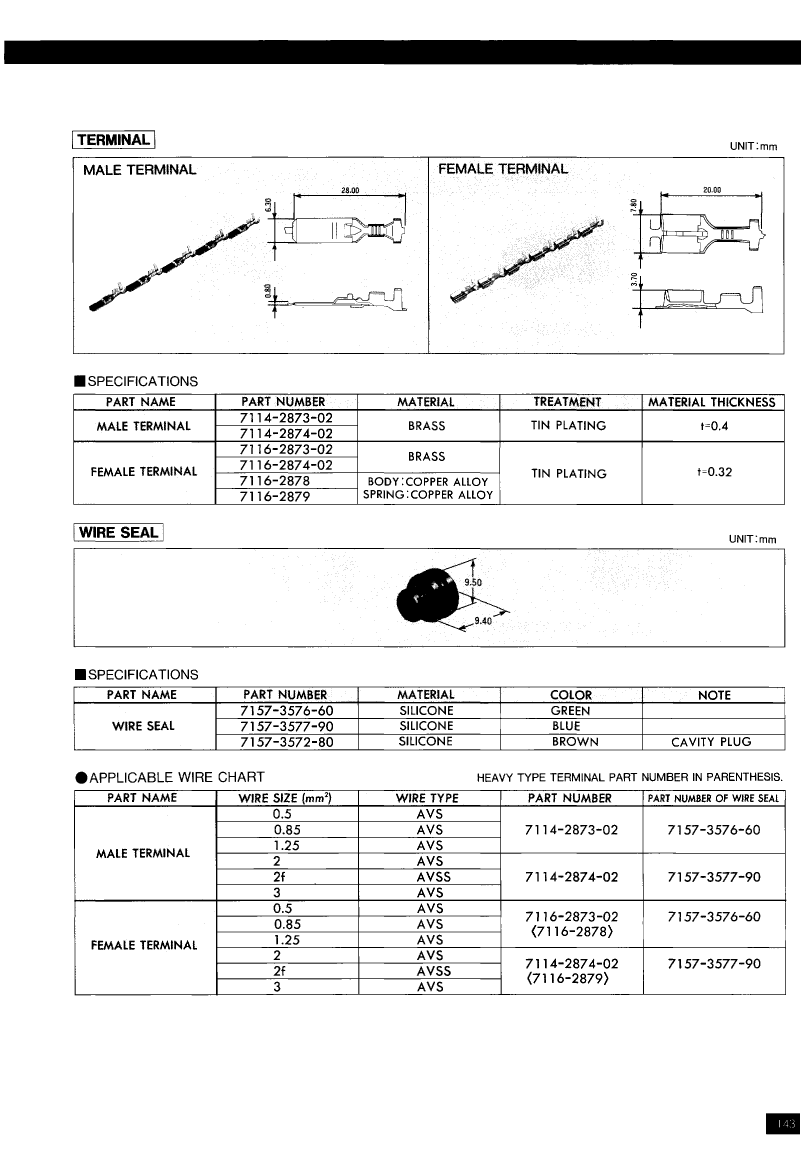

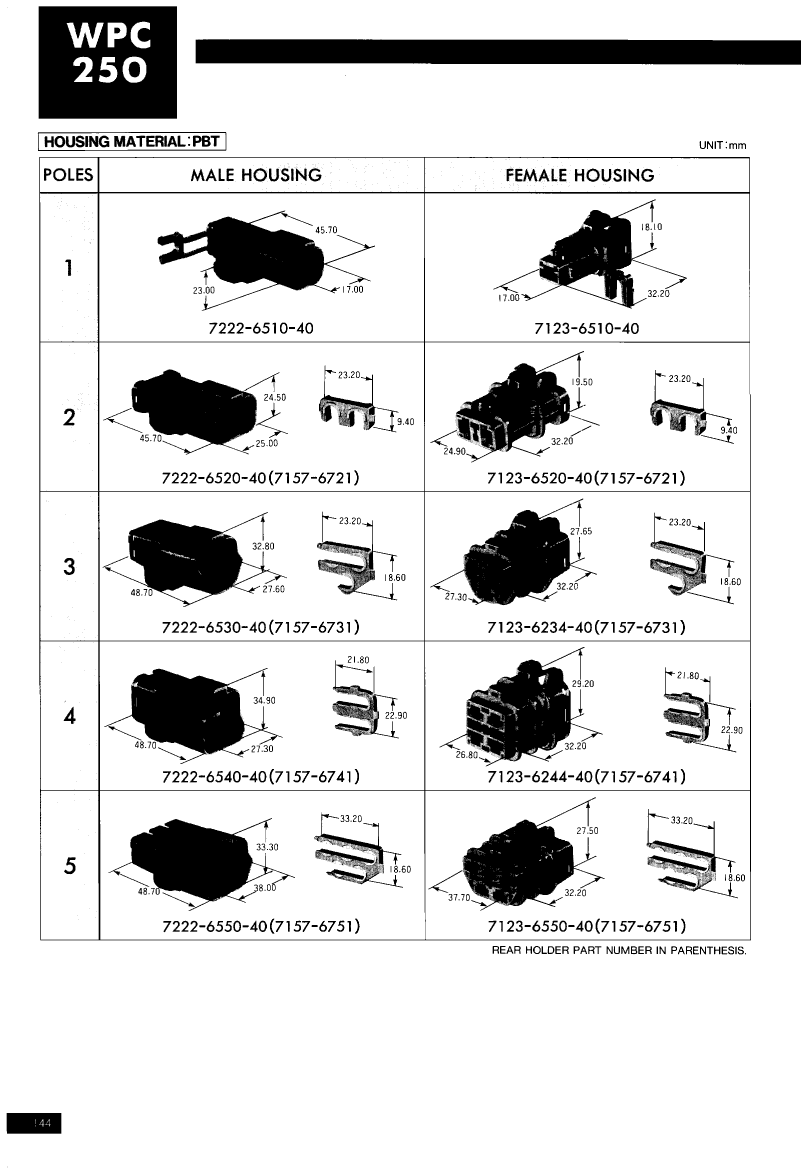

7222-6540-40: DescriptionCombination Line Connector, 4 Contact(s), Male; CategoryThe connector The connector; File Size394KB，4 Pages; ManufacturerYAZAKI; Websitehttp://www.yazaki-china.com

Download Datasheet Parametric Compare View All

7222-6540-40 Overview

Combination Line Connector, 4 Contact(s), Male

7222-6540-40 Parametric

Parameter Name	Attribute value
Maker	YAZAKI
Reach Compliance Code	unknown
Other features	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02
Connector type	COMBINATION LINE CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	WPC250
Plug information	7123-6244-40
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	4

Preview

Download Datasheet

View All

7222-6540-40 Related Products

	7222-6540-40	7222-6530-40	7123-6510-40	7222-6510-40	7222-6550-40	7123-6520-40	7123-6550-40	7222-6520-40
Description	Combination Line Connector, 4 Contact(s), Male	Combination Line Connector, 3 Contact(s), Male	Combination Line Connector, 1 Contact(s), Female	Combination Line Connector, 1 Contact(s), Male	Combination Line Connector, 5 Contact(s), Male	Combination Line Connector, 2 Contact(s), Female	Combination Line Connector, 5 Contact(s), Female	Combination Line Connector, 2 Contact(s), Male
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown
Other features	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02	COMPATIBLE CONTACTS: 7116-2873-02; 7116-2874-02	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02	COMPATIBLE CONTACTS: 7116-2873-02; 7116-2874-02	COMPATIBLE CONTACTS: 7116-2873-02; 7116-2874-02	COMPATIBLE CONTACTS: 7114-2873-02; 7114-2874-02
Connector type	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR	COMBINATION LINE CONNECTOR
Contact point gender	MALE	MALE	FEMALE	MALE	MALE	FEMALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	WPC250	WPC250	WPC250	WPC250	WPC250	WPC250	WPC250	WPC250
Plug information	7123-6244-40	7123-6234-40	7222-6510-40	7123-6510-40	7123-6550-40	7222-6520-40	7222-6550-40	7123-6520-40
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	4	3	1	1	5	2	5	2
Maker	YAZAKI	YAZAKI	-	-	YAZAKI	YAZAKI	YAZAKI	YAZAKI
