4307.4214 Overview

IEC Appliance Inlet C14 with Appliance Outlet F, Line Switch 2-pole and Voltage Selector

4307.4214 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN 60320-1/C14; IEC/EN 60320-2-2/F, UL 94V-2; UL 498, CSA C22.2, VDE, QUICK CONNECT
Body/casing type	PLUG
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE AND MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10A, 250VAC
Manufacturer's serial number	PMM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	PANEL
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

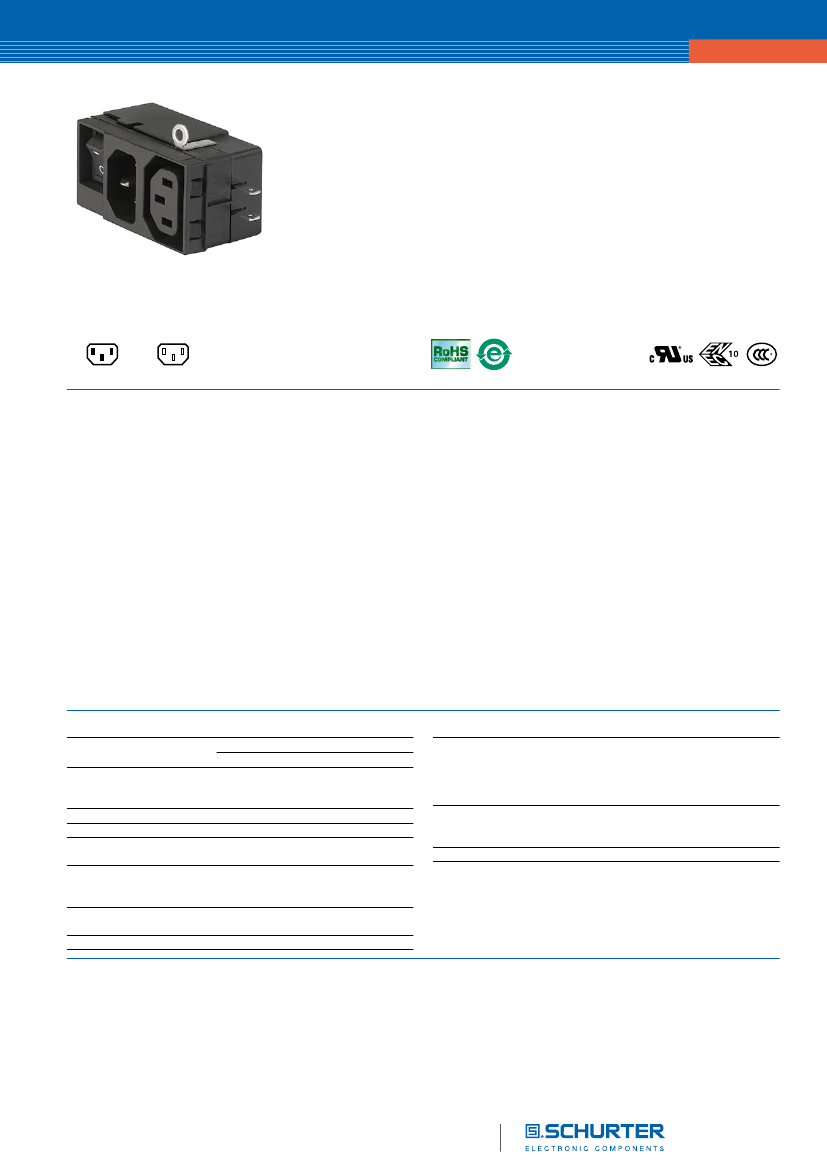

Power entry modules without line filter

www.schurter.com/pg05

IEC Appliance Inlet C14 with Appliance Outlet F, Line Switch 2-pole and Voltage Selector

PMM

C14

70° C

Description

- Panel Mount:

Snap-in version from rear-side

- 4 Functions:

Appliance Inlet Protection class I, Connector Protection class I, Line

Switch 1- or 2-pole, with or without voltage selector (Jumper)

Approvals

- VDE Certificate Number: 6090

- UL File Number: E96454

- CSA File Number: 38456

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

References

Weblinks

10 A / 250 VAC; 50 Hz

10 A / 250 VAC; 60 Hz

> 2.5 kVAC between L-N

> 3 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 40 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

Quick connect terminals 4.8 x 0.8 mm

Solder terminal on request

Solder terminals on voltage selector

Snap-in: 0.8/1.5 mm

(other on request)

Thermoplastic, black, UL 94V-2

Line Switch

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Panel Thickness s

Material: Housing

-O

Characteristics

- Short Mounting Depth

- All single elements are already wired

except voltage selector

- Line switch non-illuminated

- Voltage selector for two voltage ranges

- Insulation cover on the rear-side

- Especially suitable for use in switching power supplies

- Qualified for use in equipment according IEC/EN 60950

Other versions on request

- Panel thickness 1.0 mm and 1.2 mm

- Unwired (without pc-board), with pin-terminals

- Wired (with pc-board), with flexible wires

- Line switch with other rocker marking

- Without cover

- Voltage selector with other marking

This type is Phase-out without alternate type

Last order date: 30.04.2011

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Store, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories

Appliance Inlet / Appliance

Outlet

Voltage Selectors

C14 acc. to IEC/EN 60320-1

and F acc. to IEC/EN 60320-2-2,

UL 498, CSA C22.2 no. 42 (for cold

conditions) pin-temperature 70 °C, 10 A,

Protection Class 1

Rocker switch 1 or 2 pole, non-illumina-

ted, acc. to IEC 61058-1

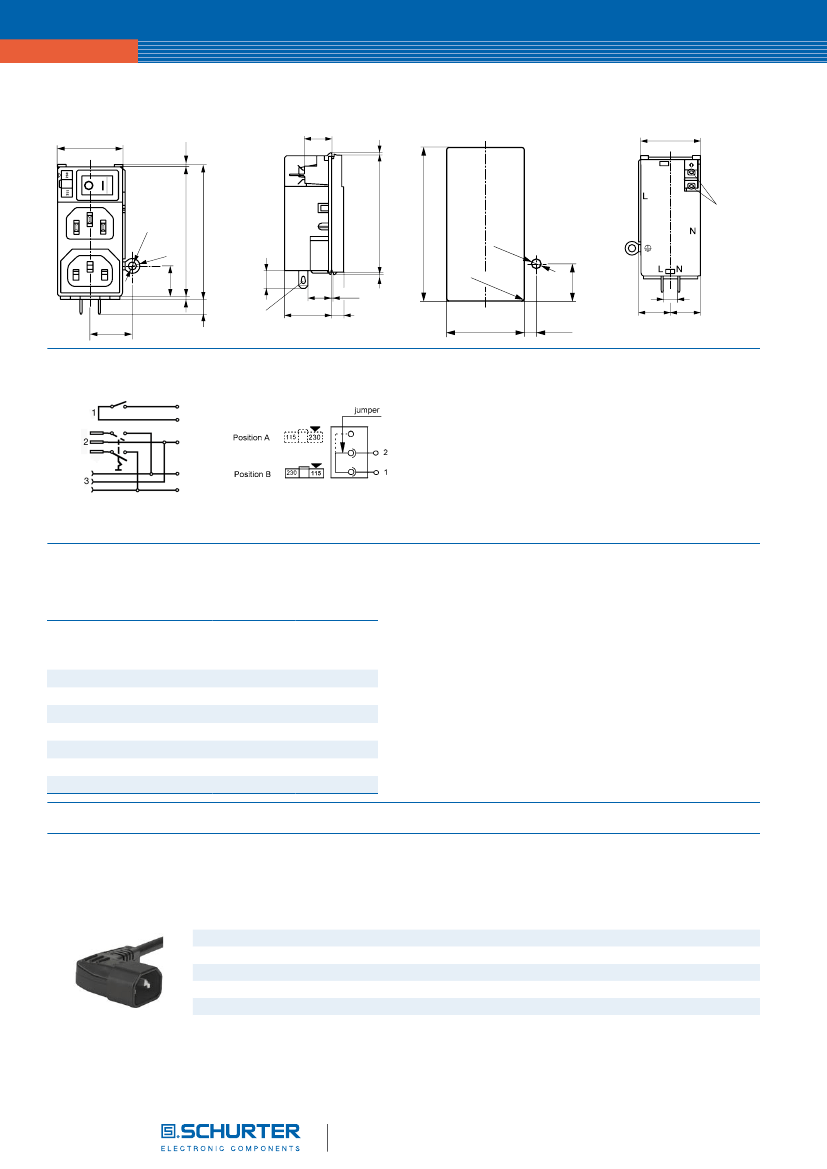

Technical details

optional jumper, 2 pos.

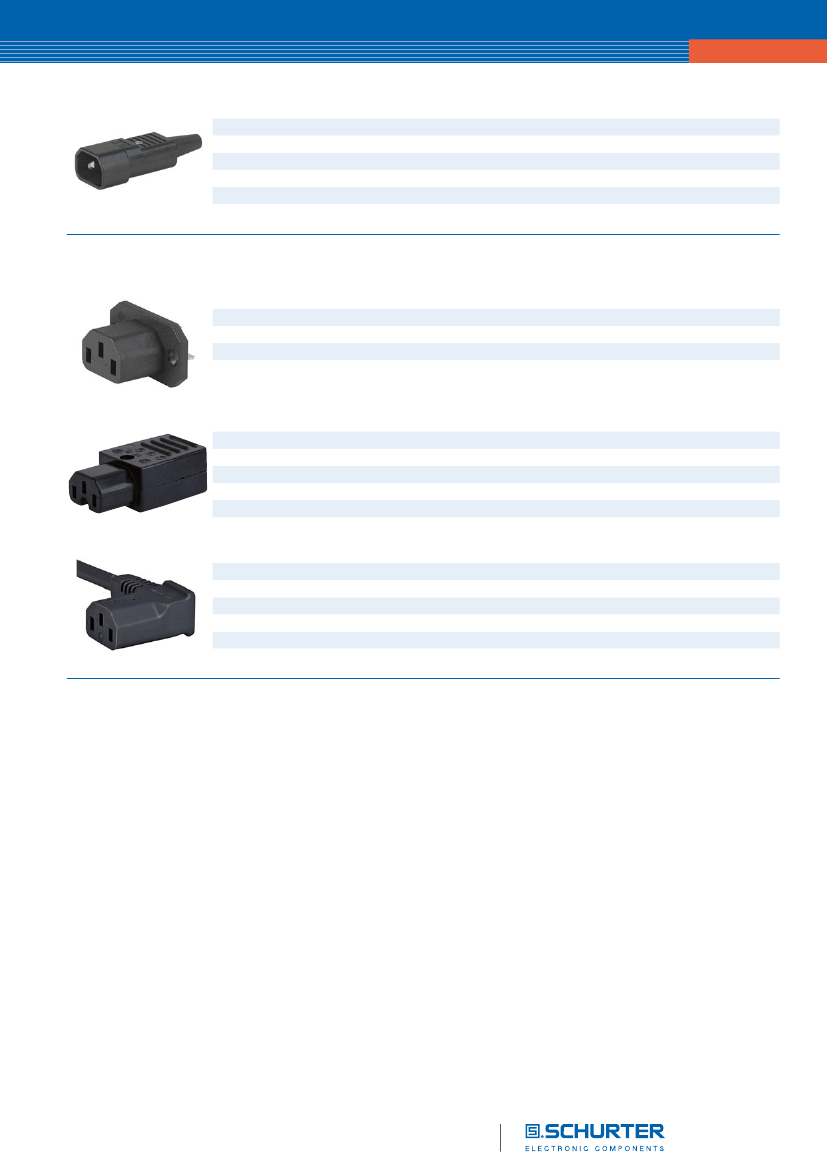

Connectors
