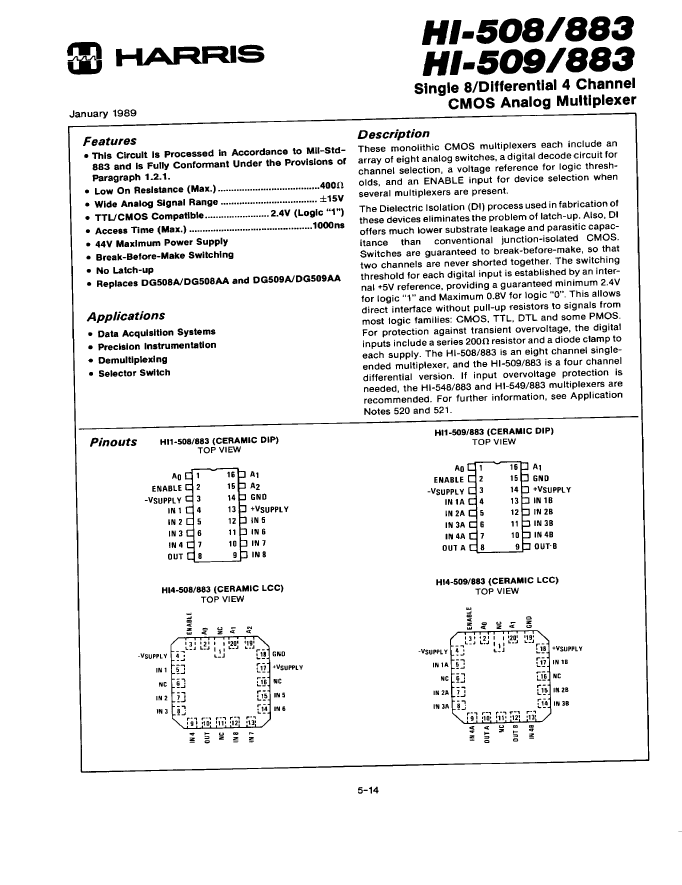

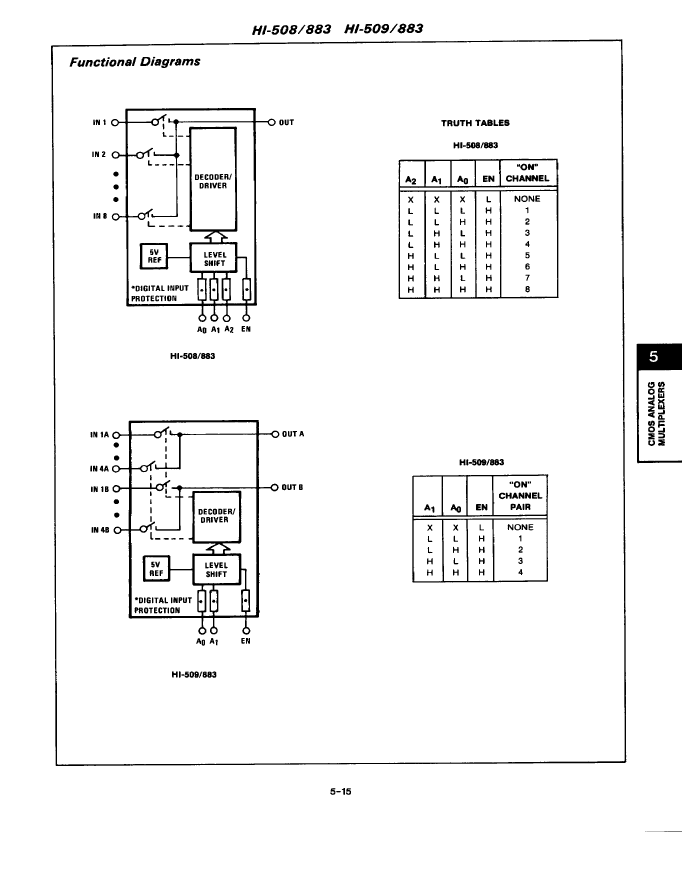

Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16

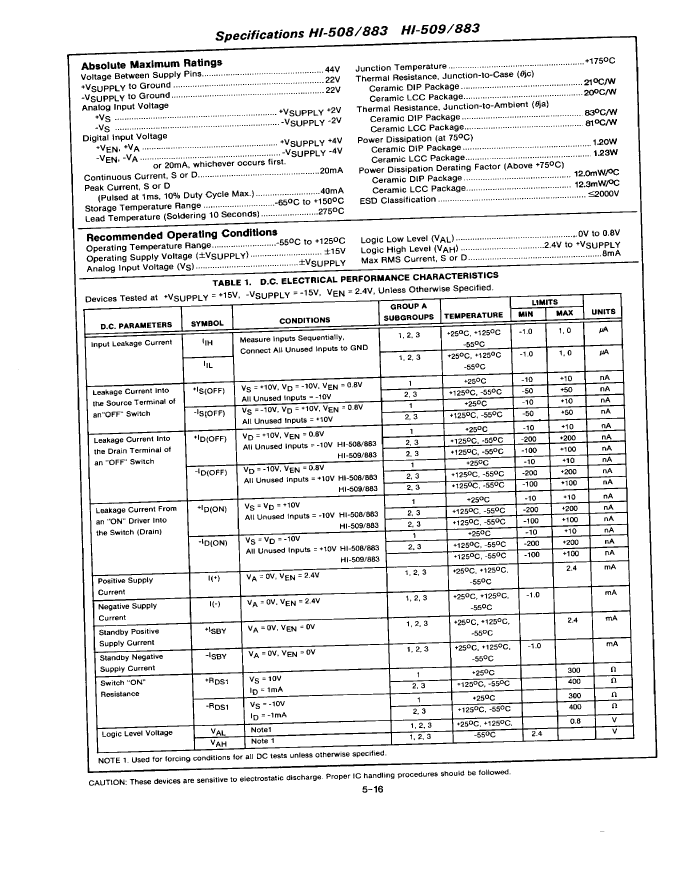

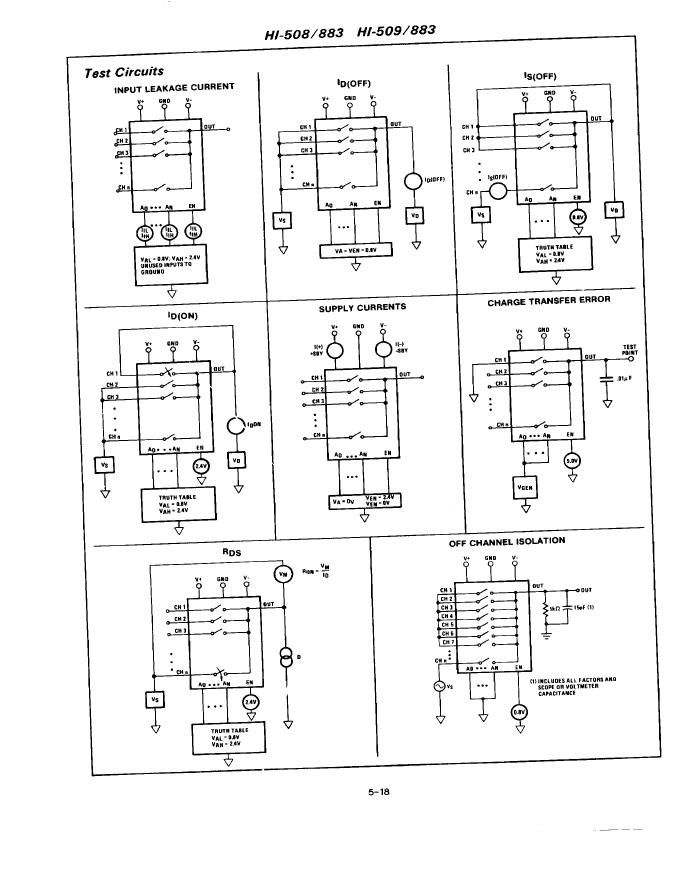

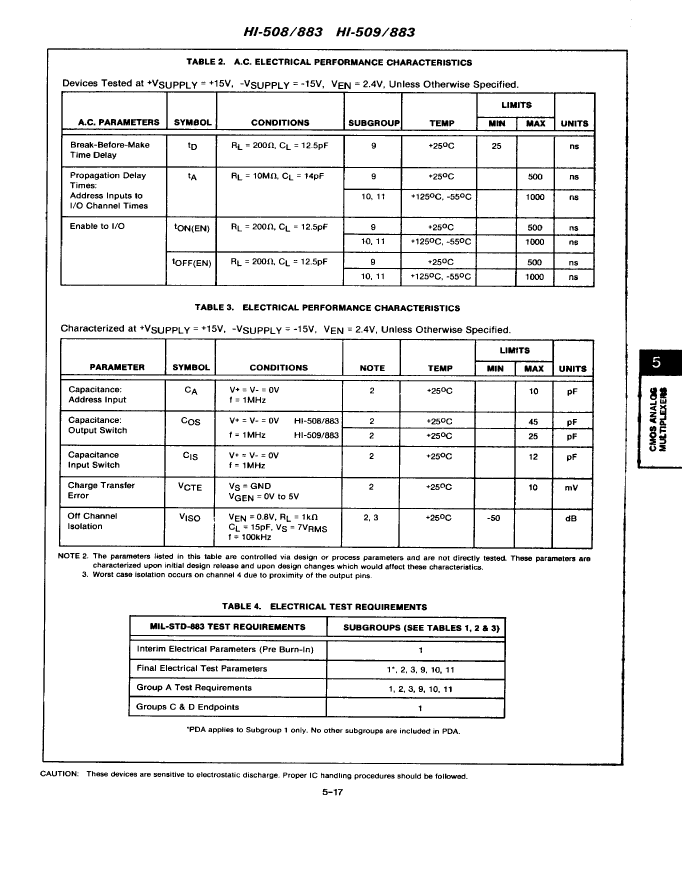

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | unknow |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of channels | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Nominal off-state isolation | 50 dB |
| Maximum on-state resistance (Ron) | 300 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Maximum signal current | 0.02 A |
| Maximum supply current (Isup) | 2.4 mA |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| Maximum disconnect time | 500 ns |
| Maximum connection time | 500 ns |
| switch | BREAK-BEFORE-MAKE |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| HI1-509/883 | HI4-509/883 | PHNR26513306 | HI4-508/883 | |
|---|---|---|---|---|
| Description | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16 | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CQCC20 | Fixed Resistor, 4.5W, 30000000ohm, 22500V, 5% +/-Tol, 80ppm/Cel, Through Hole Mount, AXIAL LEADED | Single-Ended Multiplexer, 1 Func, 8 Channel, CMOS, CQCC20 |
| package instruction | DIP, DIP16,.3 | QCCN, LCC20,.35SQ | AXIAL LEADED | QCCN, LCC20,.35SQ |
| Reach Compliance Code | unknow | unknown | unknown | unknown |
| JESD-609 code | e0 | e0 | e3 | e0 |
| Number of terminals | 16 | 20 | 2 | 20 |
| Maximum operating temperature | 125 °C | 125 °C | 200 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -40 °C | -55 °C |
| Package shape | RECTANGULAR | SQUARE | TUBULAR PACKAGE | SQUARE |
| surface mount | NO | YES | NO | YES |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN | Tin/Lead (Sn/Pb) |
| Is it Rohs certified? | incompatible | incompatible | - | incompatible |
| Analog Integrated Circuits - Other Types | DIFFERENTIAL MULTIPLEXER | DIFFERENTIAL MULTIPLEXER | - | SINGLE-ENDED MULTIPLEXER |
| JESD-30 code | R-GDIP-T16 | S-CQCC-N20 | - | S-CQCC-N20 |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | - | -15 V |
| Number of channels | 4 | 4 | - | 8 |
| Number of functions | 1 | 1 | - | 1 |
| Nominal off-state isolation | 50 dB | 50 dB | - | 50 dB |
| Maximum on-state resistance (Ron) | 300 Ω | 300 Ω | - | 300 Ω |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | QCCN | - | QCCN |
| Encapsulate equivalent code | DIP16,.3 | LCC20,.35SQ | - | LCC20,.35SQ |
| Package form | IN-LINE | CHIP CARRIER | - | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| power supply | +-15 V | +-15 V | - | +-15 V |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified |
| Maximum signal current | 0.02 A | 0.02 A | - | 0.02 A |
| Maximum supply current (Isup) | 2.4 mA | 2.4 mA | - | 2.4 mA |
| Nominal supply voltage (Vsup) | 15 V | 15 V | - | 15 V |
| Maximum disconnect time | 500 ns | 500 ns | - | 500 ns |
| Maximum connection time | 500 ns | 500 ns | - | 500 ns |
| switch | BREAK-BEFORE-MAKE | BREAK-BEFORE-MAKE | - | BREAK-BEFORE-MAKE |
| technology | CMOS | CMOS | - | CMOS |
| Temperature level | MILITARY | MILITARY | - | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD | - | NO LEAD |
| Terminal pitch | 2.54 mm | 1.27 mm | - | 1.27 mm |
| Terminal location | DUAL | QUAD | - | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED |
| Part Number | Manufacturer | Description |
|---|---|---|
| JM38510/19008BEA | Renesas(瑞萨电子) | 多路复用开关 IC JAN VERSION HI1-0509 |
| 5962-8513109EA | Harris | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16 |
| JM38510/19008BEC | TEMIC | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, |
| MUX24EP | Rochester Electronics | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDIP16, PLASTIC, DIP-16 |
| HI1-0509-2 | Renesas(瑞萨电子) | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, FRIT SEALED, CERDIP-16 |
| MUX24AQ | Rochester Electronics | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, CERDIP-16 |
| HI1-0509-8 | Rochester Electronics | 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, CDIP16, PACKAGE-16 |
| DG509AAK | TEMIC | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, |
| MAX4709EPE | Maxim(美信半导体) | Multiplexer Switch ICs Fault-Protected, Single 8-to-1/Dual 4-to-1 Multiplexers |
| DG509AAK/883B | Rochester Electronics | Differential Multiplexer, 1 Func, 4 Channel, CMOS, CDIP16, PACKAGE-16 |
| 5962-8771801EA | Precision Monolithics Inc | Differential Multiplexer, 1 Func, 4 Channel, JFET, CDIP16, |
| MUX24AQ/883 | Precision Monolithics Inc | Differential Multiplexer, 1 Func, 4 Channel, CDIP16, |
| 5962-8771801EX | Precision Monolithics Inc | Differential Multiplexer, 1 Func, 4 Channel, JFET, CDIP16, |
| 5962-8771801EB | Precision Monolithics Inc | Differential Multiplexer, 1 Func, 4 Channel, JFET, CDIP16, |
