T9-211

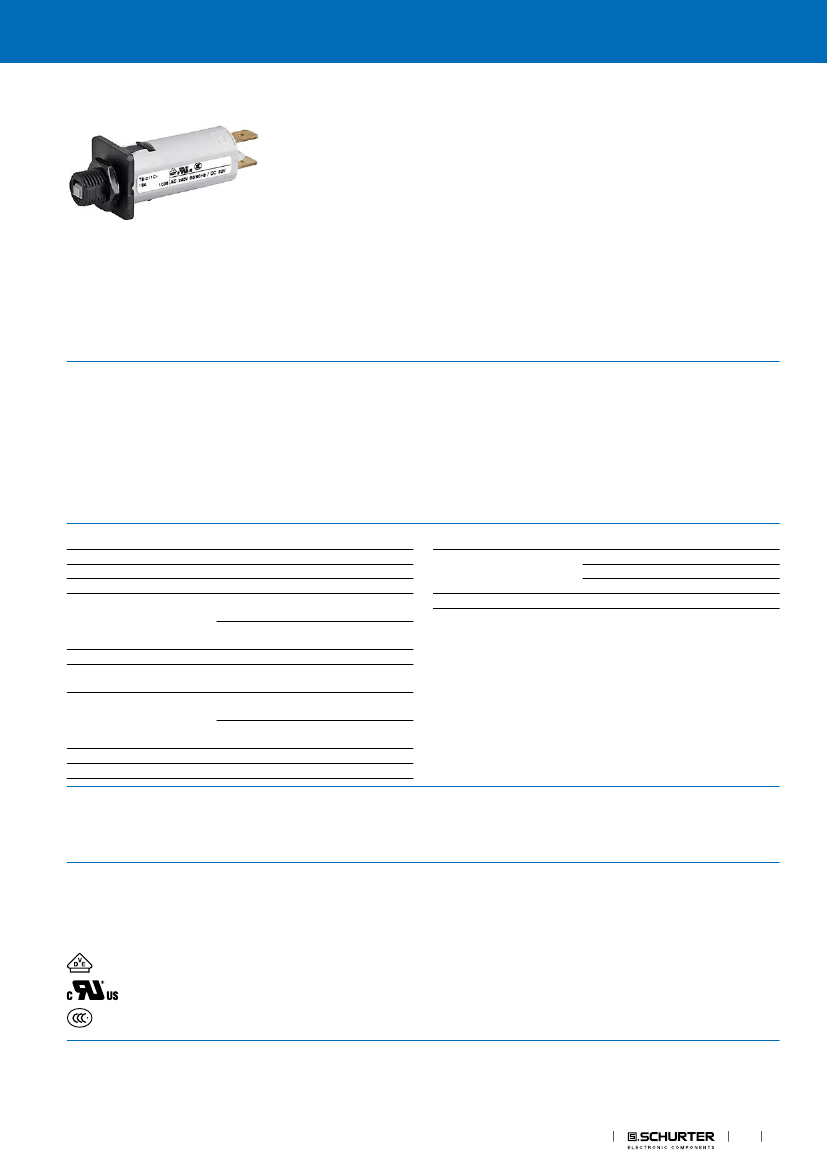

Circuit Breaker for Equipment thermal, Threaded-neck type, 1 pole
T9-211: Threaded neck with nut PA66
Approvals and Compliances
Description
-
-
-
-
-
-
-
-
-
Threaded neck type
Thermal circuit breaker
1-pole
On request available with elevaled glow-wire ratings
Quick connect terminals 6.3 x 0.8 mm
Reset type
Cycling trip-free release
Compact design
Different mounting possibilities
See below:
Applications
-
-
-
-
-
-
Unique Selling Proposition
Power supplies
Uninterruptible power supply
Power tools
Industrial appliances
HVAC
Household appliances
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, Product News
Technical Data
Rated Voltage AC
Rated Voltage DC
Rated current
Conditional short circuit ca-
pacity
␣
240 V, 50 / 60 Hz
48 / 32 V, see approvals
3-16 A, see approbations
IEC: Inc, PC1, AC 240 V: 2 kA
Allowable Operation Temp.
␣
␣
Weight
3 A: -5 °C to 60 °C
4 A: -5°C to 50 °C
5-16 A: -5 °C to 60 °C
9 - 13 g
UL / CSA: SC, AC 240 V DC 48 / 32 V:
2 kA, C1
Degree of protection front side IP 40
Endurance minimum
IEC: 200% Ir, cos
φ
0.6: min. 50 swit-
ching cycles
Endurance typical
3-8 A: 150% Ir, cos
φ
0.9:
2500 switching cycles
␣
10-16 A: 150% Ir, cos
φ
0.9:
6000 switching cycles
Dielectric Strength
1500 VAC
Insulation Resistance
500 VDC > 1000 MΩ
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: T9
Approval Logo
Certificates
VDE Approvals
UL Approvals
CQC Approvals
Certification Body
VDE
UL
CQC
Description
VDE Certificate Number: 40038016
UL File Number: E71572
CCC Certificate Number: 2013010307617688
Circuit Breakers
1
T9-211
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Designed according to
Designed according to
Standard
IEC 60934
UL 1077
CSA C22.2 No. 235
GB 17701
Description
https://www.schurter.com /PG17_18_19
Thermal (T- and TA-Line)
Circuit-breakers for equipment (CBE)
Standard for Supplementary Protectors for Use in Electrical Equipment
Supplementary Protectors
Circuit-breaker for equipment
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

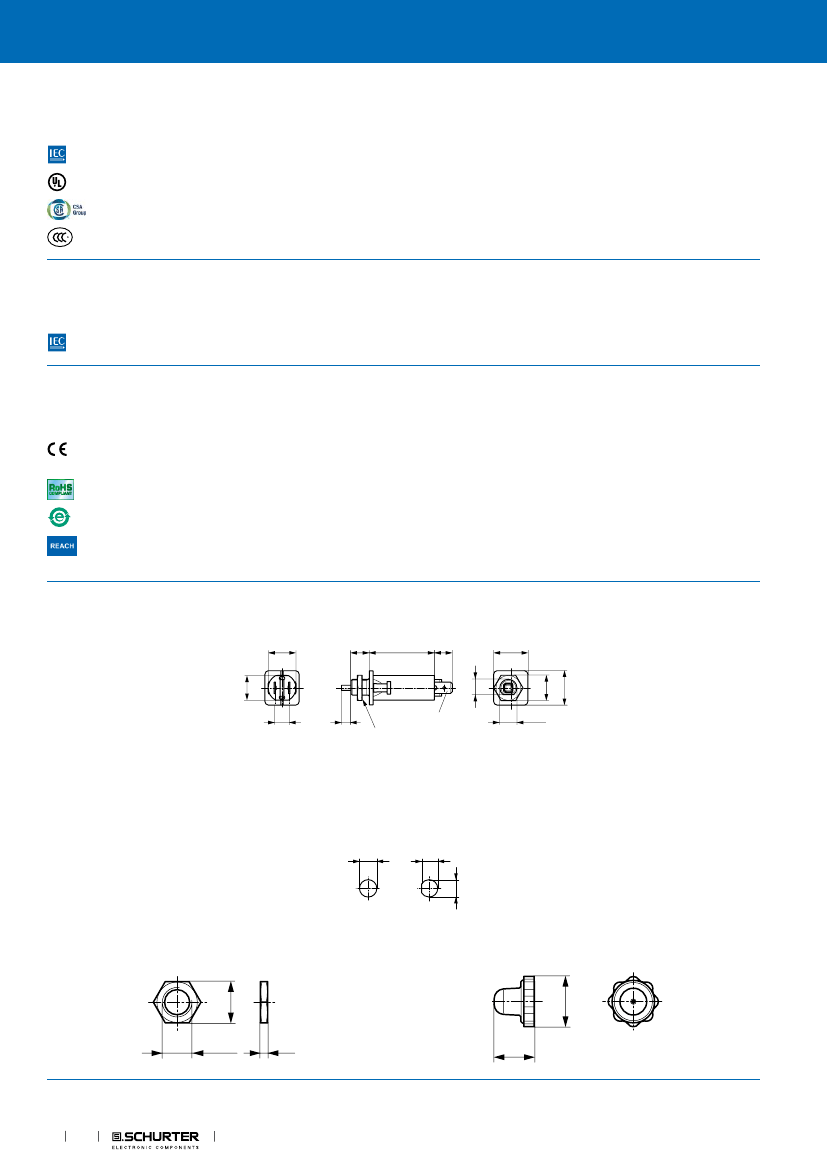

Dimension [mm]
T9-211/311
ø 15.4
±0.2
10.4
36.1
10
19
13.6
±0.2
SW14
3/8" -27UNS
8.6
8
5
1)
6.3x0.8
Pannel thickness 0.8 - 5.5 mm
1) max. torque: 0.6Nm
9.6
8.90
+0.10
0.00
Hexagonal nut TZZ12 / TZZ51
Cover TZZ31für IP65 optional, see accessory
SW 14
9.6
3/8" -27UNS
2.5
13.6
2
Circuit Breakers
17
19
Thermal (T- and TA-Line)
https://www.schurter.com /PG17_18_19
T9-211
Rated current
Rated Voltage AC
240 V
240 V
240 V
240 V
240 V
240 V
240 V
240 V
Rated Voltage DC
48 V
32 V
48 V
32 V
48 V
32 V
48 V
32 V
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
3 - 12 A
14 - 16 A
Approval
UL 1077
CSA 22.2 235
IEC 60934
GB 17701
Typical internal resistance
Rated Current [A]
3
4
5
6
7
8
10
12
14
15
16
Internal Resistance [mΩ]
65.0
21.6
23.6
16.3
15.3
12.9
7.3
7.0
4.8
4.3
3.9

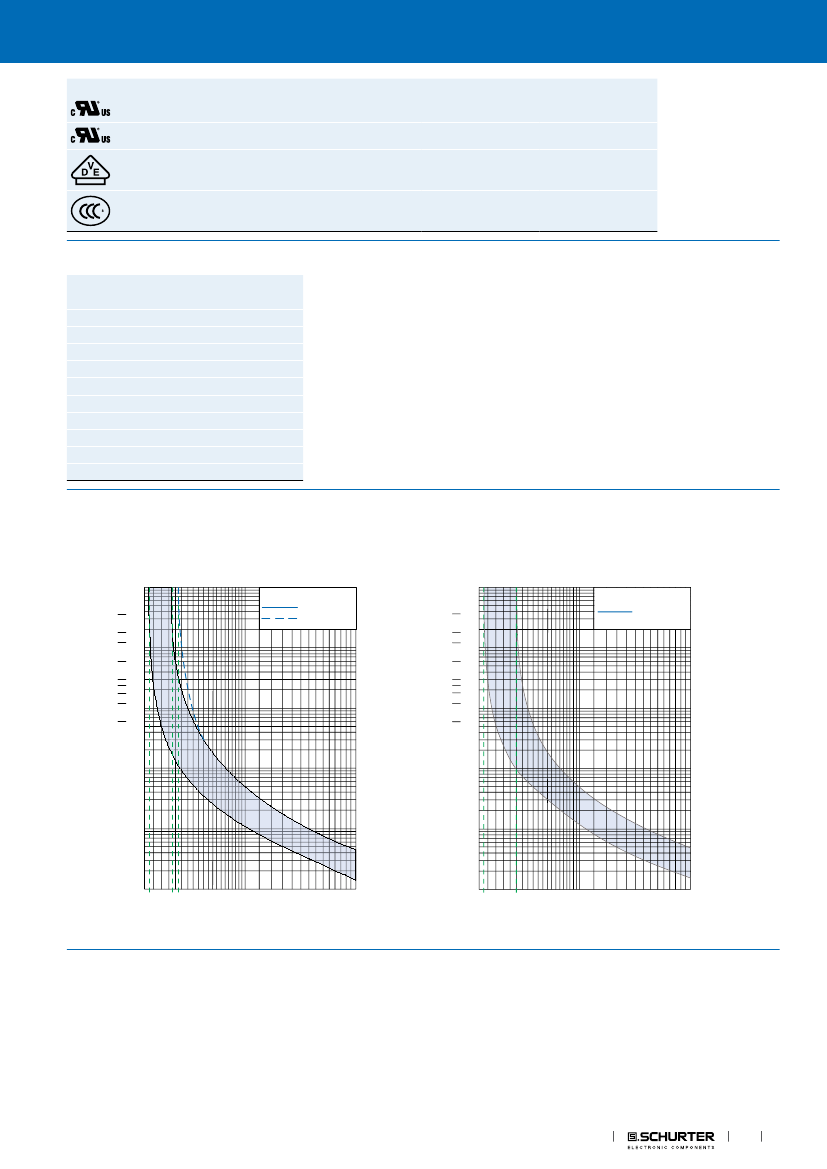

Time-Current-Curves
[min]
[sec]
10'000
[min]
[sec]
10'000
T9
60
30
20
10
5
3
1'000
T9
5 A -16 A (TC-1)
4A
(TC-2)
60
30
20
10
5
3
1'000
3 A
(TC-2)
Time in Seconds
100
1
Time in Seconds
100
1
10
10
1
1
1.05
1.35
1.45
1.05
Multiple of Rated Current In
Reference Temperature +23°
Multiple of Rated Current In
Reference Temperature +23°
Circuit Breakers
1.5
0.1
1
2
3
4
5
6
7
8
10
0.1
1
2
3
4
5
6
7
8
10
3
T9-211
Effect of ambient temperature
The units are calibrated for an ambient temperature of +23°C. To determine the rated cur-
rent for a lower or higher ambient temperature, use a correction factor (typical value) from
the table below:
Ambient Temperature [°C]
-5
+10
+23
+40
+60
Correction factor
0,85
0,95
1,00
1,08
1,21
https://www.schurter.com /PG17_18_19
Thermal (T- and TA-Line)
Example: Rated current = 10 A, Environmental temperature = 60 °C, --> Correction factor
= 1.21, Resulting current = 12.1 A --> Fount to next higher rated current: 13 A
Accessories
Part Number
4404.0039
4400.0420
4400.0559
4400.0425
4404.0072
Type
TZZ31
TZZ11
TZZ11-414
TZZ12
TZZ51
Resources / Description
Protection cover for IP 65
Knurled nut nickel-plated
Knurled nut black
Additional hexagonal nut nickel-plated
Additional hexagonal nut PA 66
Variants
Mounting
Front printing
Rated current
Order Number
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Threaded neck short
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
Rated current not printed on front
3.0 A
4.0 A
5.0 A
6.0
7.0 A
8.0 A
10.0 A
12.0 A
14.0 A
15.0 A
16.0 A
4404.0084
4404.0083
4404.0082
4404.0081
4404.0080
4404.0079
4404.0078
4404.0077
4404.0076
4404.0075
4404.0074
Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER
Packaging Unit
100 Pcs
4
Circuit Breakers
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
04.05.2018
