BPR01 Overview

GENERAL PURPOSE AUDIO CONNECTOR, JACK

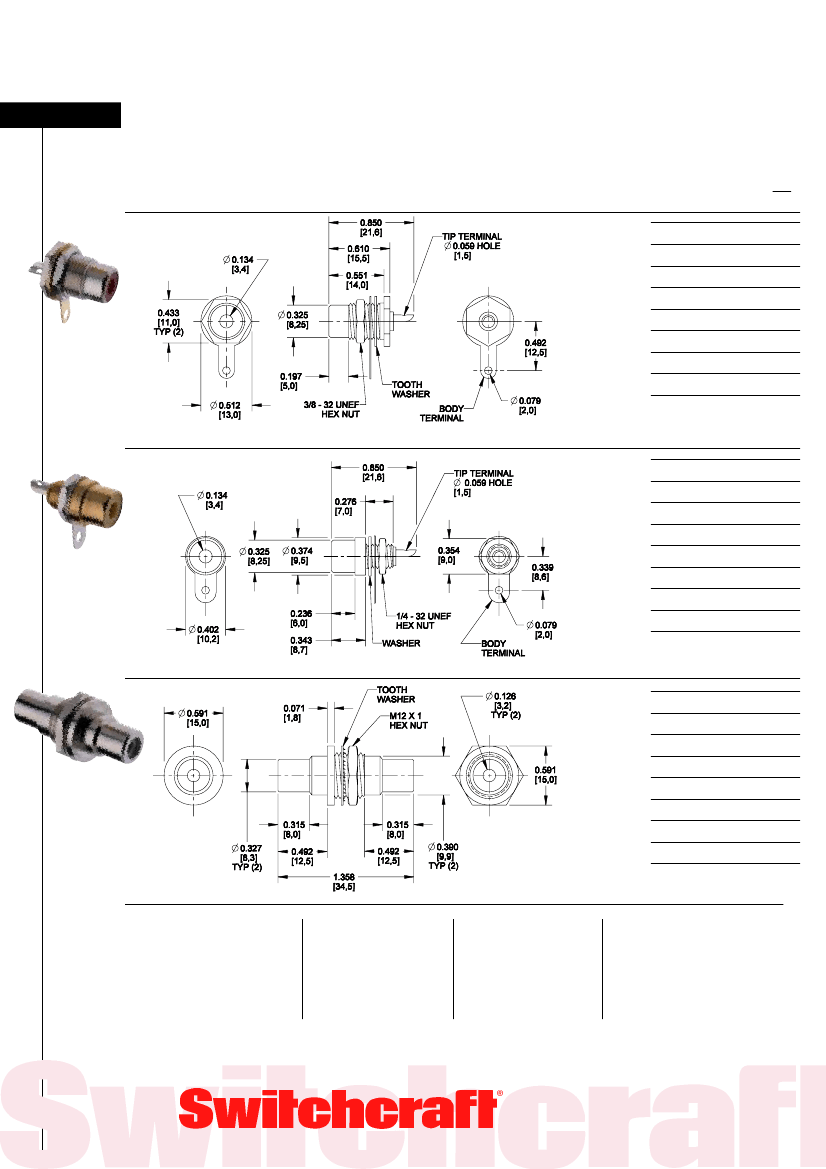

BULKHEAD PHONO JACKS
PRODUCT BULLETIN
536
Product Information
Rear Mount Solder Type
Inch
DIMENSIONS ARE FOR REFERENCE ONLY (mm)
All PC Board layouts are component side
Part Number
BPJR01
BPJR01AU
BPJR02
BPJR02AU
BPJR03
BPJR03AU
BPJR04
BPJR04AU
Color
Black
Black
Red
Red
White
White
Yellow
Yellow
Front Mount Solder Type
Part Number
BPJF01
BPJF01AU
BPJF02
BPJF02AU
BPJF03
BPJF03AU
BPJF04
BPJF04AU
Color
Black
Black
Red
Red
White
White
Yellow
Yellow
Bulkhead Mount
Part Number
BPJJ01
BPJJ01AU
BPJJ02
BPJJ02AU
BPJJ03
BPJJ03AU
BPJJ04
BPJJ04AU
Color
Black
Black
Red
Red
White
White
Yellow
Yellow
Ordering Information
BPJ
R
01
AU
Bulkhead
Phono Jack
Product Type
w
w
w
.
s
w
i
t
c
h
c
R = Rear
F = Front
B = Bulkhead
Mounting
r
a
f
t
.
c
o
m
01 = Black
02 = Red
03 = White
04 = Yellow
xx = Contact Factory
5555 North Elston Avenue / Chicago, IL 60630
Phone: 773-792-2700 / Fax: 773-792-2129
Insulator Color
AU = Gold
Empty = NickeL
Shell Plating
