180-049-M Overview

Interconnection Device

180-049-M Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompli
Connector typeINTERCONNECTION DEVICE
Base Number Matches1
PROBE
Test Probes
and Adapters
Product Series
Basic Number
1.
2.
3.
© 2006 Glenair, Inc.

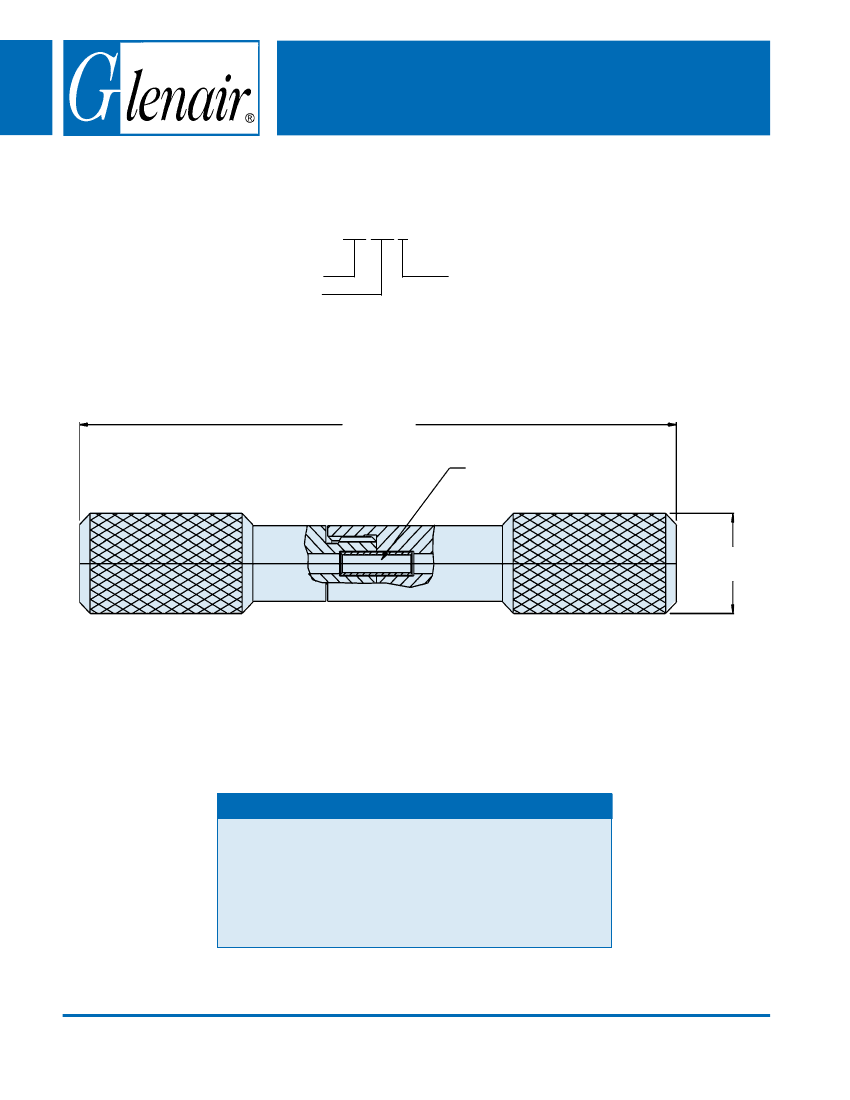

180-049
Feedthrough Probe Connector
to M29504/4 Pin Terminus
180-049 C
Finish Symbol
C = Black Anodize
M = Electroless Nickel
3.00 (76.2)
Max
Alignment Sleeve
.350 (8.9)
Max
Accepts 181-002 and MIL-PRF-29504/ 4 Pin Terminus
U.S. PATENT 5,960,137
APPLICATION NOTES
Metric dimensions (mm) are in parentheses and are for reference only.
Assembly to be indentified with “Probe” and “Pin.”
Material/Finish:
Housing - Aluminum Alloy/See Part Number Development
Alignment Sleeve - Zirconia Ceramic/N.A.
Retaining Clips - Beryllium Copper/N/A.
4. Metric Dimensions (mm) are indicated in parentheses.
PIN
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
L-6
