MC34023P datasheet, PDF - EEWORLD Datasheet

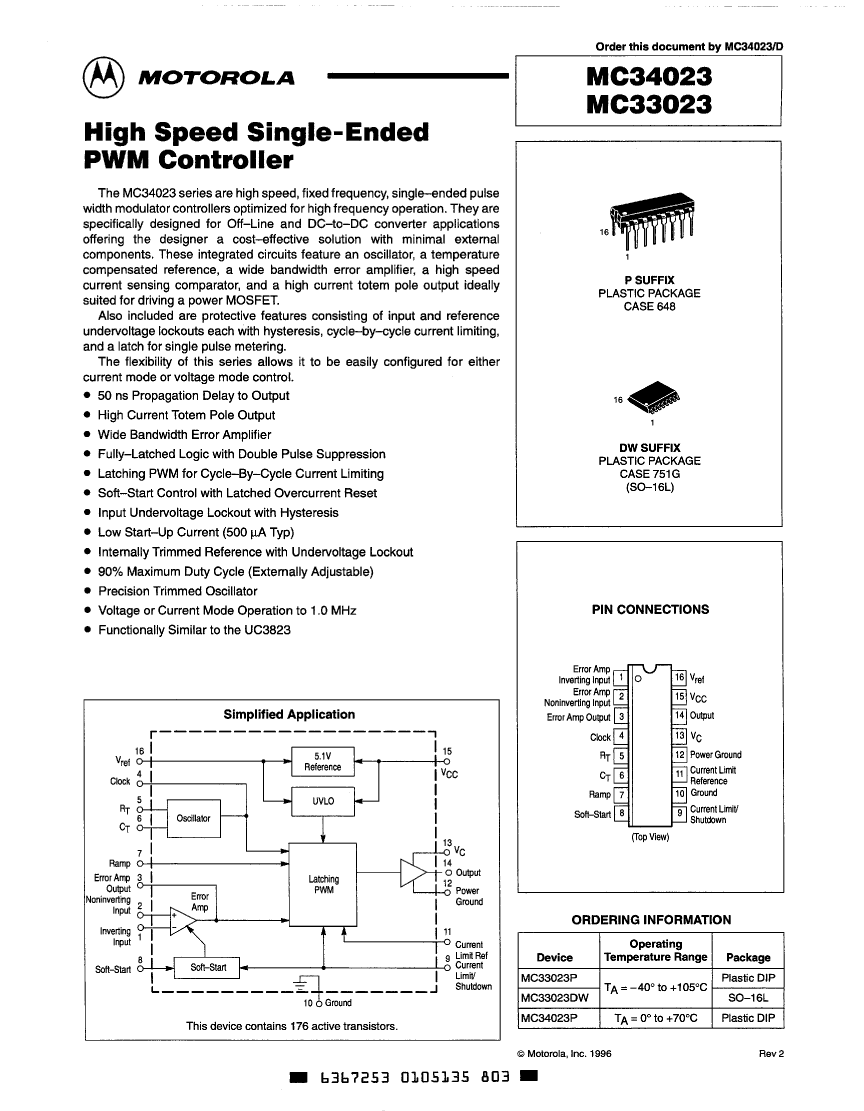

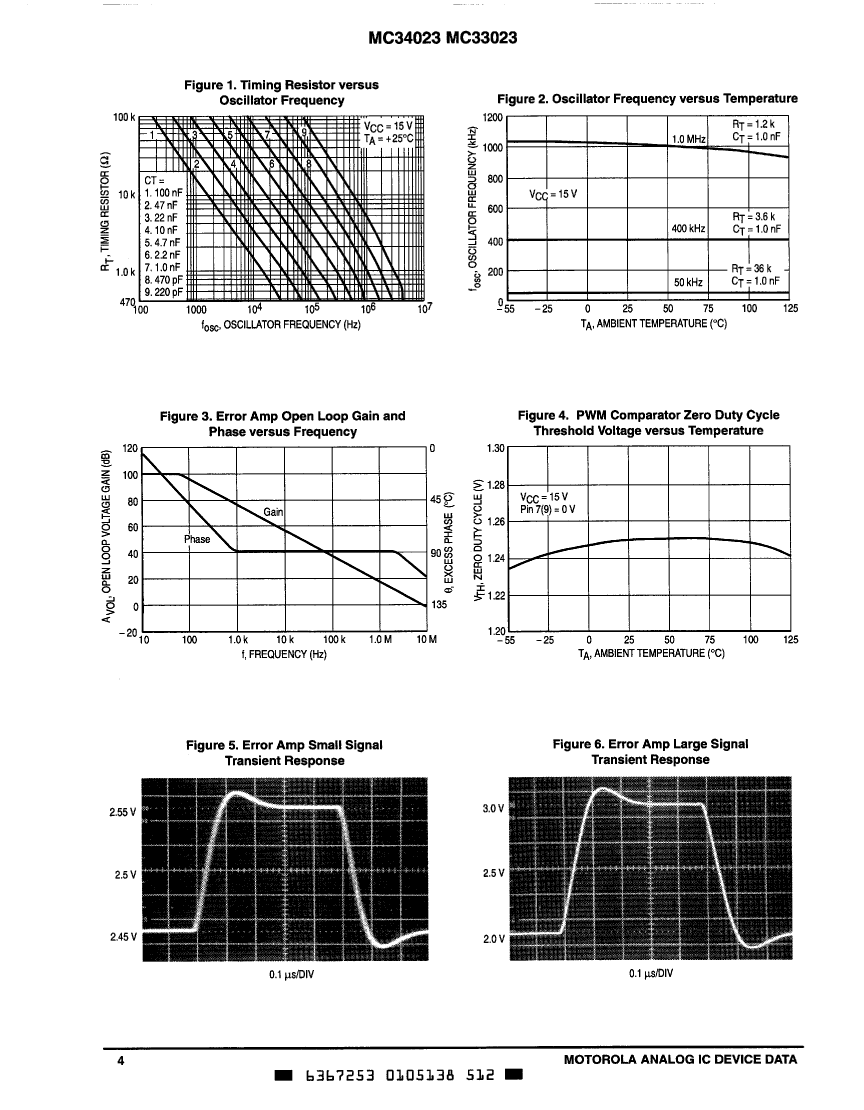

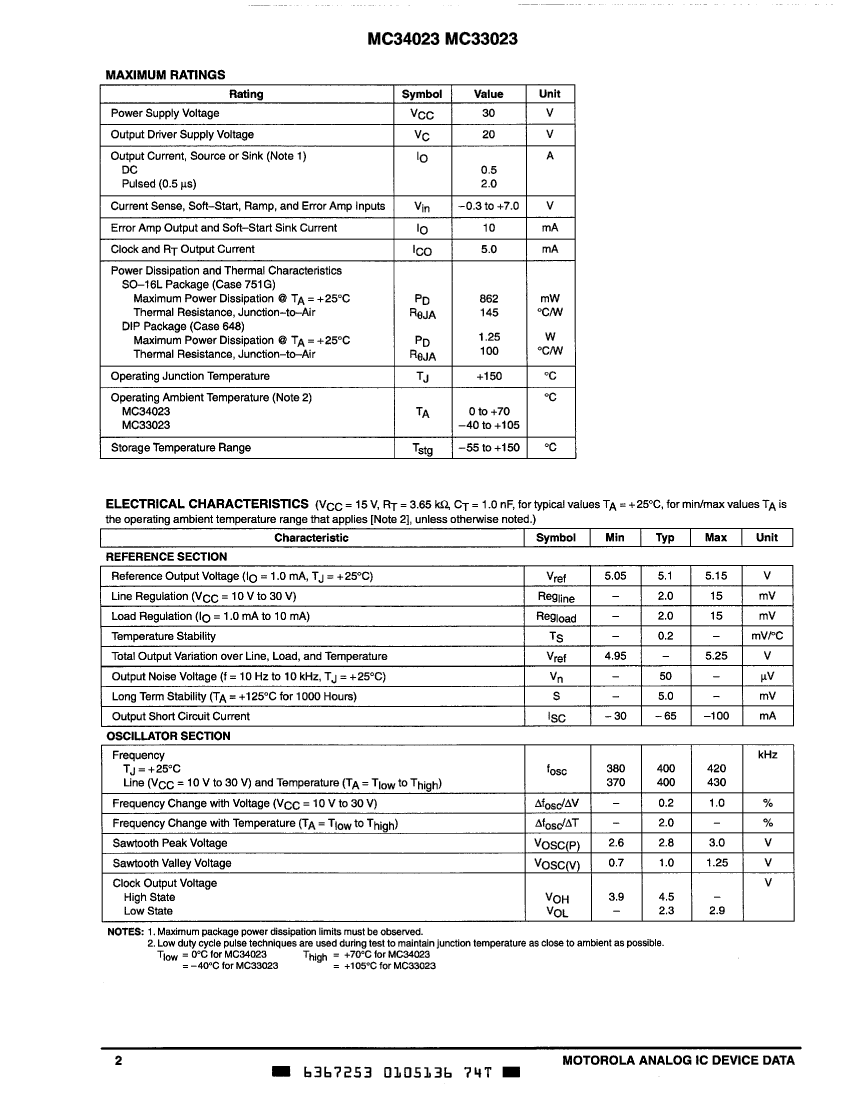

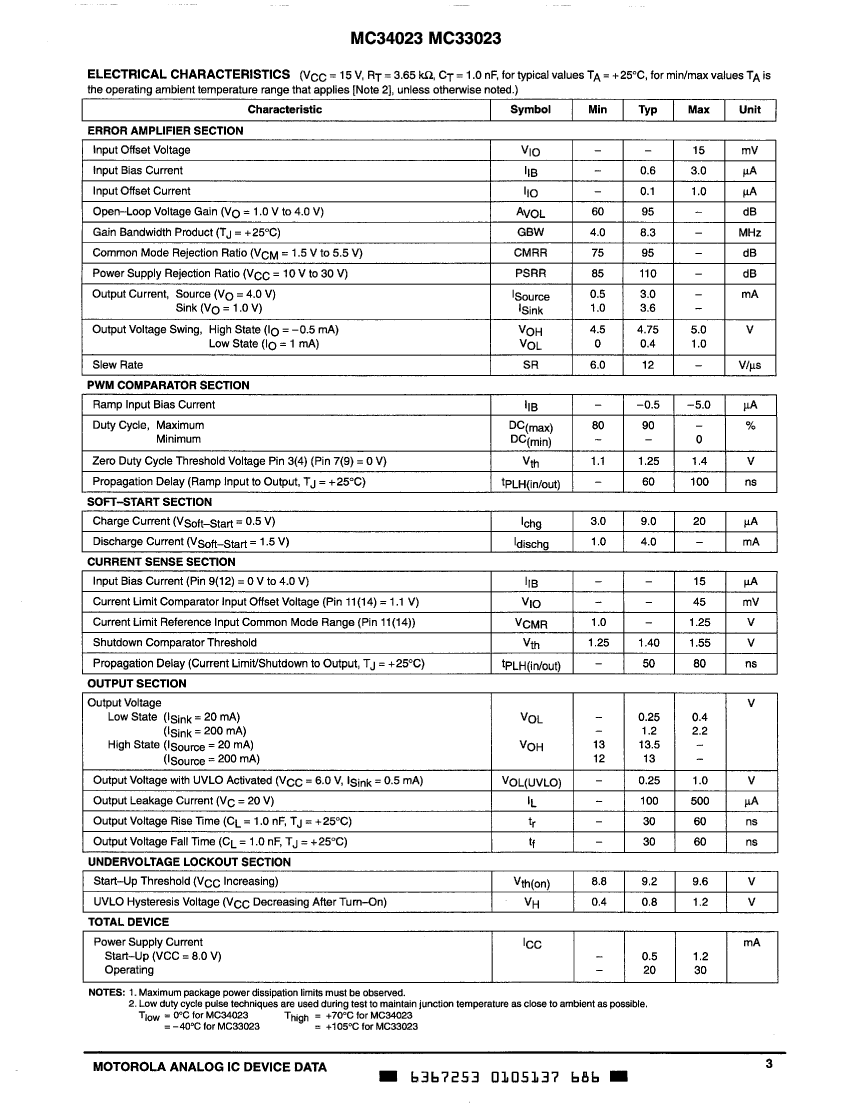

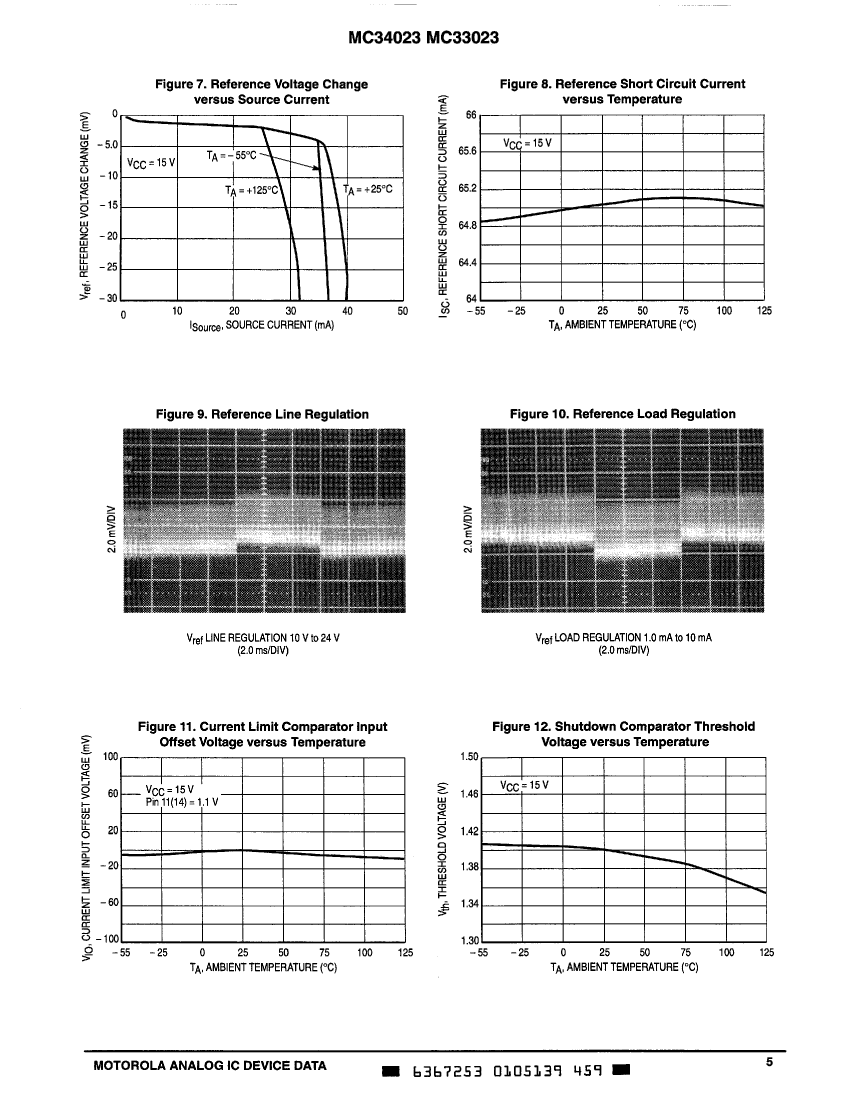

MC34023P: DescriptionIC,SMPS CONTROLLER,CURRENT/VOLTAGE,BIPOLAR,DIP,16PIN,PLASTIC; CategoryPower/power management The power supply circuit; File Size2MB，18 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC34023P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MC34023P	-	-	View	Buy Now

IC,SMPS CONTROLLER,CURRENT/VOLTAGE,BIPOLAR,DIP,16PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
control mode	CURRENT/VOLTAGE-MODE
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Maximum switching frequency	1000 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	MC34023P	MC33023DW	MC33023P
Description	IC,SMPS CONTROLLER,CURRENT/VOLTAGE,BIPOLAR,DIP,16PIN,PLASTIC	IC,SMPS CONTROLLER,CURRENT/VOLTAGE,BIPOLAR,SOP,16PIN,PLASTIC	IC,SMPS CONTROLLER,CURRENT/VOLTAGE,BIPOLAR,DIP,16PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP
package instruction	DIP, DIP16,.3	SOP, SOP16,.4	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown	unknown
control mode	CURRENT/VOLTAGE-MODE	CURRENT/VOLTAGE-MODE	CURRENT/VOLTAGE-MODE
JESD-30 code	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0	e0
Number of terminals	16	16	16
Maximum operating temperature	70 °C	105 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C
Maximum output current	0.2 A	0.2 A	0.2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP
Encapsulate equivalent code	DIP16,.3	SOP16,.4	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO
Maximum switching frequency	1000 kHz	1000 kHz	1000 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	-	1	1
