535654-2LV datasheet, PDF - EEWORLD Datasheet

535654-2LV: DescriptionPCMCIA CONNECTOR,PCB MNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size296KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

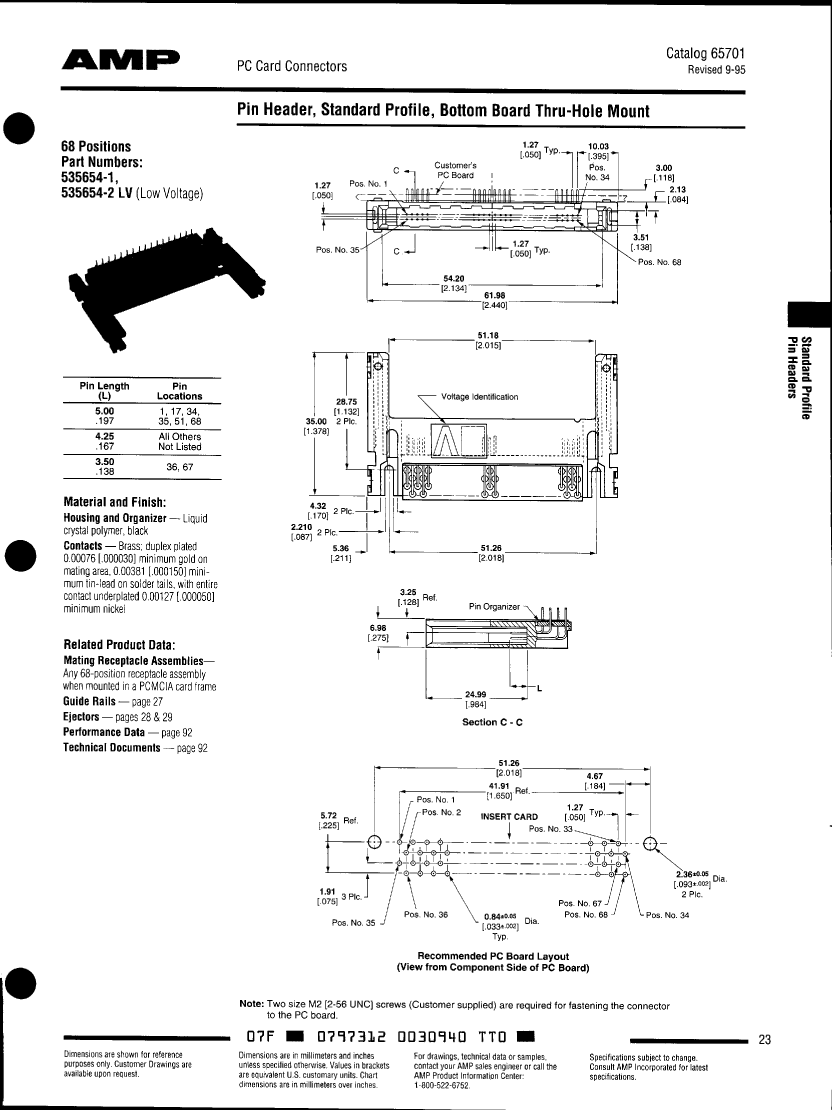

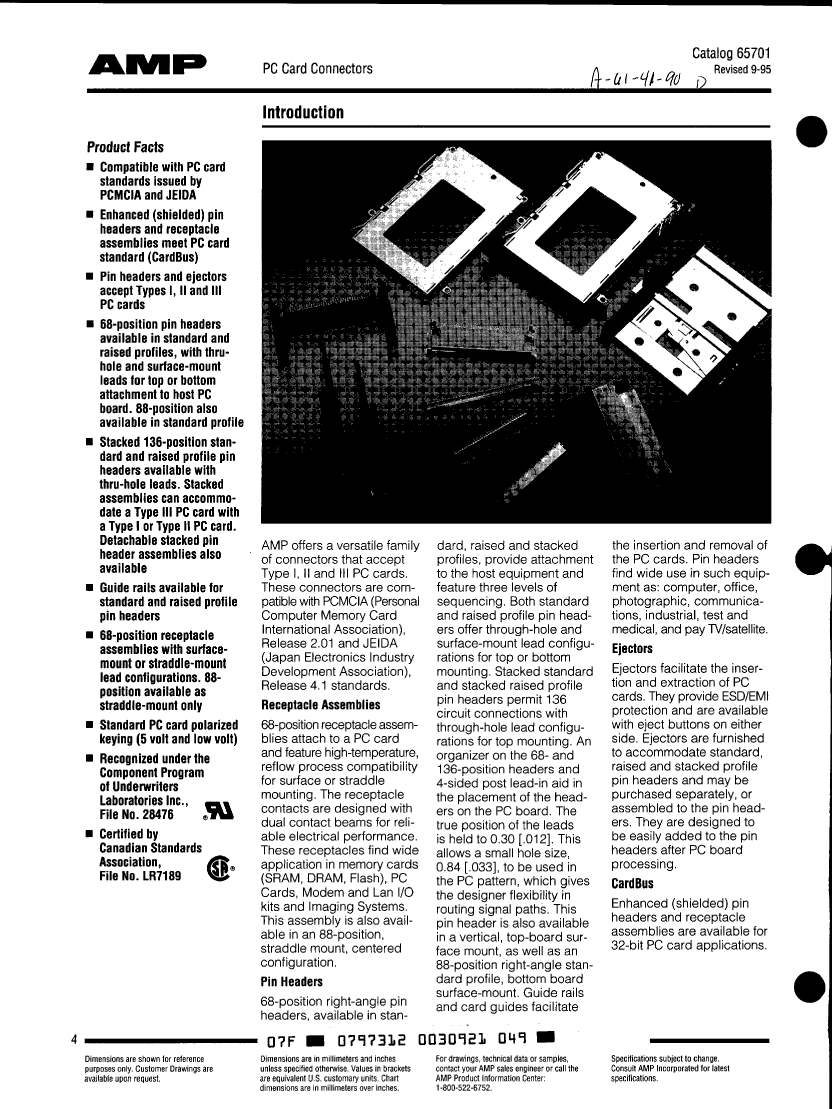

535654-2LV Overview

PCMCIA CONNECTOR,PCB MNT,RECEPT,68 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL

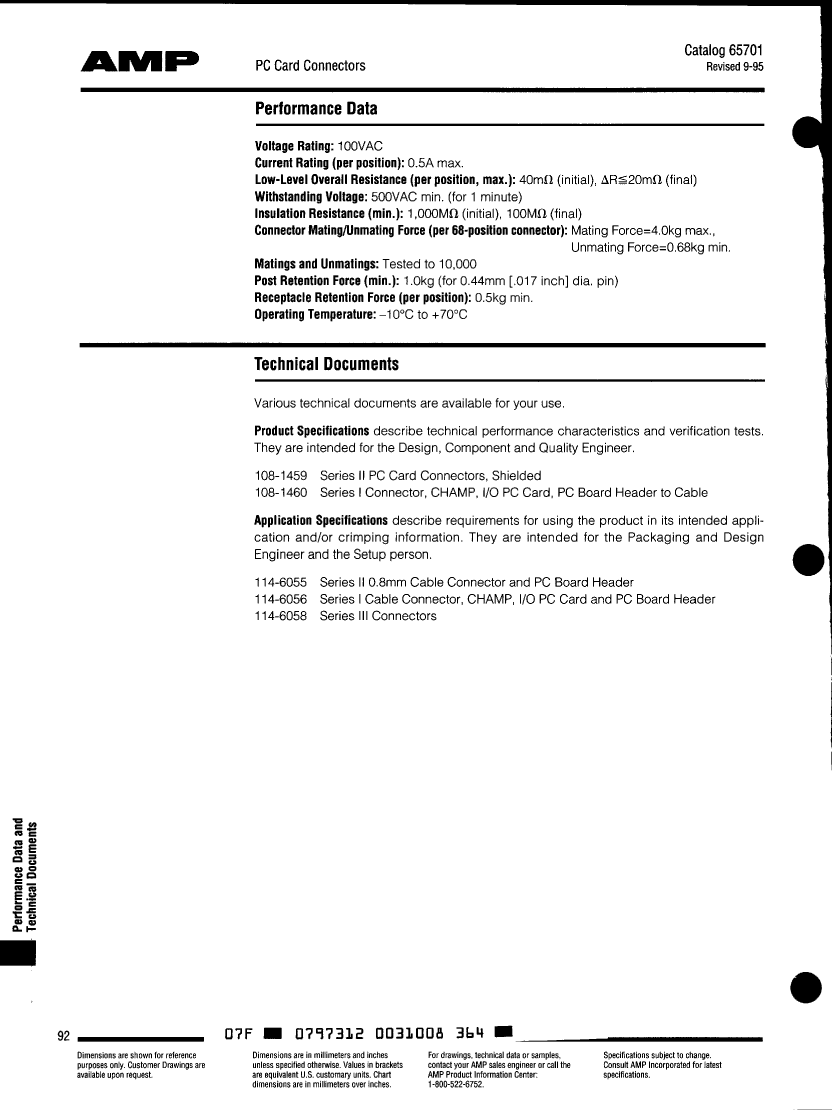

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	LOW VOLTAGE
Board mount options	HOLE .086-.098
body width	0.275 inch
body length	2.44 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
maximum insertion force	.5838 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	535654
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68
Evacuation force-minimum value	.0973 N
