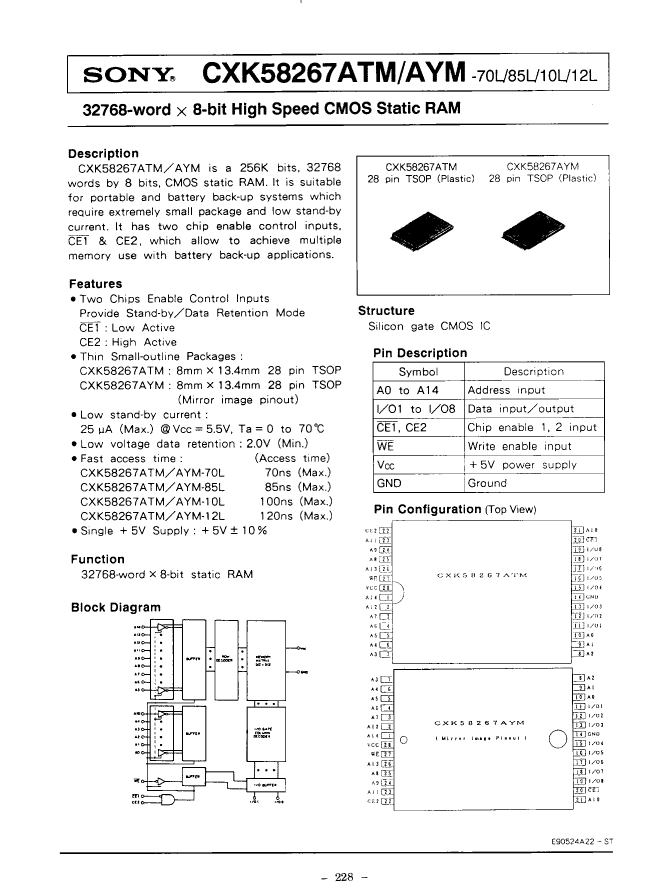

Standard SRAM, 32KX8, 85ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28

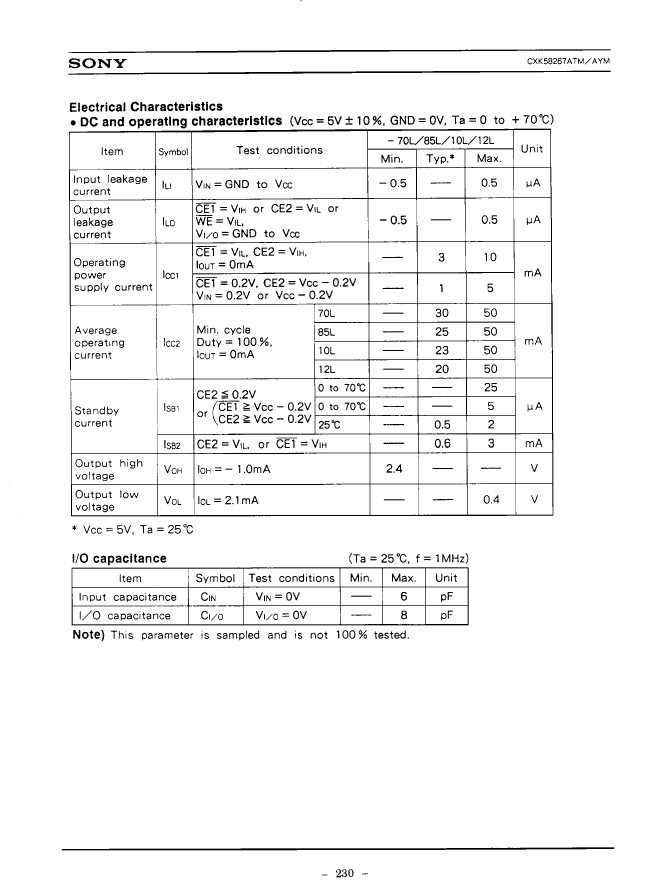

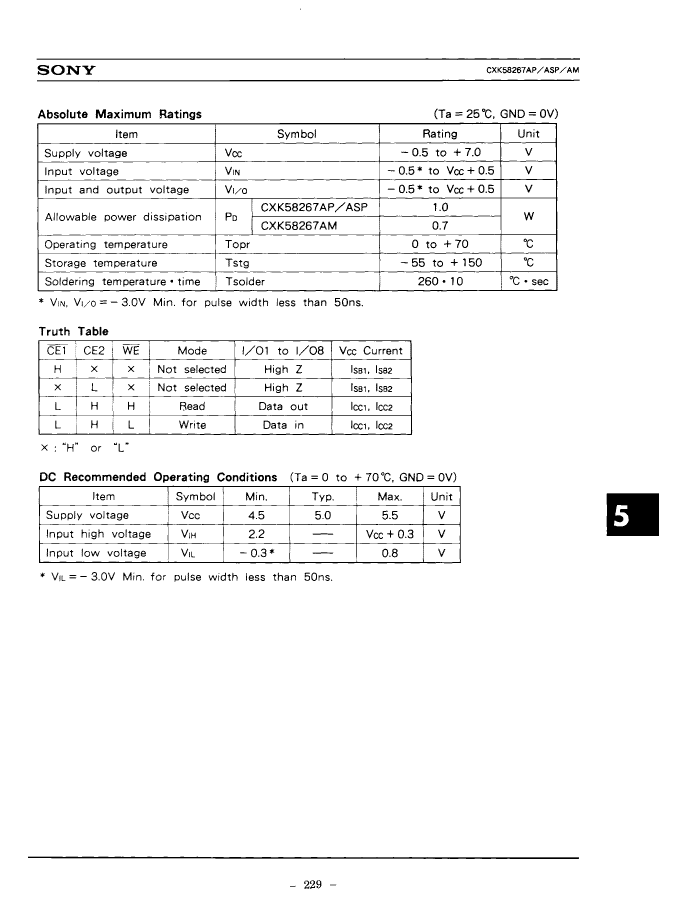

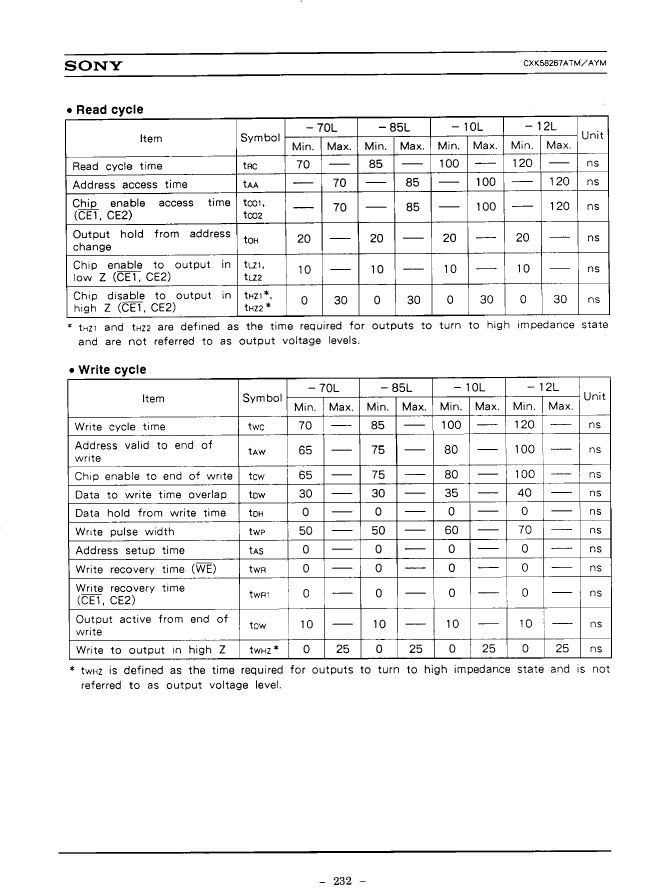

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | SONY |
| Parts packaging code | TSOP |
| package instruction | TSOP1-R, TSSOP28,.53,22 |
| Contacts | 28 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum access time | 85 ns |
| I/O type | COMMON |
| JESD-30 code | R-PDSO-G28 |
| JESD-609 code | e0 |
| length | 11.8 mm |
| memory density | 262144 bit |
| Memory IC Type | STANDARD SRAM |
| memory width | 8 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 28 |
| word count | 32768 words |
| character code | 32000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 32KX8 |
| Output characteristics | 3-STATE |
| Exportable | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSOP1-R |
| Encapsulate equivalent code | TSSOP28,.53,22 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| reverse pinout | YES |
| Maximum seat height | 1.2 mm |
| Maximum standby current | 0.00001 A |
| Minimum standby current | 2 V |
| Maximum slew rate | 0.05 mA |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.55 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8 mm |
| CXK58267AYM-85L | CXK58267ATM-10L | CXK58267ATM-12L | CXK58267ATM-70L | CXK58267ATM-85L | CXK58267AYM-10L | CXK58267AYM-12L | CXK58267AYM-70L | |
|---|---|---|---|---|---|---|---|---|
| Description | Standard SRAM, 32KX8, 85ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 100ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 120ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 70ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 85ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 100ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 120ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 | Standard SRAM, 32KX8, 70ns, CMOS, PDSO28, 8 X 13.4 MM, PLASTIC, TSOP-28 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | TSOP | TSOP | TSOP | TSOP | TSOP | TSOP | TSOP | TSOP |
| package instruction | TSOP1-R, TSSOP28,.53,22 | TSOP1, TSSOP28,.53,22 | TSOP1, TSSOP28,.53,22 | TSOP1, TSSOP28,.53,22 | TSOP1, TSSOP28,.53,22 | TSOP1-R, TSSOP28,.53,22 | TSOP1-R, TSSOP28,.53,22 | TSOP1-R, TSSOP28,.53,22 |
| Contacts | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum access time | 85 ns | 100 ns | 120 ns | 70 ns | 85 ns | 100 ns | 120 ns | 70 ns |
| I/O type | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-30 code | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-G28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 11.8 mm | 11.8 mm | 11.8 mm | 11.8 mm | 11.8 mm | 11.8 mm | 11.8 mm | 11.8 mm |
| memory density | 262144 bit | 262144 bit | 262144 bit | 262144 bit | 262144 bit | 262144 bit | 262144 bit | 262144 bit |
| Memory IC Type | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM |
| memory width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| word count | 32768 words | 32768 words | 32768 words | 32768 words | 32768 words | 32768 words | 32768 words | 32768 words |
| character code | 32000 | 32000 | 32000 | 32000 | 32000 | 32000 | 32000 | 32000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 32KX8 | 32KX8 | 32KX8 | 32KX8 | 32KX8 | 32KX8 | 32KX8 | 32KX8 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | NO | NO | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSOP1-R | TSOP1 | TSOP1 | TSOP1 | TSOP1 | TSOP1-R | TSOP1-R | TSOP1-R |
| Encapsulate equivalent code | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 | TSSOP28,.53,22 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.2 mm | 1.2 mm | 1.2 mm | 1.2 mm | 1.2 mm | 1.2 mm | 1.2 mm | 1.2 mm |
| Maximum standby current | 0.00001 A | 0.00001 A | 0.00001 A | 0.00001 A | 0.00001 A | 0.00001 A | 0.00001 A | 0.00001 A |
| Minimum standby current | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V | 2 V |
| Maximum slew rate | 0.05 mA | 0.05 mA | 0.05 mA | 0.05 mA | 0.05 mA | 0.05 mA | 0.05 mA | 0.05 mA |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm | 0.55 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm | 8 mm |
| Maker | SONY | - | SONY | SONY | SONY | SONY | SONY | SONY |
