CAD-0605-162: DescriptionPCB Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

CAD-0605-162 Overview

PCB Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, ROHS COMPLIANT

CAD-0605-162 Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT, TAPE/REEL PKG.
body width	0.299 inch
subject depth	0.063 inch
body length	0.433 inch
Body/casing type	RECEPTACLE
Connector type	PCB CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (100)
Contact completed and terminated	TIN (200) OVER NICKEL (100)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	COMPRESSION
DIN compliance	NO
Durability	5000 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CAD-0605-162
Plug contact pitch	0.1 inch
Match contact row spacing	0.29 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	11.4046 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	6

Preview

Download Datasheet

View All

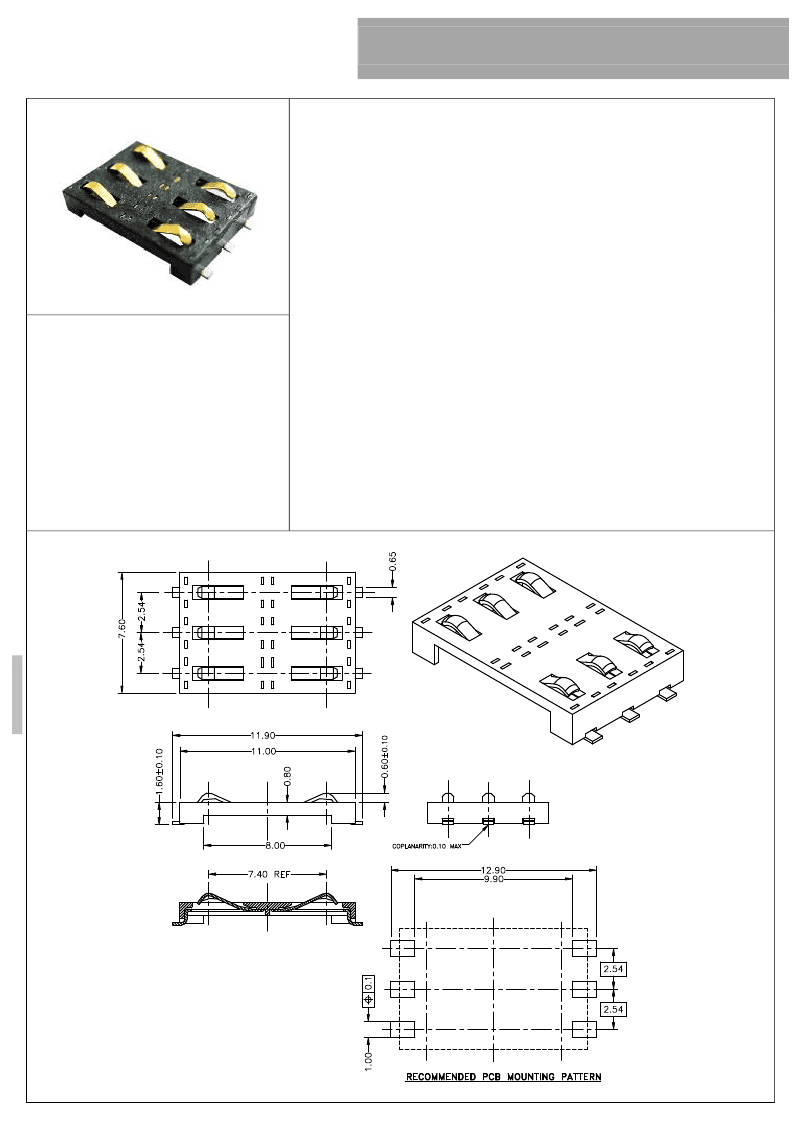

Amphenol

SIM Reader

1. Material:

Contact: Beryllium copper

Insulator: 30% lass-filled thermoplastic LCP or equivalent UL94V-0,

black

2. Finish:

15 micro-inch(0.38 micron) min gold plating at matign area, 100-200

micro-inch(2.54-5.08 micron) pure tin at solder tail and 50-100 micro-

inch(1.27-2.54 micron) nickel under plated

3. Electrical specifications:

Voltage rating: 30Vac

Current rating: 0.5 A min per contact

Dielectric strength: 200 Vac for 1 minute min

Insulation resistance: 1,000 MEG ohm min

Contact resistance: 20 milli ohm max

4. Mechanical specifications:

Durability: 5,000 cycles

Normal force at mated position: 0.5N±0.2N

5. Packaging:

Parts to be packaged in anti-static tape and reel for automatic

placement. All packaging materials to be approved by Amphenol

engineering.

Part Number: CAD-0605-162

6 Pins SIM Block 1.6 mm height,

SMT mounting

-

Low profile

Insulator height is 1.6mm

Outside dimension: 7.60 x 11.00

Various height provided

Beryllium copper contacts ensure

high reliability

SIM Reader

ASC
