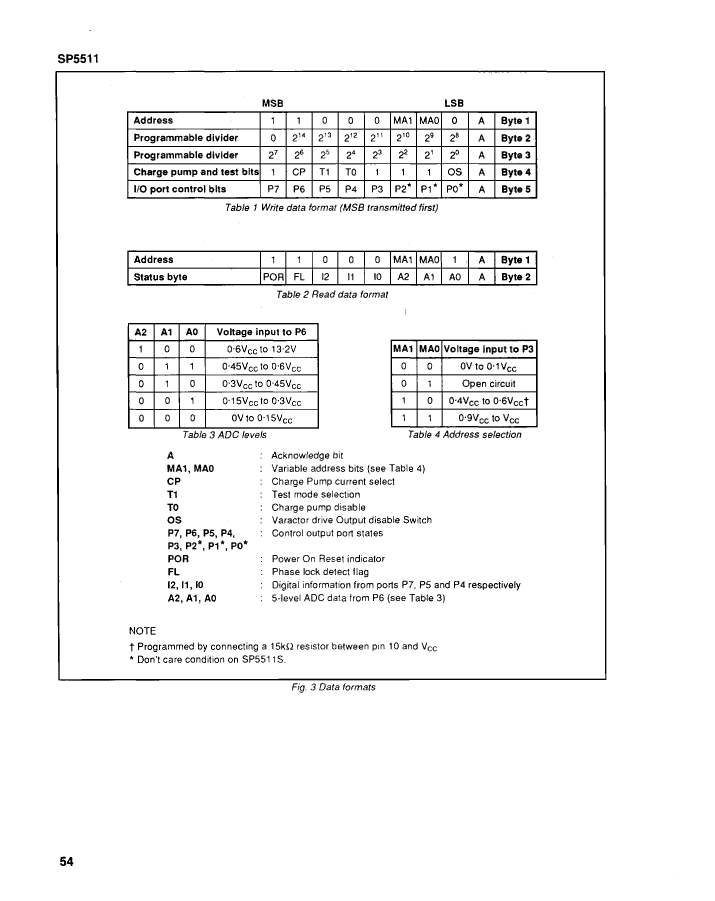

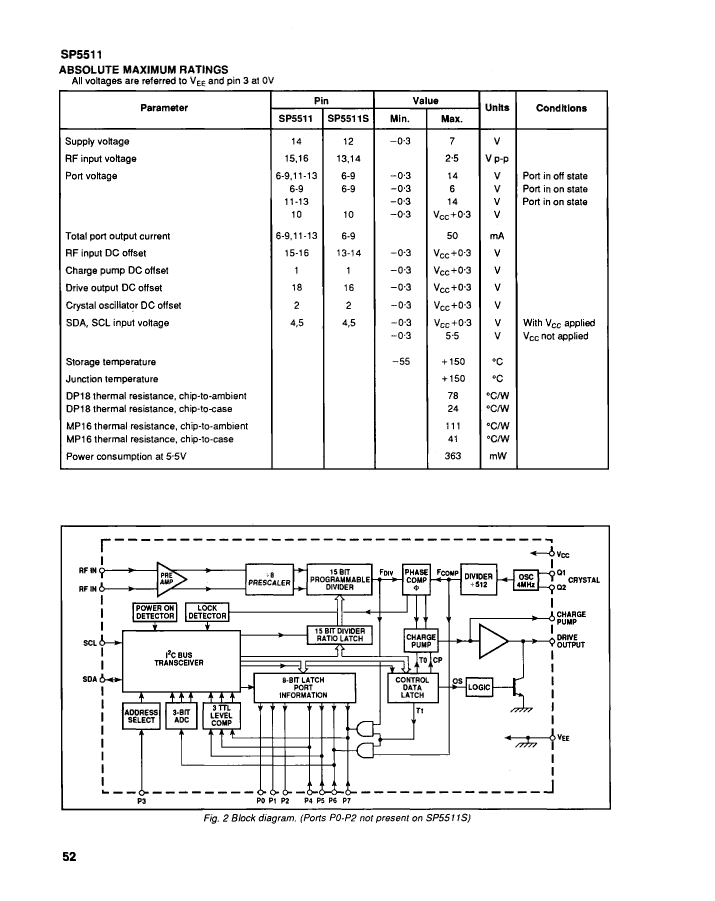

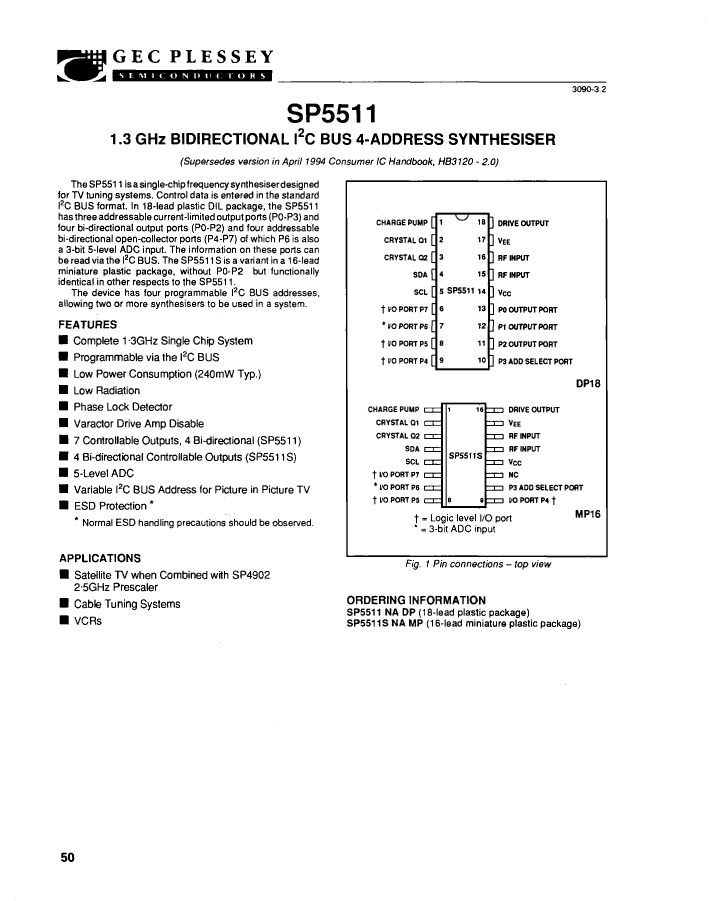

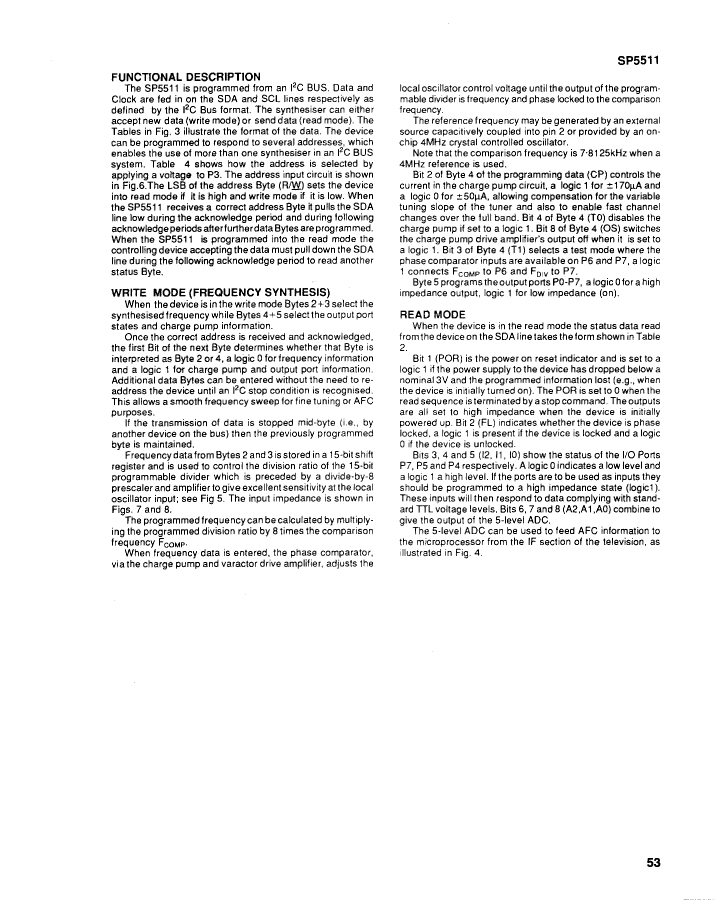

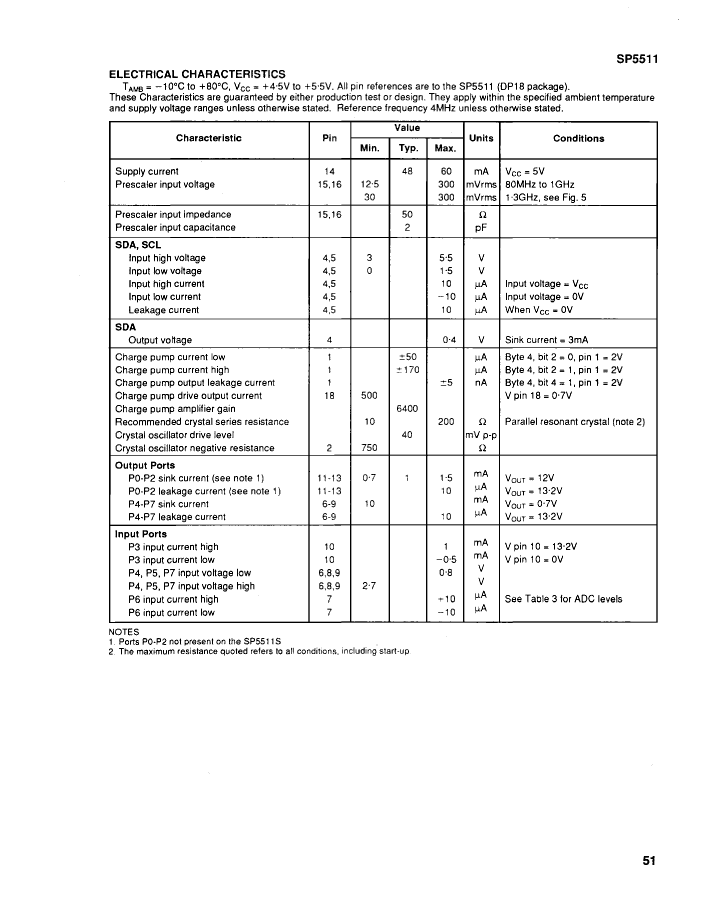

SP5511SNAMP Overview

PLL Frequency Synthesizer, BIPolar, PDSO16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Other features	ADDITIONAL DIVIDE BY 8 PRESCALER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	80 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	60 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	SP5511SNAMP	SP5511NADP
Description	PLL Frequency Synthesizer, BIPolar, PDSO16	PLL Frequency Synthesizer, BIPolar, PDIP18
Is it Rohs certified?	incompatible	incompatible
Maker	Dynex	Dynex
package instruction	SOP, SOP16,.25	DIP, DIP18,.3
Reach Compliance Code	unknown	unknown
Other features	ADDITIONAL DIVIDE BY 8 PRESCALER	ADDITIONAL DIVIDE BY 8 PRESCALER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G16	R-PDIP-T18
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	16	18
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.25	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	60 mA	60 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
