DC-538

Description
1.5 WATT SINGLE & DUAL OUTPUT DC-DC CONVERTERS
File Size117KB,1 Pages
ManufacturerIntronics
Websitehttp://www.intronics.com/
Download Datasheet View All

DC-538 Overview

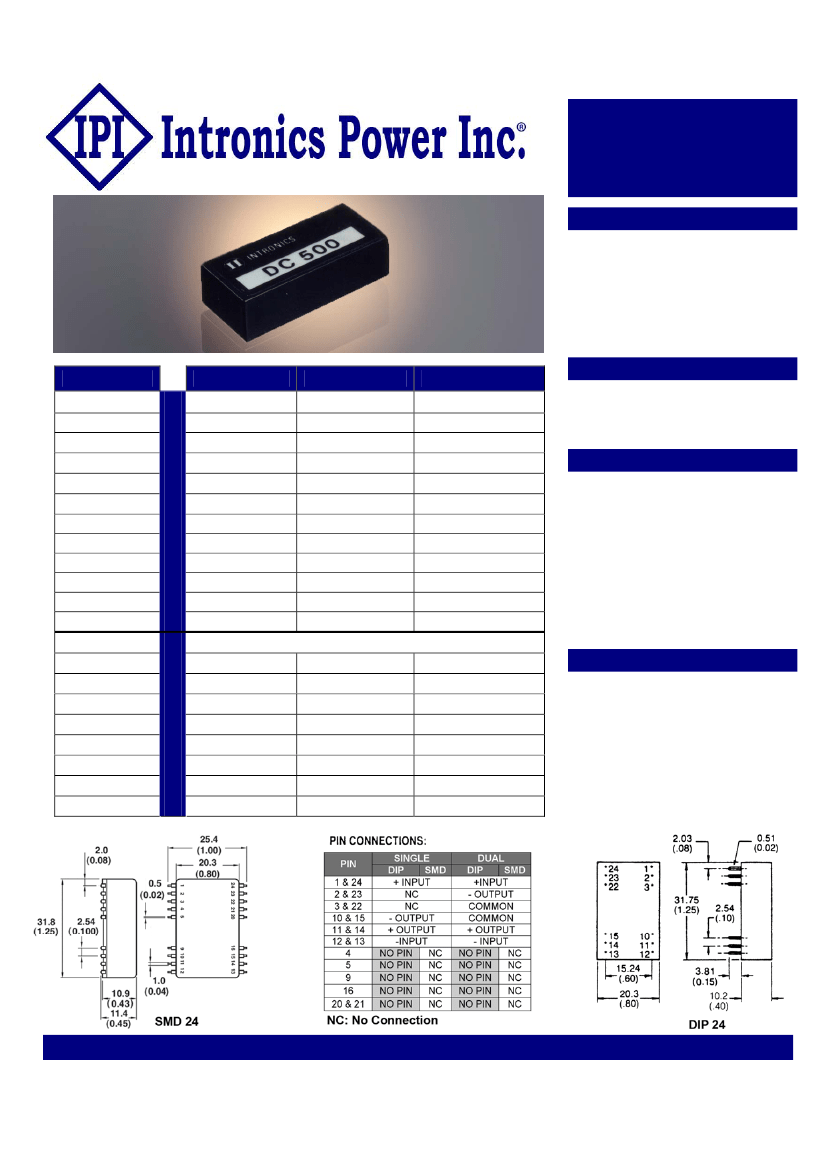

1.5 WATT SINGLE & DUAL OUTPUT DC-DC CONVERTERS

DC 500 SERIES
1.5 WATT
SINGLE & DUAL OUTPUT
DC-DC CONVERTERS
FEATURES
DIP and SMD Package Options
Fully Regulated
Low Output Ripple and Noise
High Reliability
Input/Output Isolation
MODEL NUMBER
INPUT VOLTAGE
OUTPUT VOLTAGE
OUTPUT CURRENT
INPUT SPECIFICATIONS
Input Voltage: 5, 12, 24, 48V
Input Filter: Capacitor
Continuous short circuit protection
OUTPUT SPECIFICATIONS
Output Voltage: 5, 12, 15V
Voltage Accuracy: ± 4%
Line Regulation: ± 0.3%
Load Regulation (Max): ± 0.5%
Temperature Coefficient: + .02%/C
Ripple and Noise: <1% mVp-p
(20 MHz Bandwidth) See Note (1)
Short Circuit Protection: Continuous
GENERAL SPECIFICATIONS
Efficiency: 50%
Isolation Voltage: 500 VDC
Operating Temperature: -25ºC to 71ºC
Storage Temperature: -40ºC to 100ºC
Case Type: Non Conductive Plastic
DIP or SMD
Note (1):
With a 10uf tantalum capacitor across Output.
DC-501
DC-502
DC-503
DC-511
DC-512
DC-513
DC-521
DC-522
DC-523
DC-531
DC-532
DC-533
DC-507
DC-508
DC-509
DC-518
DC-519
DC-528
DC-529
DC-538
DC-539
5V
5V
5V
12V
12V
12V
24V
24V
24V
48V
48V
48V
5V
5V
12V
12V
24V
24V
48V
48V
5V
12V
15V
5V
12V
15V
5V
12V
15V
5V
12V
15V
See DC-607
± 12V
± 15V
± 12V
± 15V
± 12V
± 15V
± 12V
± 15V
300mA
125mA
100mA
300mA
125mA
100mA
300mA
125mA
100mA
300mA
125mA
100mA
± 125mA
± 100mA
± 125mA
± 100mA
± 125mA
± 100mA
± 125mA
± 100mA
1400 Providence Highway Building 2 Suite 2400, Norwood, MA 02062 - Tel: 781-551-5500 - Fax: 781-551-5555
DUAL
SINGLE
