EH Series Audio/Video/Data CONNECTORS

Preview

Download Datasheet

View All

NPB

560B

itc

hcraft®

E S e i es

Audio/Video/Data

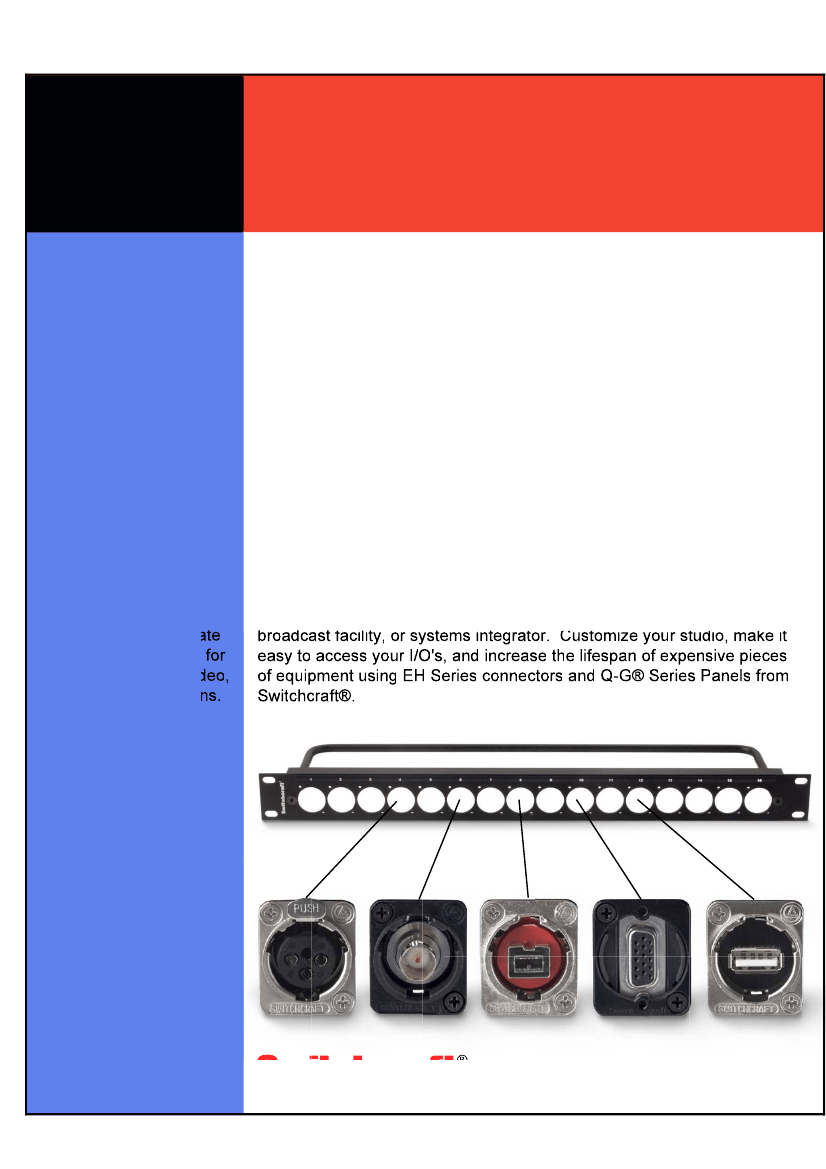

The EH Series by Switchcraft® is a complete line of audio, video, and data

connectors built into standard panel-mount XLR housings. Custom

combinations of EH Series connectors can be quickly loaded into any of our

Q-G® Series panels. Once mounted, connecting your equipment to the

back of an EH Series connector is fast and easy. Most connectors are

feedthru, which means standard cabling is simply plugged into the back

of your gear, then plugged into the back of the EH Series connector. For

those EH Series connectors that are not feedthru, solder lugs are clearly

marked for simple, secure solder connections. All EH Series connectors

are available individually bagged with mounting screws.

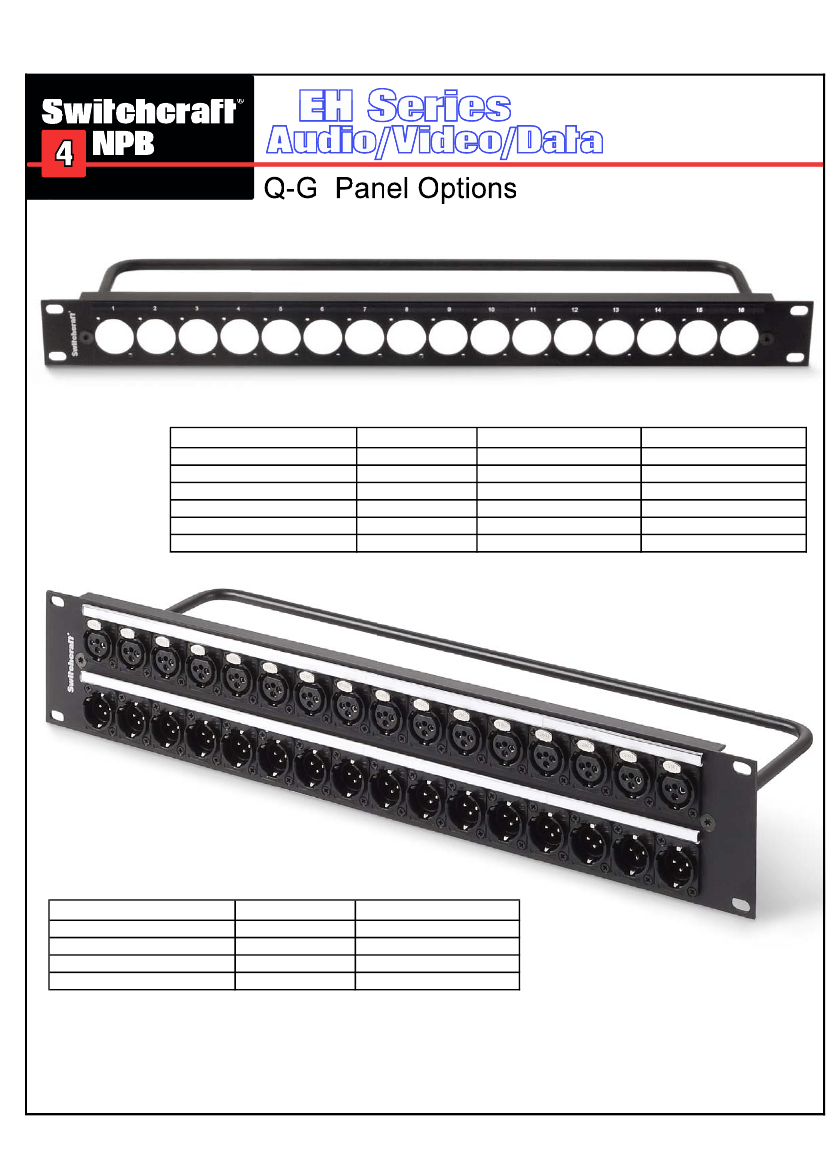

Q-G® Series panels come standard as 1RU (1x16), 1.5RU (1x16), or 2RU

(2x16). 1RU and 1.5RU versions allow for any combination of up to 16 EH

Series connectors to be loaded into the panel. The 2RU version can

accommodate up to 32 EH Series connectors. Every Q-G® Series panel

includes quick change designation strips for easy connector identification.

Switchcraft's EH Series is the fastest and most versatile way to create a

custom panel or wall plate perfectly suited to meet the needs of any studio,

broadcast facility, or systems integrator. Customize your studio, make it

easy to access your I/O's, and increase the lifespan of expensive pieces

of equipment using EH Series connectors and Q-G® Series Panels from

Switchcraft®.

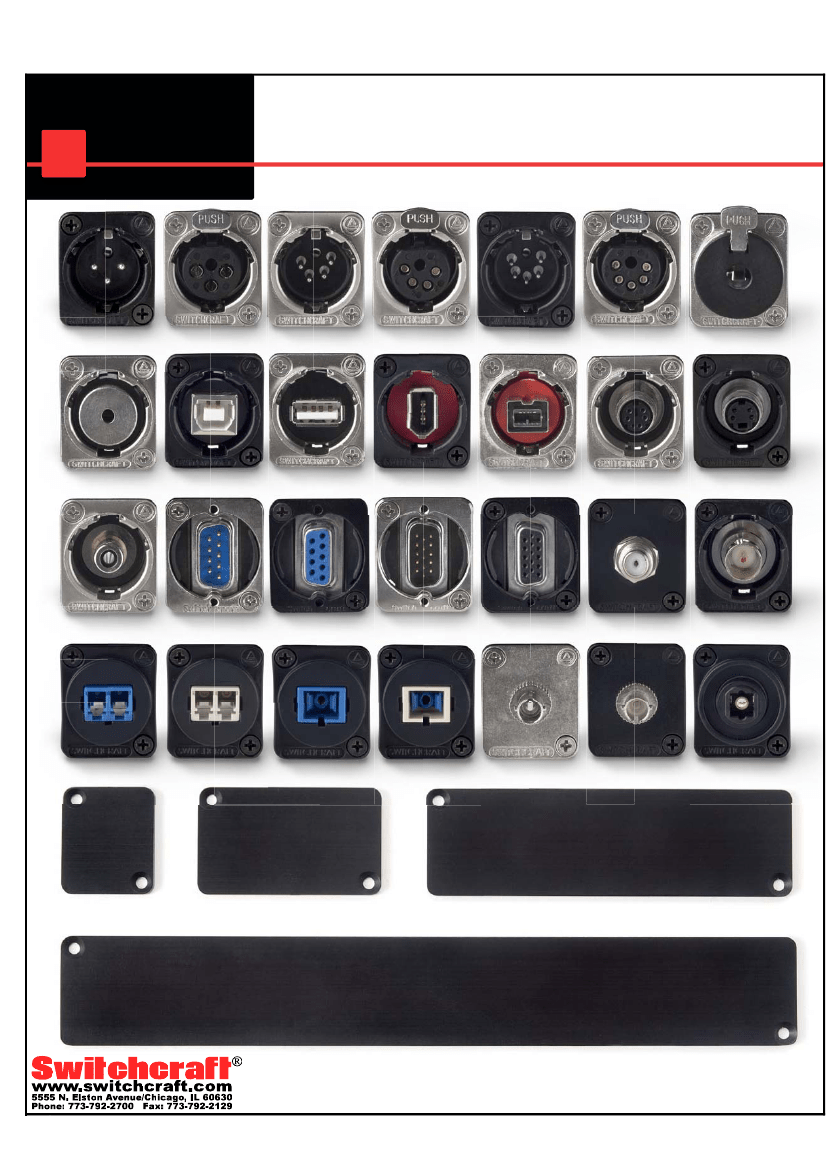

1. Choose any combination

of EH Series connectors.

2. Choose a blank Q-G®

Series panel.

3. Populate EH Series

connectors into Q-G®

Series panel to create

custom I/O solution for

all of your audio, video,

and data connections.

-QGPK1B440

Switchcraft

www.switchcraft.com

5555 N. Elston Avenue/Chicago, IL 60630

Phone: 773-792-2700 Fax: 773-792-2129
