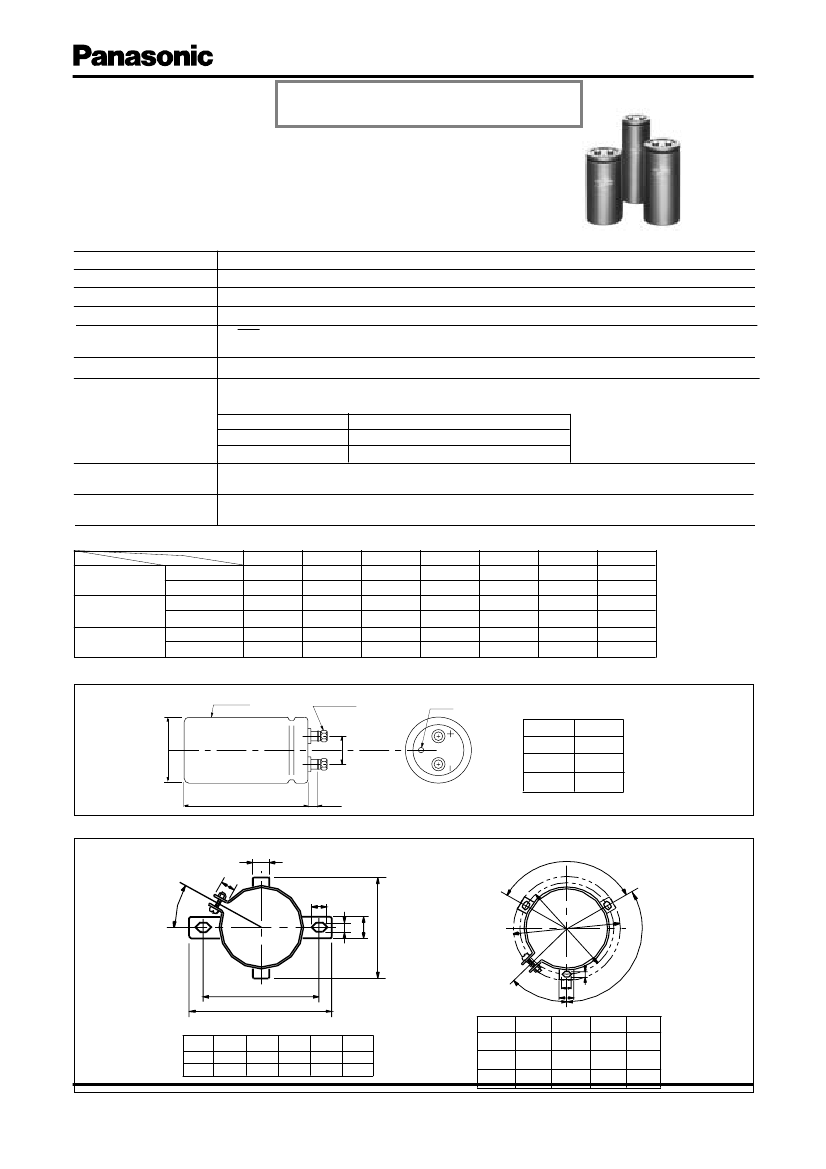

Aluminium Electrolytic Capacitors/GUP
Screw Terminal Type
Series:
GUP
n
Features
Endurance: 85°C 2000, 5000 h
Discontinued
Japan
High-ripple-current product
Expanded case size up to
φ90x222
High CV packed
n
Recommended Applications
n
Specifications
Category temp. range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
DC Leakage Current
Dissipation Factor
For general-purpose inverter, power supply for
backup system, motor-control, inverter
-25 to + 85°C
160 to 450 V .DC
2700 to 56000 µ F
±20% (120Hz/+20°C)
3ﾖCV (µA) or 5(mA) whichever, smaller, after 5 minutes application of rated working
voltage at +20°C C:Capacitance(µF) V: W.V. (V.DC)
Please see the attached standard products list
After 5000 hours application of DC voltage with specified ripple current (< rated DC working volt-
age ) at +85°C, the capacitor shall meet the following limits.(160 to 250 W.V. : 2000 hours at +85°C)
Endurance
Shelf Life
Withstand Voltage
Capacitance change ±20 % of initial measured value
D.F.
<
200 % of initial specified value
DC leakage current
<
initial specified value
After storage for 1000hours at +85±2
°C
with no voltage applied and then being stabilized
at +20
°C,
capacitors shall meet the limits specified in ìEnduranceî.(With voltage treatment)
Application of 1500 V.AC between V-block and terminals for 1 minute, there shall be no
abnormalities like destruction of insulator.
Freq.(Hz)
n
Frequency Correction Factor for Ripple Current
W.V.(V)
φD(mm)
160, 200
250, 350
400, 450
64
77, 90
64
77, 90
64
77, 90
50
0.86
0.90
0.83
0.85
0.81
0.85
60
0.91
0.95
0.88
0.90
0.87
0.90
120
1.00
1.00
1.00
1.00
1.00
1.00
300
1.05
1.05
1.07
1.05
1.07
1.05
360
1.06
1.06
1.08
1.06
1.08
1.06
1k
1.08
1.08
1.13
1.11
1.13
1.11
10k to
1.10
1.10
1.20
1.20
1.21
1.20
n
Dimensions in mm (not to scale)
P
.V.C. sleeve
M5x12
Hexagonal-bolt
Vent
(mm)
φD
64
77
90
φD±1
F±1.0
F
28.6
31.8
31.8
L+4 max
9 max
n
Mounting clamp
14
120°
35
°
8.4
2
φ
D
16
C
E
B
A
45
°
W
1
W
2
5
12
0
°
1
φ
D
(mm)
(mm)
E H
max
5.0 13
5.0 13
φD
A
B
C
64
93.0 81.0 70.0
77 104.5 93.5 90.0
φD
64
77
φD2
86.0
89.0 100.0
90 101.6 113.0
φD1
76.0
W1
8.0
8.0
8.0
W2
13.0
14.0
14.0
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
–
EE187
–
Aluminium Electrolytic Capacitors/GUP
