Small-sized
Circular Waterproof
Connector
Series

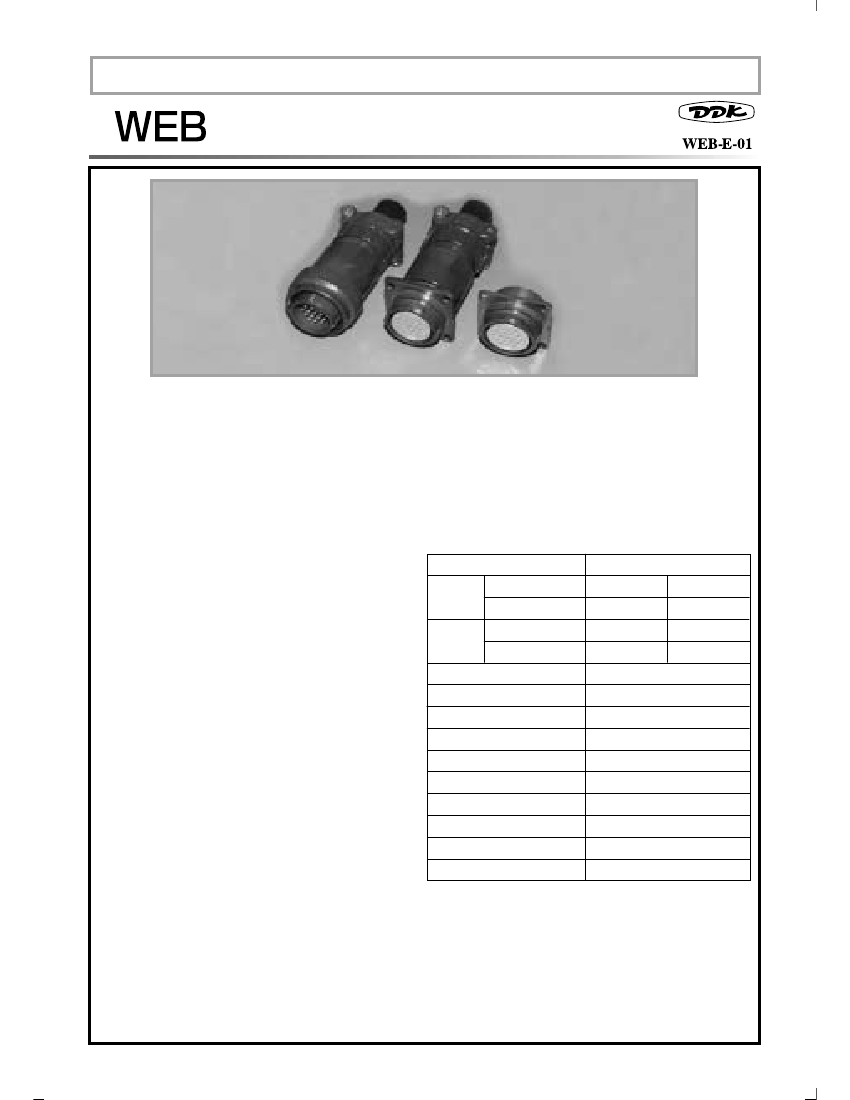

SUMMARY
A waterproof version of the JM series for factory automation applications. The WEB series
meets IP67 requirements for resistance to moisture, oil, and dust. This connector system is
vibration proof, features field serviceable solder contacts and a bayonet coupling mechanism
offers quick and secure plugging and unplugging of cables.
SPECIFICATIONS
Voltage rating (Max.)
250V AC(r.m.s),350V DC
FEATURES
Current Pin contact dia. 1.0mm
1.6mm
Secure Bayonet Coupling
rating
Coupling mechanism offers a tactile response
5A
10A
(Max.) Current (Max.)
when the
ring is fully mated by turning it 90
1.5mm
Conductive dia
1.0mm
degrees clockwise. Secure and tight mating results
Applicable
Cable
Conductive cross
1.25mm
2
0.5mm
2
in a reliable connection and less wear on
section
contacts under conditions of vibration.
Operating temperature
25
·
85 degrees C
Small Size and High Contact Density
Insulation resistance
1000Mohm min. at 500V DC
Miniature design for applications where space is
Dielectric withstanding voltage 1000V AC(r.m.s)at sea level
at a premium.
Shell Polarization Protects Contacts
5 mohm max. at 1A
Contact resistance
Five keys on metal shell align connectors
Vibration
10 55Hz. Amplitude:1.5mm(.059)
during plugging.
Shock
Acceleration 50G
Quick and Easy Solder Termination
Soldering is facilitated
by
the solder cups
being
Durability
500 cycles
oriented in the same direction , connector
Humidity (Steady state) 40 deg C,90 to 95%, 96 hrs
does not need to be rotated during termination.
Temperature cycle
-40 ~ +100 deg. C, 5 cycles
UL Standard Material
Salt spray
5%, 35 deg. C, 48 hrs.
UL94V-0 rated insulator materials.
MATERIAL / FINISH
Insert ................ PBT resin (UL94V-0) / Blue
Contact ............. Copper alloy / Silver plating (standard). Gold plating (custom)
Shell ................. Zinc alloy /
Olive drab
chromate finish
Cable clamp ...... Aluminum alloy /
Olive drab
chromate finish
Bushing ............ Chloroprene synthetic rubber / Black

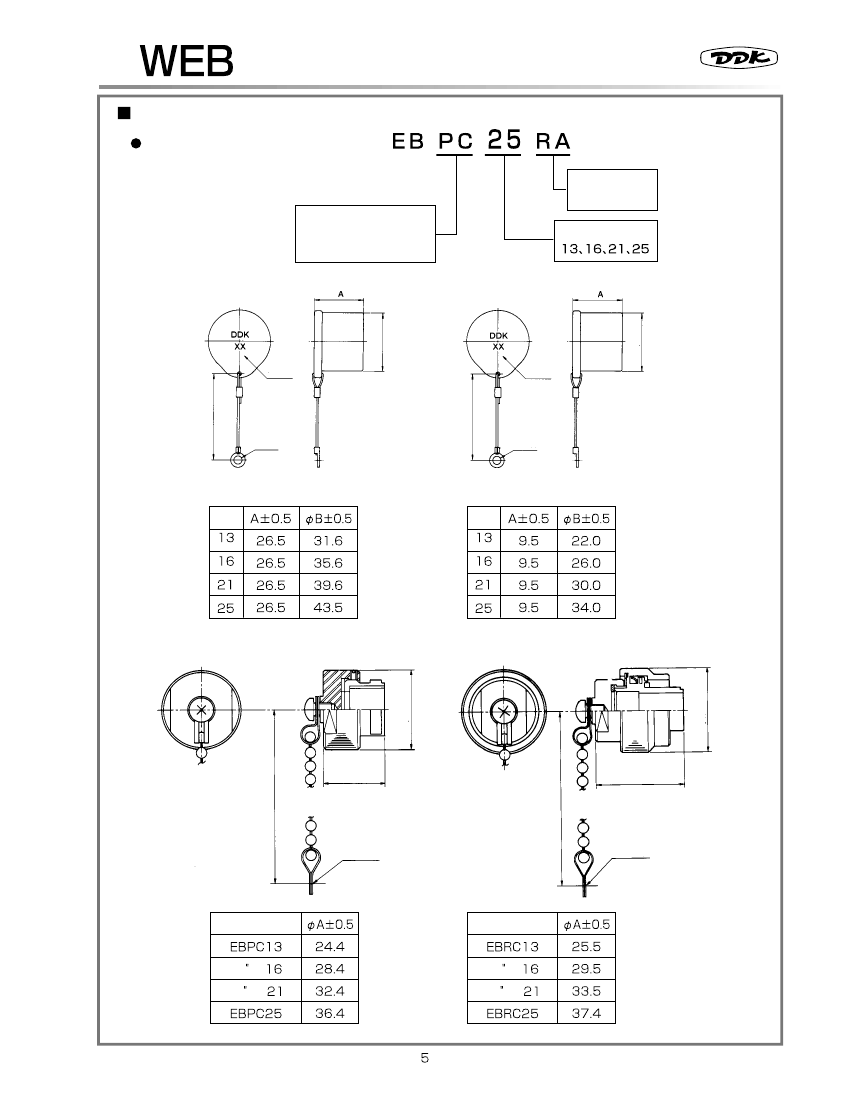

Cap .................. Chloroprene synthetic rubber / Black or Metal / Olive drab chromate finish
Series
Ordering Information
SERIES

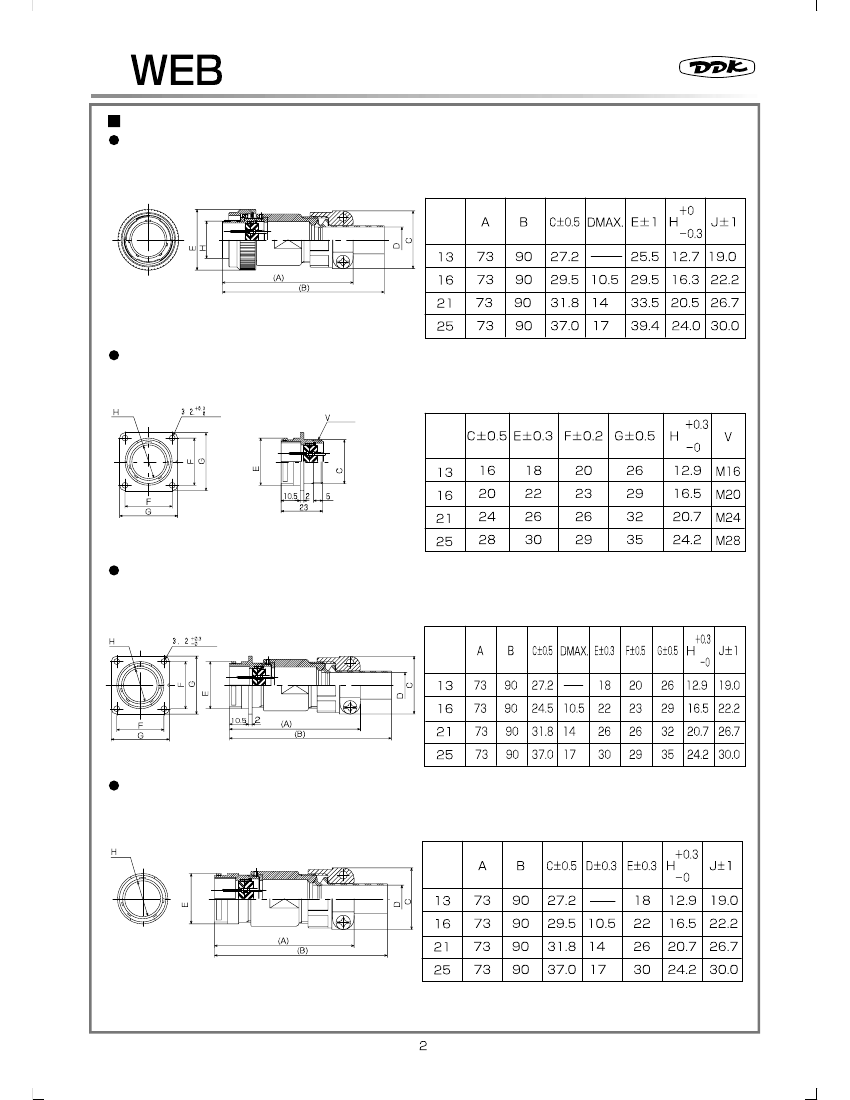

SHELL STYLE
SP : Straight Plug
R : Box mounting
Receptacle
WR : Wall mounting
Receptacle
CR : Cable connecting
Receptacle
SHELL SIZE
CONTACT PLATING
Omit : Silver Plating
G : Gold Plating

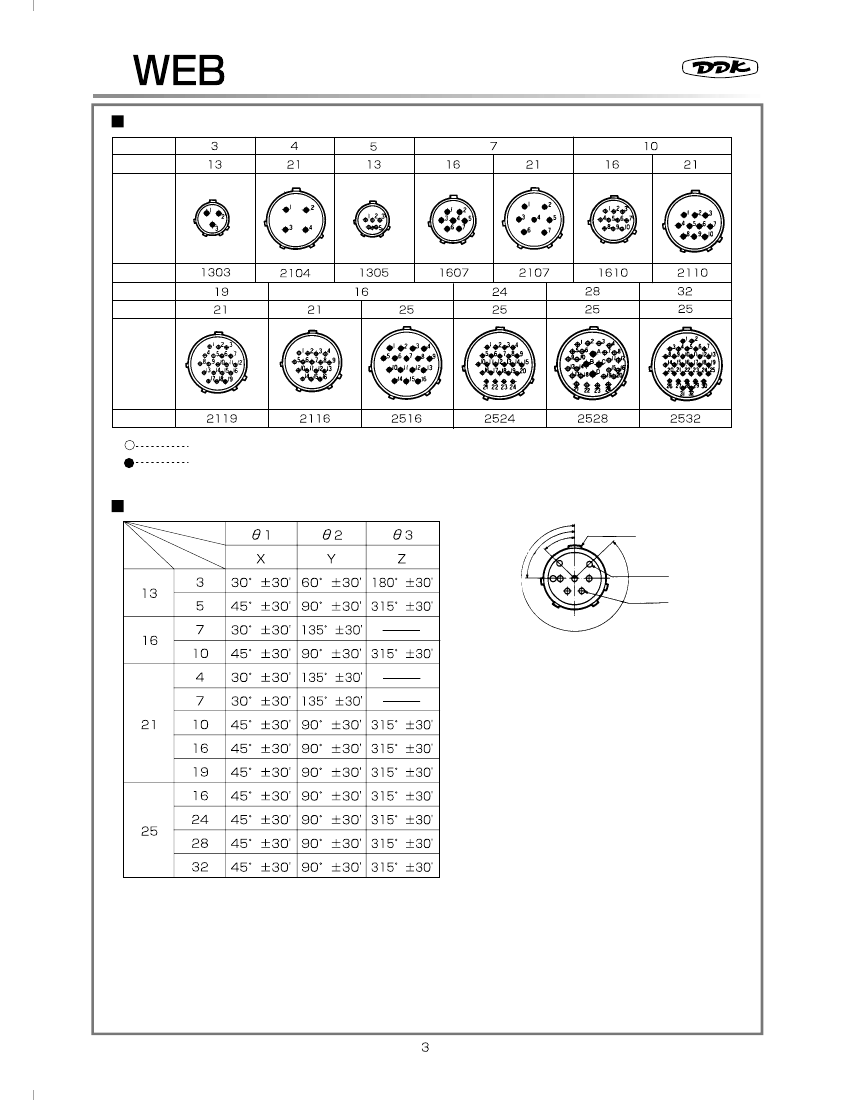

ALTERNATE INSERT POSITION
Omit : Standard Position
X,Y,Z : Alternate Position
CONTACT STYLE
M : Pin contact
F : Socket contact
NO. OF CONTACT

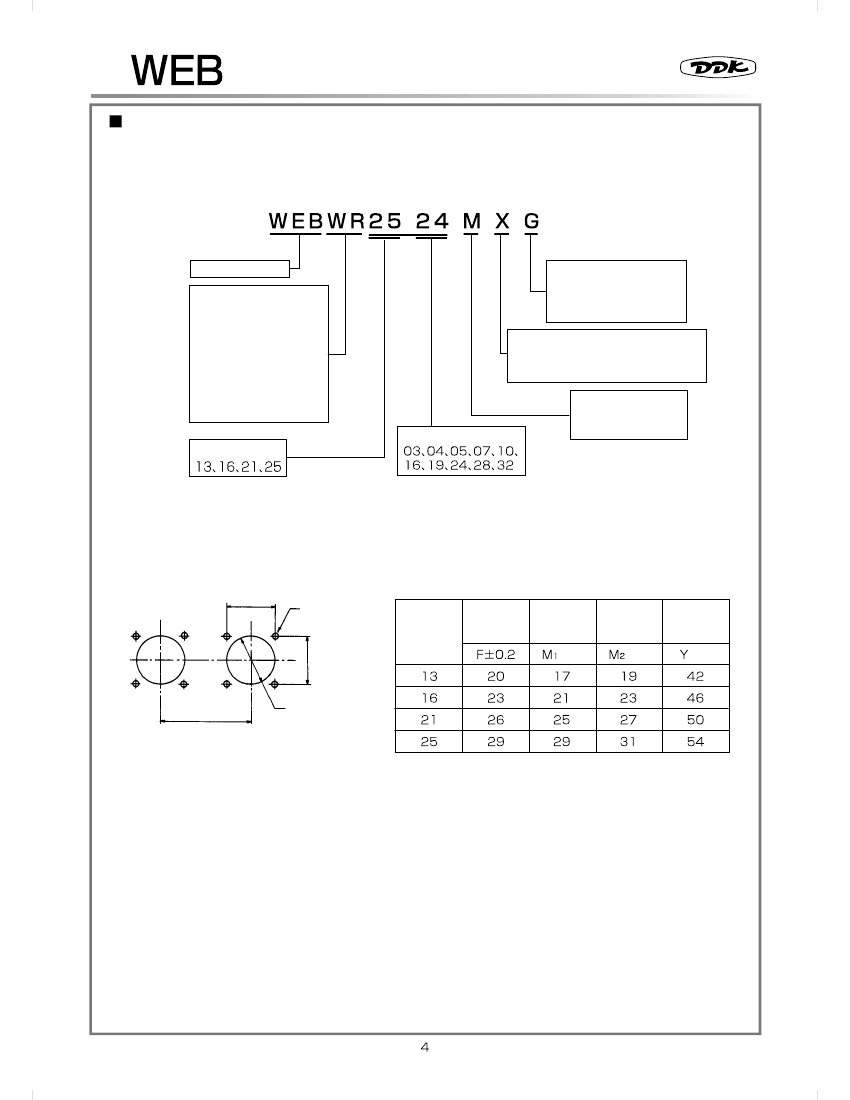

Panel Cutout (for WEBR.WEBWR)
size
'
¶
8-3.5
¶0.2
dia.
unit : mm
MOUNTING
FRONT
REAR
TWIN
HOLE
MOUNTING MOUNTING MOUNTING
POSITION HOLES Dia. HOLES Dia. HOLE SPACE
/ Min.
/ Min.
/ Min.
SHELL
SIZE
F
¶0.3
Y-over
M1 over : Front mount
M2 over : rear mount
