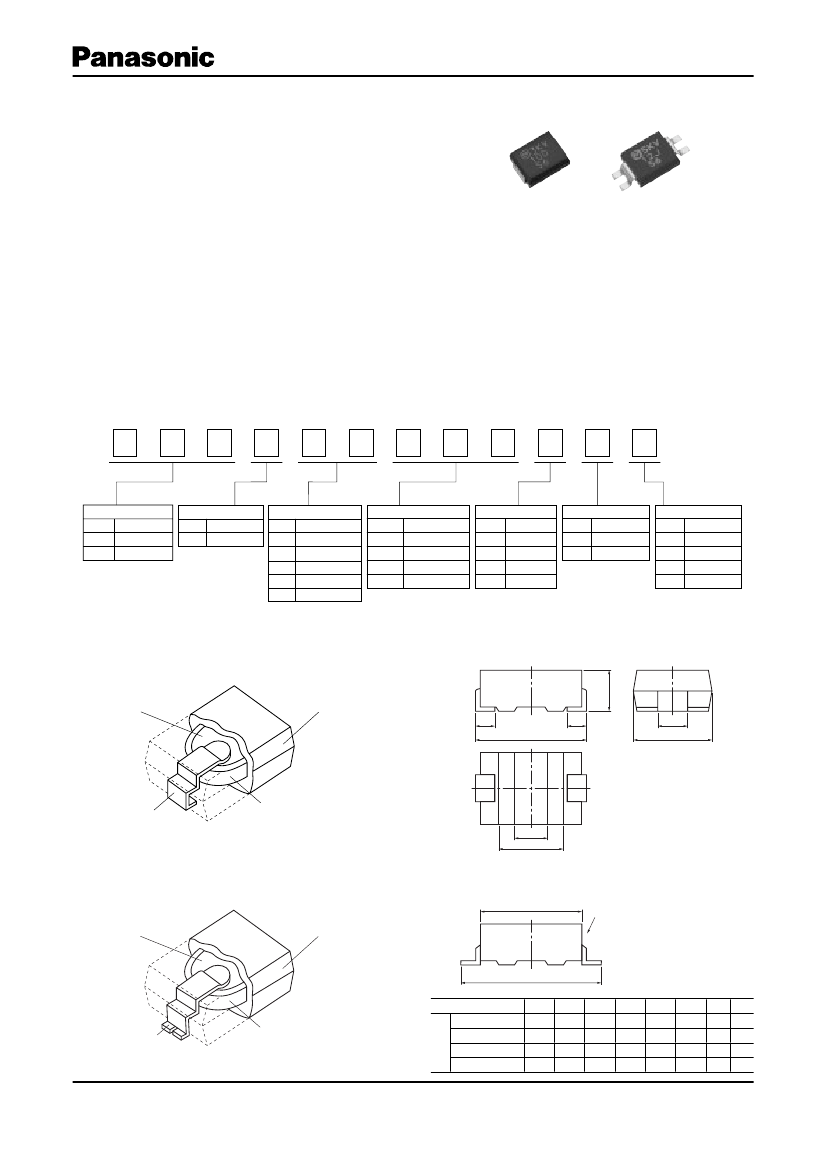

High Voltage Ceramic Capacitors (SMD)
High Voltage Ceramic Capacitors
For Surface Mounting
1 to 5 kVDC
●
Resin molded SMD type for reflow solderings
●
High reliability through use of disc capacitor element
●
Wide rated voltage ranges from 1 kV to 5 kV, through a
disc element which withstand high voltage and outcurve
terminals
●
Wide rated voltage range 1 to 5 kV
■
Features
■
Recommended Application
●
Ballast circuit of LCD backlighting inverter
(For 3 to 5 kVDC Char.SL/GP)
●
Snubber circuit of switching power supply
(For 1 to 2 kVDC Char.B/Y5P)
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
C
T
3
F
4
7
0
J
G
Product Code
Code
Class
ECC
Class1
ECK
Class2
Packaging Style
Code Style
T
Taped type
Rated Voltage
Code Rated Voltage
1 kVDC
3A
2 kVDC
3D
3 kVDC
3F
4 kVDC
3G
5 kVDC
3H
Nominal Capacitance
Ex.
Capacitance
100
10 pF
470
47 pF
101
100 pF
221
220 pF
Cap. Tolerance
Code
Tol.
D
±0.5
pF
J
±5
%
K
±10
%
M
±20
%
Temp. Char.
Code Temp. Char.
G
SL/GP
B
B/Y5P
Suffix
Code Style code
Nil
1
M
2
2
3
Y
4
■
Construction
●
Inside Terminal
■
Dimensions in mm (not to scale)
●
style 1, 3
Electrode
Molded Resin
S
L
S
E
W
Terminal
Ceramic Element
A
B
●
Outside Terminal
●
style 2, 4
L
This Figure applied to
Style Code 2, 4 (Add dim.L1)
Electrode
Molded Resin
L1
Symbol
Style 1
Ceramic Element
Terminal
Dim
(mm)
Style 2
Style 3
Style 4
L1
—
—
L
W
H
S
—
—
E
A
B
7.1±0.5 6.3±0.3 2.5±0.3 1.45±0.30 2.5±0.2 (2.0) (3.7)
2.5±0.2 (2.0) (3.7)
2.5±0.2 (1.7) (3.1)
5.7±0.5 4.5±0.3 2.3max. 0.85±0.30 2.5±0.2 (1.7) (3.1)
10.8±0.5 6.8±0.5 6.3±0.3 2.5±0.3
9.4±0.3 5.5±0.5 4.5±0.3 2.3±0.2
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
H
Dec. 2007
High Voltage Ceramic Capacitors (SMD)
■

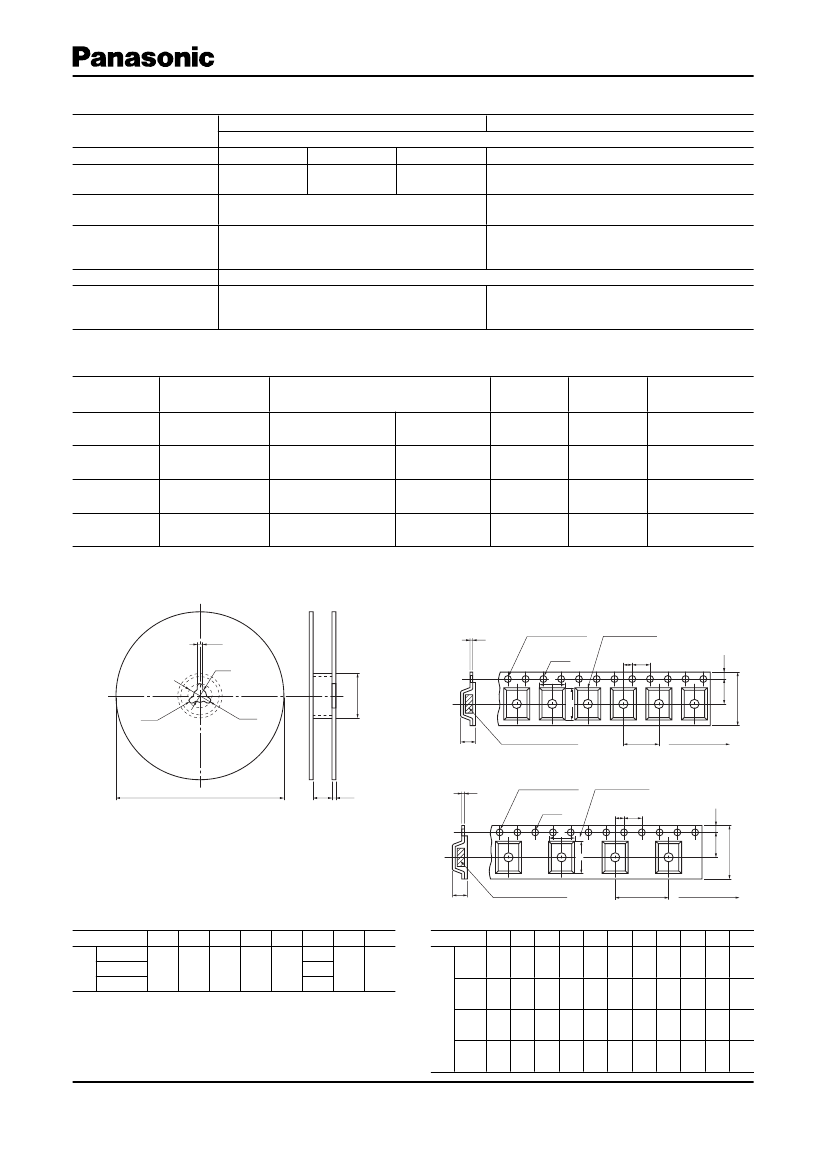

Specifications
Characteristics
Operating Temperature Range
Rated Voltage
Dielectric
Withstanding Voltage
Capacitance
Q or Dissipation Factor
(tan
δ)
Insulation Resistance
Temperature
Characteristics
Char. SL/GP
Char. B/Y5P
–25 to 105 °C
2 to 3 kVDC
4 to 5 kVDC
5 kVDC
1 to 2 kVDC
200 % of Rated Voltage 150 % of Rated Voltage 120 % of Rated Voltage 200 % of Rated Voltage
for 1 to 5 seconds
for 1 to 5 seconds
for 1 to 5 seconds
for 1 to 5 seconds
Within the specified tolerance, when measured Within the specified tolerance, when measured
at 1 MHz±20 %, 1 to 5 Vrms. and 20 °C
at 1 kHz±20 %, 1 to 5 Vrms. and 20 °C
30 pF or under Q
>
400+20 C (C:Cap.pF)
tan
δ
<
0.025
over 30 pF
Q
>
1000
at 1 kHz±20 %,1 to 5 Vrms. and 20 °C
at 1 MHz±20 %,1 to 5 Vrms. and 20 °C
10000 M min. at 500 VDC and 1 minute electrification
Temperature Coefficient:
Max. Cap. Change:±10 %
+350 to –1000 ppm/ °C
(Temperature Range : –25 to 85 °C)
(Temperature Range : 20 to 85 °C)
■
Packaging Methods (Taping)
Type
1 to 5 kVDC
(style 1)
5 kVDC
(style 2)
4 kVDC
(style 3)
5 kVDC
(style 4)
●
Reel
Packaging Style
Embossed Carrier
Taping
Embossed Carrier
Taping
Embossed Carrier
Taping
Embossed Carrier
Taping
●
Minimum Quantity/Packing Unit
Part Number
EC T3
ECCT3H
ECCT3G
ECCT3H
M
JG2
Y
5 to 470 pF
5 to 27 pF
10 to 27 pF
5 to 15 pF
Minimum Packing Packing Quantity Carton Dimensions
in Carton
Quantity
in mm L W H
2000
pcs./reel
2000
pcs./reel
3000
pcs./reel
3000
pcs./reel
6000 pcs.
4000 pcs.
9000 pcs.
6000 pcs.
350 350 62
350 350 62
350 350 62
350 350 62
●
Embossed Carrier Taping
style 1, 3, 4
(W=12 mm)
E
C
A
B
F
W
P
1
Tape running
direction
Chip pocket
E
Tape running
direction
Unit:(mm)
–0
–0
t
1
Feeding hole
φD
0
Chip pocket
E
F
W
P
1
Dec. 2007
P
2
P
0
r
D
t
2
Chip component
B
style 2
A
W
t
t
1
Feeding hole
φD
0
A
B
P
2
P
0
t
2
Unit:(mm)
Chip component
Symbol
style 1, 3
Dim.
(mm)
style 2
style 4
A
B
C
D
E
330
±5
60
min.
13.0
±0.5
21.0
±1.0
2.0
±0.5
W
t
r
13.5
±1.5
25.5
±1.5
2.0
±0.5
R1.0
17.5
±1.5
Symbol
P
0
φD
0
t
1
t
2
6.5 7.5
5.5 1.75 8.0 2.0 4.0 1.5 0.3 3.2
style1
±0.2 ±0.2
12.0
±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.3
±0.3
A
B
W
F
E
P
1
P
2
6.65
1.75
2.0 4.0 1.5 0.3 3.2
style2
±0.20
11.2 24.0 11.5
±0.10
12.0
±0.1 ±0.1 +0.1 ±0.1 ±0.3
±0.2 ±0.3 ±0.1
±0.1
–0
Dim.
(mm)
4.8 6.0
5.5 1.75 8.0 2.0 4.0 1.5 0.3 2.8
style3
±0.2 ±0.2
12.0
±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.3
±0.3
4.7
7.5 1.75 8.0 2.0 4.0 1.5 0.3 2.85
style4
±0.2
10.0 16.0
±0.1 ±0.10 ±0.1 ±0.1 ±0.1 +0.1 ±0.1 ±0.30
±0.5 ±0.3
–0
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
High Voltage Ceramic Capacitors (SMD)
●
Leader Part and Taped End
Not loaded
40 mm min.
Chip component position
Not loaded
20 mm min.
Leader tape
400 mm min.
■
Ratings and Characteristics
●
Rated Voltage 1 to 5 kVDC
Rated Voltage
Part Number
ECCT3H050DGM
ECCT3H100JGM
ECCT3H120JGM
ECCT3H150JGM
ECCT3H180JGM
ECCT3H220JGM
ECCT3H270JGM
ECCT3H050DGY
ECCT3H080DGY
ECCT3H100JGY
ECCT3H120JGY
ECCT3H150JGY
ECCT3G100DG2
ECCT3G120JG2
ECCT3G150JG2
ECCT3G180JG2
ECCT3G220JG2
ECCT3G270JG2
ECCT3G330JG
ECCT3G390JG
ECCT3G470JG
ECCT3F100DG2
ECCT3F120JG2
ECCT3F150JG2
ECCT3F180JG2
ECCT3F220JG2
ECCT3F270JG2
ECCT3F330JG2
ECCT3F390JG
ECCT3F470JG
ECCT3F560JG
ECCT3D680JG
ECKT3D101KB
ECKT3D121KB
ECKT3D151KB
ECKT3D181KB
ECKT3D221KB
ECKT3D271KB
ECKT3D331KB
ECKT3A391KB
ECKT3A471KB
Capacitance (pF)
5
10
12
15
18
22
27
5
8
10
12
15
10
12
15
18
22
27
33
39
47
10
12
15
18
22
27
33
39
47
56
68
100
120
150
180
220
270
330
390
470
Cap. Tolerance (%)
±0.5 pF
±5
±5
±5
±5
±5
±5
±0.5 pF
±0.5 pF
±5
±5
±5
±0.5 pF
±5
±5
±5
±5
±5
±5
±5
±5
±0.5 pF
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
±10
±10
±10
±10
±10
±10
±10
±10
±10
Temp. Char
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
SL/GP
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
B/Y5P
Style
Style 2
5 kVDC
Style 4
Style 3
4 kVDC
Style 1
Style 3
3 kVDC
2 kVDC
Style 1
1 kVDC
Notes
½
This part number indicates taped type.
½
Capacitance 9 pF or under is available by special order.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Sep. 2006
High Voltage Ceramic Capacitors (SMD)
■

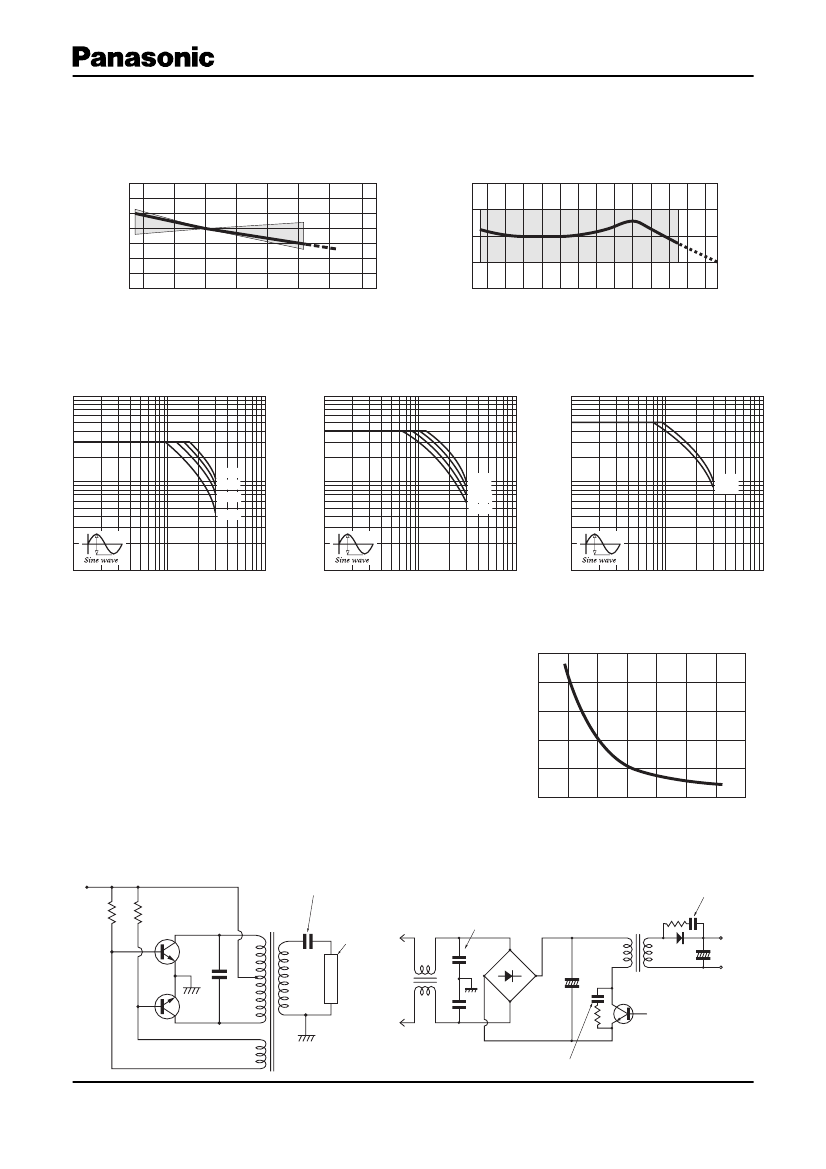

Typical Characteristics
Char. SL/GP
(Temp.Coeff.:+350 to –1000 ppm/°C)
Capacitance Change (%)
Capacitance Change (%)
●
Temperature Characteristics
(
+10
0
– 10
Char. B/Y5P
Temp.Range:–25 to 85 °C
max.Cap.Change:±10 %
)
+10
+5
0
–5
–10
–15
–20
0
20
40
60
Temperature (˚C)
80
100
120
– 20
0
20
40
60
Temperature (˚C)
80
100
●
Characteristics of Voltage-Frequency
Rated Voltage 3 kVDC
5000
3000
Voltage (
Vp-p
)
Voltage (
Vp-p
)
Rated Voltage 4 kVDC
5000
3000
Voltage (
Vp-p
)
Rated Voltage 5 kVDC
5000
3000
2000
1000
700
500
300
200
10pF
22pF
2000
1000
700
500
47pF
300
200
10pF
22pF
33pF
2000
1000
700
500
300
200
10pF
22pF
33pF
47pF
10
20 30
200 300 500
50 70 100
Frequency (kH
Z
)
10
20 30
200 300 500
50 70 100
Frequency (kH
Z
)
10
20 30
200 300 500
50 70 100
Frequency (kH
Z
)
The graphs above show the maximum permissable voltage
when using a capacitor with an AC sine wave voltage.
When measuring this voltage in room temperature (25 °C), the
capacitor self-heat generation will rise a maximum of 20 °C.
When using a pulse voltage or an AC voltage other than a sine
wave, confirm that the capacitor self-heat generation is less
than 20 °C in an ambient room temperature of 25 °C.
The self-heat generation temperature is the difference between
the surface temperature and the ambient room temperature.
As for the situation when the self-heat generation temperature is
more than 25 °C, refer to the figure on the right.
Permission self generation of heat temperature
vs. ambient temperature
25
Permission self generation
of heat temperature (˚C)
20
15
10
5
0
20
40
60
80
100
120
■
Application Examples
ambient temperature (˚C)
●
LCD Backlighting Inverter
3 to 5 kV, 10 to 47 pF
●
Primary circuit and Snubber circuit of
Switching Power Supply
1kV/2kV,100 to 470 pF
Type BC or Type FC 1000 to 4700 pF
Lamp
AC
In put
DC
Out put
2kV,100 to 330 pF
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Feb. 2006
