Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

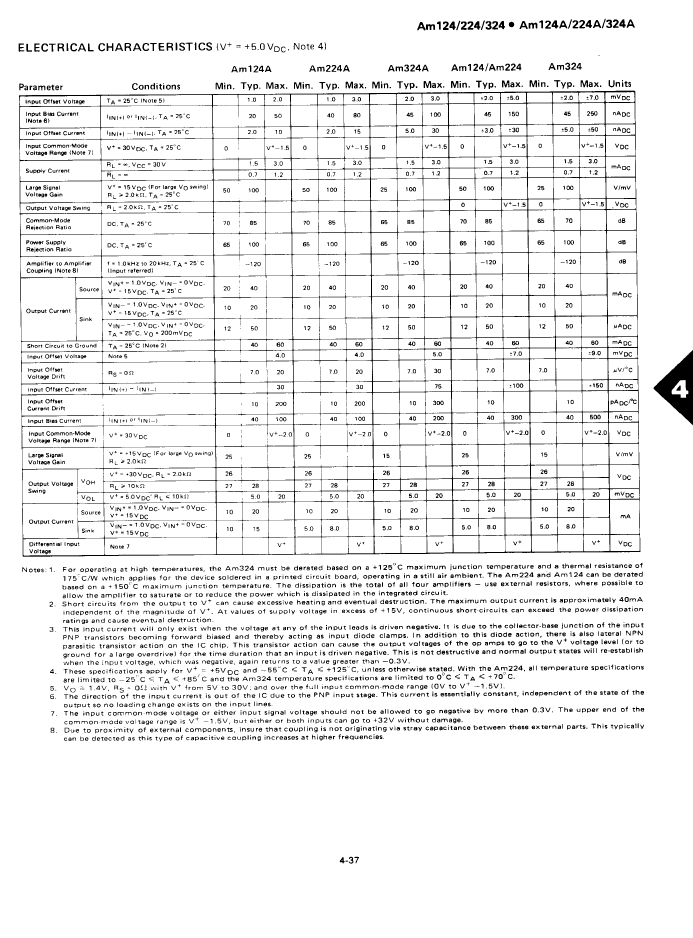

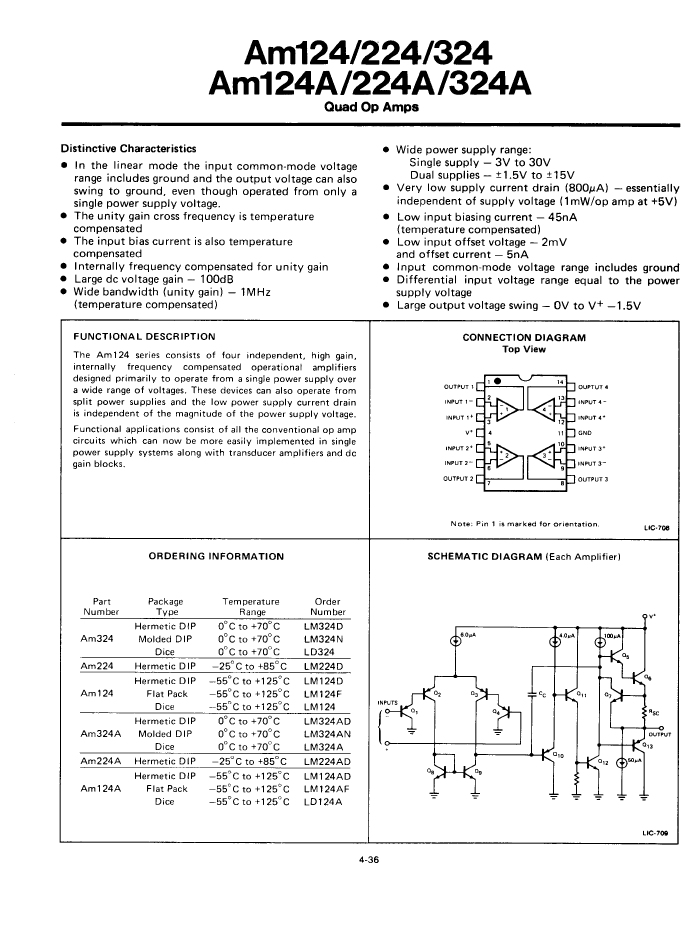

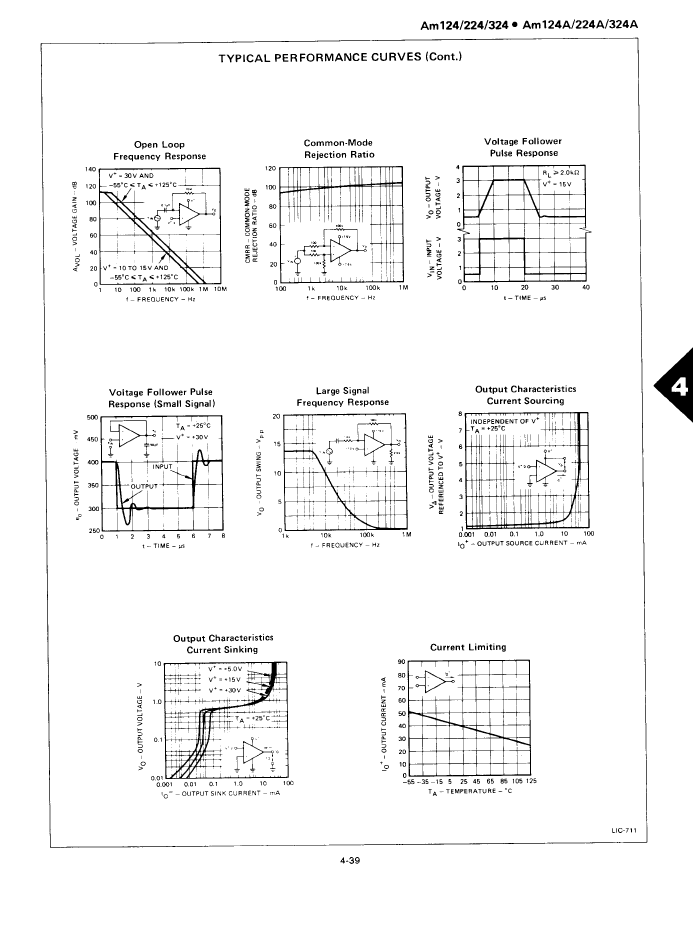

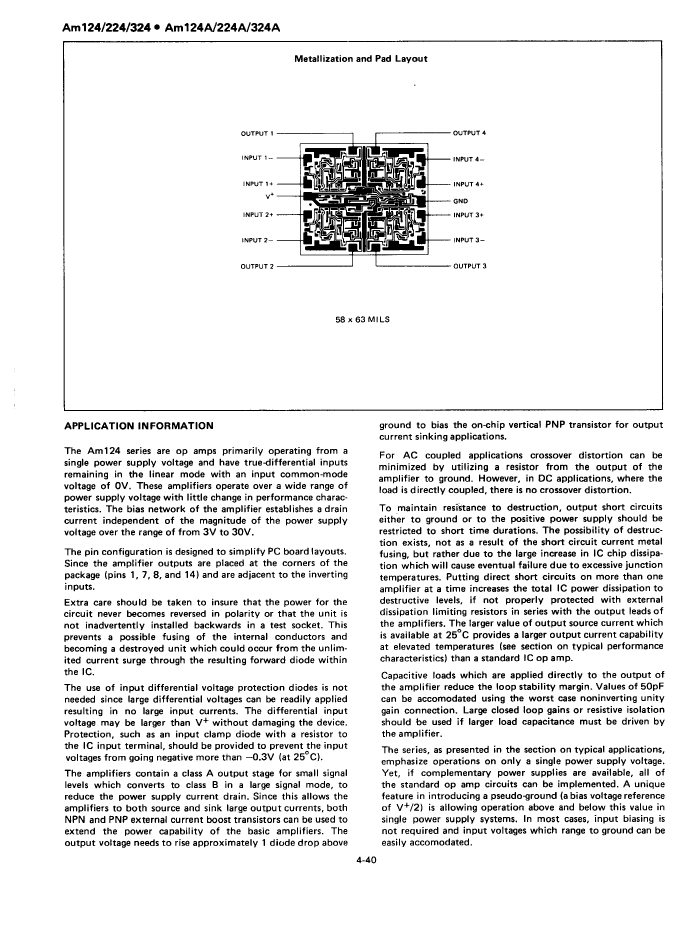

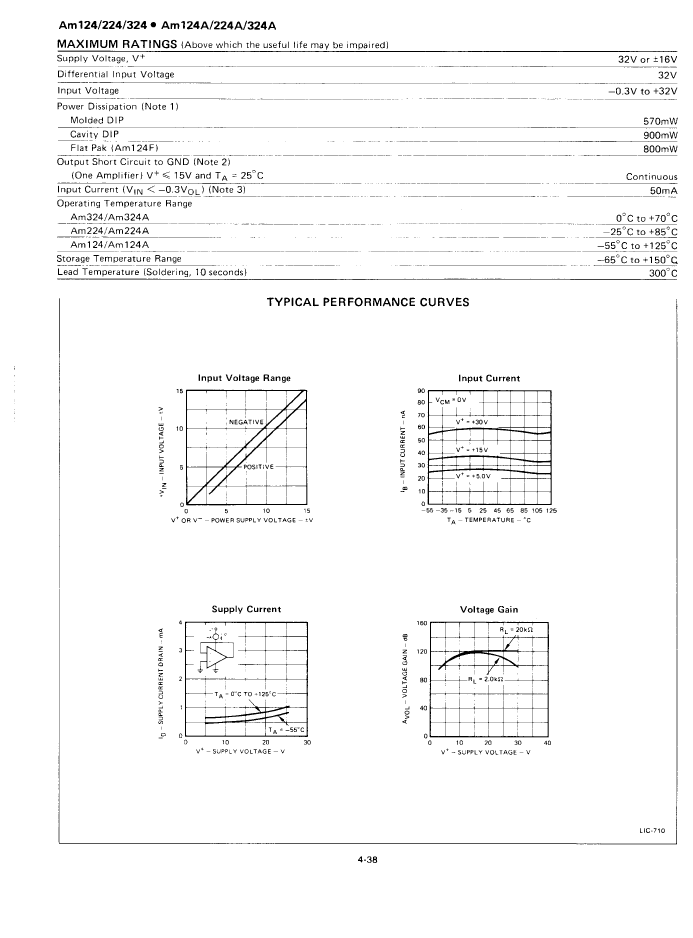

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, DIP14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.3 µA |
| Nominal Common Mode Rejection Ratio | 85 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 7000 µV |
| JESD-30 code | R-CDIP-T14 |
| JESD-609 code | e0 |
| length | 19.431 mm |
| low-dissonance | NO |
| micropower | YES |
| Number of functions | 4 |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | 5/30 V |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum slew rate | 3 mA |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz |
| width | 7.62 mm |
| LM224D | LM324AN | LM124 | LM124AF | LM224AD | LM324A | LM124AD | LM324D | LD124A | LM324AD | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, PDIP14, PLASTIC, TO-116, DIP-14 | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, 0.058 X 0.063 INCH, DIE-14 | Operational Amplifier, 4 Func, 4000uV Offset-Max, BIPolar, CDFP14, CERPACK-14 | Operational Amplifier, 4 Func, 4000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, 0.058 X 0.063 INCH, DIE-14 | Operational Amplifier, 4 Func, 4000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 4000uV Offset-Max, BIPolar, 0.058 X 0.063 INCH, DIE-14 | Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| Parts packaging code | DIP | DIP | DIE | DFP | DIP | DIE | DIP | DIP | DIE | DIP |
| package instruction | DIP, DIP14,.3 | PLASTIC, TO-116, DIP-14 | 0.058 X 0.063 INCH, DIE-14 | CERPACK-14 | DIP, DIP14,.3 | DIE, | DIP, | DIP, DIP14,.3 | DIE, | DIP, |
| Contacts | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.3 µA | 0.2 µA | 0.3 µA | 0.1 µA | 0.1 µA | 0.2 µA | 0.1 µA | 0.5 µA | 0.1 µA | 0.2 µA |
| Nominal Common Mode Rejection Ratio | 85 dB | 85 dB | 85 dB | 85 dB | 85 dB | 85 dB | 85 dB | 70 dB | 85 dB | 85 dB |
| Maximum input offset voltage | 7000 µV | 5000 µV | 7000 µV | 4000 µV | 4000 µV | 5000 µV | 4000 µV | 9000 µV | 4000 µV | 5000 µV |
| JESD-30 code | R-CDIP-T14 | R-PDIP-T14 | R-XUUC-N14 | R-CDFP-F14 | R-CDIP-T14 | R-XUUC-N14 | R-CDIP-T14 | R-CDIP-T14 | R-XUUC-N14 | R-CDIP-T14 |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 70 °C | 125 °C | 125 °C | 85 °C | 70 °C | 125 °C | 70 °C | 125 °C | 70 °C |
| Minimum operating temperature | -25 °C | - | -55 °C | -55 °C | -25 °C | - | -55 °C | - | -55 °C | - |
| Package body material | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DIP | DIE | DFP | DIP | DIE | DIP | DIP | DIE | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | UNCASED CHIP | FLATPACK | IN-LINE | UNCASED CHIP | IN-LINE | IN-LINE | UNCASED CHIP | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA | 3 mA |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | NO | YES | NO | NO | YES | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | OTHER | COMMERCIAL | MILITARY | MILITARY | OTHER | COMMERCIAL | MILITARY | COMMERCIAL | MILITARY | COMMERCIAL |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | FLAT | THROUGH-HOLE | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | NO LEAD | THROUGH-HOLE |
| Terminal location | DUAL | DUAL | UPPER | DUAL | DUAL | UPPER | DUAL | DUAL | UPPER | DUAL |
| Nominal Uniform Gain Bandwidth | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz | 1000 kHz |
| Maker | AMD | AMD | - | - | AMD | AMD | AMD | AMD | AMD | AMD |
| length | 19.431 mm | 19.304 mm | - | 6.1595 mm | 19.431 mm | - | 19.431 mm | 19.431 mm | - | 19.431 mm |
| Maximum seat height | 5.08 mm | 5.08 mm | - | 2.032 mm | 5.08 mm | - | 5.08 mm | 5.08 mm | - | 5.08 mm |
| Terminal pitch | 2.54 mm | 2.54 mm | - | 1.27 mm | 2.54 mm | - | 2.54 mm | 2.54 mm | - | 2.54 mm |
| width | 7.62 mm | 7.62 mm | - | 6.35 mm | 7.62 mm | - | 7.62 mm | 7.62 mm | - | 7.62 mm |
| Part Number | Manufacturer | Description |
|---|---|---|
| LM224J | Texas Instruments(德州仪器) | Low Power Quad Operational Amplifier 14-CDIP -25 to 85 |
| LM124JB | Rochester Electronics | QUAD OP-AMP, 7000uV OFFSET-MAX, 1.2MHz BAND WIDTH, CDIP14, CERAMIC, DIP-14 |
| LM124JB | Texas Instruments(德州仪器) | Quadruple Operational Amplifier 14-CDIP -55 to 125 |
| LM124J/PB | Texas Instruments(德州仪器) | 增益带宽积（GBP）：1MHz 放大器组数：4 运放类型：General Purpose 各通道功耗：- 压摆率（SR）：0.5 V/us 电源电压：3V ~ 30V 电路：LM124封装：DIP-14民品。 |
| LM124D | Texas Instruments(德州仪器) | Quadruple Operational Amplifier 14-SOIC -55 to 125 |
| LM124F | NXP(恩智浦) | low power quad op amps |
| LM124D883B | Texas Instruments(德州仪器) | QUAD OP-AMP, 0uV OFFSET-MAX, 1.2MHz BAND WIDTH, PDSO14, PLASTIC, MS-012AB, SOIC-14 |
| LM124D883B | AMD(超微) | Operational Amplifier, 4 Func, 0uV Offset-Max, BIPolar, 0.058 X 0.063 INCH, DIE-14 |
| LM124J/NOPB | Texas Instruments(德州仪器) | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP14, ROHS COMPLIANT, CERDIP-14 |
| LM124D | Fairchild | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, CERAMIC, DIP-14 |
| LM324J/NOPB | National Semiconductor（TI ） | IC QUAD OP-AMP, 9000 uV OFFSET-MAX, 1 MHz BAND WIDTH, CDIP14, CERDIP-14, Operational Amplifier |
| LM124J/883B | Renesas(瑞萨电子) | QUAD OP-AMP, 7000uV OFFSET-MAX, CDIP14, CERAMIC, DIP-14 |
| LM124D/883B | Raytheon Company | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, |
| LM324J/NOPB | Texas Instruments(德州仪器) | QUAD OP-AMP, 9000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP14, CERDIP-14 |
| LM124D | ST(意法半导体) | Operational Amplifiers - Op Amps Quad Low Power |
| LM124/BCA | Philips Semiconductors (NXP Semiconductors N.V.) | Operational Amplifier, 4 Func, 7000uV Offset-Max, BIPolar, CDIP14, |
| LM224J/NOPB | Texas Instruments(德州仪器) | QUAD OP-AMP, 7000uV OFFSET-MAX, 1MHz BAND WIDTH, CDIP14, CERDIP-14 |
