LF156D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LF156D

LF156D: DescriptionOperational Amplifier, 1 Func, 7000uV Offset-Max, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size362KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

LF156D Overview

Operational Amplifier, 1 Func, 7000uV Offset-Max, CDIP8,

LF156D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.0001 µA
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Humidity sensitivity level	2A
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	+-15/+-20 V
Certification status	Not Qualified
minimum slew rate	7.5 V/us
Maximum slew rate	7 mA
Supply voltage upper limit	22 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Minimum voltage gain	25000

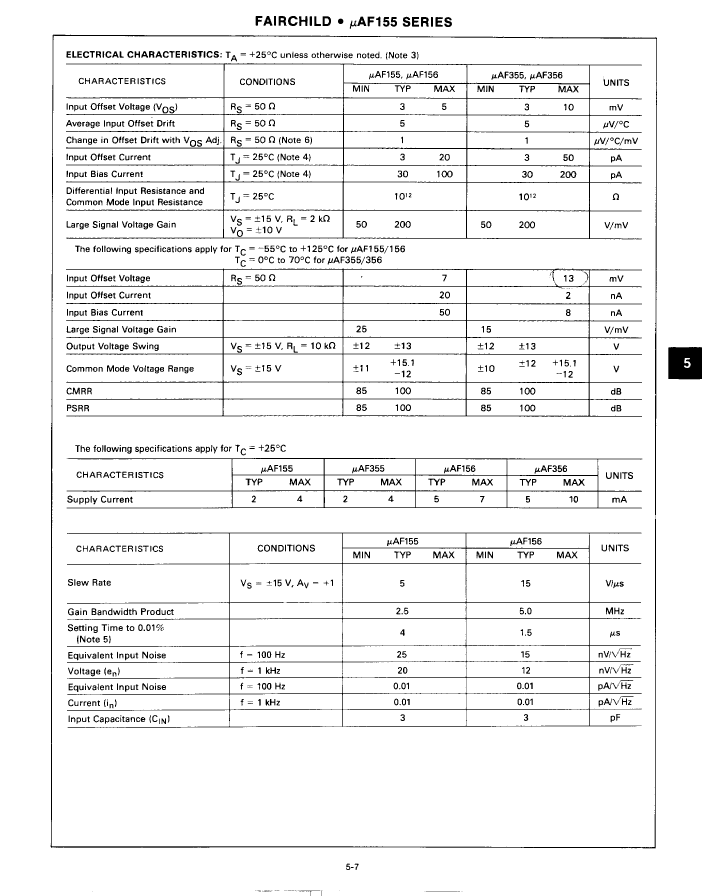

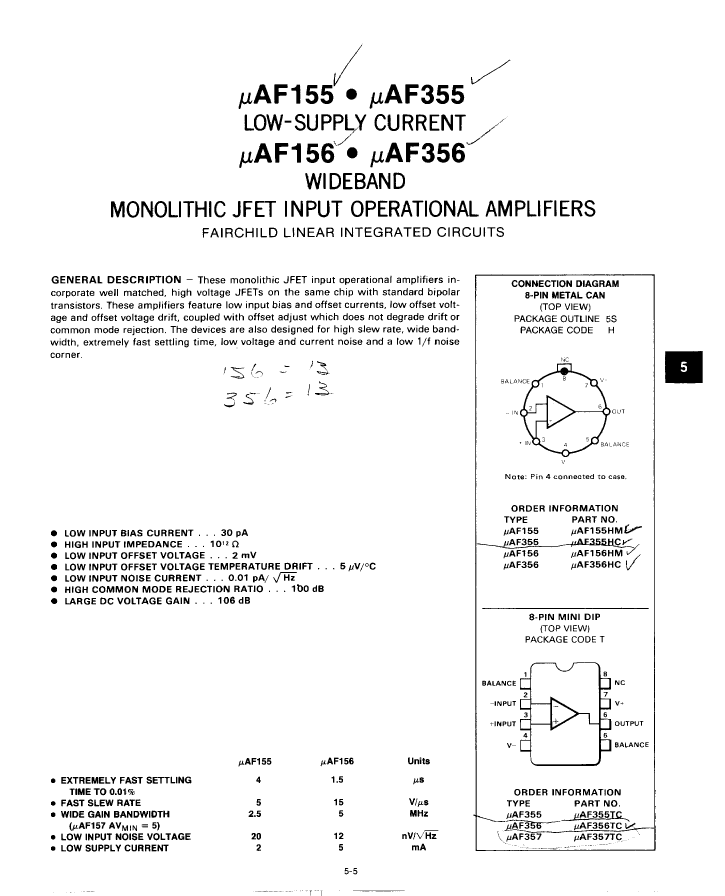

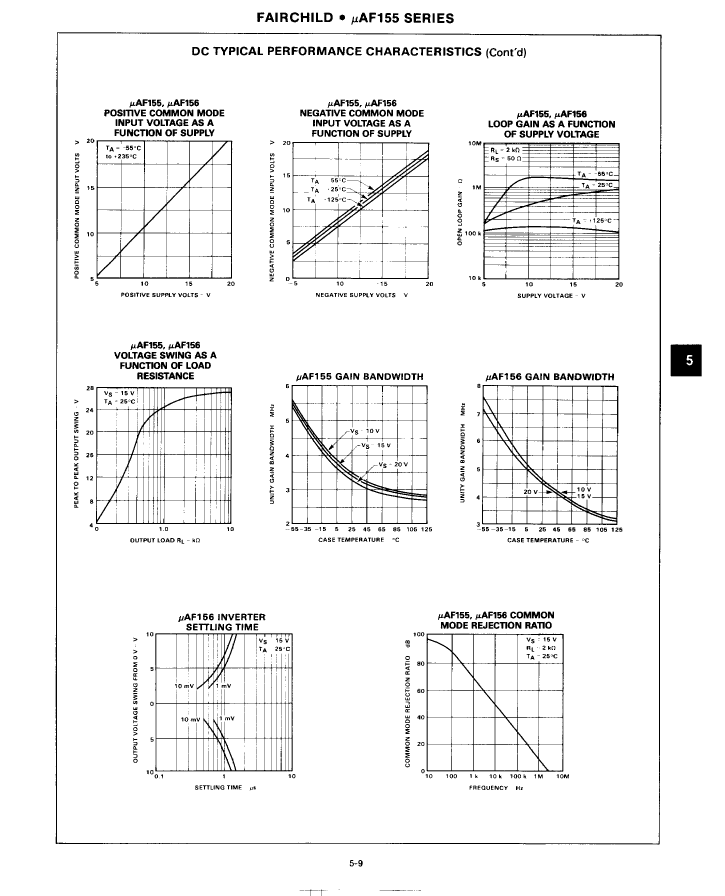

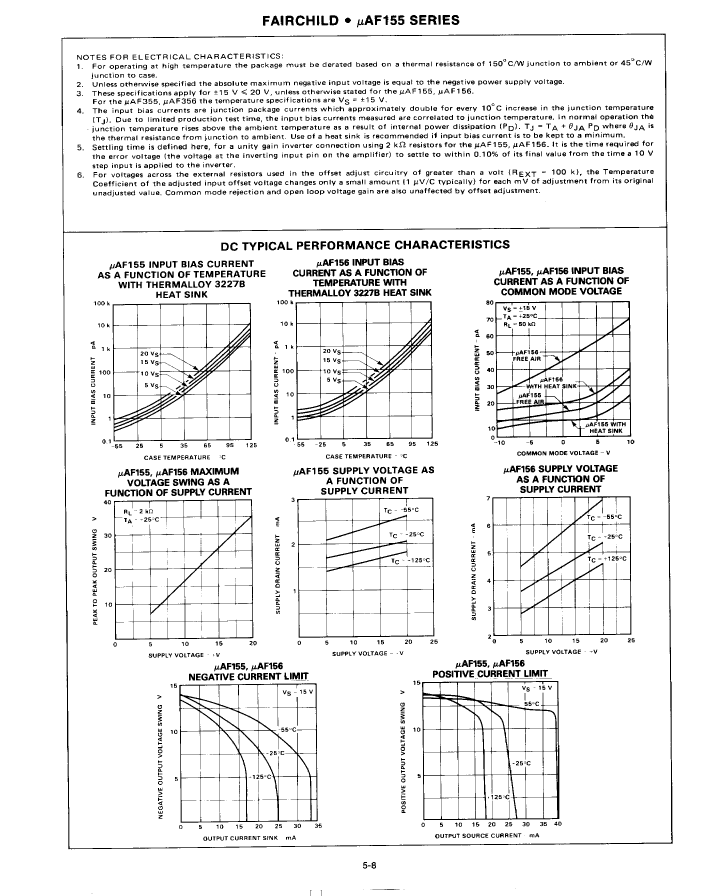

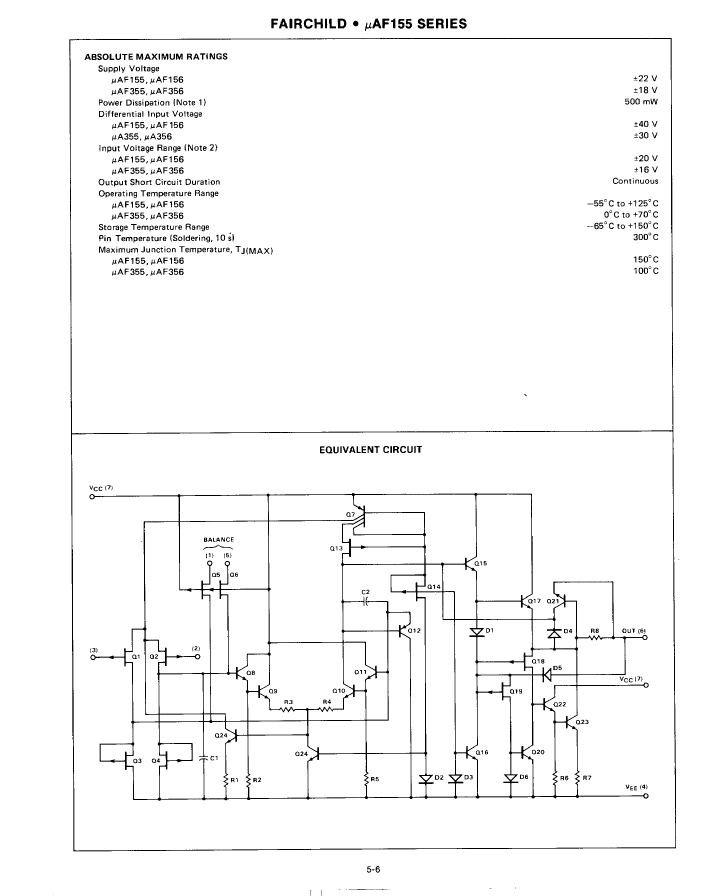

Preview

Download Datasheet

View All

LF156D Related Products

	LF156D	LF156AL	LF156AD	LF156AT	UAF356HCQM	UAF156HM	UAF356HC	UAF356HCQR
Description	Operational Amplifier, 1 Func, 7000uV Offset-Max, CDIP8,	Operational Amplifier, 1 Func, 2500uV Offset-Max, CQCC20,	Operational Amplifier, 1 Func, 2500uV Offset-Max, CDIP8,	Operational Amplifier, 1 Func, 2500uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 13000uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 13000uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 13000uV Offset-Max, MBCY8,	Operational Amplifier, 1 Func, 13000uV Offset-Max, MBCY8,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	QLCC	DIP	BCY	BCY	BCY	BCY	BCY
package instruction	DIP, DIP8,.3	QCCN, LCC20,.35SQ	DIP, DIP8,.3	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2	, CAN8,.2
Contacts	8	20	8	8	8	8	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	7000 µV	2500 µV	2500 µV	2500 µV	13000 µV	13000 µV	13000 µV	13000 µV
JESD-30 code	R-XDIP-T8	S-XQCC-N20	R-XDIP-T8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
low-bias	YES	YES	YES	YES	YES	YES	YES	YES
low-dissonance	NO	NO	NO	NO	NO	NO	NO	NO
Humidity sensitivity level	2A	2A	2A	2A	2A	2A	2A	2A
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	8	20	8	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C	70 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-	-
Package body material	CERAMIC	CERAMIC	CERAMIC	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	DIP8,.3	LCC20,.35SQ	DIP8,.3	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2	CAN8,.2
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250	250	250
power supply	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V	+-15/+-20 V
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	DUAL	QUAD	DUAL	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	30	30	30	30	30	30	30	30
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
