22-01-2191 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 22-01-2191

22-01-2191: Description2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 19 Circuits, Use with 2759|6459|41572; CategoryThe connector The connector; File Size404KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

22-01-2191 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	22-01-2191	-	-	View	Buy Now

22-01-2191 Overview

2.54mm (.100) Pitch KK垄莽 Crimp Terminal Housing, 19 Circuits, Use with 2759|6459|41572

22-01-2191 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.19 inch
subject depth	0.5 inch
body length	1.92 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	STRIP OR LOOSE
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Minimum insulation diameter	0.06 inch
Insulation resistance	500000000000 Ω
Insulator color	RED
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	2695
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	CRIMP
Total number of contacts	19
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022012191

Active

2.54mm (.100") Pitch KK® Crimp Terminal Housing, 19 Circuits, Use with 2759|6459|

41572

Documents:

3D Model

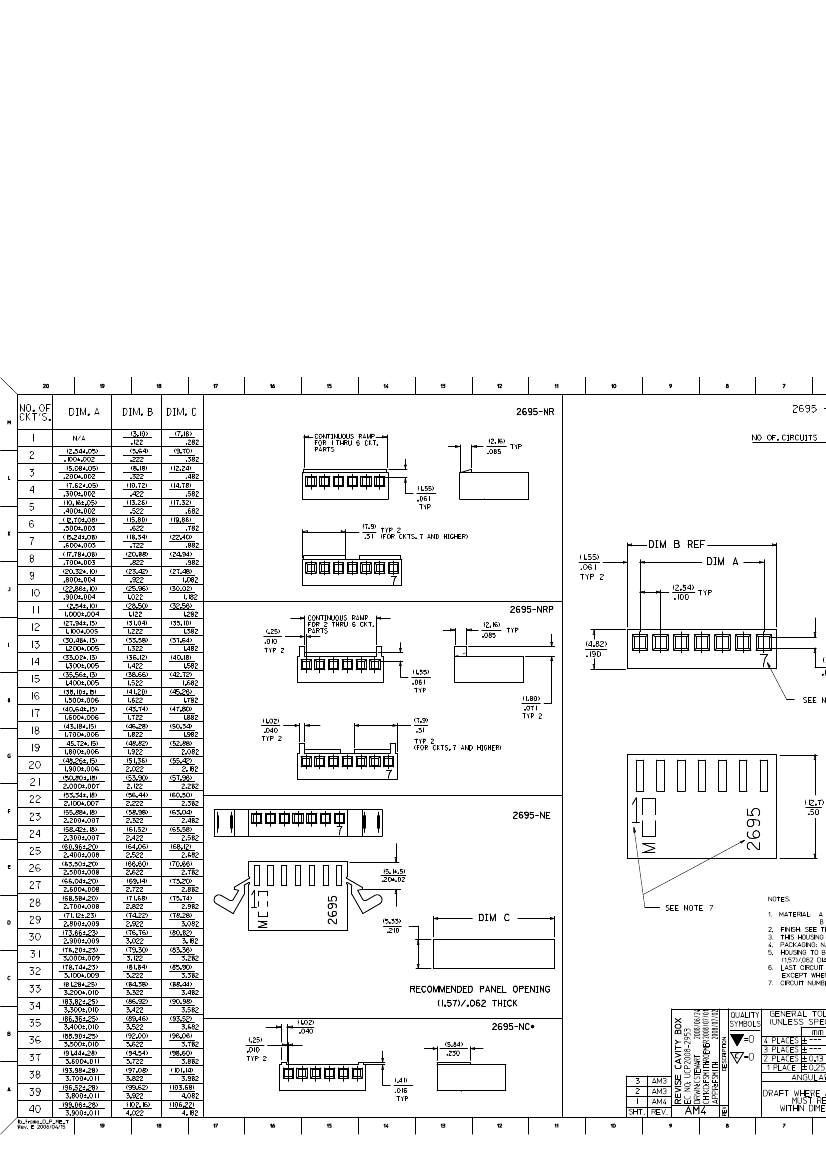

Drawing (PDF)

Product Specification PS-10-07 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Overview

Product Name

Crimp Housings

2695

KK®

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Stackable

Temperature Range - Operating

Natural (White)

94V-0

Female

Nylon

Bag

0.100 In

2.54 mm

0°C to +75°C

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

2695Se

Material Info

Old Part Number

2695-19

Reference - Drawing Numbers

Product Specification

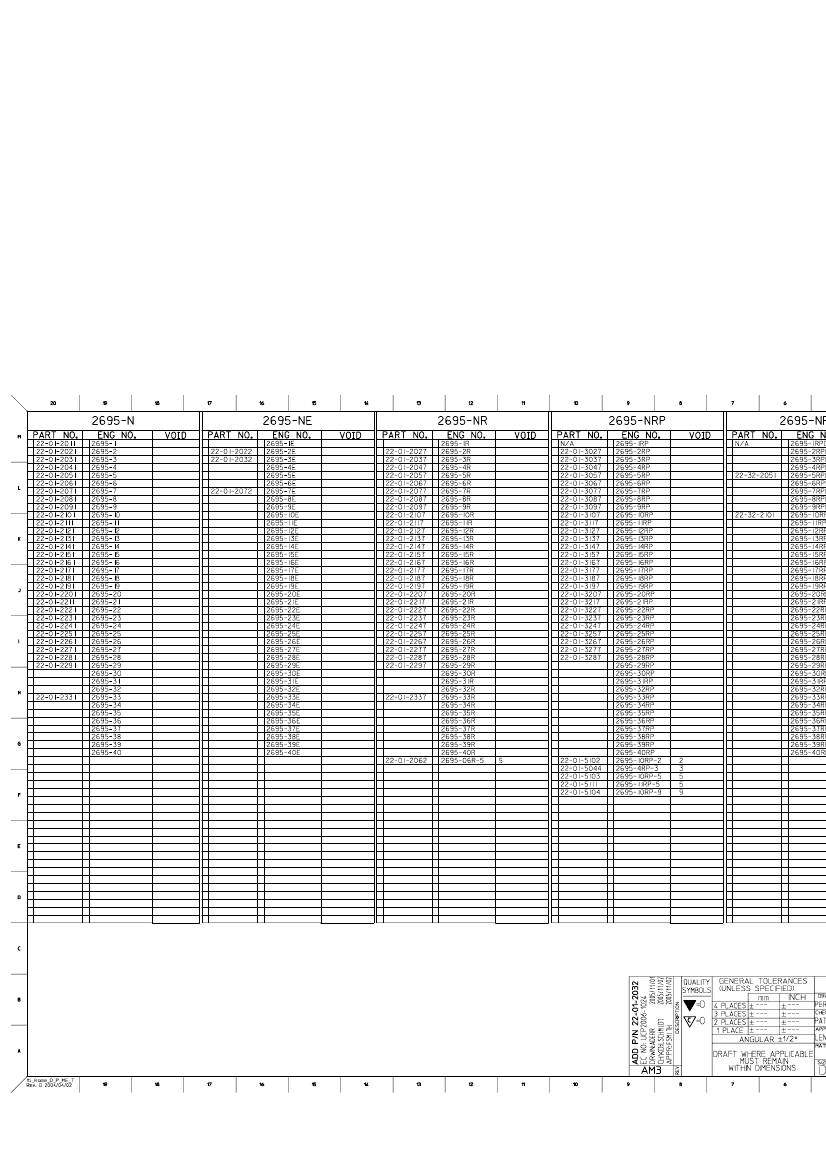

Sales Drawing

PS-10-07, RPS-7478-001

SD-2695

Mates

2.54mm

42375

Use W

KK® C

This document was generated on 05/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
