60S215-C01N1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 60S215-C01N1

60S215-C01N1: DescriptionRF 7/16 DIN Connector, 1 Contact(s), Male, Cable Mount, Plug,; CategoryThe connector The connector; File Size87KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

60S215-C01N1 Overview

RF 7/16 DIN Connector, 1 Contact(s), Male, Cable Mount, Plug,

60S215-C01N1 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	CAPTIVE CENTER CONTACT
body width	0.866 inch
subject depth	1.93 inch
body length	0.866 inch
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF 7/16 DIN CONNECTOR
Contact to complete cooperation	SILVER (236)
Contact completed and terminated	SILVER (236)
Contact point gender	MALE
Contact resistance	1.5 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.05 dB
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	60S215-C01N1
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	8.3 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell material	BRASS
Total number of contacts	1
voltage standing wave ratio	1.45

Preview

Download Datasheet

View All

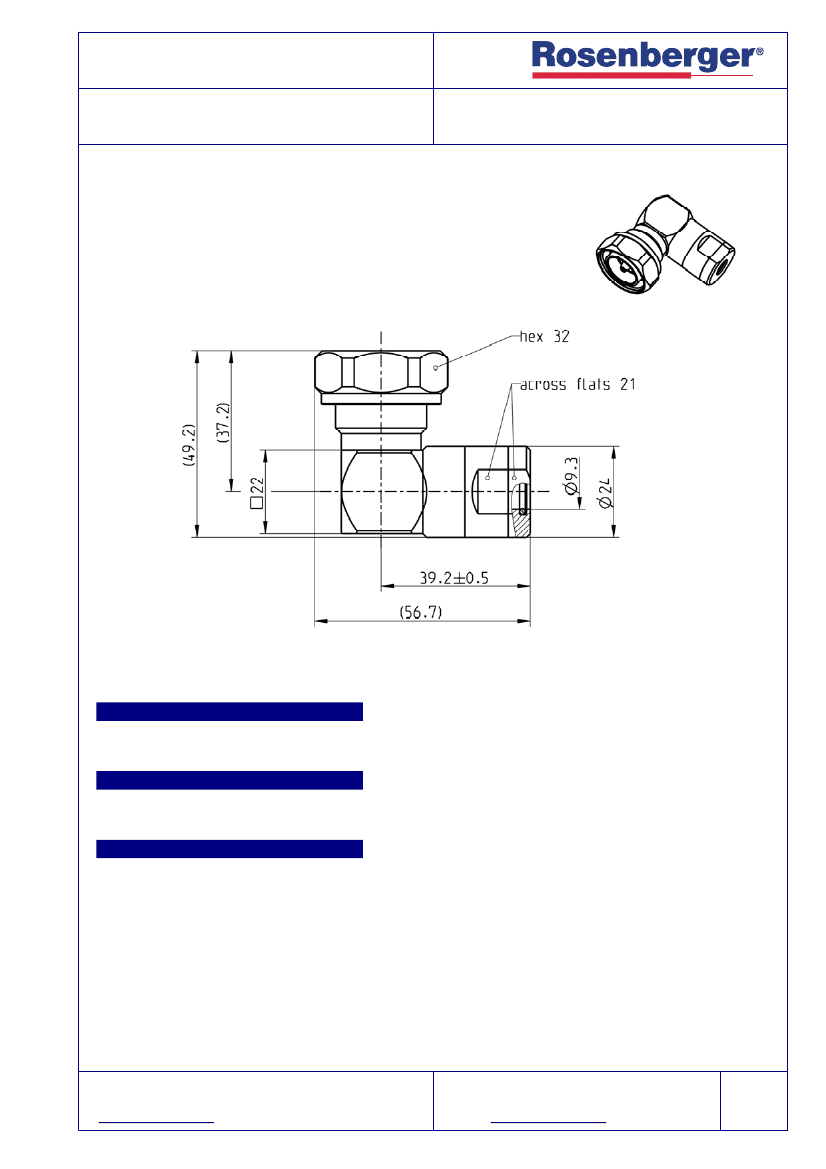

TECHNICAL DATA SHEET

7/16

RIGHT ANGLE PLUG

(1/4"R)

60S215-C01N1

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-4, VG 95250, EN 122190, DIN 47223

Documents

Assembly instruction

60 I30

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Gasket

Material

Brass

PTFE

Silicone

Plating

Silver, 3-6 µm

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
