REVISION U
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. GOLD PLATING, OR HEAVY GOLD PLATING TO BE ON LONGER TAIL.
3. MAXIMUM HEIGHT VARIATION: .010[0.25]
4. MAXIMUM ALLOWEABLE BOW: .005[0.13] IN/IN AFTER ASSEBMBLY.
5. MAXIMUM PIN ROTATION IN BODY: 2°
6. MINIMUM PUSHOUT FORCE: 2 LB.
7. PARTS ARE CUT TO SIZE.
8. MAXIMUM CUT FLASH: .005[0.13]
HW-XX-XX-XX-X-XXX-XXX-XX-XXX
No OF POSITIONS
EXPRESSED IN # OF POS
(-01 THRU -50)
LEAD STYLE
(SEE TABLE 1)
PLATING SPECIFICATION
(SEE NOTE 2)
-G: 10µ" SELECTIVE GOLD IN CONTACT
AREA, 3µ" SELECTIVE GOLD ON TAIL.
-T: MATTE TIN ON CONTACT AND TAIL.
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
-H: 30µ" SELECTIVE GOLD IN CONTACT
AREA, 3µ" SELECTIVE GOLD ON TAIL.
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
-F: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
-TL: 150µ" - 300µ" TIN/LEAD ON CONTACT
AND TAIL.
-TM: MATTE TIN ON CONTACT AND TAIL.
-SM: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
-LM: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
-FM: 3µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL.
OPTION
POLARIZATION
OPTION
-LL: LOCKING LEAD (SEE FIG 2)
AVAIL ON .090[2.29] - .310[7.87] TAILS ONLY
(N/A IN SINGLE ROW, 1 & 2 POS)
TAIL LENGTH
(.055[1.40] MIN)
SPACE OPTION
(.200[5.08] MIN)
MAX = "L" - .055[1.40]
ROW OPTION
-S: SINGLE (USE BODY HTSW-50-S-LCP)
-D: DOUBLE (USE BODY HTSW-50-D-LCP)
-T: TRIPLE (USE BODY HTSW-50-T-LCP)
-Q: DOUBLE ROW, .200 ROW SPACE
(USE BODY HTSW-50-T-LCP)
(NO OF POSITIONS x .100[2.54])
+.000[0.00]
-.015[0.38]
.000[0.00] 2.54 MIN
C
-XXX±.008[0.20]
"L" REF
SPACE OPTION
OVERALL LENGTH
(.200[5.08] MIN
(SEE TABLE 1)
(MAX = "L" - .055[1.40])
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54 REF (TYP)
HTSW-50-X-LCP
.100 2.54 REF (TYP)
T-1S6-XX-X-2

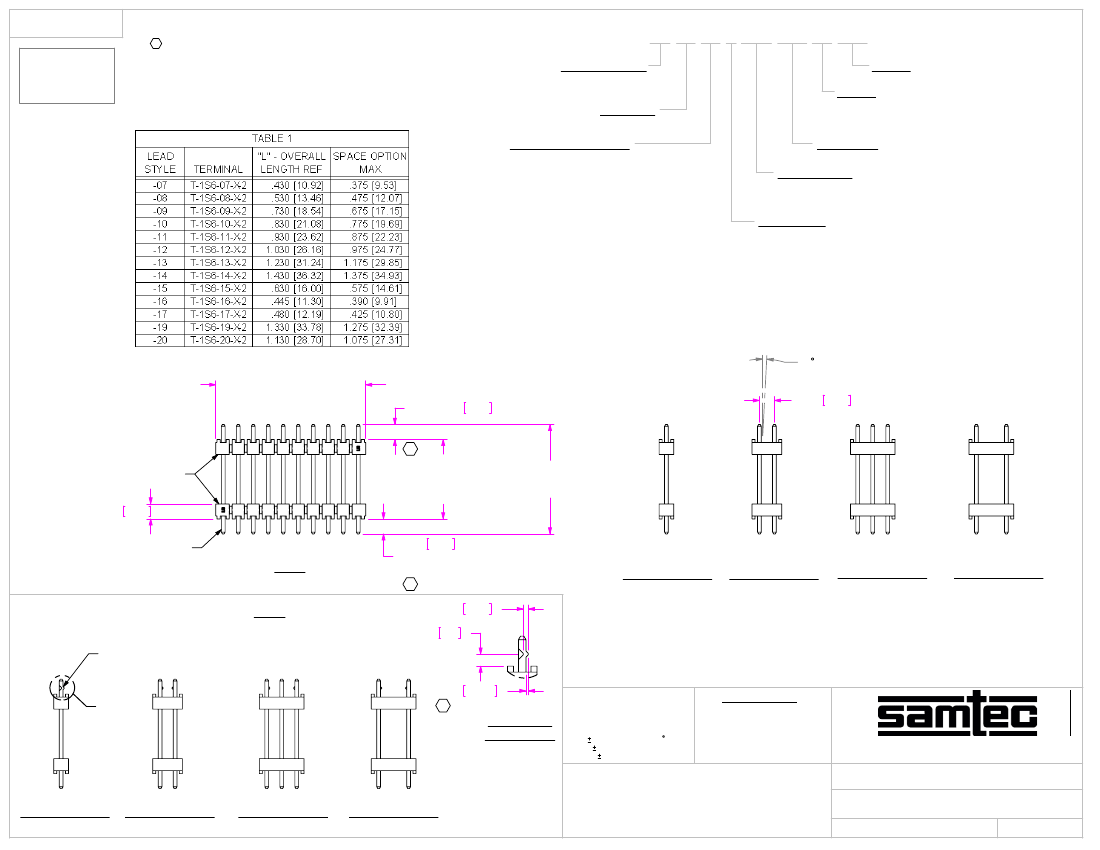

HW-10-09-XX-S-530-100 SHOWN
FIG 1
-XXX 2.54 ±.008[0.20]
TAIL LENGTH
(.055[1.40] MIN)
C
.017 0.43
.04 1.0
ROW OPTION
-S: SINGLE
ROW OPTION
-D: DOUBLE
ROW OPTION
-T: TRIPLE
-Q: DOUBLE ROW
ROW OPTION
-LL: LOCKING LEAD
(SAME AS FIG 1, DIFFERENT AS SHOWN)
CRIMP SHORTER TAIL ON OR ABOUT C
L
(OPPOSITE CONTACT AREA)
FIG 2
'A'
.0080 0.204
C
DETAIL 'A'
SCALE 3 : 1
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [0.3]
2
.XXX: .005 [0.13]
.XXXX: .0020 [0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:2
INSULATOR: LCP, UL 94 VO, COLOR: NATURAL
TERMINAL: PHOS BRONZE
.100[2.54] HIGH TEMP
TERMINAL BODY (BOARD STACKING)
ROW OPTION
-S: SINGLE
ROW OPTION
-D: DOUBLE
ROW OPTION
-T: TRIPLE
-Q: DOUBLE ROW
ROW OPTION
HW-XX-XX-XX-X-XXX-XXX-XX-XXX
SHEET
1
OF
1
F:\DWG\MISC\MKTG\HW-XX-XX-XX-X-XXX-XXX-XX-XXX-MKT.SLDDRW
BY:
REIDINGER 08/27/1991
