FP9355 datasheet, PDF - EEWORLD Datasheet

FP9355: Description5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4; CategoryWireless rf/communication Radio frequency and microwave; File Size644KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

FP9355 Overview

5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

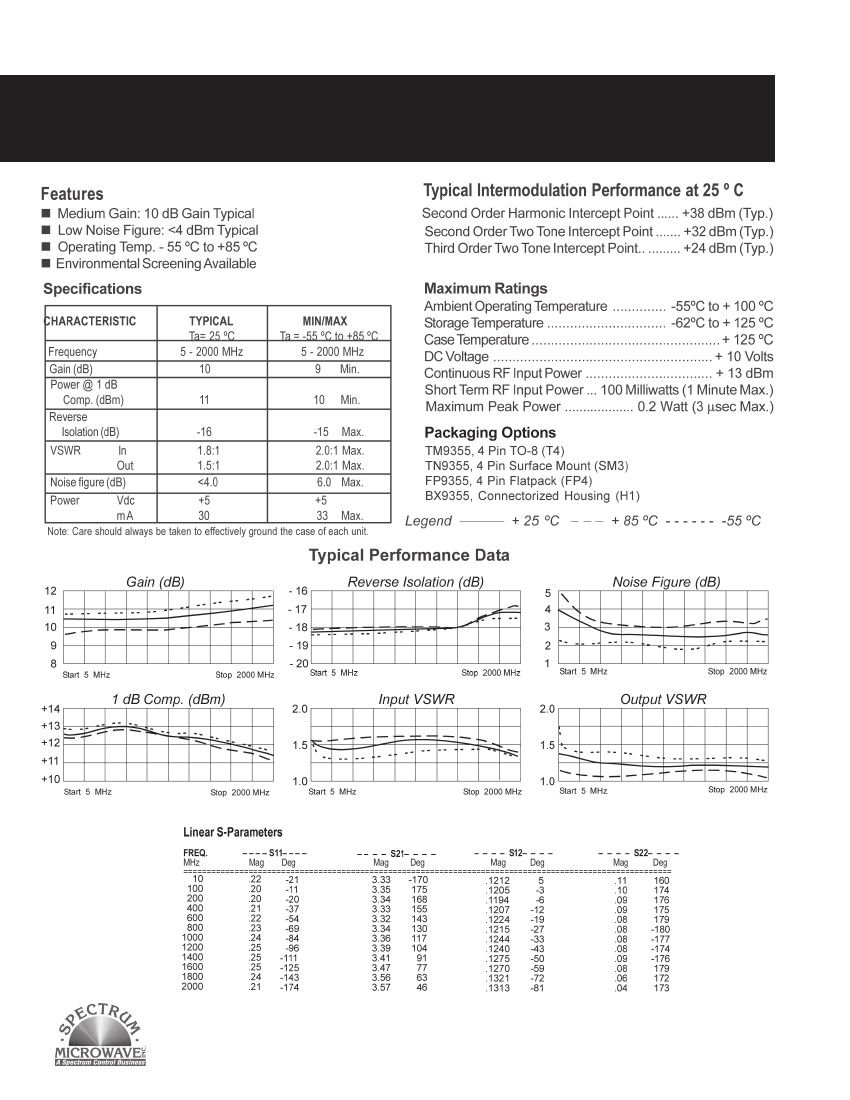

RF Amplifier

Medium Gain: 10 dB

Model TM9355

5 to 2000 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

470

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

	FP9355	BX9355	TN9355	TM9355
Description	5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1, TO-8	5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-3, 4 PIN	5 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, TO-8, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	SMA-F, I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	9 dB	9 dB	9 dB	9 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
