HCMOS 3.2x2.5mm 2.5V SMD Oscillator
Model: F340 Series
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 10/21/2008
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
•
2.5V Operation
HCMOS Output
Low Power Consumption
Standby Function
Tape and Reel
(2,000 pcs. STD)
XpressO
®
Equivalent
FXO-HC32
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!
• PART nUMbER SELECTIOn
Learn More - Internet Required
Part Number
639-Frequency-xxxxx
643-Frequency-xxxxx
640-Frequency-xxxxx
644-Frequency-xxxxx
641-Frequency-xxxxx
645-Frequency-xxxxx
642-Frequency-xxxxx
Model
Number
F340
F340R
F345
F345R
F346
F346R
F348
Frequency
Stability
1
±100PPM
±100PPM
±50PPM
±50PPM
±25PPM
±25PPM*
±20PPM*
Operating
Temperature (ºC)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
Frequency
Range (MHz)
0.625 ~ 75.000
0.625 ~ 75.000
0.625 ~ 75.000
0.625 ~ 75.000
0.625 ~ 75.000
1.800 ~ 50.000
1.800 ~ 50.000
3 .2 ± 0.2
#3
#4
Top
View
Dot denotes
Pin 1
2 .5 ± 0.2
#1
#2
1 .2 M ax
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
0.625 ~ 20.000 Mhz
20.000+ ~ 40.000 Mhz
40.000+ ~ 60.000 Mhz
60.000+ ~ 75.000 Mhz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
) (T
r
)
Fall Time (90% ~ 10% V
dd
) (T
f
)
Output Voltage
(V
ol
)
(V
oh
)
Output Current
(I
ol
)
(I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Maximum Solder Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
MAX
(unless otherwise noted)
0.625 ~ 75.000 MHz
-55ºC ~ +125ºC
2.5V ± 5%
5mA
9mA
11mA
14mA
45% ~ 55%
6nS
6nS
10% V
dd
90% V
dd
Min
2mA Min
-2mA Min
15pF
10µA
5mS
150nS
5mS
260ºC / 10 Seconds
1
Au
Bottom
View
#1
#4
1 .2
#2
#3
0 .8
0 .7
0 .9
Recommended
Solder Pad Layout
1 .4
1 .2
0 .5
#1
1 .0
All dimensions are in millimeters.
Pin Connections
# 1 E /D
#2 G ND
# 3 O u tp u t
#4 V
DD
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, ag-
ing, shock, and vibration. *Excludes Shock/Vibration
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
• EnAbLE / DISAbLE FUnCTIOn
INH (Pin 1)
OUTPUT (Pin 3)
2
OPEN
ACTIVE
'1' Level V
ih
≥
70% V
dd
ACTIVE
'0' Level V
il
≤
30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
HCMOS 3.2x2.5mm 2.5V SMD Oscillator
Model: F340 Series
Page 1 of 2
RoHS Compliant / Pb Free
Rev. 10/21/2008
http://www.foxonline.com/need_a_sample.htm
XpressO
®
Equivalent
FXO-HC32
Why XpressO?
Lower Cost, Faster Delivery, Low Jitter!

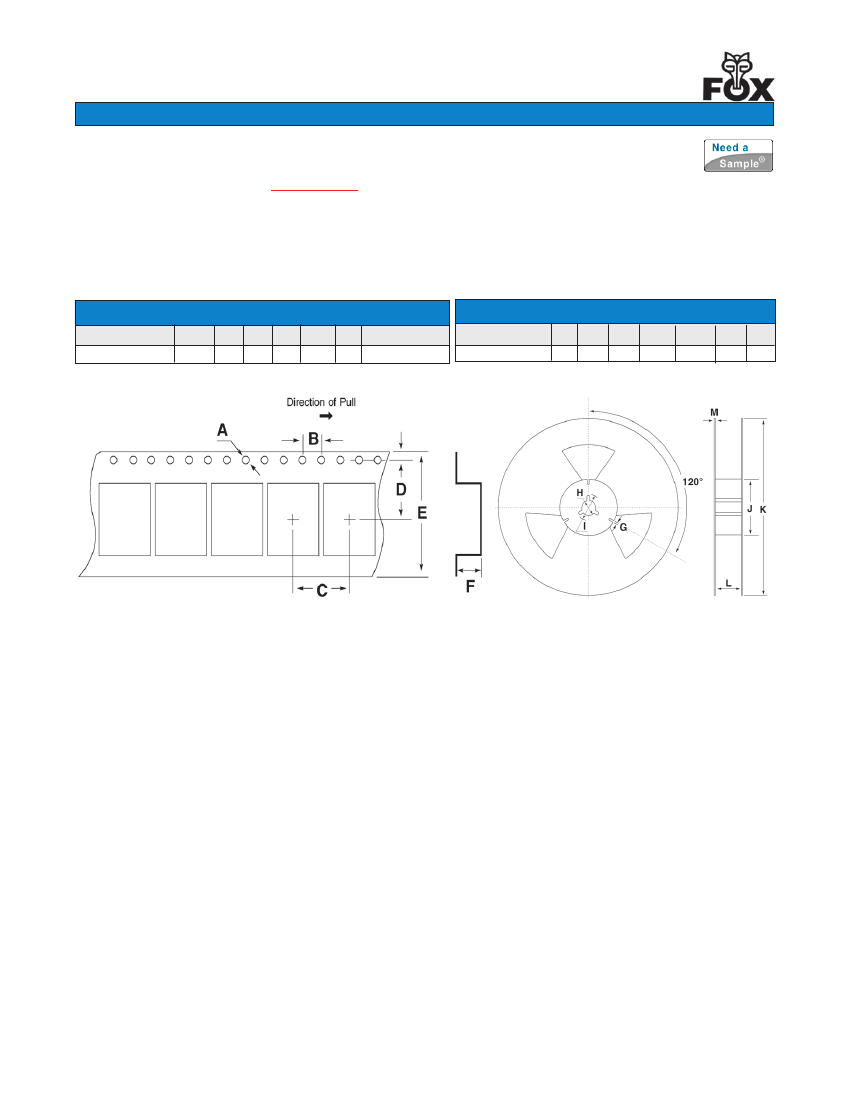

• TAPE SPECIFICATIOnS
(millimeters)
MODEL
F340 Series
• REEL SPECIFICATIOnS
(millimeters)
G H
I
J
K
L M
2.0
∅13 ∅21 ∅60 ∅180
9.0 1.2
b
C D
E
F
STD Reel QTY
MODEL
A
F340 Series
2,000
∅1.5
4.0 4.0 3.5 8.0 1.4
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
