Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks

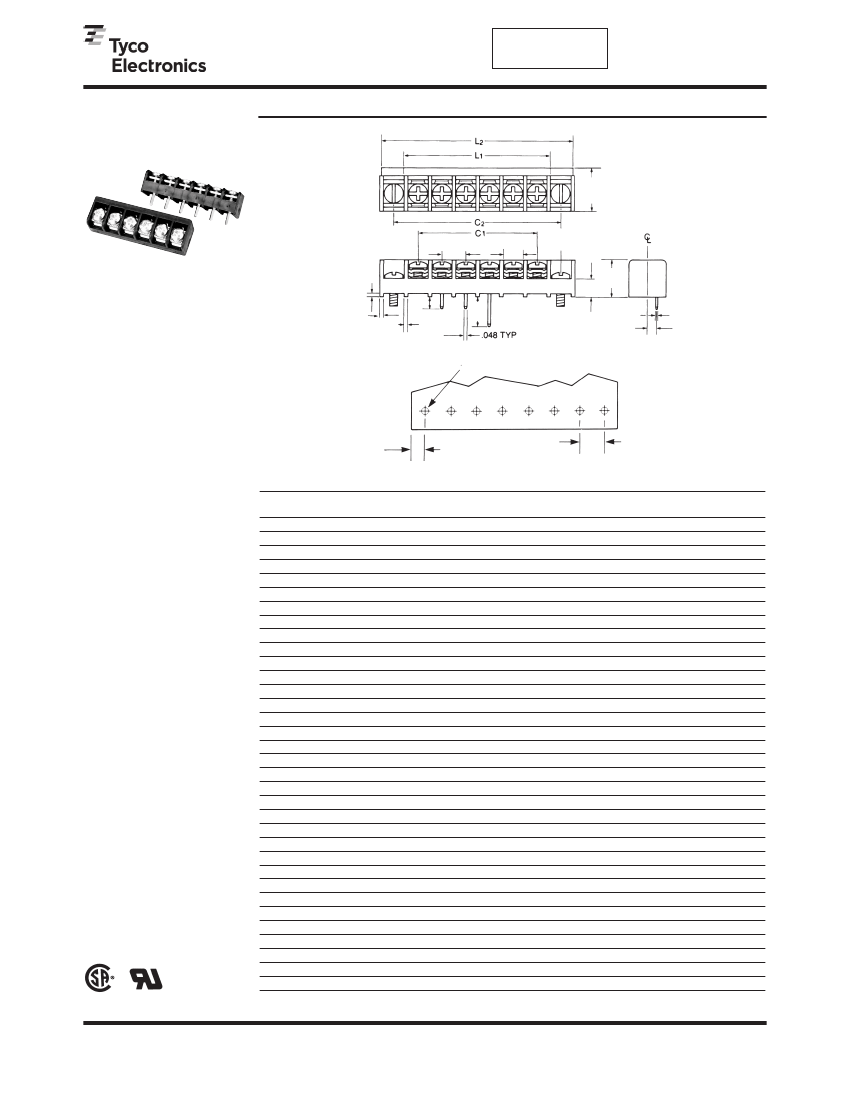

0.325" [8.26] Pitch, Series RSB3
RSB3VP061202
.590
[14.98]
.325
[8.25]
.270
[6.85]
.046
[1.16]
Material & Finish
Housing Material—Polypropylene
Flammability—UL94V-2
Color—Black
Terminals—Brass
w/bright Tin plating
Screws—Steel
w/Zinc + Chromate
plating
.054
[1.37]
.055
[1.39]
.200
[5.08]
.500
[12.7]
.500
[12.7]
.032
[0.81] Typ.
.250
[6.35]
.154
[3.91]
.062
Dia. Hole After Plating
[1.57]
Mechanical Properties
Pitch (Terminal Spacing)—
.325 in [8.26]
Screw Size—6-32
Recommended PCB Hole Dia.—
0.062”
Wire Strip Length—.31
in [7.87]
Recommended Tightening
Torque—9
in-lbs.
Recommended Screwdrivers—
Stanley 1006-4, Sears Craftsman 41581,
Any #2 Phillips-Head
Wire Lug Width (Max.)—
.265 in [6.73]
.325
[8.25]
.180
Min.
[4.57]
Dimensions
Circuits
(not positions)
02
03
04
05
06
07
08
09
10
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
C1
in.
0.325
0.650
0.975
1.300
1.625
1.950
2.275
2.600
2.925
3.250
3.575
3.900
4.225
4.875
5.200
5.525
5.850
6.175
6.500
6.825
7.150
7.475
7.800
8.125
8.450
8.775
9.100
9.425
9.750
10.075
10.400
10.725
11.050
11.357
L1*
in.
0.704
1.029
1.354
1.679
2.004
2.329
2.654
2.797
3.304
3.629
3.954
4.279
4.604
5.254
5.579
5.904
6.229
6.554
6.879
7.204
7.529
7.854
8.179
8.504
8.829
9.154
9.479
9.804
10.129
10.454
10.779
11.104
11.429
11.754
C2
in.
0.975
1.300
1.625
1.950
2.275
2.600
2.925
3.250
3.575
3.900
4.225
4.550
4.875
5.525
5.850
6.175
6.500
6.825
7.150
7.475
7.800
8.125
8.450
8.775
9.100
9.425
9.750
10.075
10.400
10.725
11.050
11.357
—
—
L2*
in.
1.354
1.679
2.004
2.329
2.654
2.979
3.304
3.629
3.954
4.279
4.604
4.929
5.254
5.904
6.229
7.554
6.879
7.204
7.529
7.854
8.179
8.504
8.829
9.154
9.479
9.804
10.129
10.454
10.779
11.104
11.429
11.754
—
—
Electrical Properties
Maximum Current—15A
Operating Voltage—300V
Wire Range—#14-26
AWG
Dielectric Withstand—4000V
Environmental Properties
Operating Temperature Range—
-60°C to +105°C [-76°F to +221°F]
For mating socket, see pg. 162.
Computing Barrier Block
Lengths
Direct Mounting—Use
C1 and L1 for
Mounting Option "P".
End Position Mounting—Use
C2 and
L2 for Mounting Option "M".
LR25557
E63810
*L2 and L1 are based on molded-to-length strips.
164
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks
0.325" [8.26] Pitch, Series RSB3
(Continued)

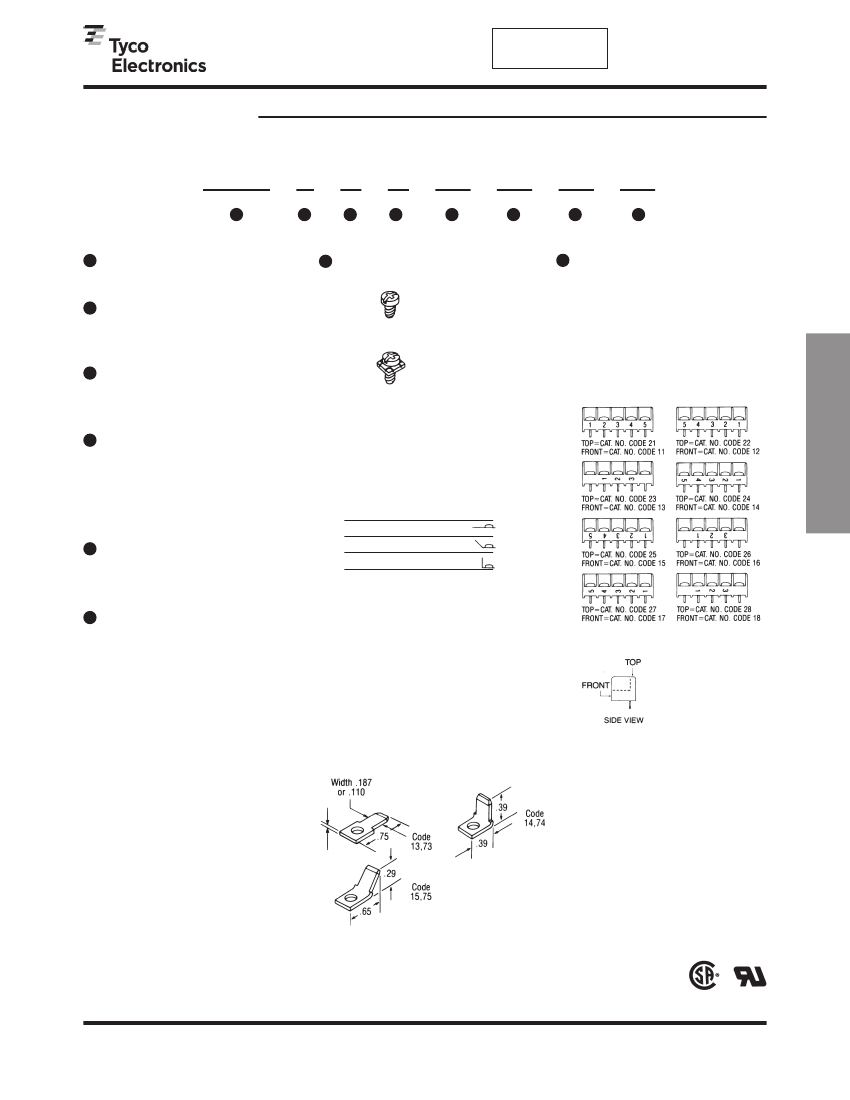

Ordering Information
RSB 3 V P 06 12 02 11*
A
B
C
D
E
F
G
H
A
Single Screw Tri-Barrier Strip
RSB
Contact Spacing
(Center-to-Center)
3=.325
in.
Mounting Position
V=Vertical
Mounting
G
B
Top Hardware Options
01=Bright
zinc and chromate
plated steel binding-
head screw
02=Bright
zinc and chromate
plated steel screw and
captive clamp – Do
not order in
combination with other top
hardware.
Quick-Connect Blades
(supplied with 01 screw)
.110 wide
x.020
thick
13
14
15
.187 wide
x.020
thick
73=
74=
75=
H
Circuit Identification Options
Catalog Number Codes: 11
through 18 and 21 through 28.
RSB3 blocks may be ordered with
white circuit identification
numbers on the molding in 16
variations. Custom markings
available on special order.
Barrier Strips
C
D
End Contact Mounting Options
M=End
Position Mounting: open
end positions with barriers.
P=Direct
Mounting: all positions
filled with contacts, with
barriers
No. of Circuits
(Not Positions)
02
through
34
for M Option
02
through
36
for P Option
Terminal Style
12=Printed
Circuit Pin for use with
USB3 Series Socket
15=Superseded by 4 PCR per
page 125
17=Superseded by 4WWV,
page 125
2
E
F
Catalog Number Codes:
13
through 15 and 73 through 75.
A complete selection of .187” and
.110” quick-connect blades for
connecting wire terminated with
female quick connects. Single-
sided types in flat, 45º and 90º
angle bends can be supplied.
Material is brass with tin plating.
All blades supplied with 01
screws. Various quick-connects
can be combined.
For mating socket, see pg. 162.
LR25557
E63810
165
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
Note:
All part numbers
are RoHS Compliant.
BUCHANAN Terminal Blocks
0.325" [8.26] Pitch, Series RSB3
(Continued)

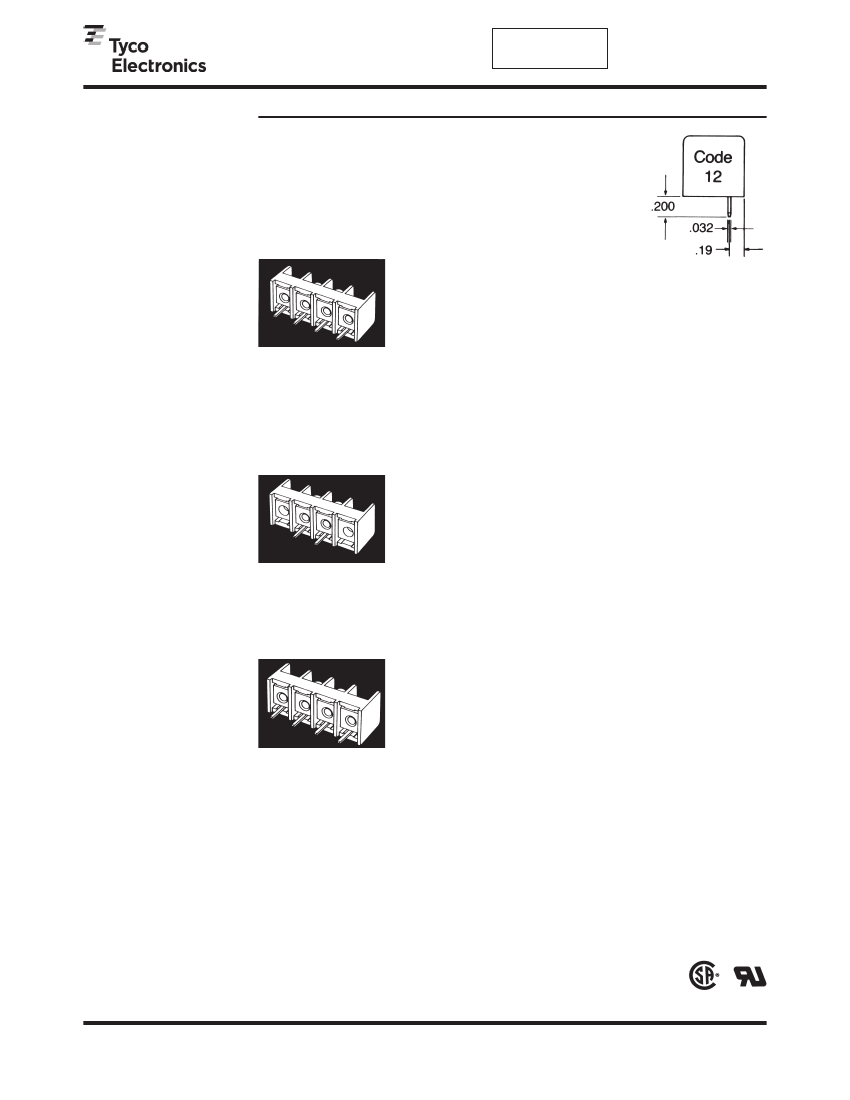

Mounting Position
Vertical Mounting
Catalog Letter Code: V.
Used where
direct top-to-bottom feed-through is
required with no need for circuit isolation
on the bottom side. The most common
example of this is printed circuit board
mounting.
Terminal Style
Printed Circuit Pin
Catalog Number
Code: 12.
Designed
specifically for use
with our USB3
socket, page 162
Hardware Options
3C1xxx—Safety
cover, see page 175
J3140—Jumpers,
see page 177
3L02—Wire
clamp screw, see page 178
3L01—Binding
head screw, see page 178
End Contact Mounting Options
End Position Mounting
Catalog Letter Code: M.
Supplied without
contact in end sections to allow installer to
mount blocks with screws in end section
holes. Base of block will support #6
mounting screws.
Direct Mounting
Catalog Letter Code: P.
RSB3 may be
solder-mounted using the bottom terminals
themselves, as in the case of printed
circuit board applications.
LR25557
E63811
166
Catalog 1308389
Revised 6-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 8706-080-208
